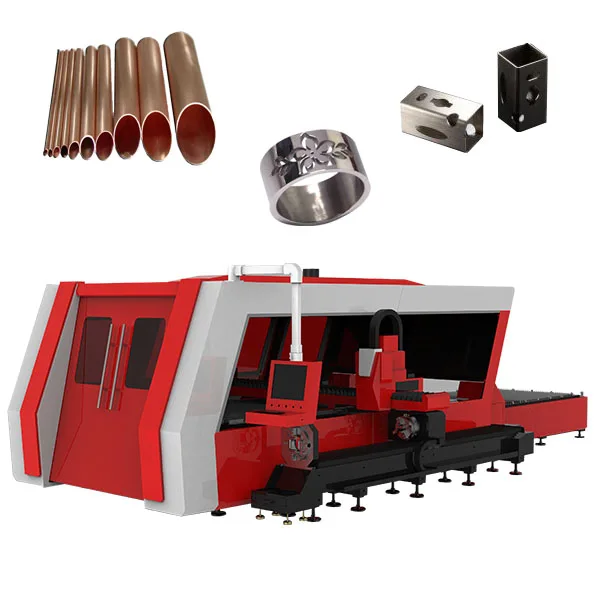

2000watt cover for sheet and pipe fiber laser cutting machine
Technical Parameter
| GY-1530FC-R machine's technical parameters | |||
| Floor area | About 4650*2520mm (excluding loading and unloading area) | ||
| Allow material Maximum cutting area | 1500*3000mm | ||
| Machine Gross weight | 4000KG | ||
| Power supply requirements | 380V/ 50Hz | Total power | 20KW |
| Environmental requirements | Temperature range: 10-35 ºC Humidity range: 40-85% | ||
| 1, 000 meters above sea level, the use of environment non-flammable, explosive, magnetic, strong earthquakes | |||
| Equipment moving system parameters | |||
| Cutting speed, acceleration | 0-50m/min | ||
| 0-3000mm/s2 | |||
| Air-way speed, acceleration | 0-50m/min | ||
| Positioning accuracy | <0.03mm/m | ||
| Drive System | Adopt Japan YASKAWA servo motors drive | ||
| Transmission | All use high precision helical rack and pinion | ||
| Feedback and transport control systems | Dedicated transport and control system | ||
| Ventilation system | Fixed lower ventilation | ||
| Workbench Type | Rack Workbench | ||
| Circuit and protection system | Standard Design | ||
Main laser cutting functions
| GY-FC Series Laser Cutting macine main function | ||
| No. | Function | Description |
| 1 | Height Follow-Up | Torch Move Up And Down According To Plate Height |
| 2 | Power Control | Laser Power Control According To Slope |
| 3 | Reverse Function | Reverse To Execute NC Program |
| 4 | Breakpoint Return | Return To Breakpoint After Recovery |
| 5 | Multi Piercing | Pulse, Blasting, Progress, High-Speed |
| 6 | Lead Line | Set Lead Line Parameter |
| 7 | Auto Edge-Finding | Find Cutting Piece Coordinate Automatically |
| 8 | Leapforg Function | Leapforg To Improve Cutting Efficiency |
| 9 | Common Line | Common Line To Improve Cutting Efficiency |
| 10 | Marking Function | Mark Any Shape On Plate |
1.What is the cost of the lasers?
Our fiber laser unit is the IPG, Raycus or Max and that system starts from $50,000 (US price)--a worthy investment for such a powerful piece of machinery!
The cost of our various laser systems is determined by power (500w, 800w, 1000w, 1500w, 2000w,etc.), cutting table size, and foundation (cutting sheet, or pipe, or both).
2. Can I make money with the laser?
Sure! Metal processing products is in high demand. Adding a laser engraving service to your current operation is an excellent way to reach possible new customers as well as offer a valued service to your current client base.
3. How long does it take to learn to use the laser?
If you know how to use graphic design software, you can be up and running in minutes! There is no difficult software to learn as the operation software is so easy.
It will take a bit of trial and error to learn what speed and power settings to use with different materials, but we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
4. What types of graphics can I cut ?
To cut, you will need a vector based graphic, such as an .dxf or .dwg file.
5.Can GYC's lasers cut metal?
Yes! Our fiber laser machine is special and professional for cutting metallic materials, including stainless steel, carbon steel, mild steel, alloy steel, silicon steel, galvanized sheet, etc.
6. Do I need separate laser systems for engraving and cutting?
No, one laser does it all! Our fiber laser systems will engrave and cut the metallic materials, as well as cut coated metals. The laser knows what portions to engrave and what portions to cut based on the setting, which is easily set in the operation software.
7.With what software are the laser systems compatible?
You can design your files in many different graphic software packages including CorelDraw, Illustrator, AutoCAD, and much more. CorelDraw is the most commonly used software, but the laser works with many different packages.
Welcome to visit our factory in Canton!
