Автоматическая Золотая Горячая фольга штамповочная машина

Share on:

Price in USD:Details


Product Overview


Product Description

hot foil stamping machine


  • Complete design, accurate installation, high stability, high security, low noise.

  • Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.

  • The high precision intermittent mechanism, high cutting precision, running steadily.

  • Non-stop feeding, pre-stacking and collection mechanism can shorten the auxiliary time, improve the efficiency.

  • Pneumatic die locking device, die frame fixed more steadily, accurately and time-saving.

  • Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.

  • Other detail please contact.

Product Parameter



Max paper size

800 x 620 mm

1080 x 780 mm

Min paper size

340 x 280 mm

400 x 330 mm

Max die cutting size

770 x 600 mm

1075 x 770 mm

Chase inner size

820 x 628 mm

1100 x 790 mm

Pressing plate size

826 x 628 mm

1080 x 780 mm

Max stamping area

780 x 600 mm

1060 x 760 mm

Min gripper edge

7 mm

Die cutting precision

≤±0.1 mm

≤±0.125 mm

Foil stamping precision

≤±0.125 mm

Max cutting pressure

200 T300 T

Max cutting speed

7000 S/H

Max stamping speed

6500 S/H

Max foil roll diameter

Φ250 mm

Horizontal foil width

15~600 mm15~1060 mm

Vertical foil width

15~780 mm15~760 mm

Horizontal foil

2 pce

Vertical foil

2 pce3 pce

Heating area

8 pce12 pce

Temperature range

50~199  ℃
Feeding stack height1150 mm1550 mm

Delivery stack height

1000 mm1500 mm
Card board
Corrugated paper
0.1~2 mm
<4 mm
Heating area power16 kW24 kW
Main motor power7.5 kW11 kW
Total power45 kW60 kW

Overall dimension ( mm )




Total weight

10.5 T

17 T

Packaging & Shipping


Company Information


Our Advantage


Related Product




Paper Roll Cutting Machine


flute laminating.png

Flute Laminating Machine



Film Laminating Machine


office cutter_.jpg

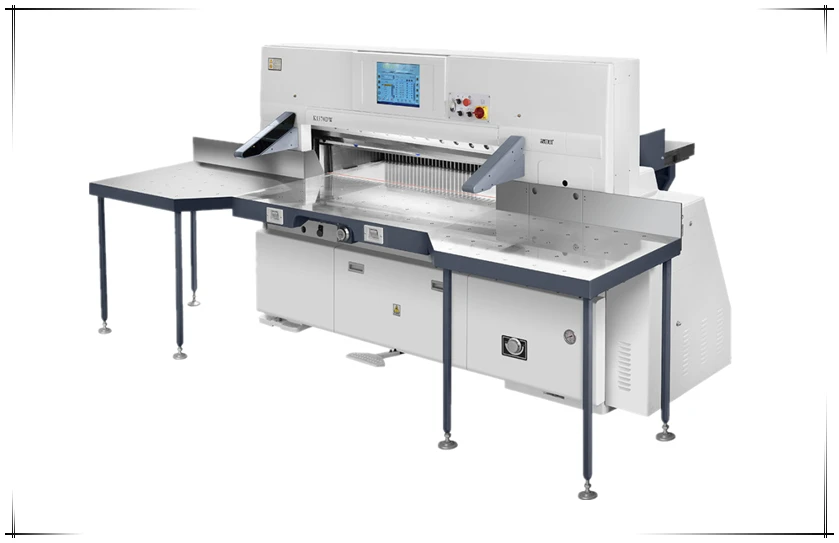

Paper Cutter


manul hot foil stamping.jpg

Hot Foil Stamping Machine


manul paper die cutting.jpg

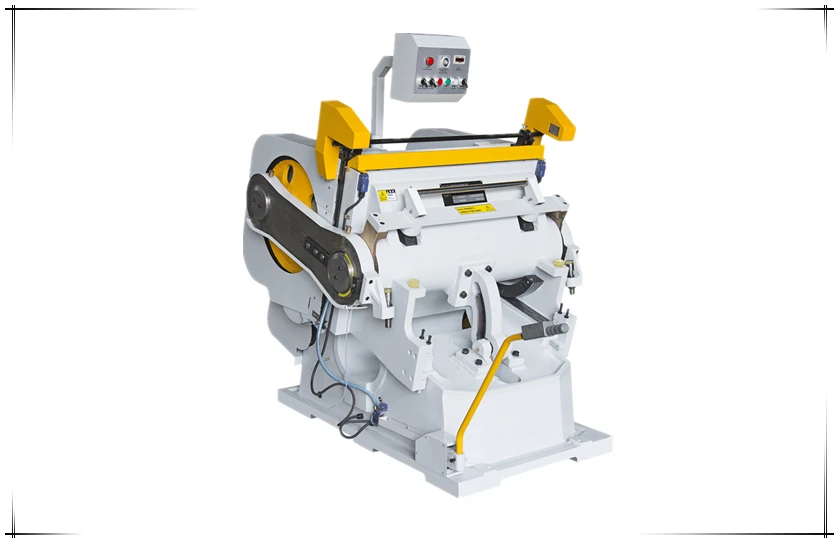

Paper Die Cutting Machine
