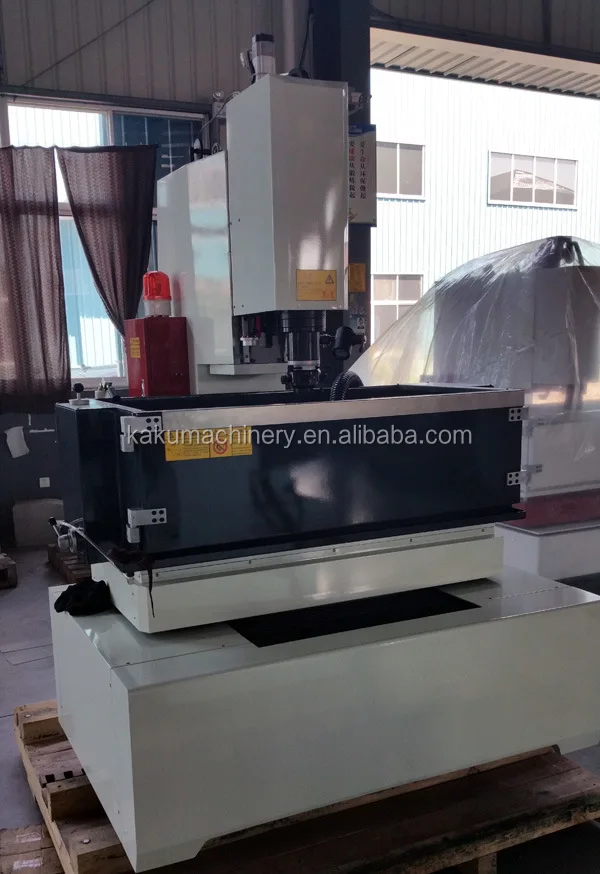

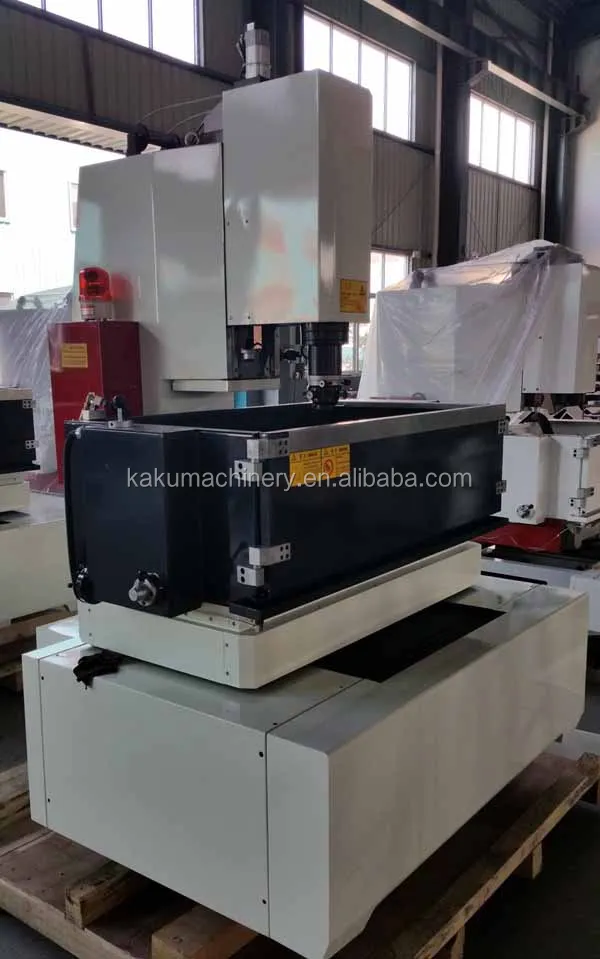

EDM300 Die Sinking EDM Machine ZNC300

Features

1). Main part of the electrical components are purchased from Schneider electric (German company) and Omron company. Adopt three-axis optical digital display. And direction of the optical ruler can arbitrarily change by some code set, Resolution is optional 5 microns or 1 microns.

2). Adopt Industrial computer, operation is more easier. Only need to put in the machining depth, the computer will get the parameter from the database from the system.

3). Adopt special MOSFET discharge circuit design, machining faster, consuming less and getting more smooth finishing. Be suitable for making deep hole, blind hole, Lateral and large area processing, self-discharging carbon alarm, and other functions.

4). There’s more than 10 kinds color on the screen, the operator can change its color as they like, this give a freshness for their feeling.

5). Chinese language and English, the imperial and metric can be changed on the screen as you like, which makes the worker to operate the machine easier than other machines.

6).Revise the parameter during the working will not effect the machining, And the machine has unlimited automatic discharge conditions and program setting, you can choose any section for machining.

7).The machine has the function for ALLM, Infrared flame detection, alarm for finishing the depth and close the power, finding center by itself.

8).The controller has the function for changing the Plus-n-Minus, what’s it also has the function of reverse processing.

Machine body features

The contracture is designed for Tensile, crush resistance, and best Intensity of reaction,

The casting of our machine main body is made of Meehanite FC-35, which has been processed by natural weathering and all kinds of other processing.

The guide way adopts “V” shape design, which can make the table move without any problem under heavy pressing.

The working table adopts TEFLON guide-way cover.

The working table has been Heat-treatment grinding, which can make sure the working table smooth all the time.

Machine System ( Standard Accessory )

Main Accessorys ( Standard Accessory )

Screws of X, Y, Z axes are provided by worldwide famous manufacturer, such as HIWIN, PMI in Taiwan, specification of screw: P3 precious level, diameter is 40mm, guide lead 12mm. Such kind screws are leading in speed and accuracy. As to support of screw, we used fixed support with pretension, which enhance transmission.

Z Axis Servo Motor

ABBA Linear Guide Way

NanGongYi Ball Screw

Bearing

Spindle

Magnetic Table

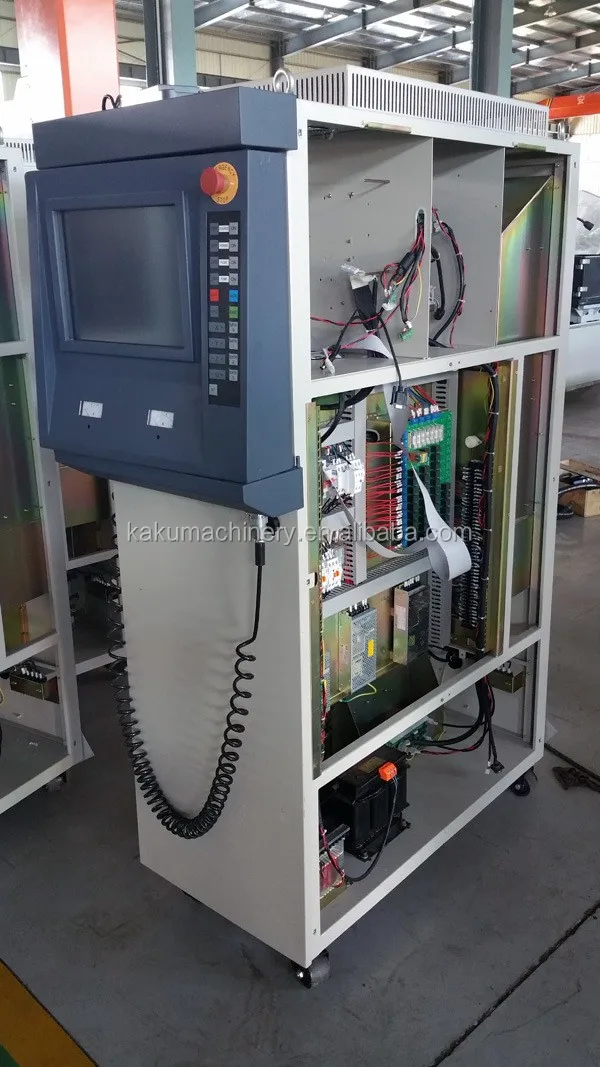

Controller

Standard Accessories

1. Taiwan X/Y precision ball type screw, Z-axis with Switzerland SCHNEEBERGER or KN high-precision roller slide
2. Table is castings
3. NSK or KOYO Bearings
4. Japan's Sanyo servo motor DC
5. Denmark "GRVNDFOS" or Italy "CALPEAO" Oil pump
6. Screw flat chuck

Spare parts together with the machine:

Machine horn
Magnetic seat
Quartz working lights
Filter paper core
Standard tools box
Instruction book
Upside down fire extinguishing device
Patented electrode head
Oil injector
Triaxial optical electronic scale
Electromagnetic sucker
User Manual

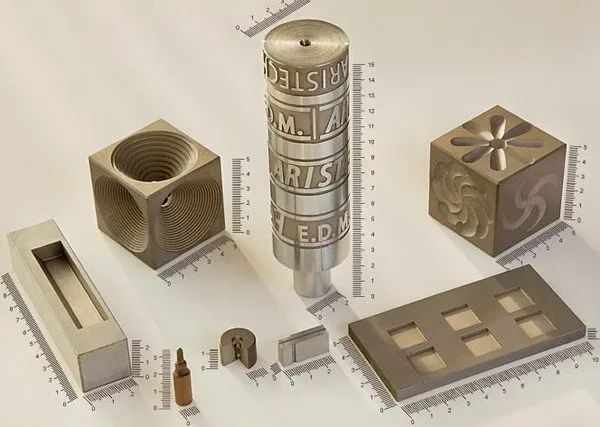

Typical workpiece
