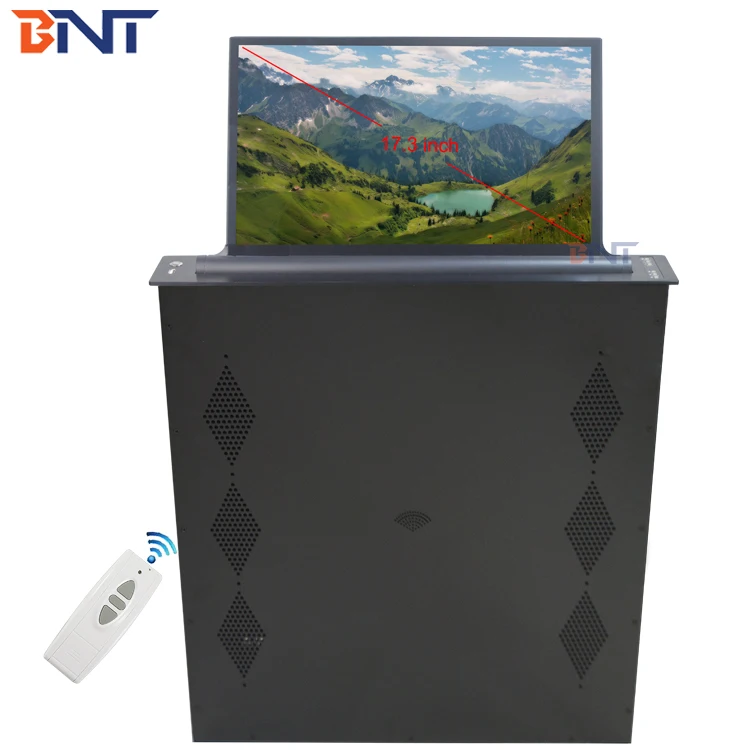

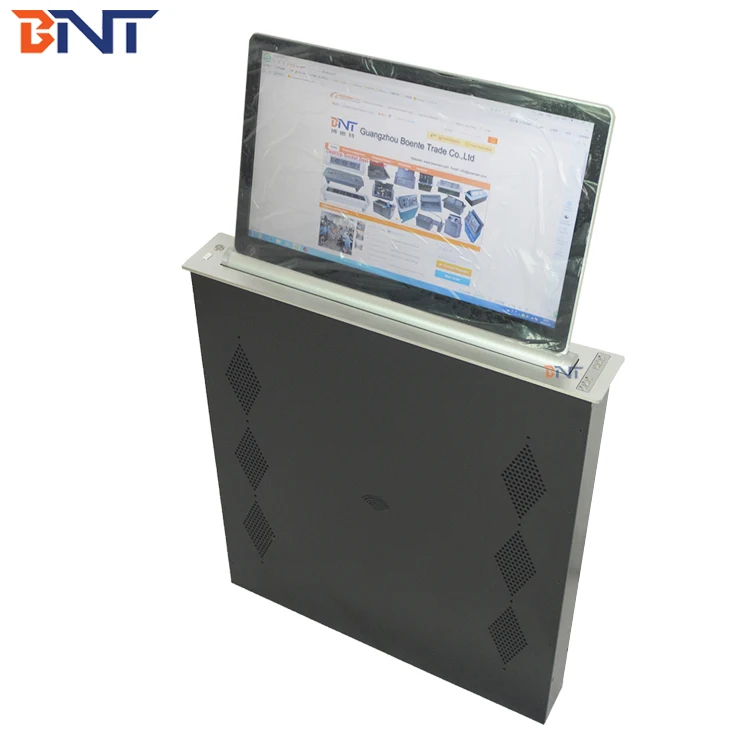

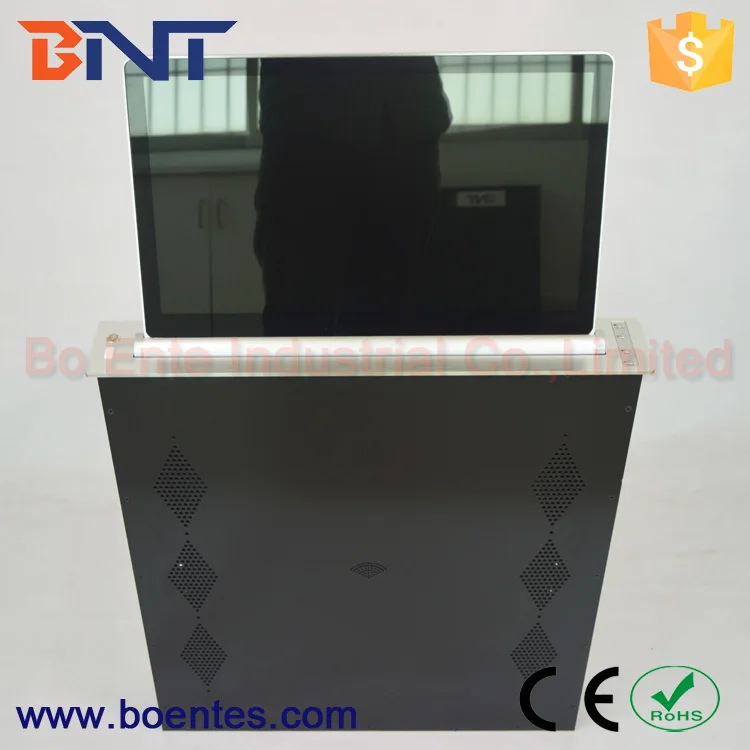

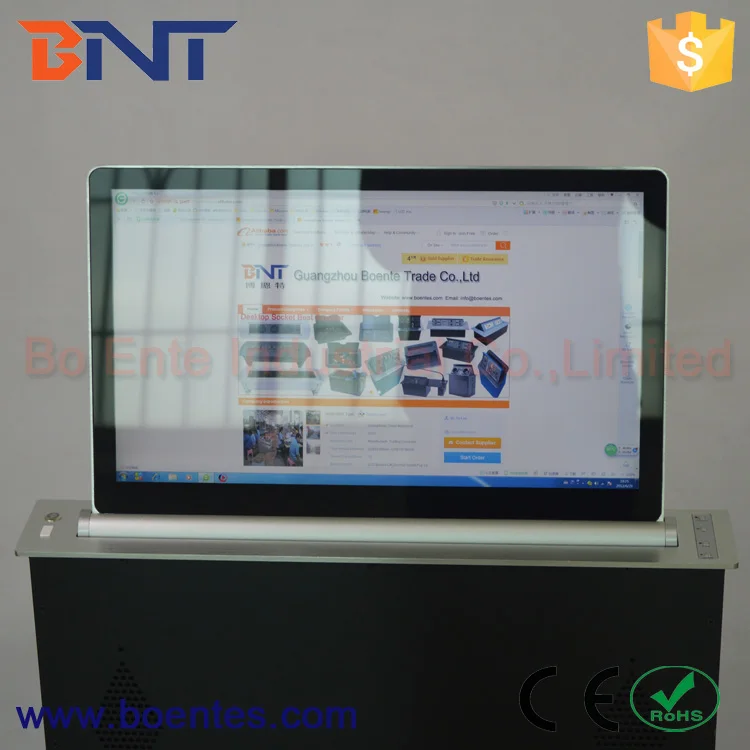

Conference System used Motorized Pop Up Lcd Lift System with 15.6 Inch

Share on (60720641040):


Price:RUB 29,730.84

Quantity:


Product Overview

Description

Conference System used Motorized Pop Up Lcd Lift System with 15.6 Inch Screen



Poster

_01

Hot Sell Products

< LCD Monitor Lift TV Ceiling Lift Ultra-thin Motorized Screen Lift Motorized Table Flip Socket Desktop Socket Motorized Table Pop Up Socket



Product Description



Introduction:

LCD lift is advance hiding equipment designed for audio video system in office furniture. The LCD screen of monitor lifting system would be rising down into the desk and hidden under the office table when unused; Screen inside the LCD lift would be rising up from table automatically by touch switch or remote control and present the workable screen on the desktop if used.



Feature:

1, The panel of LCD lift is aluminum alloy, with aluminum wire drawing process on surface.

2, The Monitor Lift  adopts synchronous orbit lifting principle.

3, Desktop LCD Lift works smoothly and quietly. Low noise which less than 30db.

4, LCD Monitor Lift provides protecting function of LCD monitors by cutting the electricity off automatically.

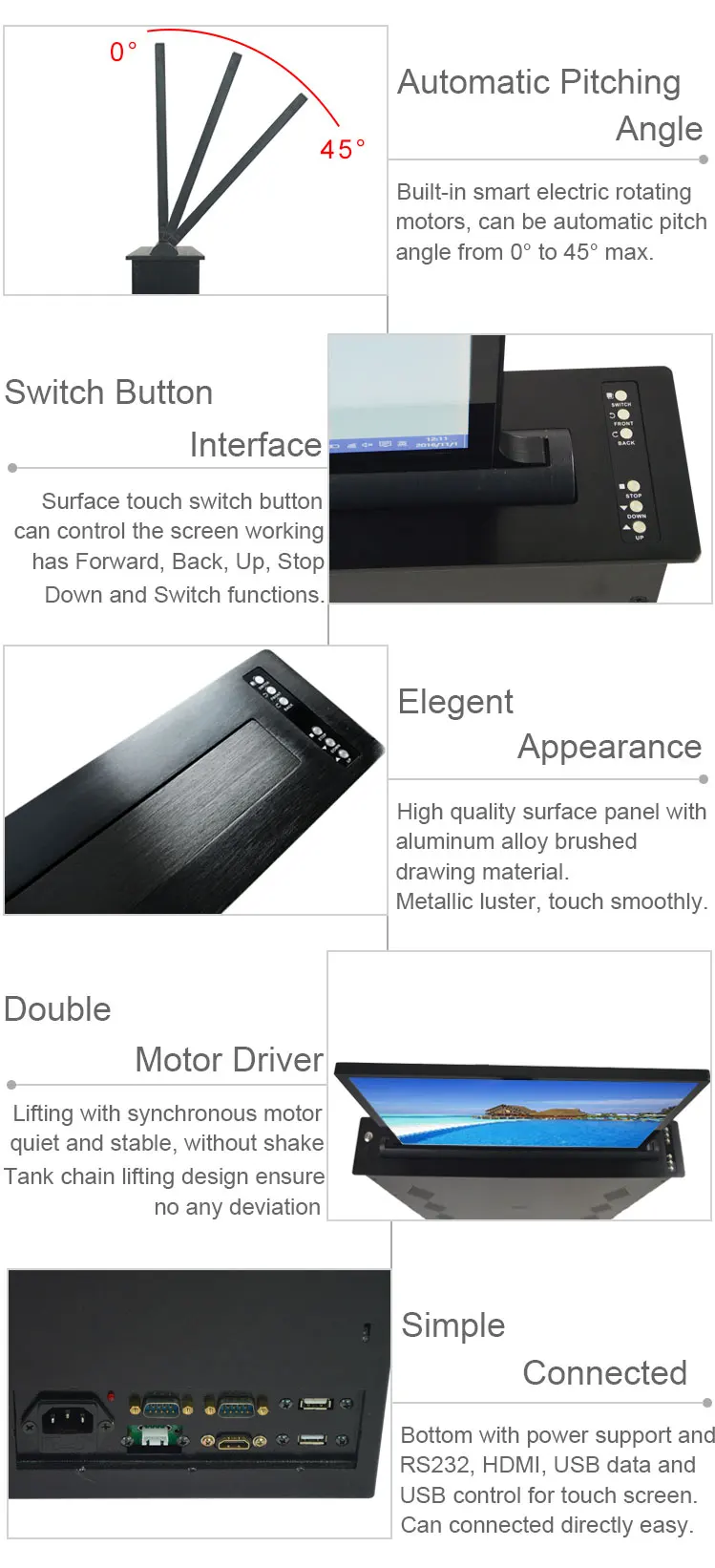

5, LCD Lift would be adjustable elevation angle of LCD monitor for protecting your eyes from the direct light.

5, Tabletop Monitor Lift is controlled by two big AC motors. One controls opening and closing the panel of LCD monitor Lift; one controls lifting the monitor up and down and adjust the angles of the monitor.

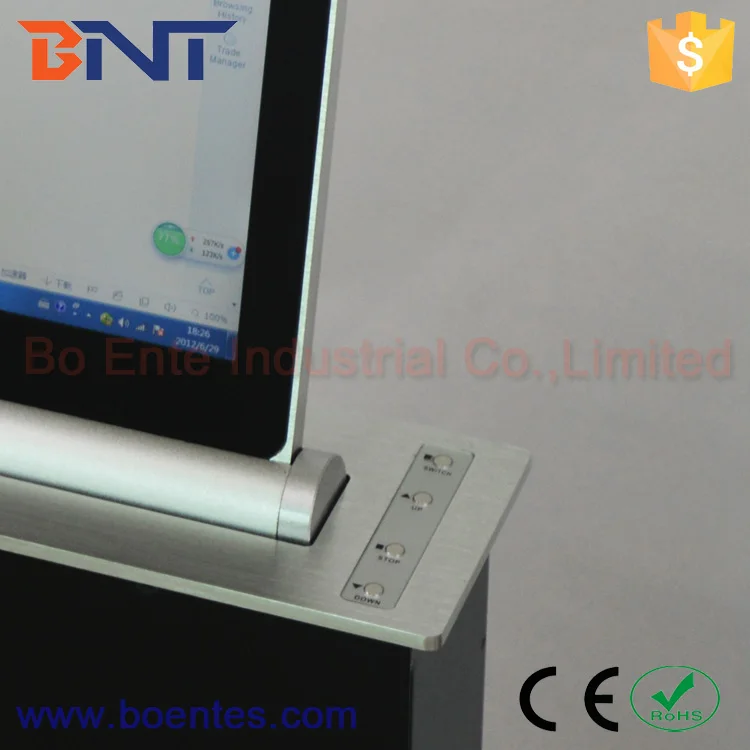

6, Control system: Touch Switch on LCD motorizedLift panel, RF remote control, RS232 AND rs 485 central control.



Application:

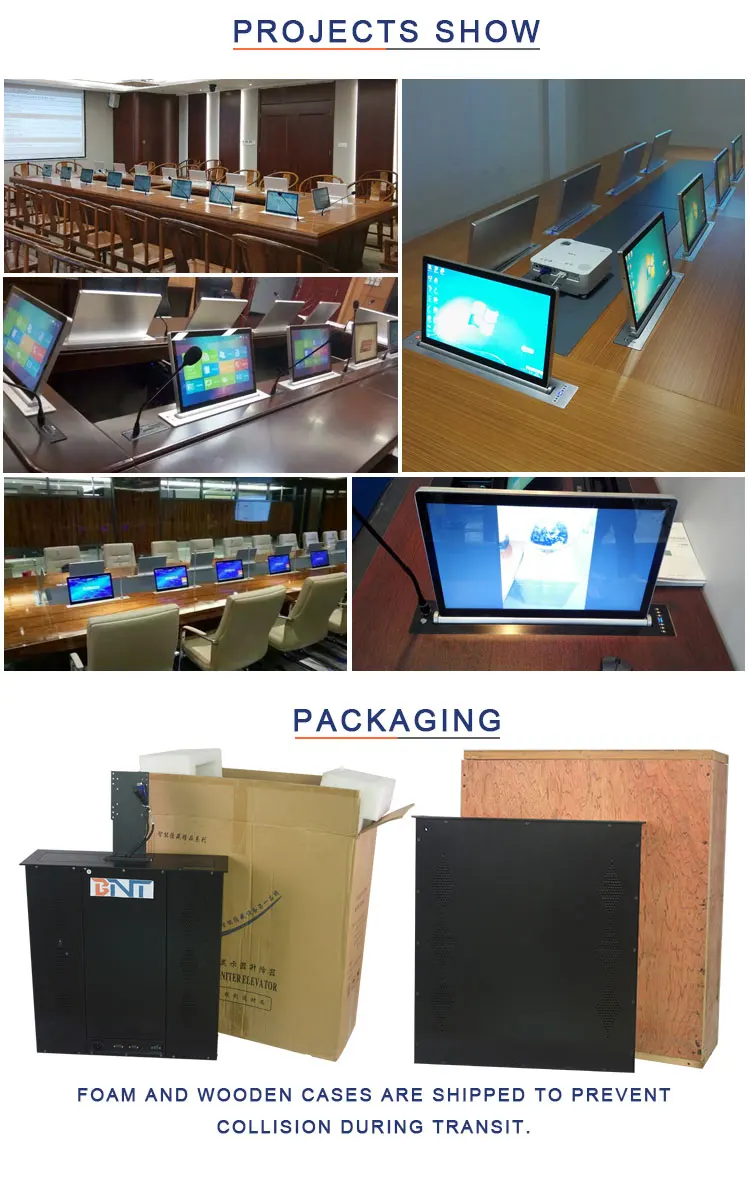

LCD Monitor Lift is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.



Parameter:



Item Model No. BLL-15.6
Material Panel  aluminum alloy
Frame  aluminum alloy
Cover  aluminum alloy
surface  tempered glass
Dimension  Panel  488*88*5mm
Box  468*75*600mm
Monitor  thickness  13mm
Information Pitch Angle      0~15 degree
Switch  up/down/stop
Selection  Color silver/ black
Switch computer /central control
Panel Input  USB/High DMI
Monitor Size 15.6 LED screen
Brand  famouse brand
Format 16: 9
Resolution 1920*1080










LCD Monitor Lift
