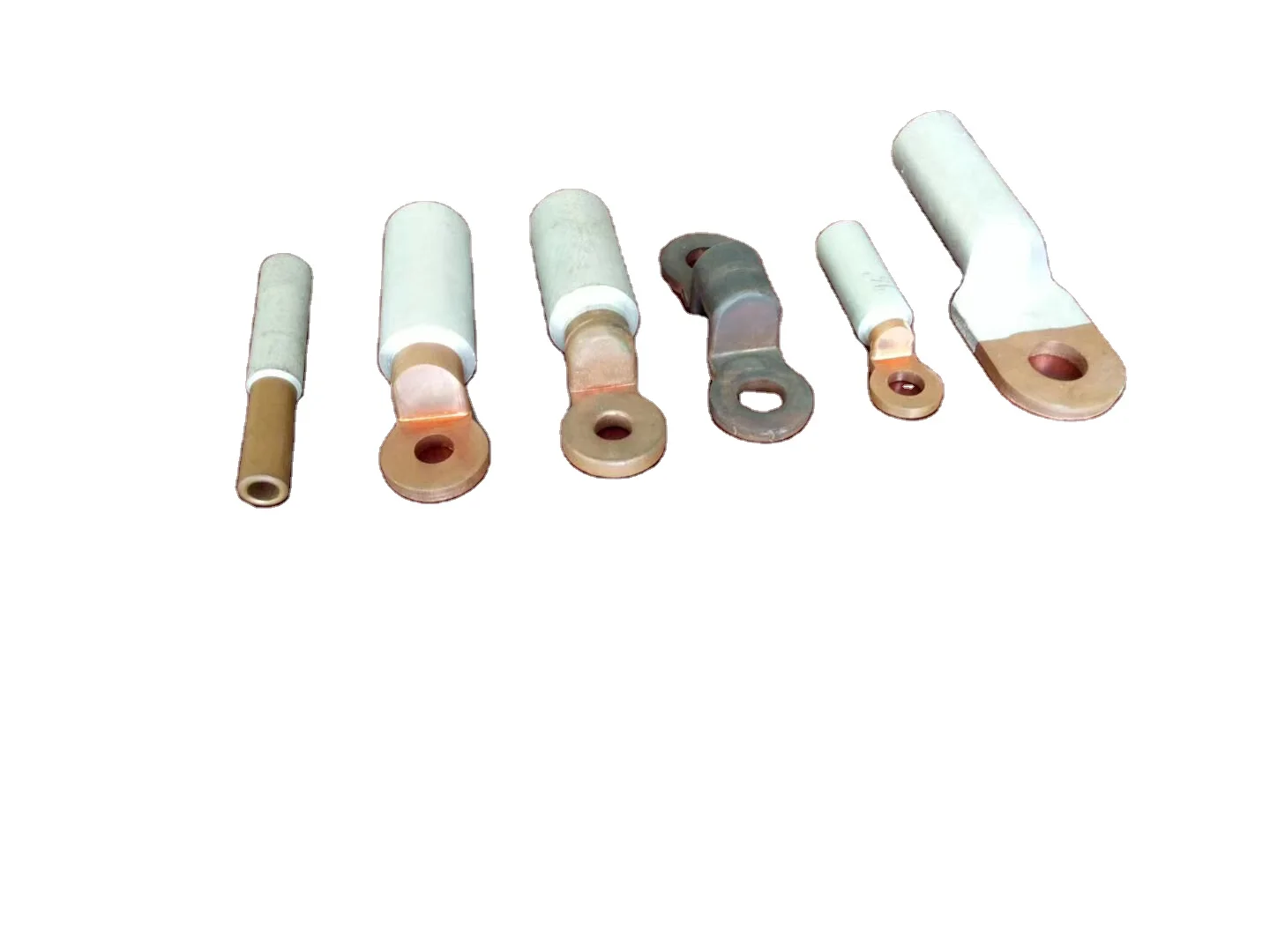

  • 4 Tons small Welding Machine C 4 Friction Welder Machine for welding cable connector
4 Tons small Welding Machine C 4 Friction Welder Machine for welding cable connector
4 Tons small Welding Machine C-4 Friction Welder Machine for welding cable connector
4 Tons small Welding Machine C-4 Friction Welder Machine for welding cable connector
4 Tons small Welding Machine C-4 Friction Welder Machine for welding cable connector
4 Tons small Welding Machine C-4 Friction Welder Machine for welding cable connector
4 Tons small Welding Machine C-4 Friction Welder Machine for welding cable connector
4 Tons small Welding Machine C-4 Friction Welder Machine for welding cable connector

4 Tons small Welding Machine C 4 Friction Welder Machine for welding cable connector

Share on (60720682243):


Price:$25,000.00

Quantity:


Product Overview

Description





Product Paramenters


Product Name

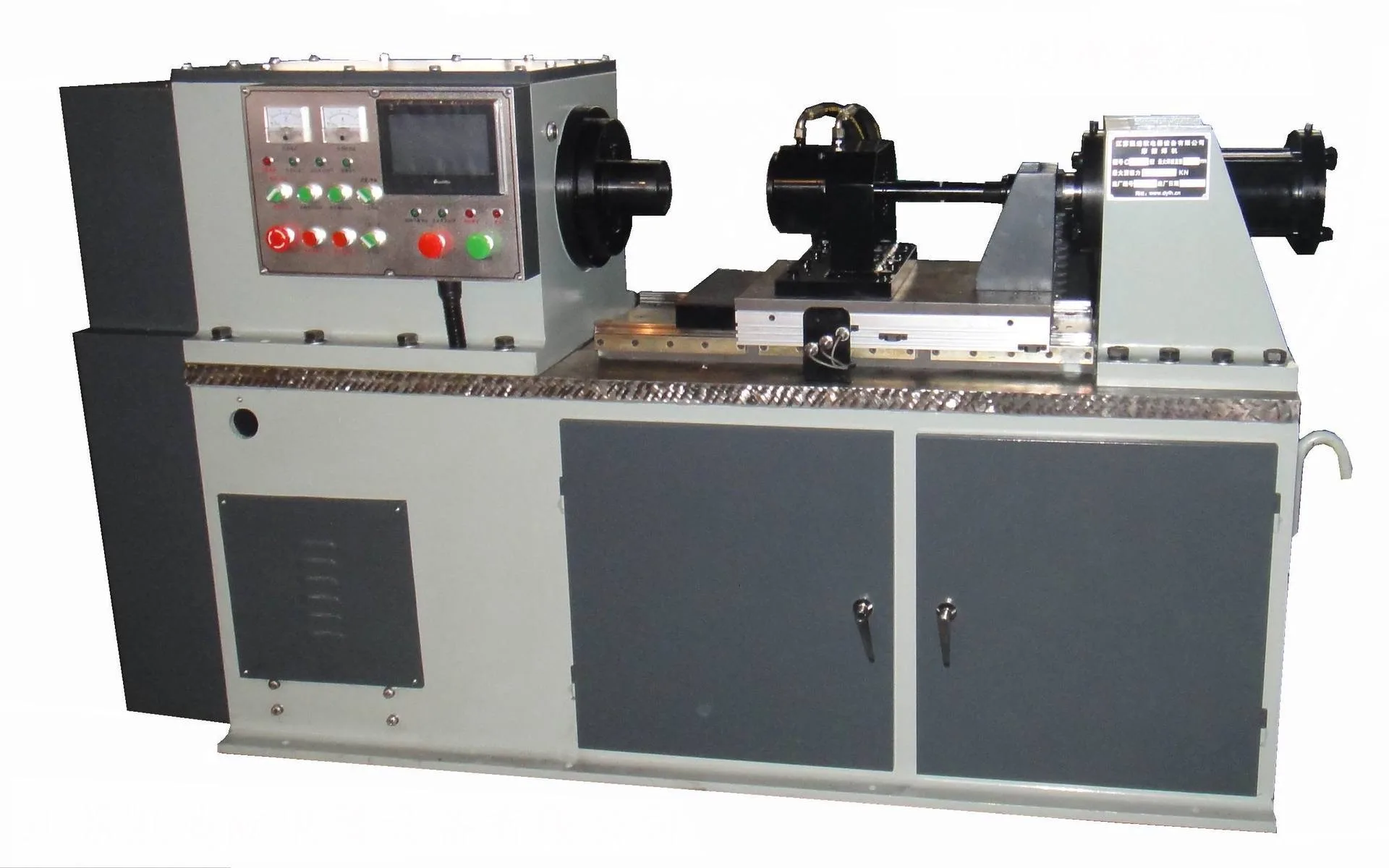

KIDEA C-4 Friction Welding Machine
Max upset force
40 KN
Welding diameter
8-18 mm
Clamping length of rotation fixture
20-300 mm
Clamping length of movement fixture
100-500 mm
Max stroke of workable
200 mm
RPM
2500 r/min
Main motor
11 KW
Oil pump motor
4.55 KW
Mainframe dimension (L*W*H)
2200*810*1200 mm
Hydraulic station dimension (L*W*H)
1110*800*1000 mm
Application areas
Aerospace, power, bearings, automobiles, motorcycles, metal cutting Cutting tools, textile machinery, petroleum geological drilling, construction and other high-tech and traditional industries, etc.


* The figures above are just for reference only



We can manufacture as your request!!!



Products Description


What friction welding is

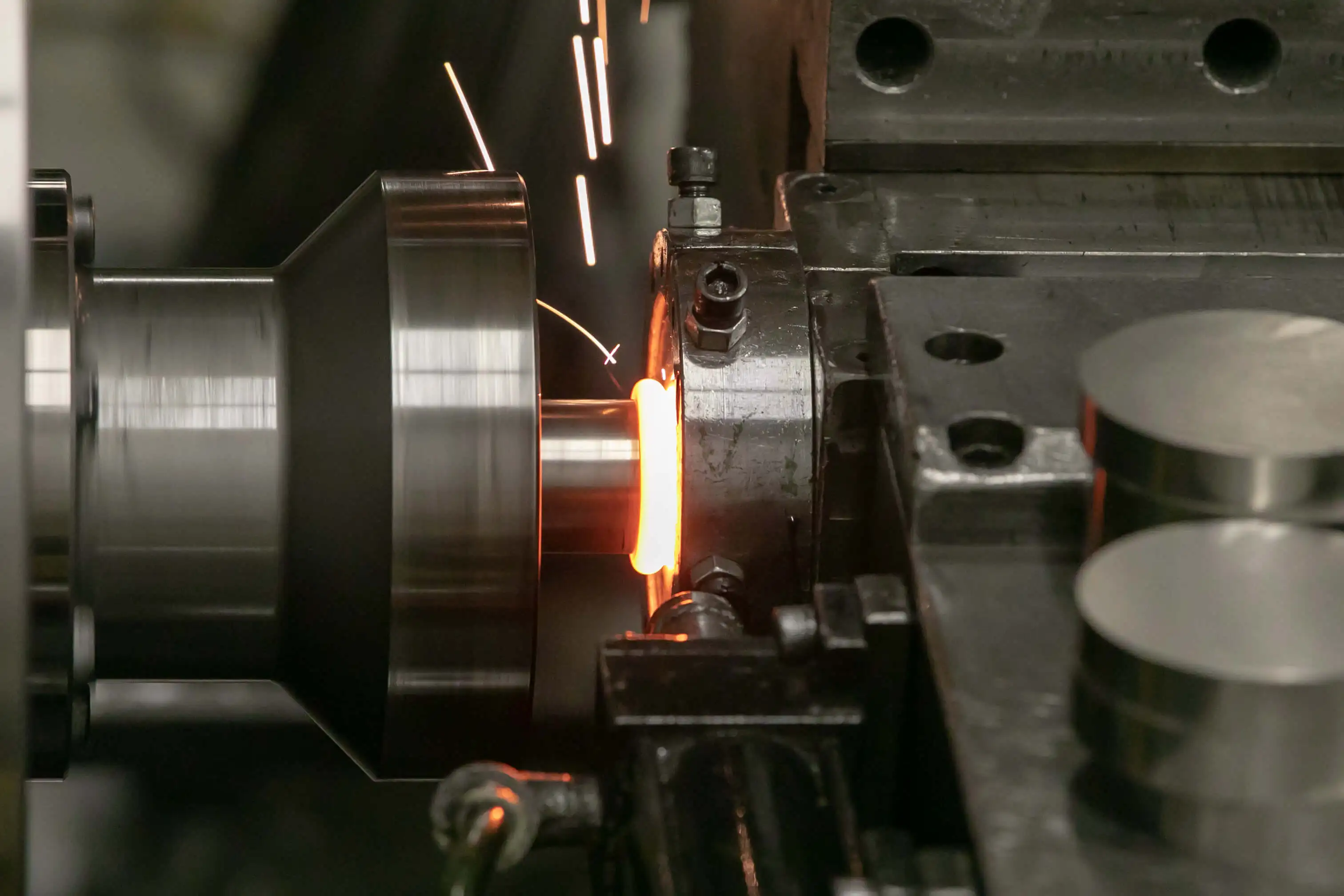

Friction welding is a solid-state joining process that produces coalescence in materials, using the heat developed between surfaces through a combination of mechanically induced rubbing motion and applied load. The resulting joint is of forged quality. Under normal conditions, the faying surfaces do not melt. Filler metal, flux and shielding gas are not required with this process.


Dissimilar Materials
Even metal combinations not normally considered compatible can be joined by friction welding, such as aluminum to steel, copper to aluminum, titanium to copper and nickel alloys to steel. As a rule, all metallic engineering materials which are forgeable can be friction welded, including automotive valve alloys, maraging steel, tool steel, alloy steels and tantalum. In addition, many castings, powder metals and metal matrix composites are weldable.


Advantages



Savings—Cost, Time, Material
Since dissimilar materials can be joined, a significant cost savings is possible because engineers can design bimetallic parts that use expensive materials only where needed. Expensive forgings and castings can be replaced with less expensive forgings welded to bar stock, tubes, plates and the like.
Substantial time savings are realized since the process is significantly faster than more conventional methods of welding.

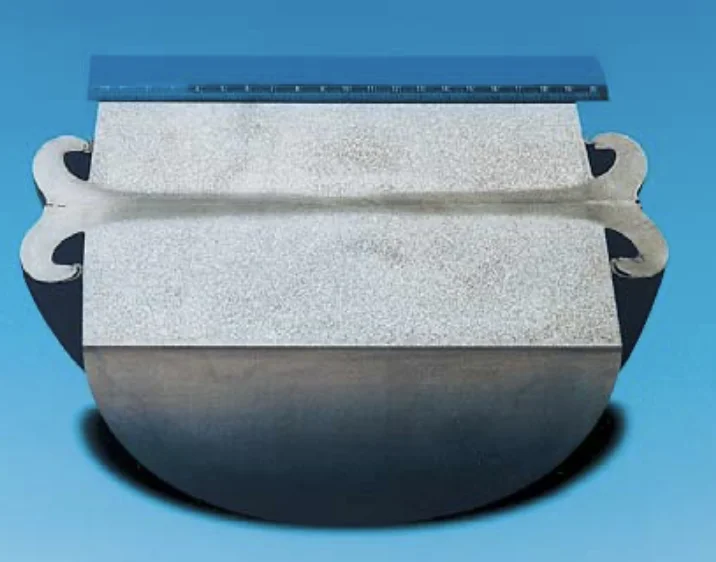

Friction welding produces forged quality joints, with a 100% butt joint weld through the contact area. This solid section shows the narrow heat-affected weld zone and resulting displaced material (flash).

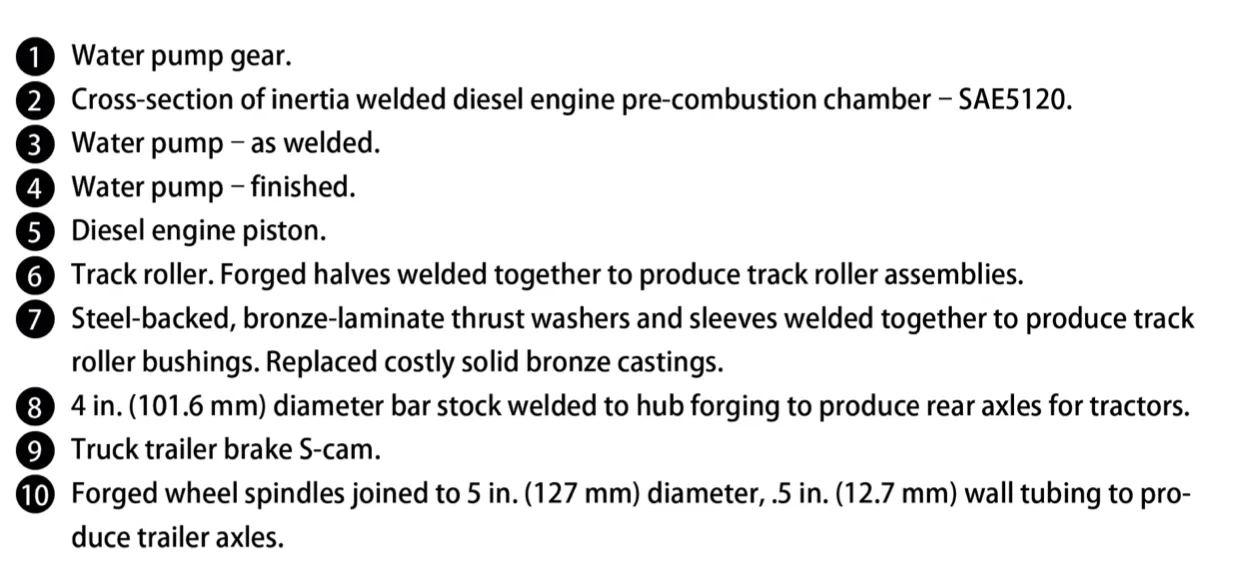

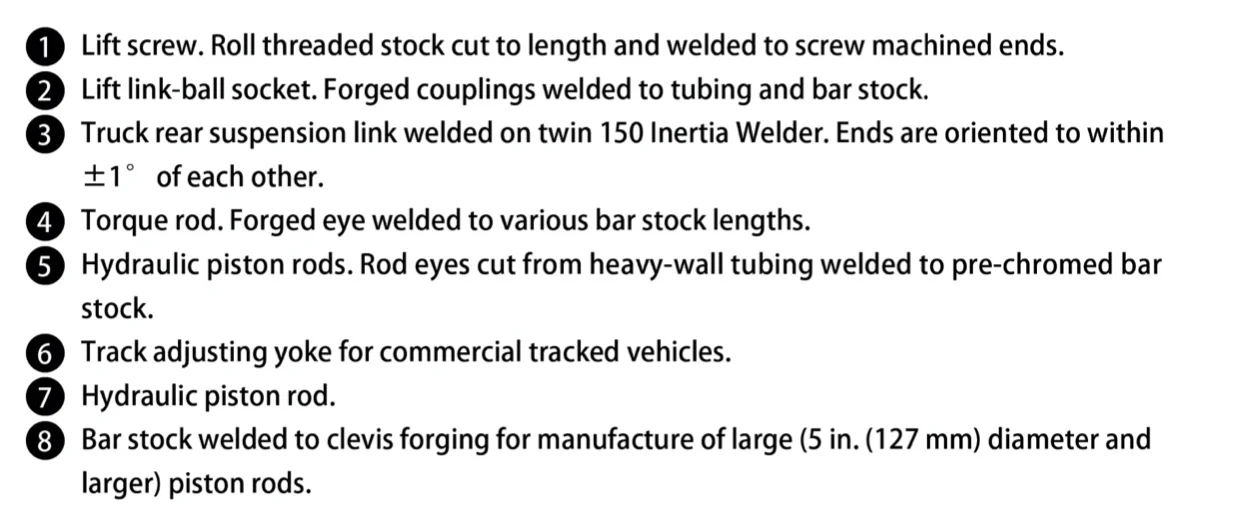

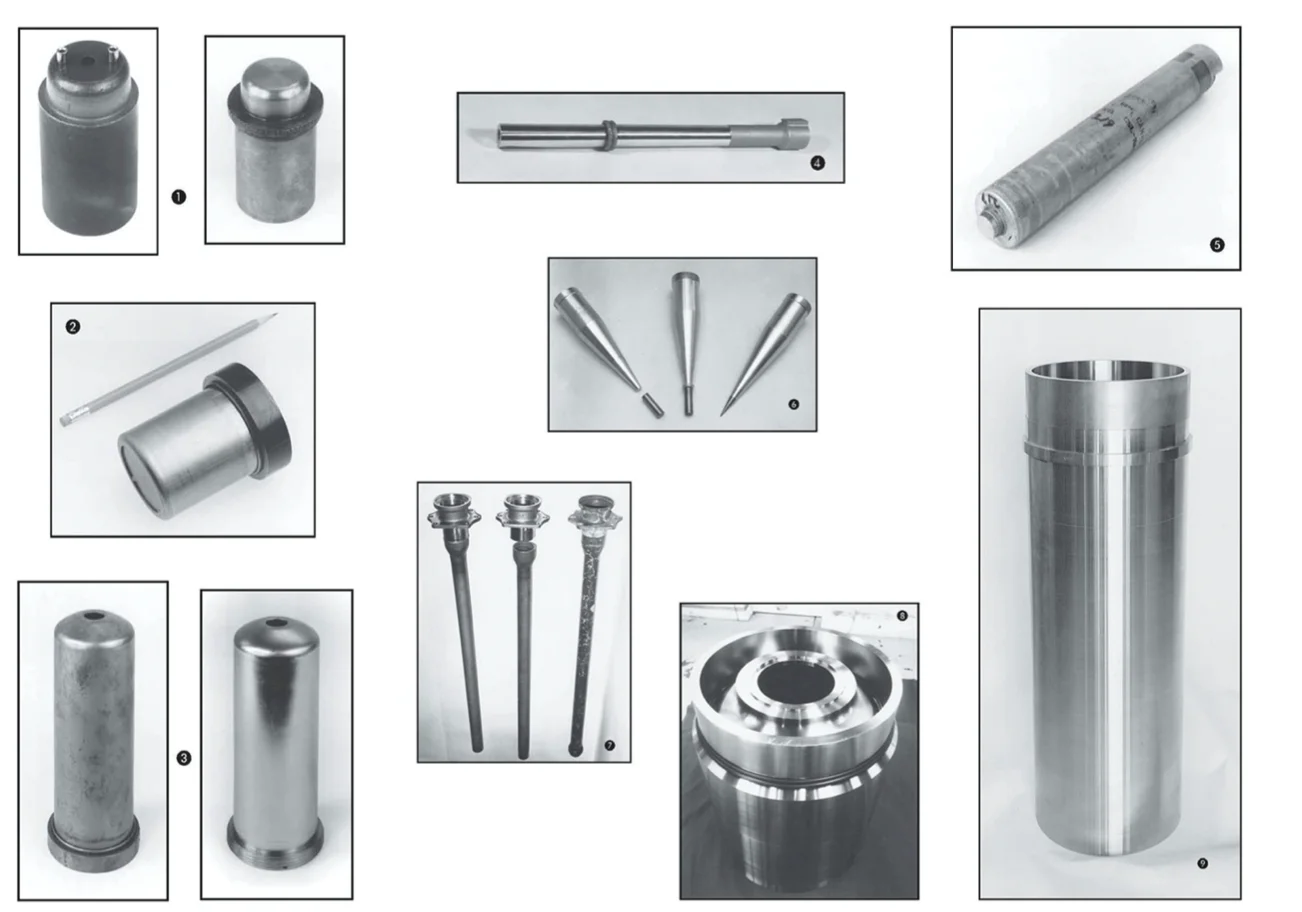

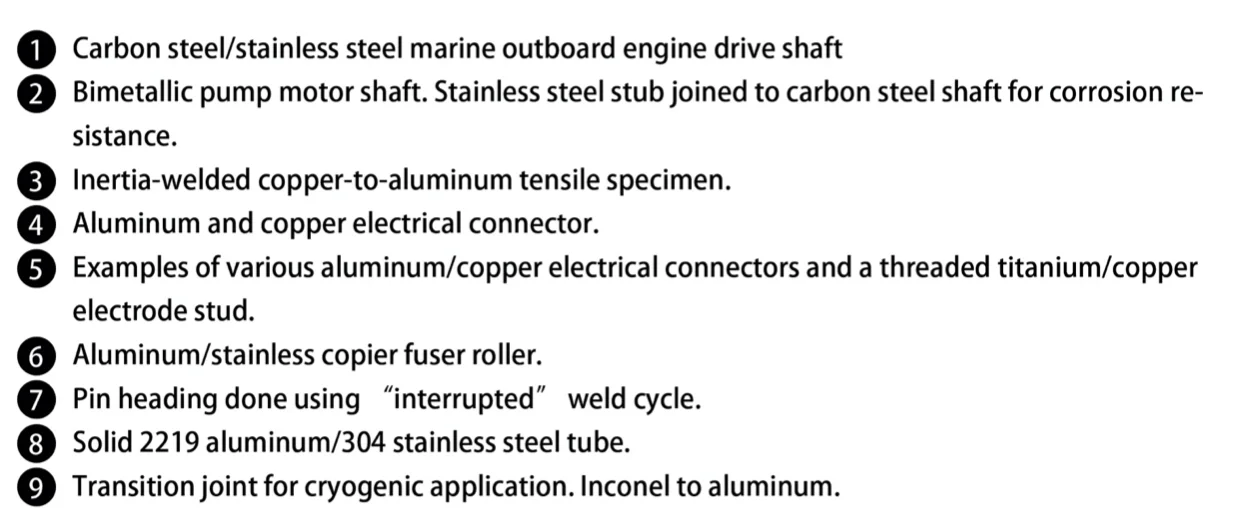

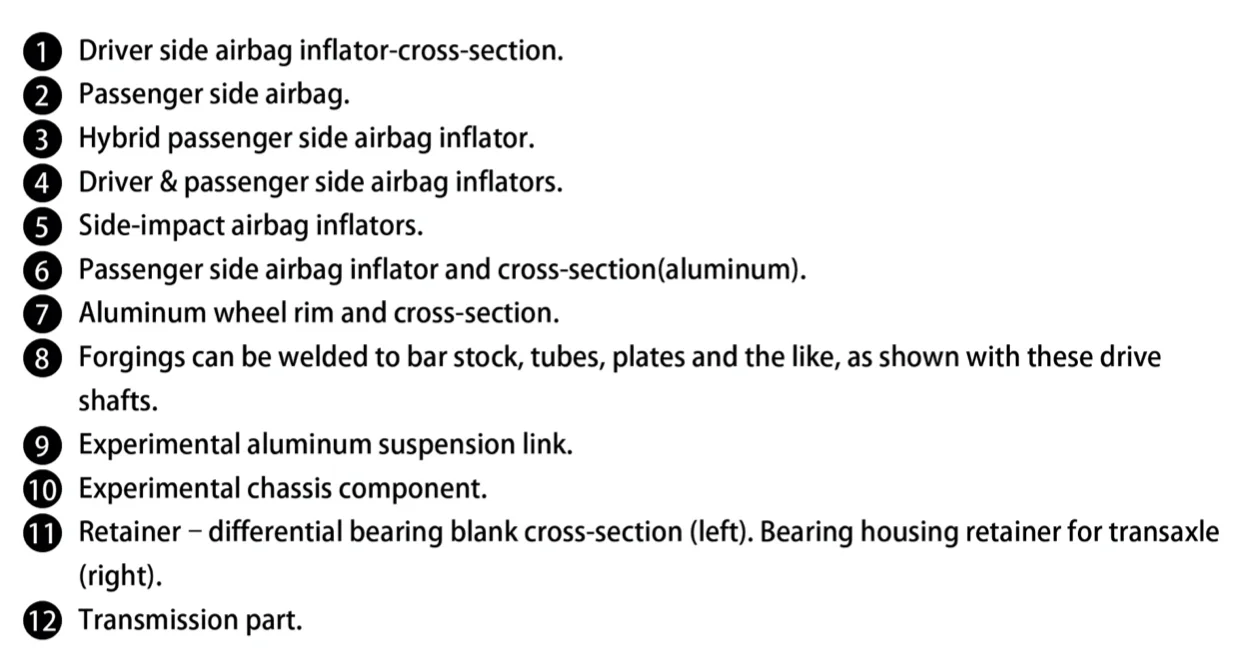

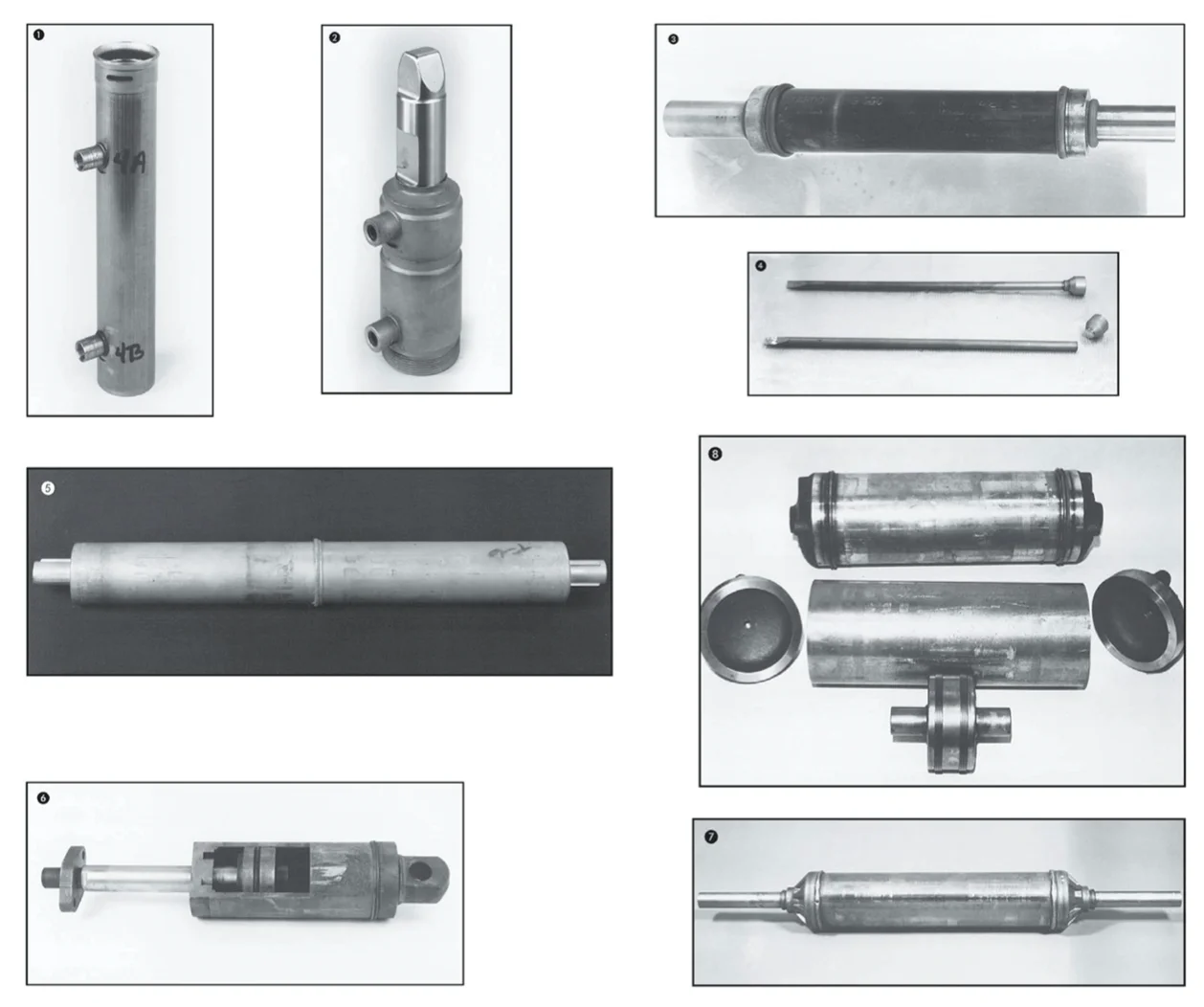

Models & Applications


Models & Capabilities
Model
Max. Upset Force
(KN)
Welding Diameter
(mm)
Mobile Fixture Workpiece Length
(mm)
Rotary Fixture Workpiece Length
(mm)
RPM (Max.)
Variable
(r/min)
C-2.5
25
6-18
50-500 or unlimited
15-300
2500
C-4
40
6-18
50-450 or unlimited
15-300
2500
C-20
200
12-35
80-750 or unlimited
50-200
2000
C-20B
200
14-35
80-750 or unlimited
50-300
1800
C-25
250
14-40
80-750 or unlimited
50-300
1800
C-32
320
18-50
80-850 or unlimited
50-300
1500
C-40
400
20-60
80-750 or unlimited
50-300
1500
C-50
500
18-70
80-750 or unlimited
50-300
1350
C-80
800
45-80
100-1100 or unlimited
50-300
1350
SFC-10
100
12-26
80-750 or unlimited
50-200
0-1500 Adjustable
SFC-30
300
12-50
80-750 or unlimited
50-300
0-1800 Adjustable
SFC-40
400
30-60
80-750 or unlimited
50-300
0-1200 Adjustable
We customize friction welding machines as customers' requests.

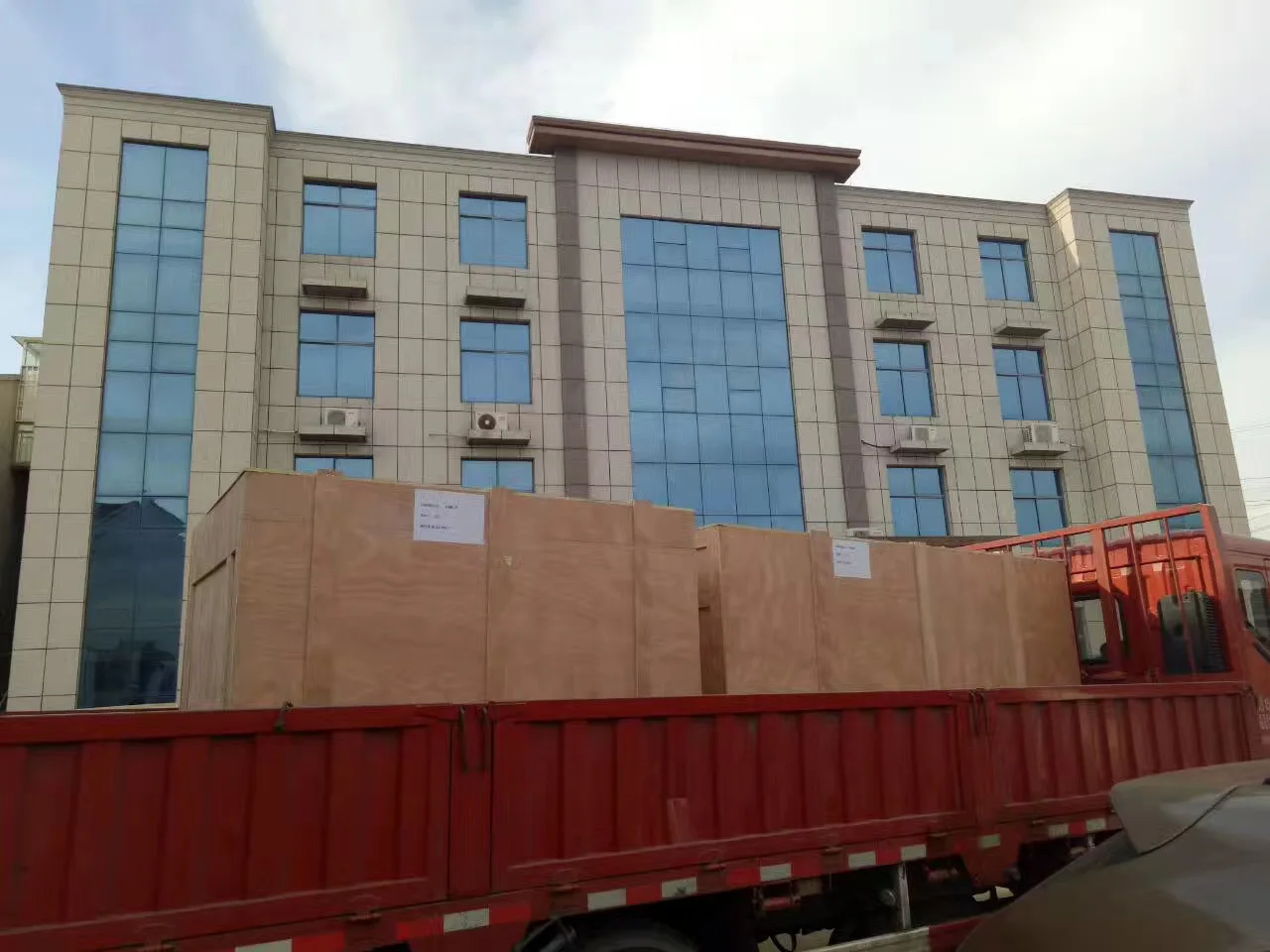

Product packaging

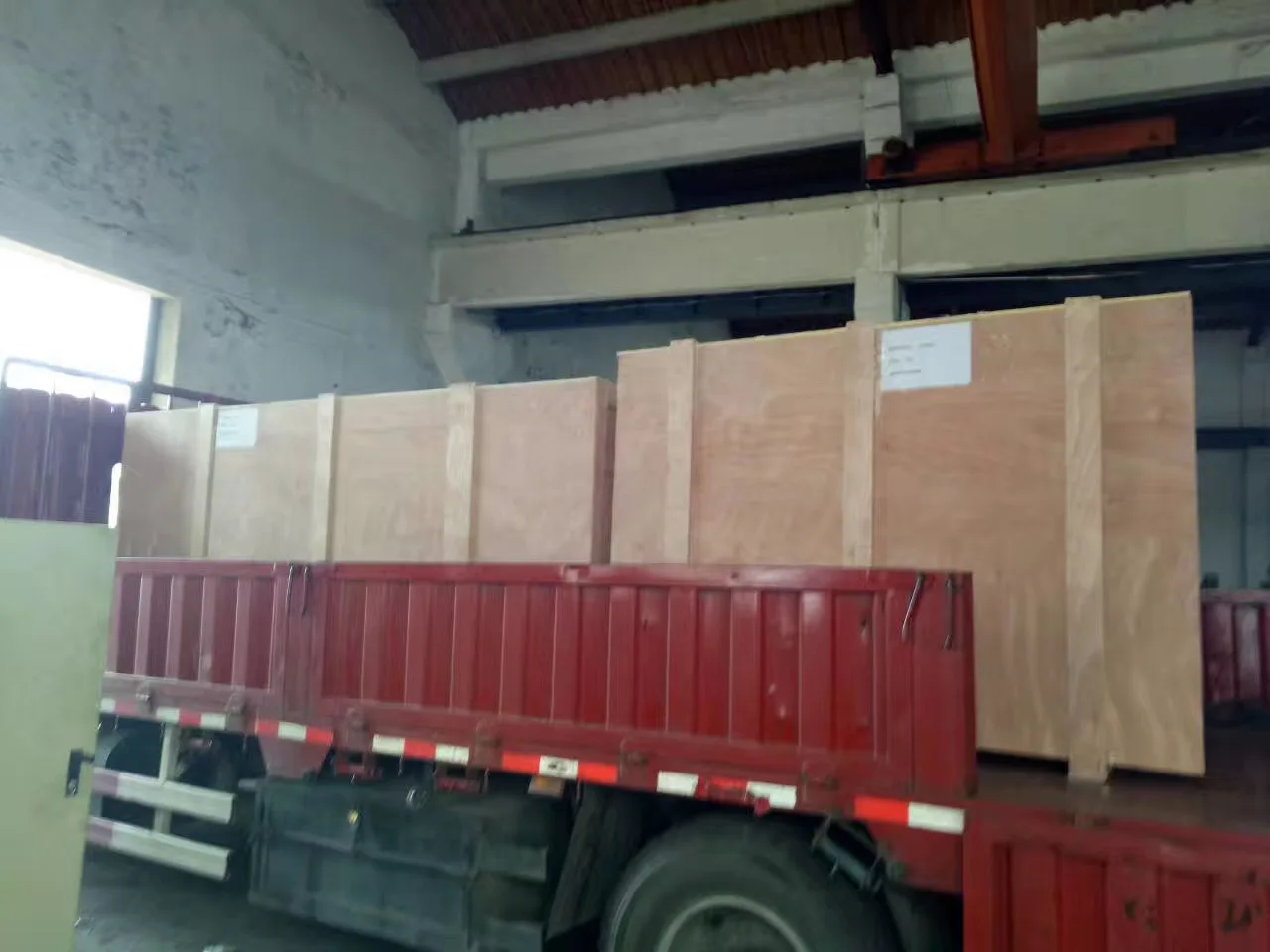

Export standard packing - Wrapping film with wooden box

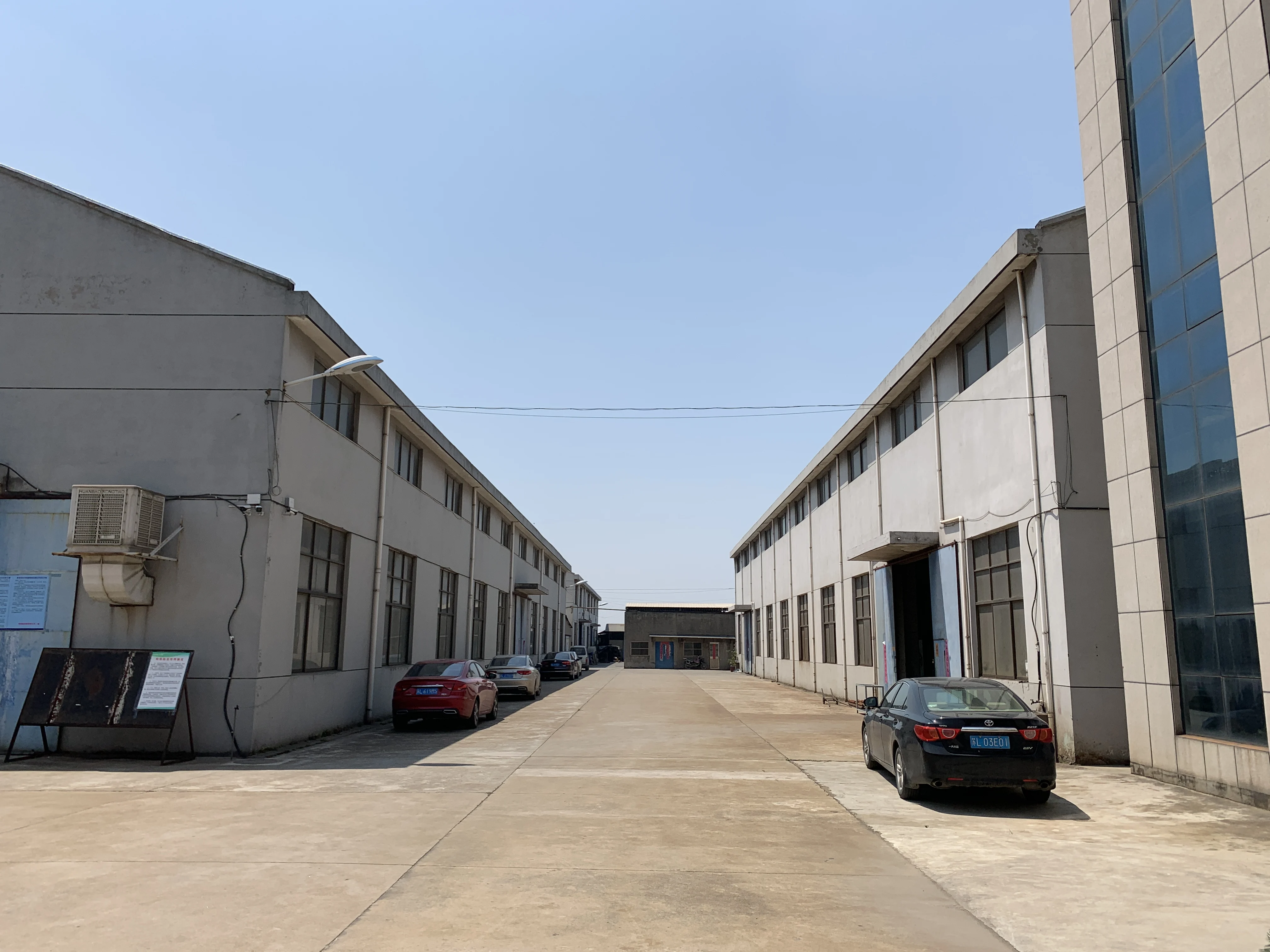

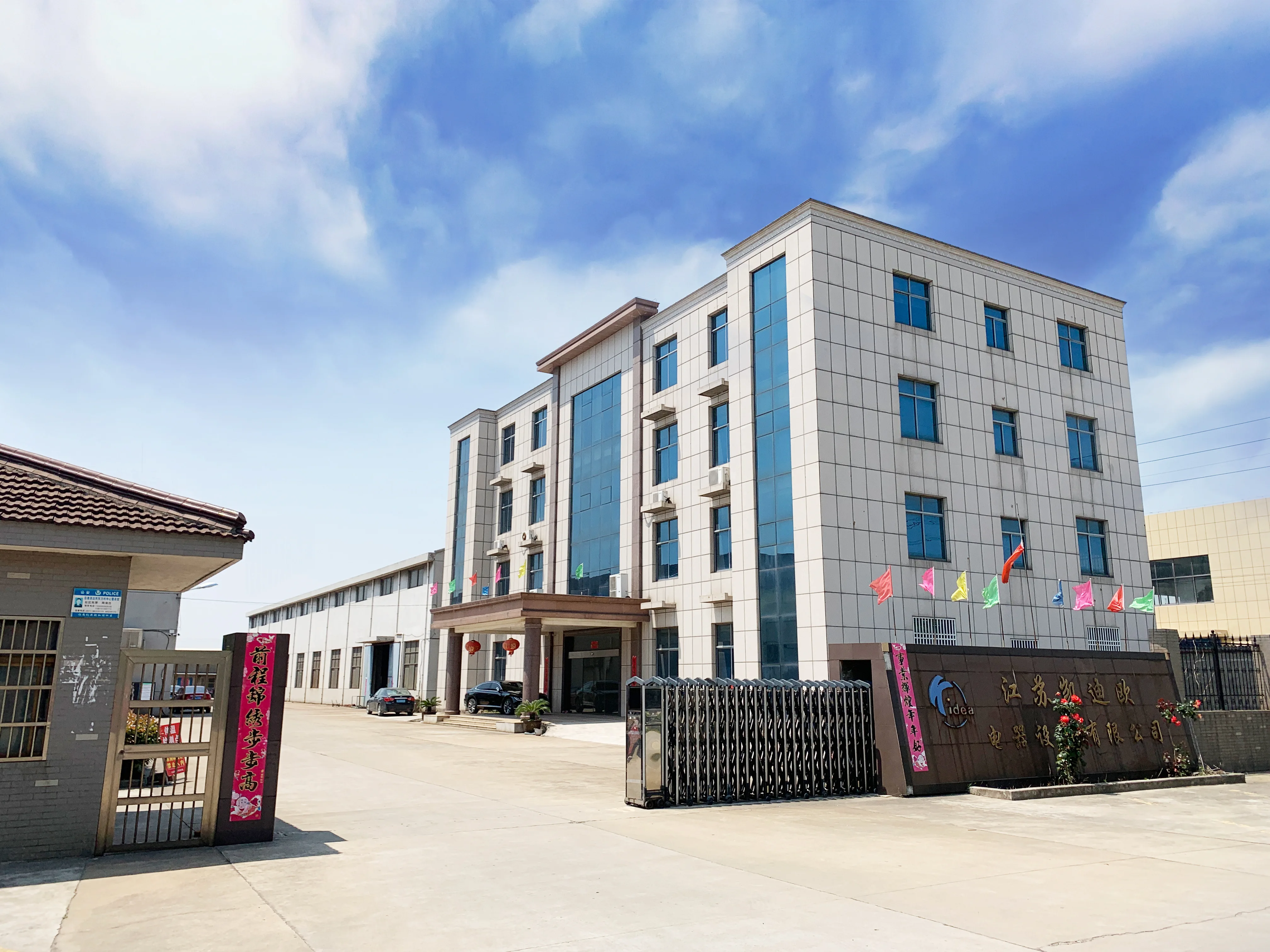

Why Choose Us

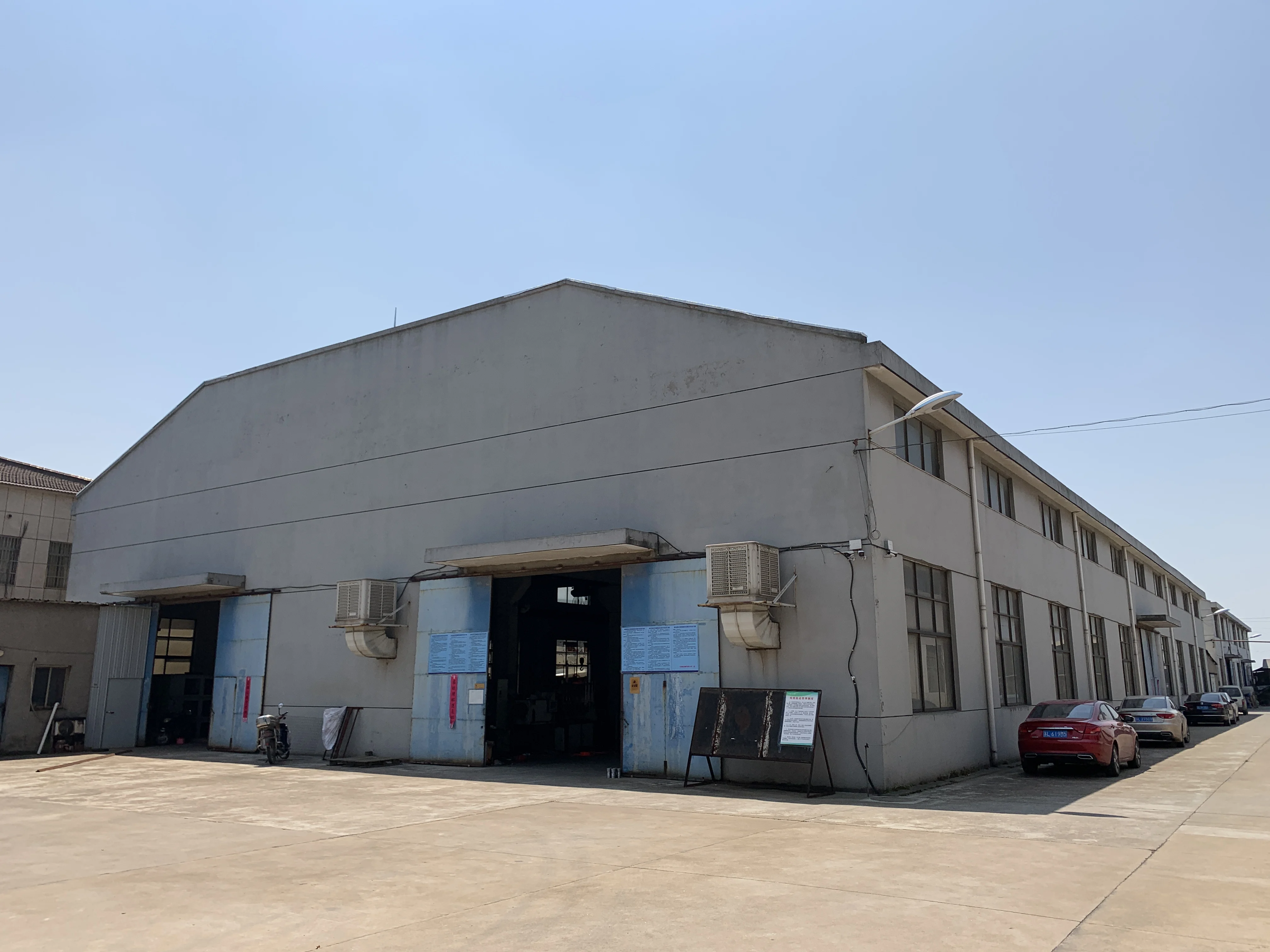

Jiangsu Kidea Industry Co., Ltd is a professional friction welding machine manufacturer integrating development, research and production with strong design, development and manufacturing capabilities. Over the years, our company has been adhering to the "People- oriented, First-class" operation principle to provide domestic and foreign customers with a series of products with advanced technology, stable quality and reliable performance. They are widely used in aerospace, electric power, bearings, automobiles and motorcycles, metal cutting tools, textile machinery, petroleum geologic drilling, construction and other industries.




1. High quality with competitive price
2. More than 20 years professional experience
3. More than 5 years export experience
4. Powerful development and design team
5. Strict quality assurance system
6. Customized service available
7. 24 HOURS’ ONLINE SERVICE FOR PROBLEM SHOOTING (WeChat, email, FB, WhatsApp)


FAQ


Q: Are your professional manufacturer or trade company?

A: We are a professional manufacturer which is engaged in the development, research and production of friction welding machine, with strong design, development and manufacturing capability.



Q: How long is about the delivery time ?

A: It depends. Generally it is 35 days if the equipments are in stock. Or it is 2-3 months if the equipments are not in stock, it is according to quantity and the type of equipment.



Q: Is it possible to visit your factory for checking and testing the equipments ?

A: Yes, of course. You are welcome to our factory.



Q: What is your terms of payment ?

A: 30% T/T in advance, balance before shipment.


* If you have another question, pls feel free to contact us!
