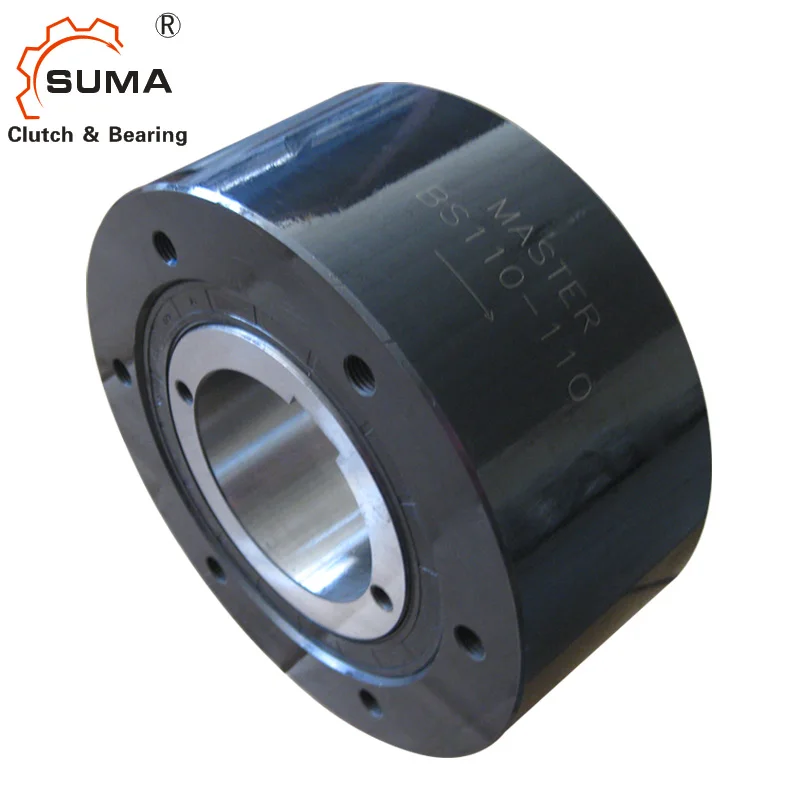

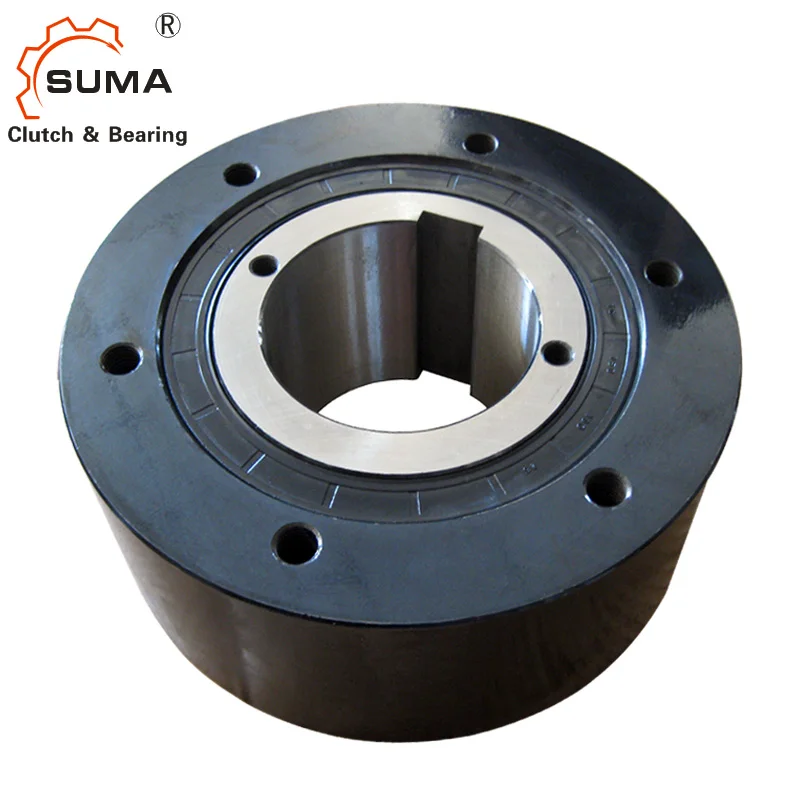

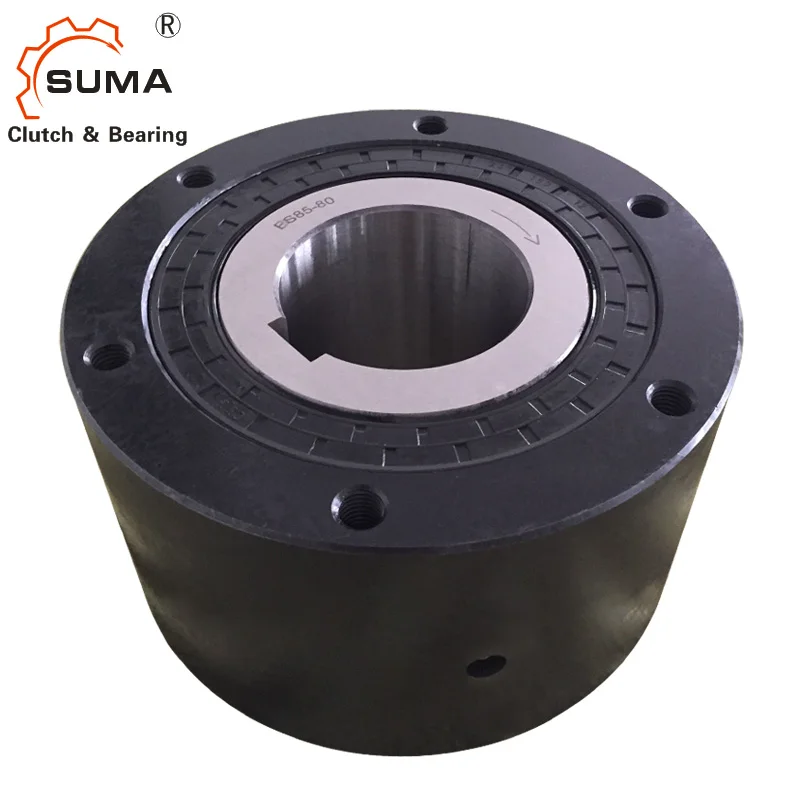

BS30 Backstop Camclutch Sprag One Way Bearing
Product Description
BS30
The BS series Cam Clutches are intended for applications where reverse rotation of the slow speed conveyor head shaft is to prevented (backstopping).
MODELS BS30 TO BS135
The BS-HS series offer higher torque and speed not found in convention models.
MODELS BS160HS TO BS450HS
Dimensions and Capacities dimensions in mm
| Model | Torque Capacity (N·m) | Max. Overrunning (r/min) Inner Race | Drag Torque (N·m) | A | B | C | PCD D | E | S | H-M Size× Pitch × No.of Tapped HoleS | Grease Filler Hole (Size) | Q’ty Grease (kg) |
| BS30 | 294 | 350 | 0.58 | 64 | 90 | 64 | 80 | 45 | 13 | M6 ×P1.0×4 | - | - |
| BS50 | 784 | 300 | 0.98 | 67 | 125 | 67 | 110 | 70 | 16 | M8 ×P1.25×4 | - | - |
| BS65 | 1570 | 340 | 3.92 | 90 | 160 | 85 | 140 | 90 | 20 | M10 ×P1.5×6 | - | - |
| BS75 | 2450 | 300 | 5.88 | 90 | 170 | 85 | 150 | 100 | 20 | M10 ×P1.5×6 | - | - |
| BS85 | 5880 | 300 | 7.84 | 115 | 210 | 110 | 185 | 115 | 30 | M12 ×P1.75×6 | - | - |
| BS95 | 7840 | 250 | 9.8 | 115 | 230 | 110 | 200 | 130 | 30 | M14 ×P2.0×6 | - | - |
| BS110 | 10800 | 250 | 14.7 | 115 | 270 | 110 | 220 | 150 | 30 | M16 ×P2.0×6 | - | - |
| BS135 | 15700 | 200 | 19.6 | 135 | 320 | 130 | 280 | 180 | 30 | M16 ×P2.0×8 | - | - |
| BS160HS | 39200 | 350 | 34.3 | 180 | 360 | 175 | 315 | 220 | 40 | M20 ×P2.5×10 | PT 1/4 | 0.23 |
| BS200HS | 61700 | 250 | 44.1 | 205 | 430 | 200 | 380 | 260 | 40 | M22 ×P2.5×8 | PT 1/4 | 0.31 |
| BS220HS | 102000 | 200 | 73.5 | 330 | 500 | 325 | 420 | 290 | 40 | M20 ×P2.5×16 | PT 1/4 | 1.3 |
| BS250HS | 147000 | 170 | 93.1 | 370 | 600 | 365 | 530 | 330 | 50 | M24 ×P3.0×16 | PT 1/4 | 1.7 |
| BS270HS | 204000 | 160 | 98 | 385 | 650 | 380 | 575 | 370 | 50 | M24 ×P3.0×16 | PT 1/4 | 2 |
| BS300HS | 294000 | 150 | 108 | 425 | 780 | 420 | 690 | 470 | 60 | M30 ×P3.5×16 | PT 1/4 | 3.6 |
| BS350HS | 392000 | 110 | 157 | 440 | 930 | 480 | 815 | 535 | 70 | M36 ×P4.0×16 | PT 1/4 | 4.1 |
| BS425HS | 735000 | 85 | 216 | 570 | 1030 | 580 | 940 | 635 | 70 | M36 ×P4.0×18 | PT 1/4 | 6.9 |
| BS450HS | 980000 | 80 | 245 | 570 | 1090 | 600 | 990 | 645 | 80 | M42 ×P4.5×18 | PT 1/4 | 7.2 |

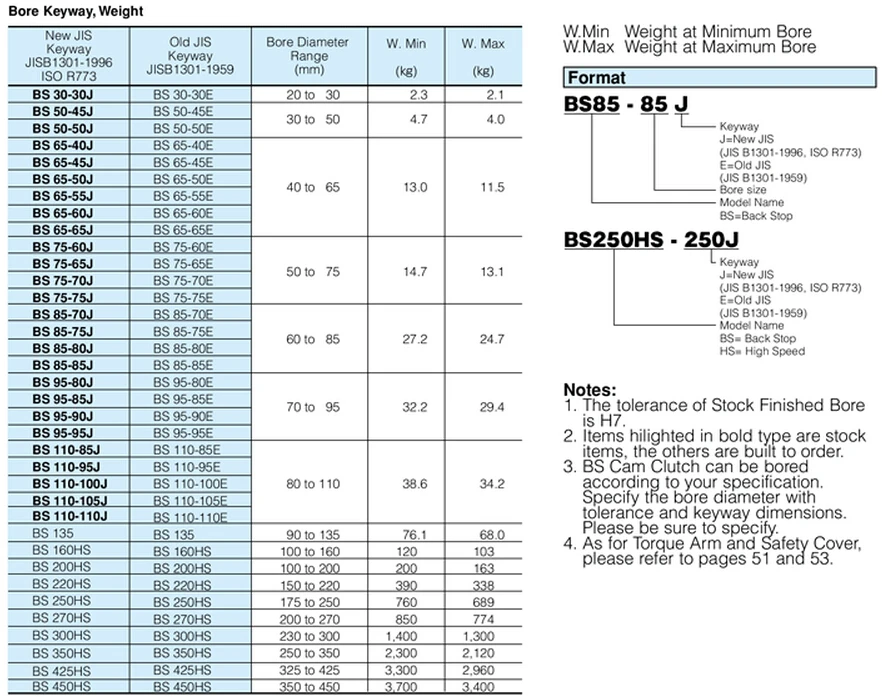

Bore Keyway , Weight

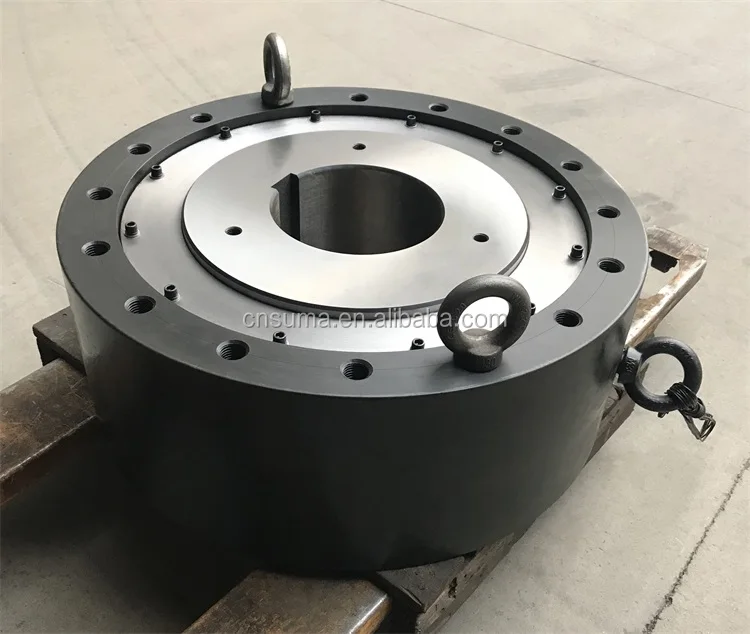

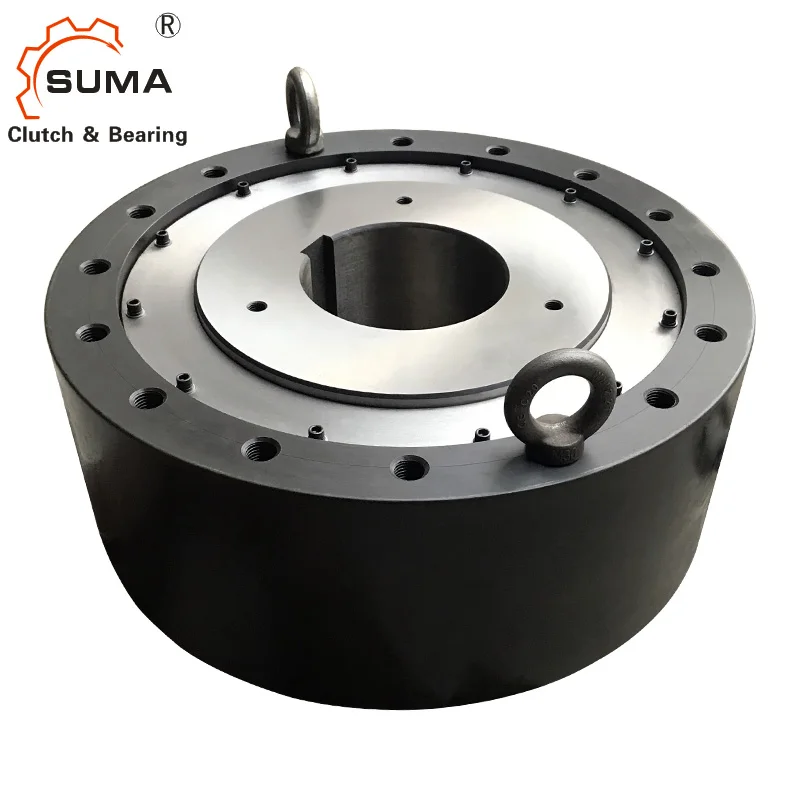

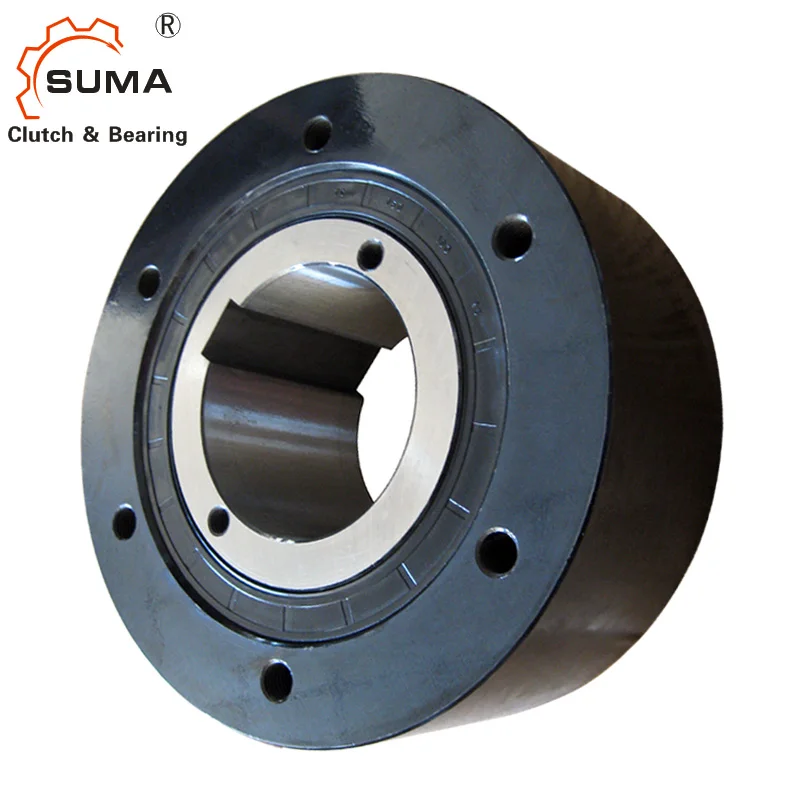

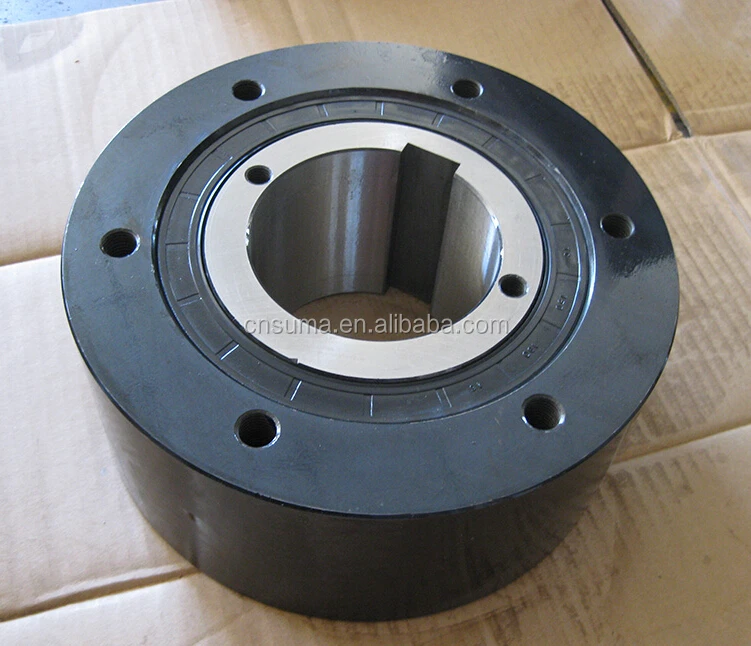

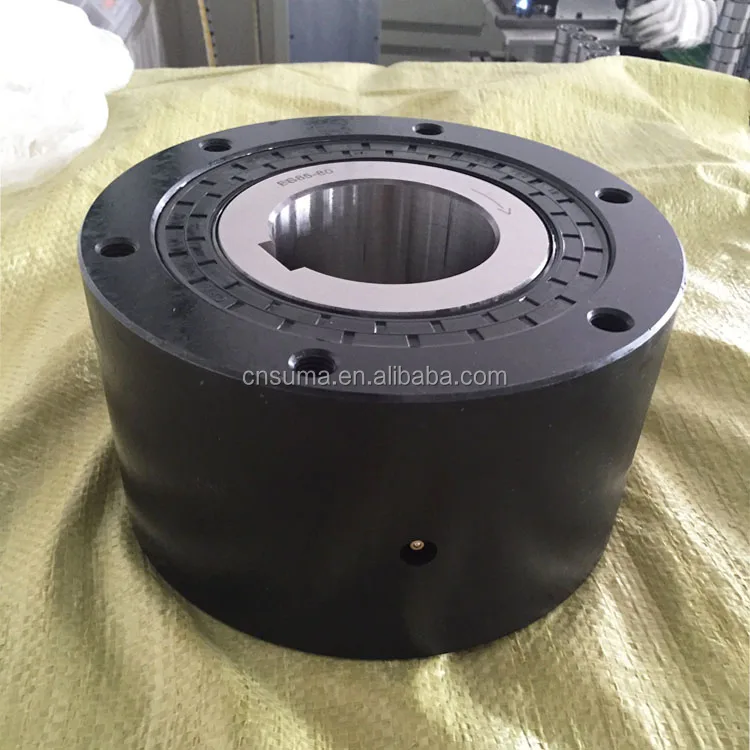

Detailed Image
Production Flow
Company Information
Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various One way bearing, One way clutch, Backstop clutch, Overrunning clutch, Needle roller bearing and other bearings with high technology.
Certifications
FAQ
Q: How do you pack the goods?
- Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
- Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
