Ultra Low Temperature Glycol Wine Chiller
- Category: >>>
- Supplier: Shenzhen Anyda Refrigeration Equipment Co. Ltd.
Share on (60720720657):
Product Overview
Description
Product Description

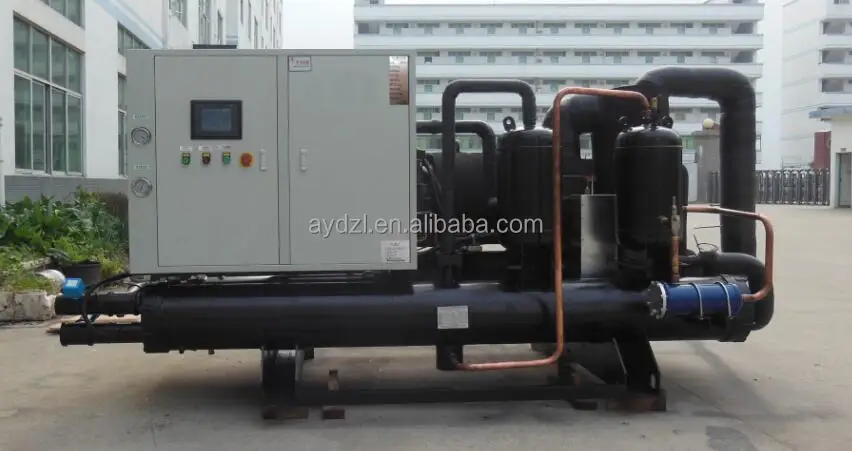

Ultra Low Temperature Glycol Wine Chiller
During fermentation, clarification and cold treatment of wine, different temperatures need to be controlled, such as red wine
fermentation temperature is generally controlled at 25 ~ 30 ℃, white wine fermentation temperature is generally controlled at about 20 ℃, clarification temperature is generally controlled at 5 ~ 10 ℃ , Cold treatment generally requires controlling the temperature to -5 ~ -15 ℃.
fermentation temperature is generally controlled at 25 ~ 30 ℃, white wine fermentation temperature is generally controlled at about 20 ℃, clarification temperature is generally controlled at 5 ~ 10 ℃ , Cold treatment generally requires controlling the temperature to -5 ~ -15 ℃.
1.Cooling medium can be ethylene glycol and salt water, the use of special materials and processes, to eliminate the phenomenon of corrosion and oxidation of the evaporator, the use of equipment to extend the cycle.
2.The use of brand-name imported compressor, low temperature performance, reliability and durability, high refrigeration efficiency, equipped with a high precision microcomputer controller, automatic operation, no need to be on duty.
3.The unit has the advantages of compact structure, scientific design appearance, full paint rust and corrosion, the protection function: short phase and reverse phase protection; compressor overload protection; low pressure protection device; automatic alarm device for water; low temperature, anti icing protection; water flow protection device;
4.According to the customer's use of different, the low temperature machine can do -40 water, ultra low temperature can reach -70 degrees, using low temperature linkage throttle technology, low temperature performance beyond imagination.
Main Features
Anyda Industrial Water Chiller is designed of case type, totally-enclosed case shell, and beautiful appearance. It can be placed directly on the working site, keep constant running ever under changeable temperature outdoors and prevent dust from influencing heat elimination.
1.Main machine use compressor of famous brand imported from America and Japan, with safe protection, low noise, energy-saving and durable.
2.Electric control part use famous brand LG which can search failure automatically and display it on the screen at the same time to ensure the machine operate steadily.
3.Evaporator adopt high-efficiency U type screw tube, with pump inside, clean and maintenance easily and quickly.
4.Condenser is consistant by fin type aluminum foil and high-effciency screw tube, with rational design and in good heat exchange effect.
5.Only need to connect the pipe with source of water and electricity when installation.
6.Low running maintenance charge
Detailed Images
Machine Parts
Name: Compressor
Brand: Sanyo/ Copeland/ Bizer
Name: Condenser,Evaporator
Brand: Anyda
Name:Control Panel
Brand:Punp/ Siemens
Other Parts
Name: Electrical Parts
Brand: LG/Schneider
Name: Pump
Brand: Mini/CNP
Certifications
Packing & Delivery
Packaging | ||
Size | 2400(L) * 1100 (W) * 1600 (H) | |
Weight | 2000kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
FAQ
1.How does a chiller system work?
Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.
2.How to calculate cooling capacity for chillers
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
3.Types of chiller system?
Air Cooled Chiller and Water Cooled Chiller.Water cooled chiller needs a separated cooling tower and has a higher efficiency,but less easier than air cooled.
4.Cooling capacity unit conversion?
1 kcal／h ＝ 1.163W,1 W ＝ 0.8598 kcal／h；
1 Btu／h ＝ 0.2931W,1 W ＝ 3.412 Btu／h；
1 USRT ＝ 3.517 kW,1 kW ＝ 0.28434 USRT；
1 kcal／h ＝ 3.968 Btu／h,1 Btu／h ＝ 0.252 kcal／h；
1 USRT ＝ 3024 kcal／h,10000 kcal／h ＝ 3.3069 USRT；
5.The chiller can heat?
Yes,by the electrical heating wire.Please kindly inform us the hot water temp and heating capacity.
6.Chiller maintenance?
Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
Some Customer List
Why Choose Us
1.Reply your inquiry within 12 working hrs.
2.Strong R&D team,more than 15 years of manufacturing chiller experience. OEM&ODM is welcomed.
3.Direct factory,offer customer competitive price with high quality chiller.
4.Strict quality control system,professional QC team.
