High Speed Computerized Chain Stitch Multi Needle Quilting Machine

Product Overview

Description

High Speed Computerized Mattress  Quilting Machine YT-3000A

Technical Parameters



Model	YT-3000A
Dimension(L*W*H)	5300*1600*2300 mm
Quilting width	2450mm
Needle rows	3
Space between needle rows	3"+2" ; 3"+3"
Space between needle	25.4mm
X-axis movement displacement	300mm
Quilting thickness	80mm
Stitch length	1-12mm
Production speed	60-230 M/H
Model of needle	21#,22#,23#,24#
Quilting speed	1200R/Min.
Voltage	380V/50HZ  220V/60HZ
Power	8KW
Gross weight	5300kg

 High Speed Computerized Mattress Chain Stitch Quilting Machine YT-3000A

 The main features:

1. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material

2.360°Multi-span and independent patterns, automatic thread trimming function

3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.

4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability

5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function

6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.

7.The spindle, X, Y axis all adopt high-power servo motor

8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes

9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.

10. Infrared safety protection and Auto-stop sensors detection function

Purpose:  High Speed Computerized Mattress Chain Stitch Quilting Machine YT-3000A
   is widely used for  Mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, and more.

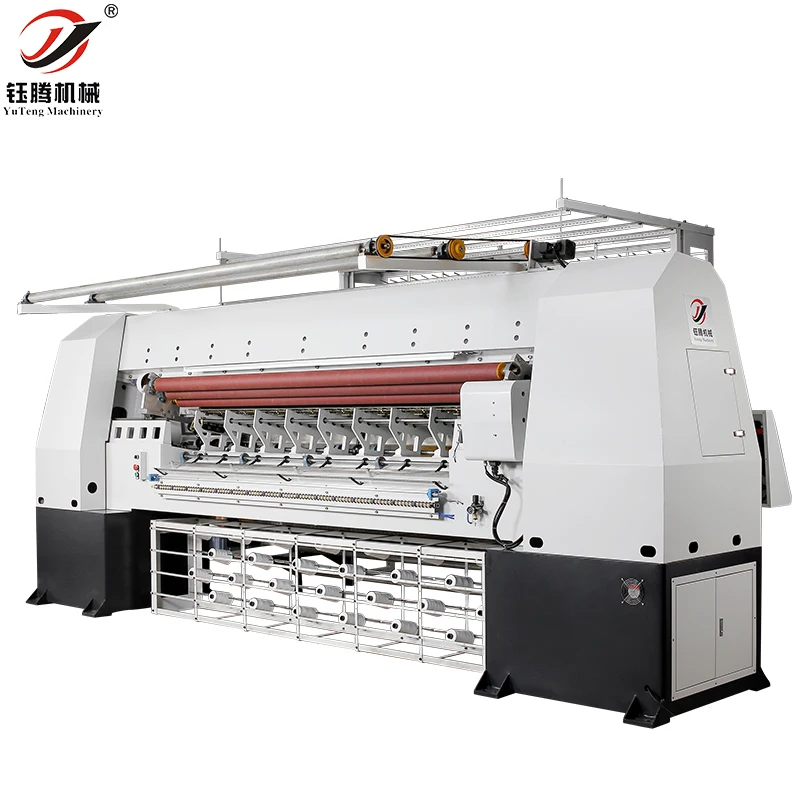

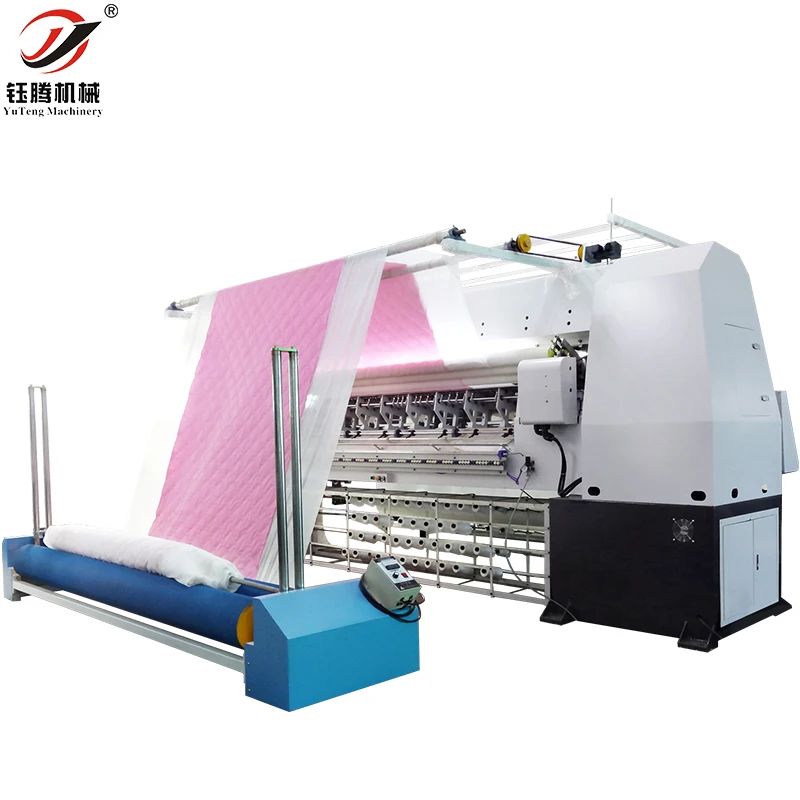

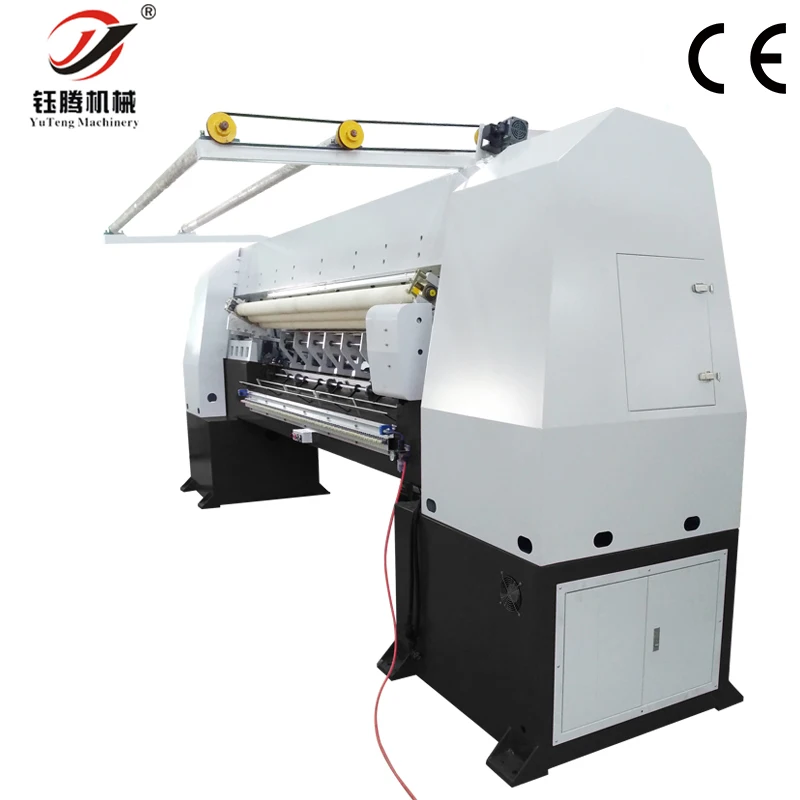

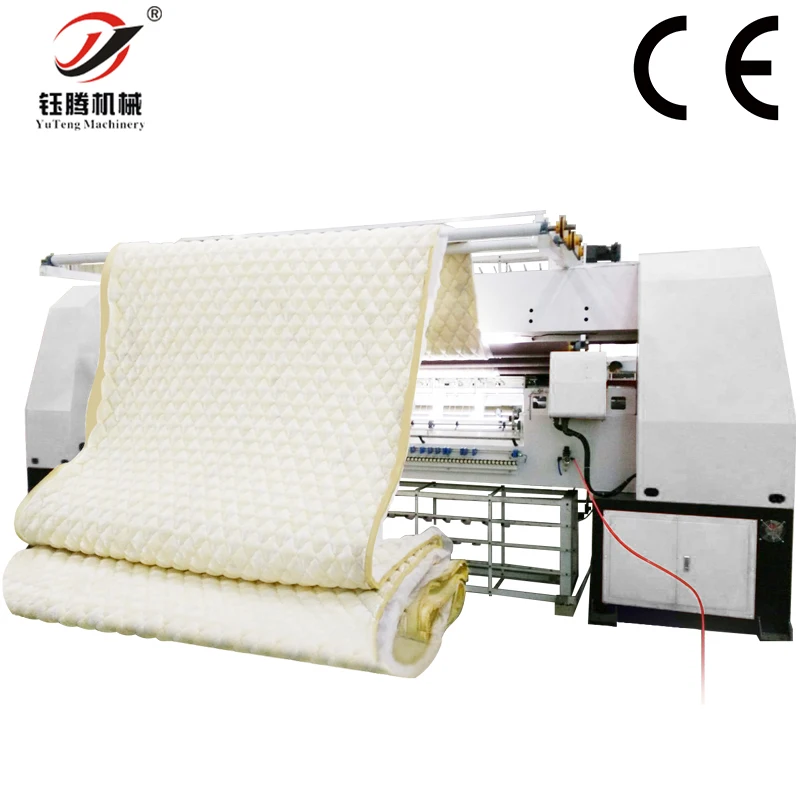

Picture of High Speed Computerized Mattress Chain Stitch Quilting Machine YT-3000A

Company information:



The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.



1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.

2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.

3. Delivery Terms: FOB, CIF, CFR, etc.

4. Warranty: One year.

5.After-sale services: If customer need,One engineer will arrange to customer factory for installation and training.

6.Customized Model are available to meet client's various needs.
