Спиральная сварная труба

Product Overview

Description

Spiral Welded Pipe Mill



Part 1, Description :

SSAW pipe mill is used to uncoil and level the steel coil, send the strip to forming machine by certain ganle ,then bend the pipe by certain angle based on three-roller forming principle , at last weld the spiral welding seam by the submergerd arc welder . the finished pipe could be used in petroleum &gas low presure fluid conveying system and construction piling pipes .







Part 2, Technical Process :

Raw Steel Strip Coil → Uncoil → Head opening → Flattening → Centering → Shear → Butt Welding → Centering → Edge Sheared →  Centering →Delivery →Pre-bending →Guide Plate →Forming →Internal and External Welding → Cutting Off → Steel Pipe Output and Sortout → Deslagging → Appearance test → Repair welding → Trimming → Hydro-testing → UT → End facing & Beveling → Finished product testing  → Put in storage.

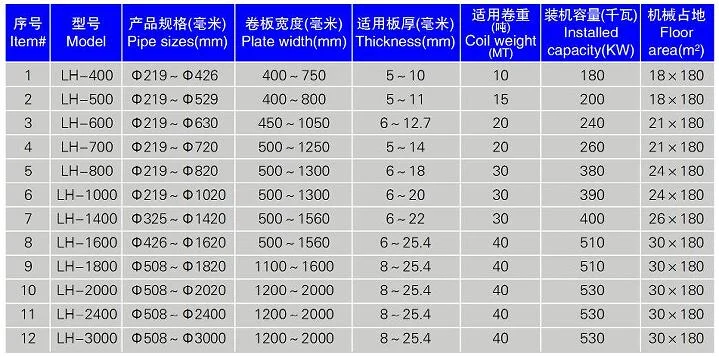

Part 3, Selection Table :









Part 4, Function :

For liquid delivery: water supply& drainage;
For gas delivery: coal gas, steam and LPG;
For structural use: piling pipe, structural pipe in the field of bridge, dock, road, and construction, etc.







Part 5, Machine list :

• Uncoiler


• Pinching & leveling machine


• Manual/Electrical roll


• End - Cutting & butt-welding machine


• Rotary shear


• Delivery machine


• Guide board


• Forming unit


• Front bridge


• Inside/outside welding device


• Rear bridge


• Flying saw cutter


• Buried parts


• Hydraulic system


• Electric system


• Inside/outside welder


• Butt-weld car


• Plasma cutter


• Weld flux processing device


• Beveling & end-facing machine


• Hydraulic tester


• Finishing equipment

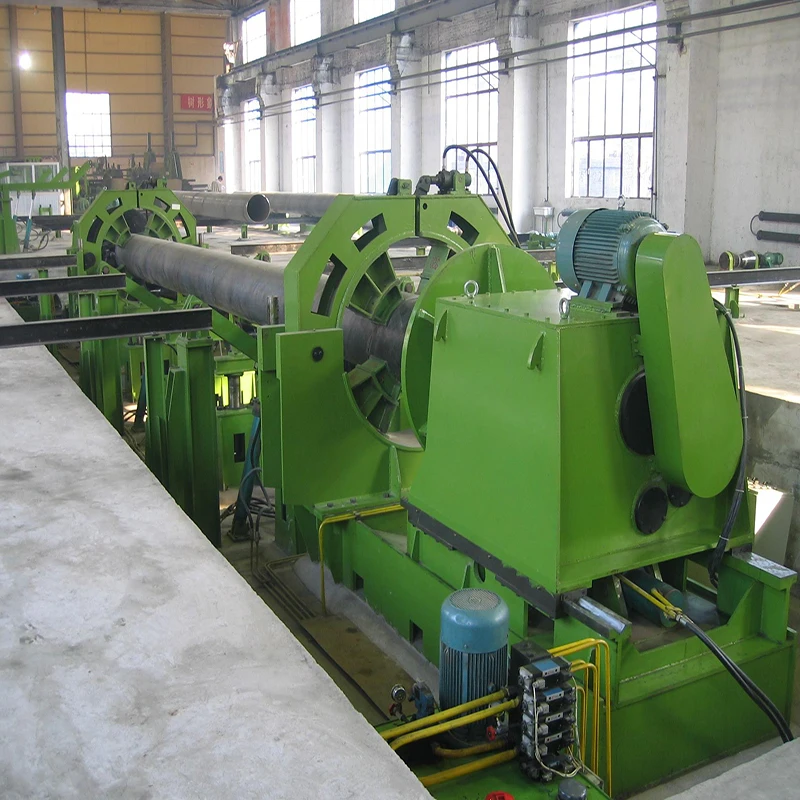

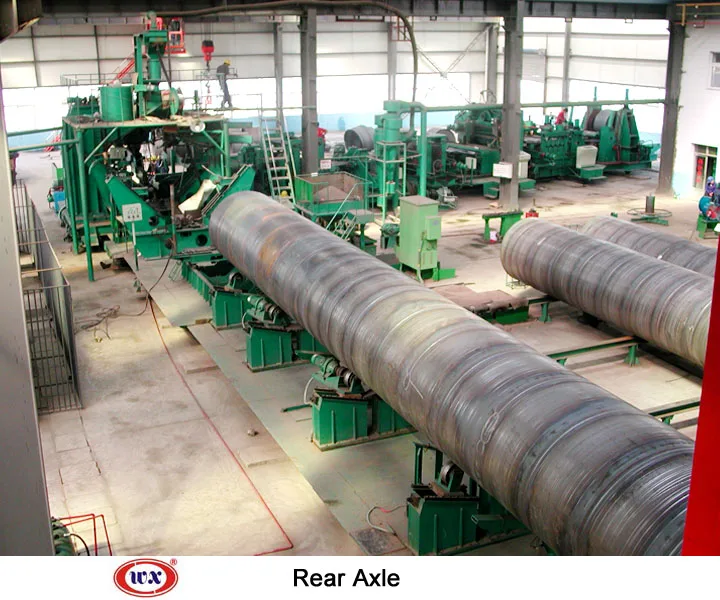

 Machine pictures



International Exhibition

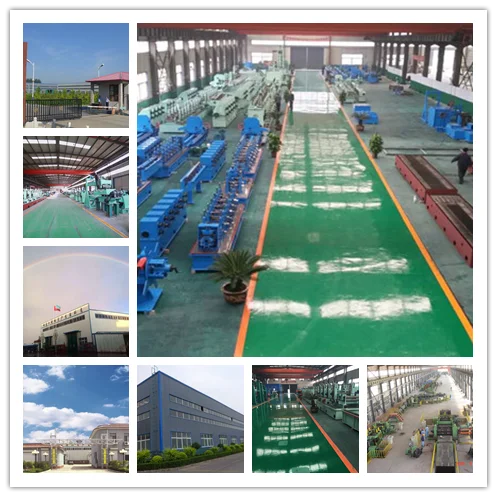

OUR factory :
