High gain 70dBi 900 1800 2100 3G 4G LTE Tri Band Mobile Signal Booster Repeater Amplifier
- Category: >>>
- Supplier: Shenzhen Xinlun Communication Technology Co. Limited
Share on (60720835765):
Product Overview
Description
Product Description
900/1800/2100 GSM/DCS/LTE Tri Band Signal Booster/Repeater
A mobile phone signal repeater provides the ultimate solution in any area where celluar commnuications cannot work well due to leak of signals.The repeater device features easy installation and operation,build-in door antennaand no interference.it could also improve indoor electromagnetism enviroments,protract cellular battery life and reduce radiation of cellphones.A mobile phone repeater is ideal use for house,home,office use.
Main Features:
a. High gain,easy installation and operation;
b. Full-duplex,single-port design,build-in power supply;
c. LED light working and signal condition indicators;
d. Big linear power,control intermodulation and scatteration stably;
e. OEM support;
f. Energy-saving and environment friendly.
Specification Details
| Parameter data | Uplink | Downlink | |
| Frequency Range | 890-915 MHz | 935-960 MHz | |
| 1710-1775MHz | 1805-1870MHz | ||
| 1920-1980 MHz | 2110-2170 MHz | ||
| Output Power | 27±3dBm | 27 ±3dBm | |
| Gain | 70±2dB | 70±2dB | |
| Bandwidth | Wide Band | ||
| Manual Gain Control | 31dB in step of 1dB | ||
| Ripple in Band | GSM≤4dB,DCS≤4.5dB,WCDMA≤4dB | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -20 dBm | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Noise Figure @ max. gain | ≤ 7 dB | ||
| VSWR | ≤2 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100V~240V DC:5V/2A | ||
| Power Comsumption | < 20W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Cooling | Heatsink Convection cooling | ||
| Dimensions (D x W xH ) | 250*190*22(mm) | ||
| Weight | 1.4KG | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ 55℃ | ||

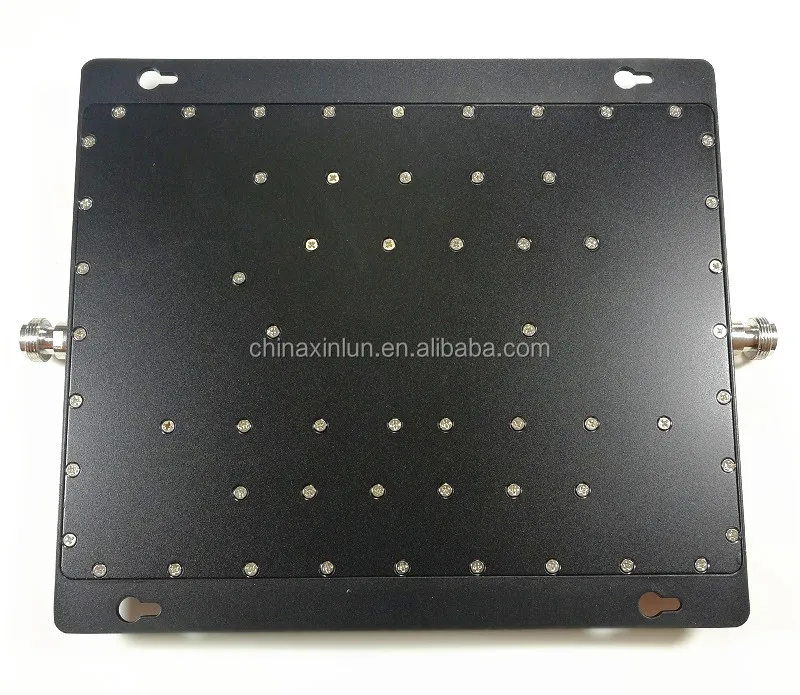

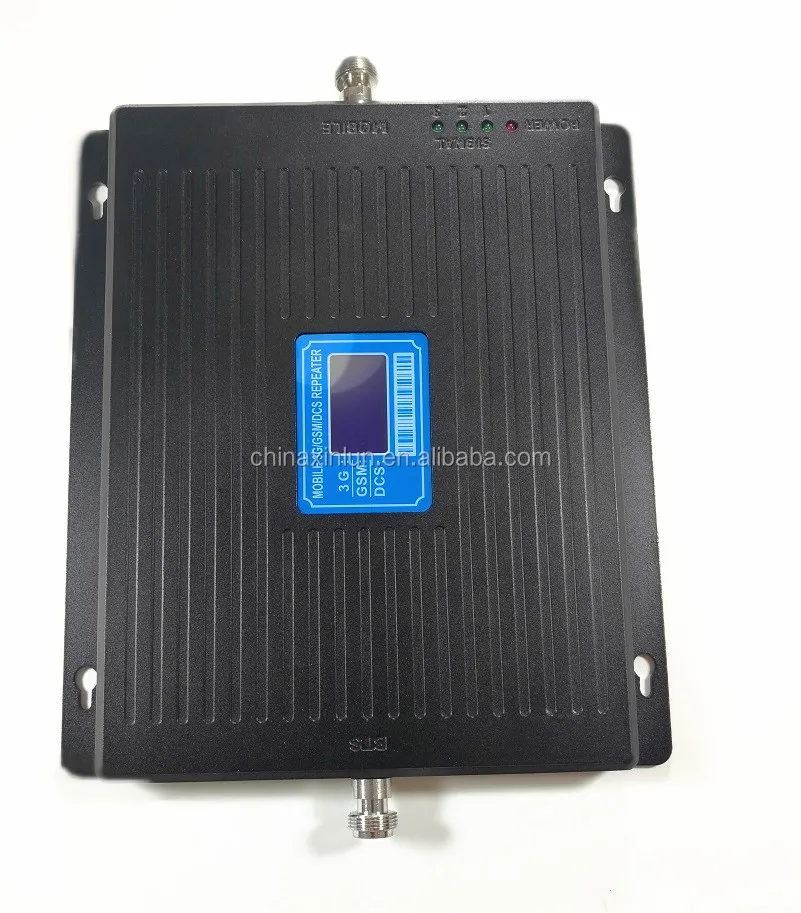

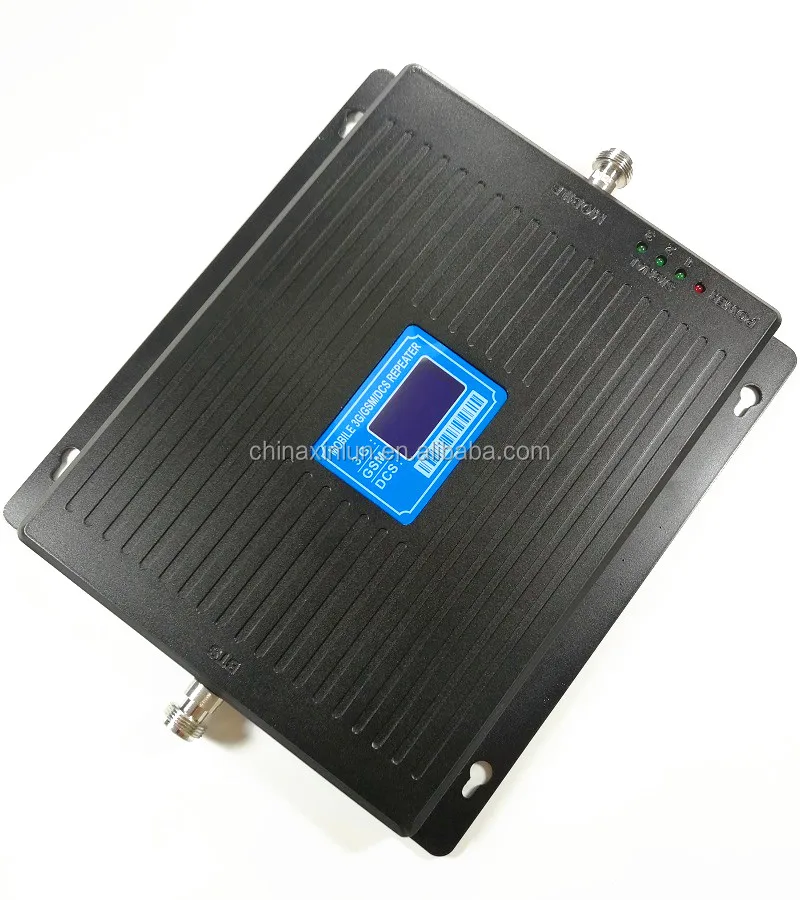

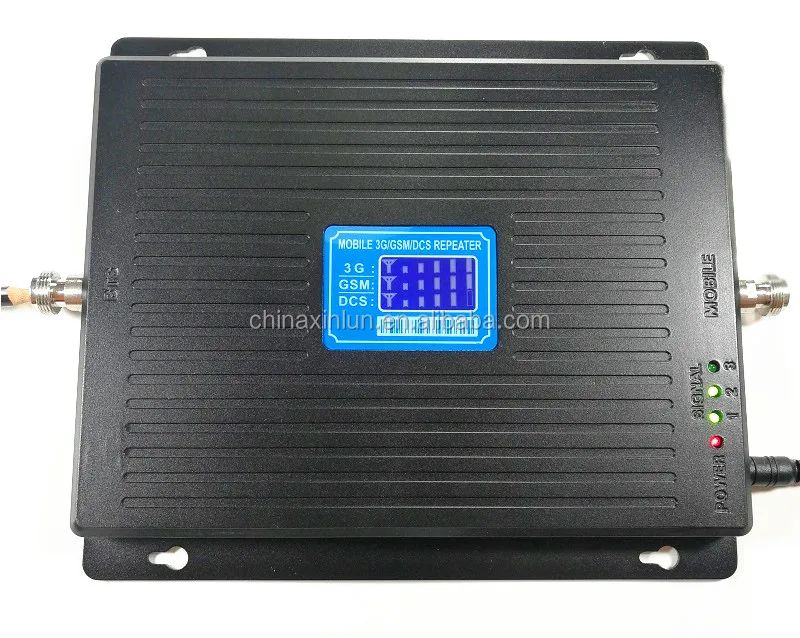

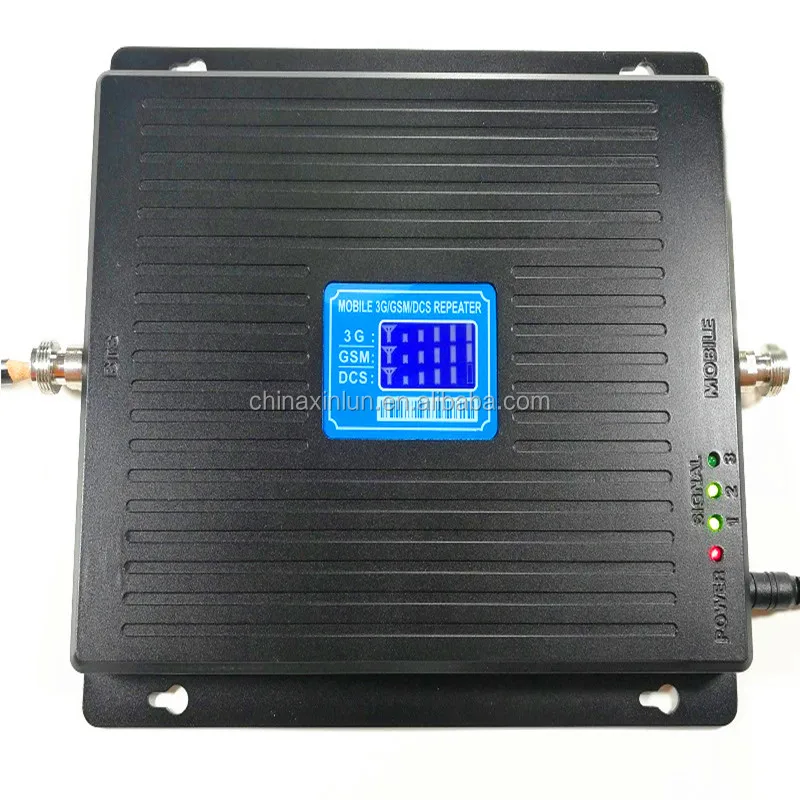

Detailed Images
Accessories
a.one tri band signal booster;
b.one indoor antenna;
c.one outdoor antenna;
d.10meter cable and 1meter cable;
e.User manual;
f.power adapter.
Packaging & Shipping
1.Packaging:paper box;
2.Delivery time:in a week after payment;
3.Shipping ways:DHL/UPS/FEDEX/EMS etc;
4.Payment ways:T/T,Western Union,Paypal.
Our Services
1.Your inquiry related to our products or prices will be replied in 24hours;
2.Well-trained and experienced staffs to answer all your inquiries in fluent English;
3.Monthly output over 2000pcs;
4.Strong package;
5. Sample order in small quantity is acceptable;
