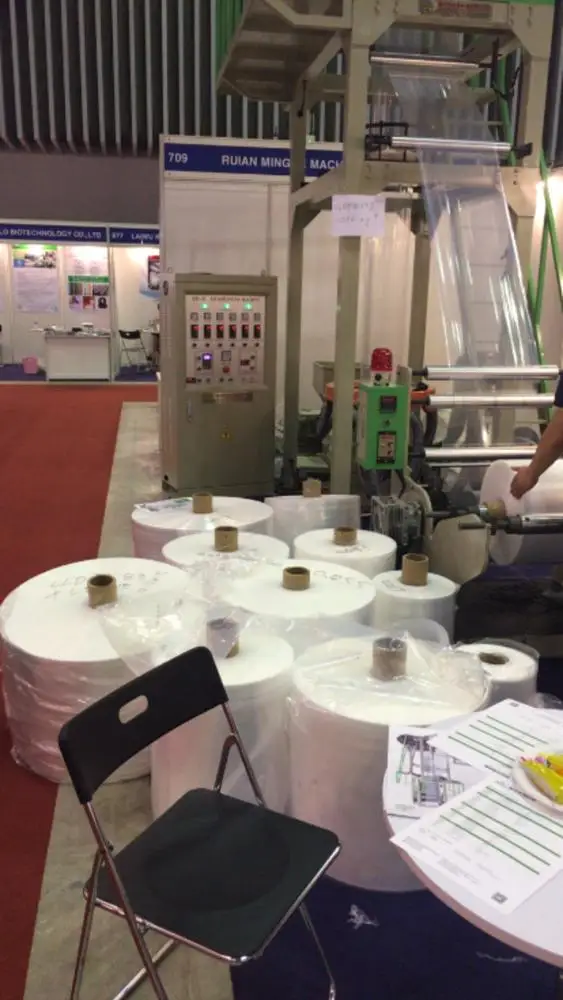

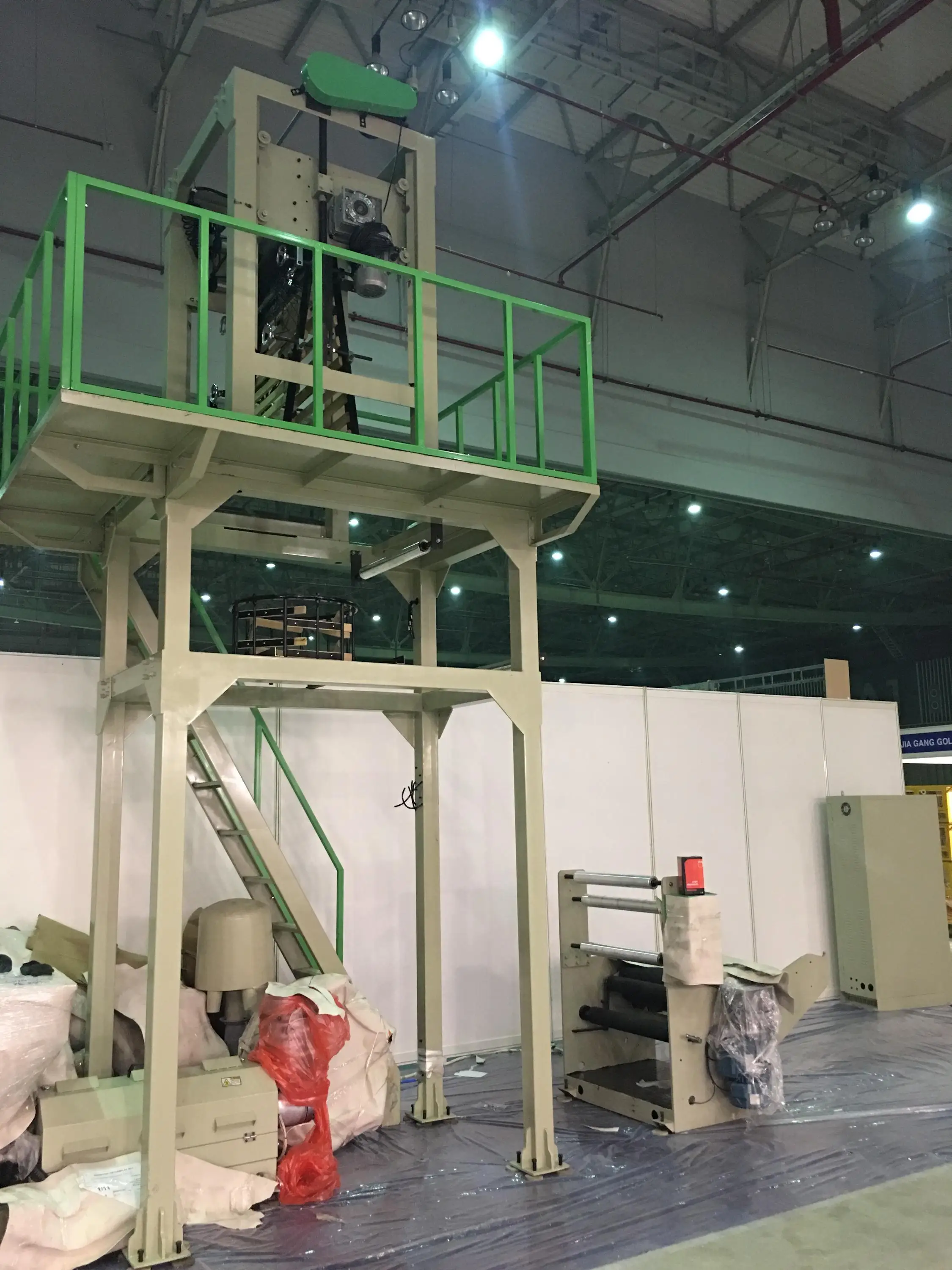

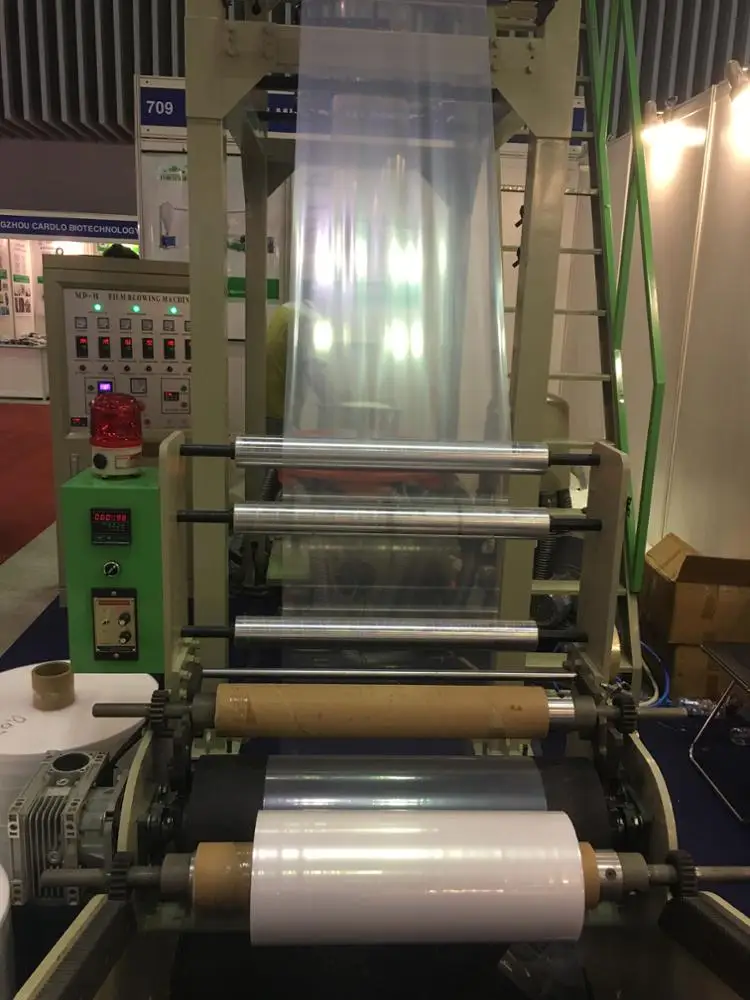

LDPE film blowing machine,45mm screw output 60kg/hr

Model

Suitable Material

HDPE/LDPE/LLDPE

Max film width(mm)

600mm

Film thickness(mm)

LLDPE:0.02-0.15

The thickness depends on film width

Max extrusion output

LLDPE:60kg/hr

Extrusion unit

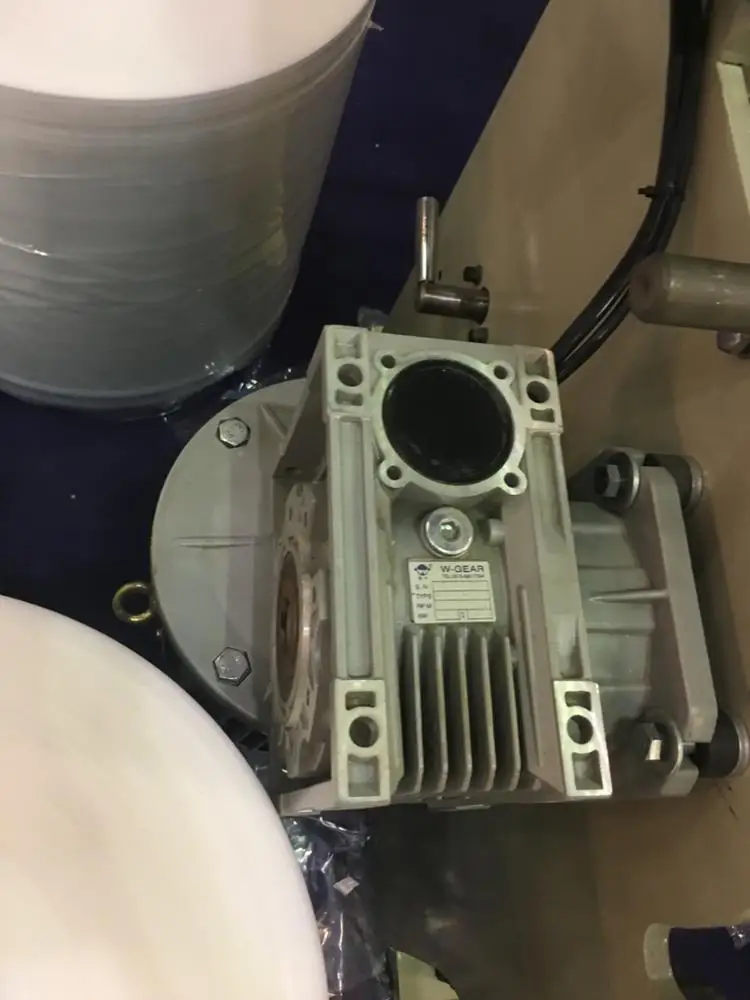

Gear box

146

Screw Diameter(mm)

Φ45

Screw’s material

Bimetal

Barrel’s material

38CRMOALA

Barrel’s Cooling fan

200*3

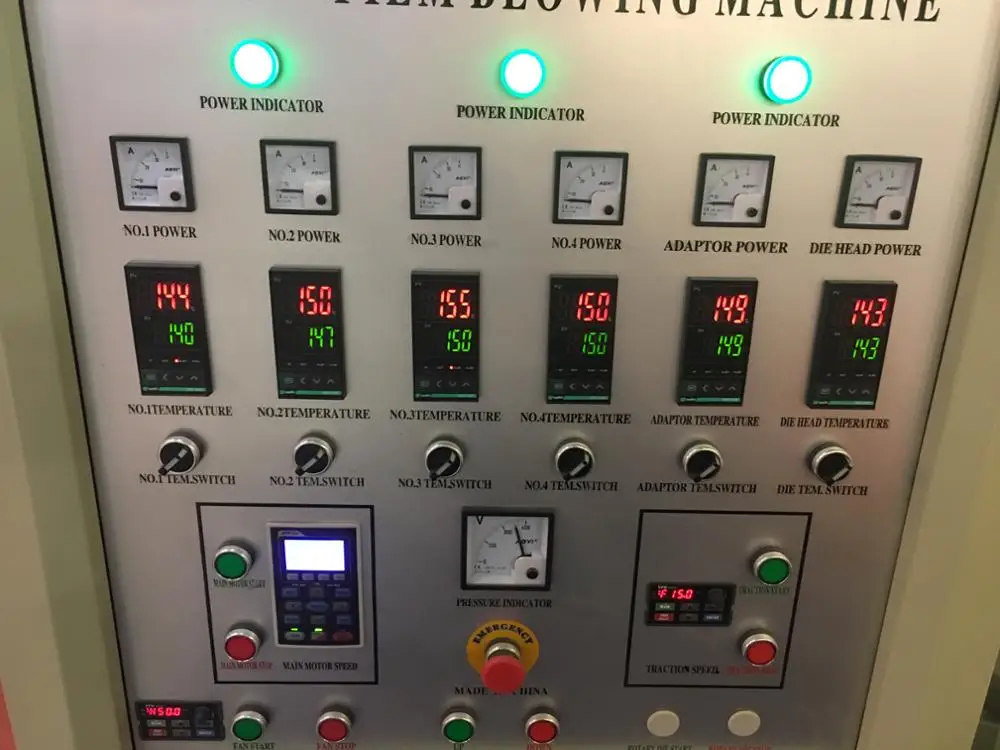

Thermo control(zone)

3

Screw L/D Ratio

28:1

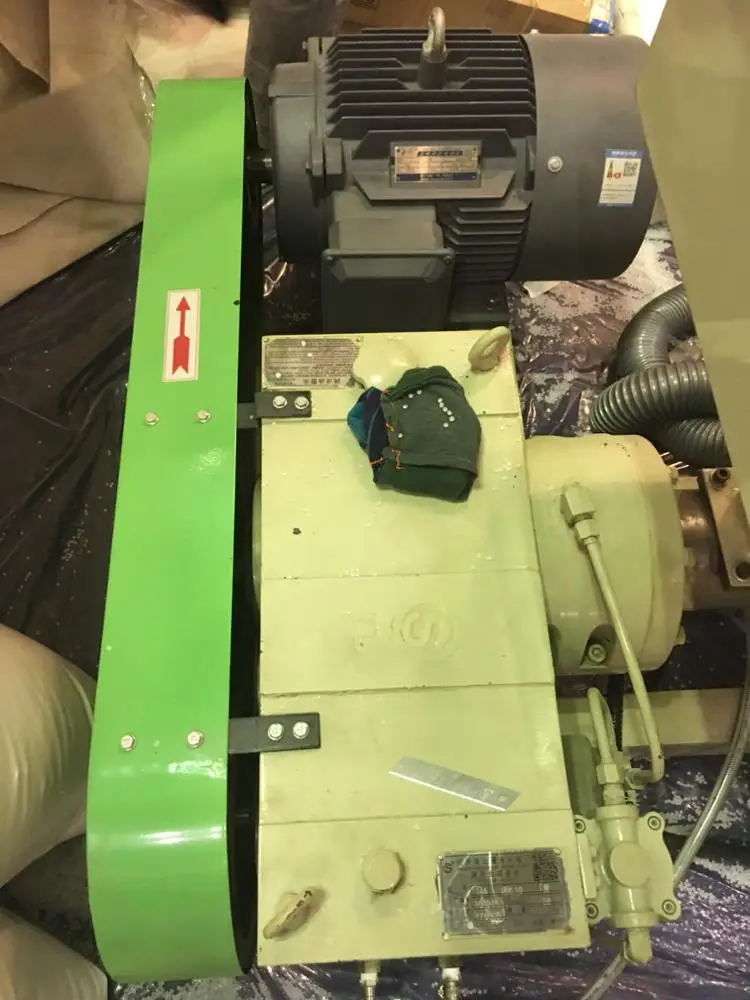

Driving motor(kw)

11

Extrusion Die

Die Size(mm)

LLDPE:Φ100/120/150

Screen change

Standard manual

Thermo Control(zone)

2

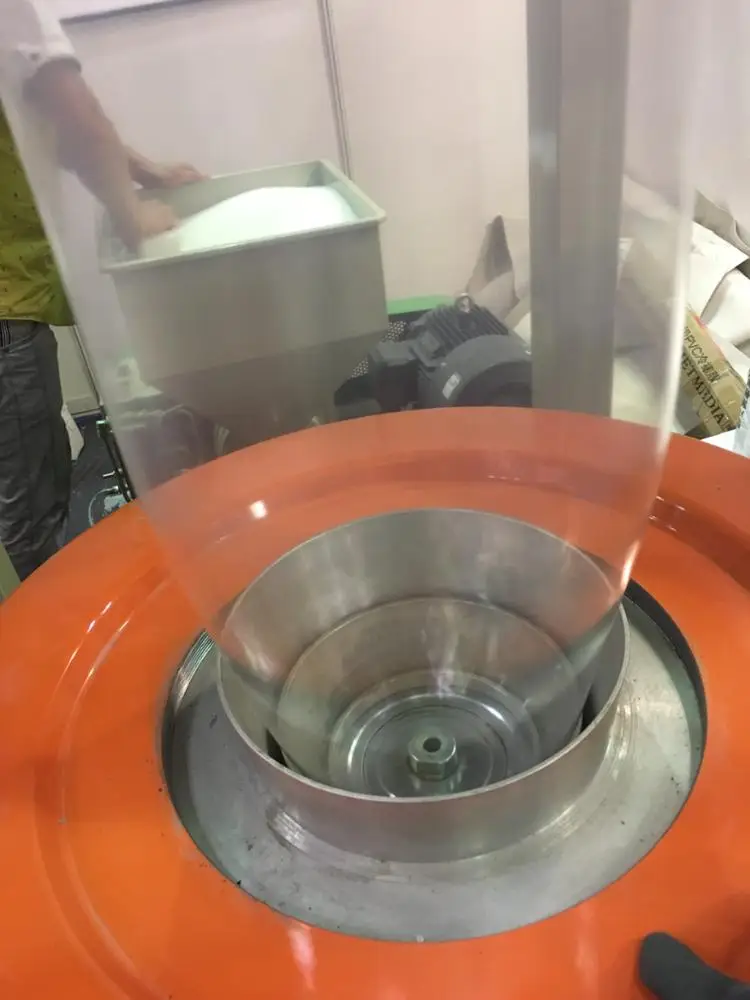

Air ring(mm)

 two air ring tray

 double lip

Cooling blower(kw)

2.2

Center Steady Stick

1pcs

Take-up Unit

Roller width(mm)

Φ138*650

Embossing roller width

600mm

Take-up Motor(kw)

0.75

Take-up Speed(M/min)

10-60

Height adjustable type

700mm

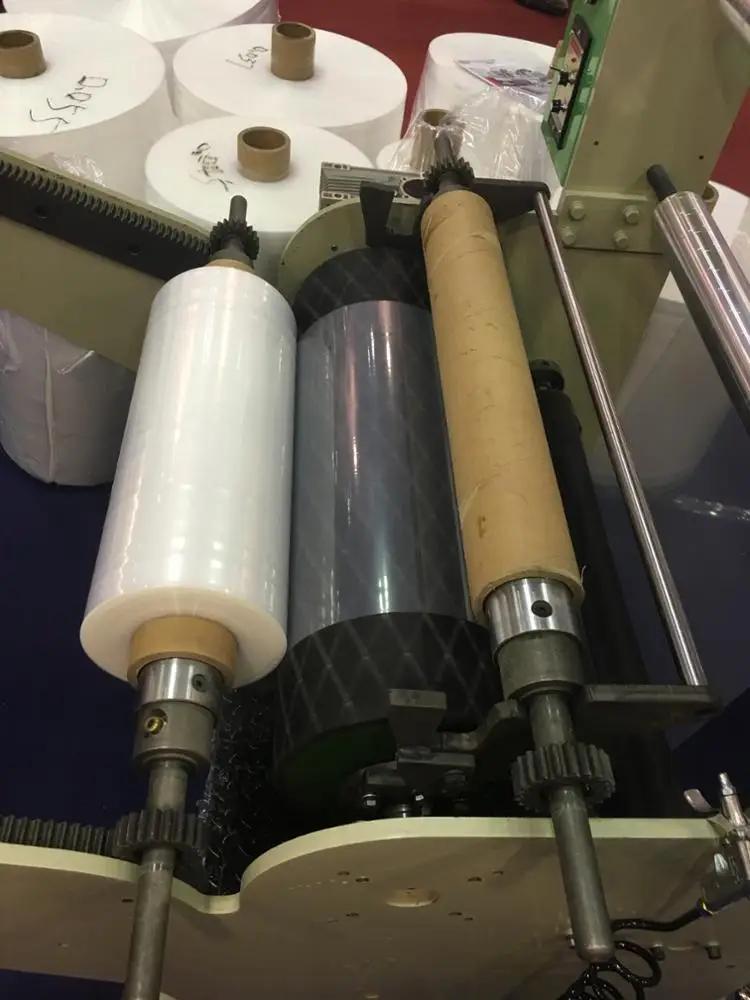

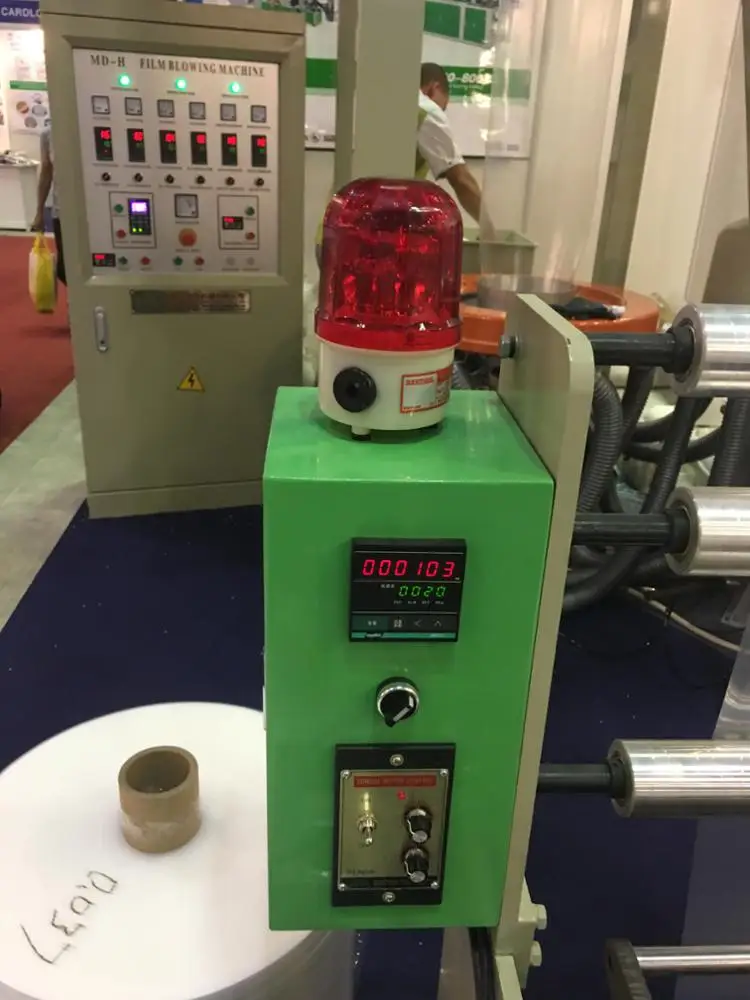

Winding unit

 Winder motor

Torque motor

Roller width(mm)

700

Winding motor(N.M)

6

Winder speed(M/min)

10-60

Voltage

380v,50HZ,3PHAZE

Cover Dimensions(m)

4.5length*2.0width*4.8height
