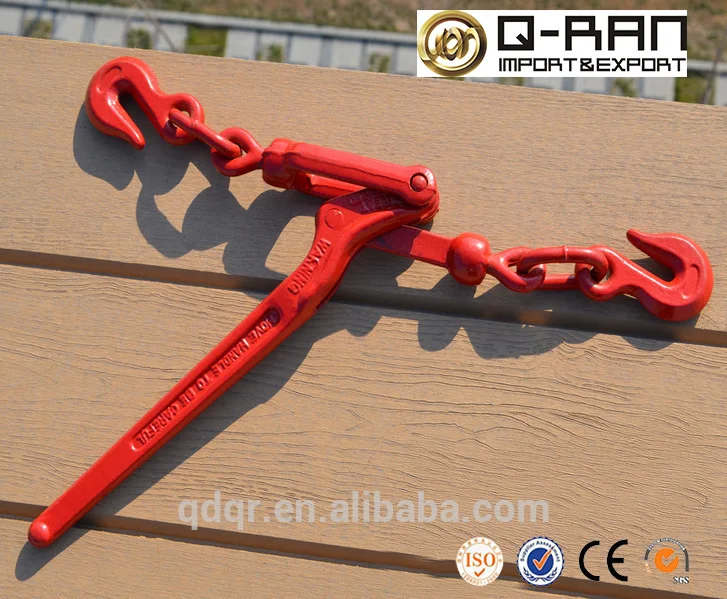

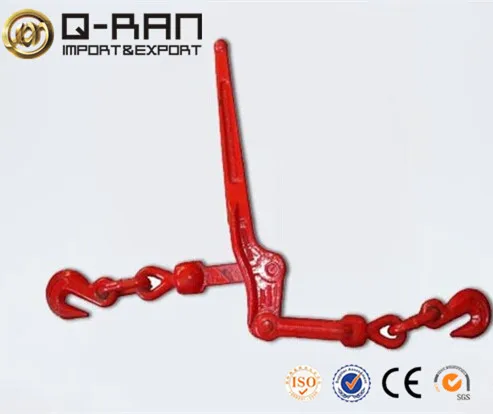

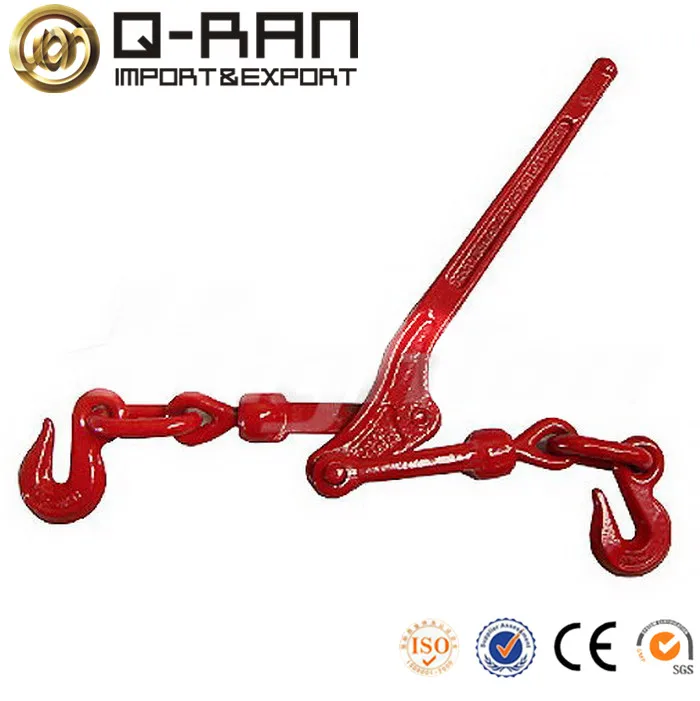

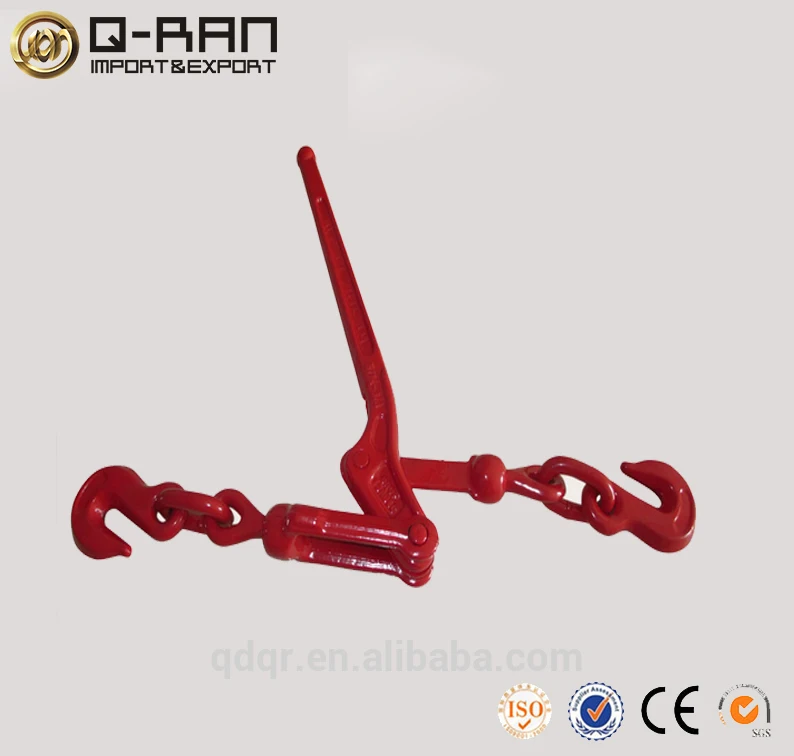

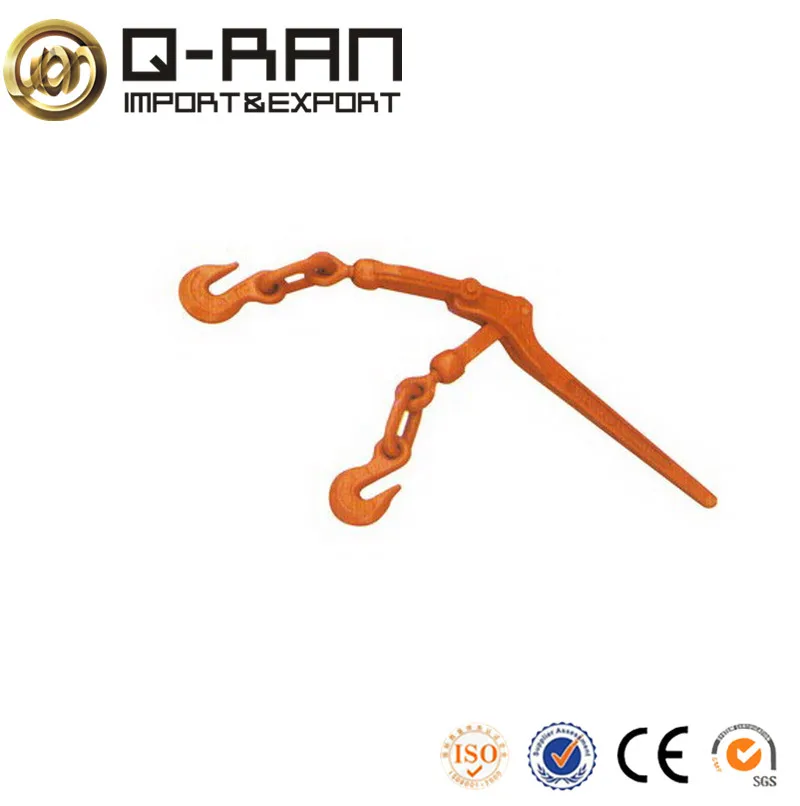

Red Painted Spring Ratchet Type Chain Load Binder with Hook
- Category: >>>
- Supplier: Qingdao Q-Ran Import & Export Co. Ltd.
Share on (60720904173):
Product Overview
Description
| Material | Carbon Steel |
| Surface | Powder Coated or Electronic Galvanized |
| Technology | Drop Forged and Casting Technology |
| Size | From 1/4 to 5/8 |
| Standard | US Type,European Type,Australia Type |
| Use as | Chain and Wire Rope Accessories |
| Brand | Q-RAN |
| Function | For Lifting and Tensioning Industry |

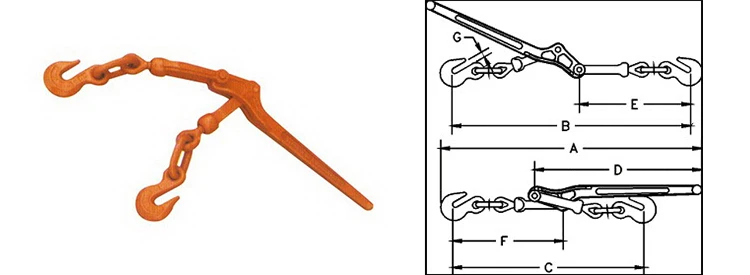

| Min-Max Chain | Working Load | Proof | Ultimate Load (lbs.) | Weight Each | Handle Length | Tak | Dimensions | ||||||
| Size | Limit | Load | (lbs.) | (in.) | Up | (in.) | |||||||
| (in.) | (lbs.) | (lbs.) | (in.) | A | B | C | D | E | F | G | |||
| 1/4-5-16 | 2200 | 4400 | 7800 | 3.52 | 11.42 | 3.75 | 18.5 | 17.3 | 14.17 | 11.42 | 8.27 | 8.07 | 0.35 |
| 5/16-3/8 | 5400 | 10800 | 19000 | 7.02 | 16 | 4.5 | 24.13 | 22.13 | 17.88 | 16 | 10.38 | 10.38 | 0.5 |
| 3/8-1/2 | 9200 | 18400 | 33000 | 12.47 | 18.69 | 4.5 | 28.75 | 25.75 | 21.25 | 18.69 | 12.31 | 12.38 | 0.63 |
| 1/2-5/8 | 13000 | 26000 | 46000 | 19.68 | 21 | 4.75 | 31.25 | 29.75 | 25 | 21 | 14.63 | 13.75 | 0.72 |
Thanks for your visiting! Want to learn more and get lastest price?
Please send your inquiry details in the below, Click " Send " Now, we are waiting for you!

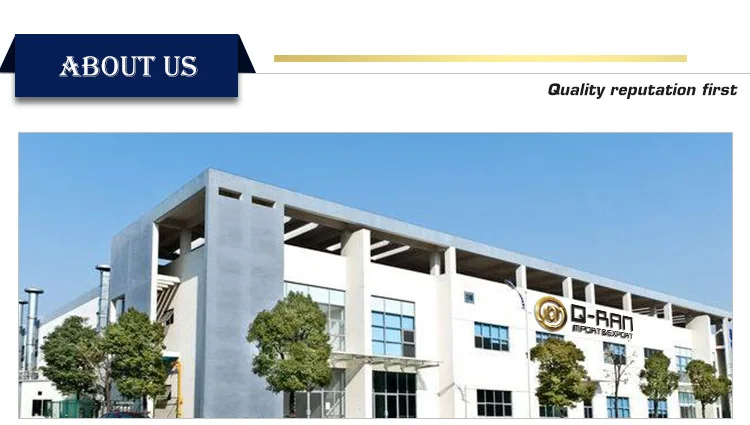

QINGDAO Q-RAN IMPORT&EXPORT CO.,LTD is engaged in hardware rigging trading company. The company address is 708 ROOM ,Block No.3, Airport International Center, No. 6 Changcheng Road (South),Chengyang District, Qingdao City, Shandong Province.
Business strictly in accordance with relevant state laws, regulations and rules of the WTO requirements management according to law, actively participate in regional economic cooperation, the company has a good development prospect.
Our company regards :"reasonable prices,efficient production time and good after-sales service"as our tenet.We hope to cooperate with more customers for mutual development and benefits.We welcome potential buyers to contact us.
1. Are you a factory?
Yes, we are a factory which was founded in 1996.

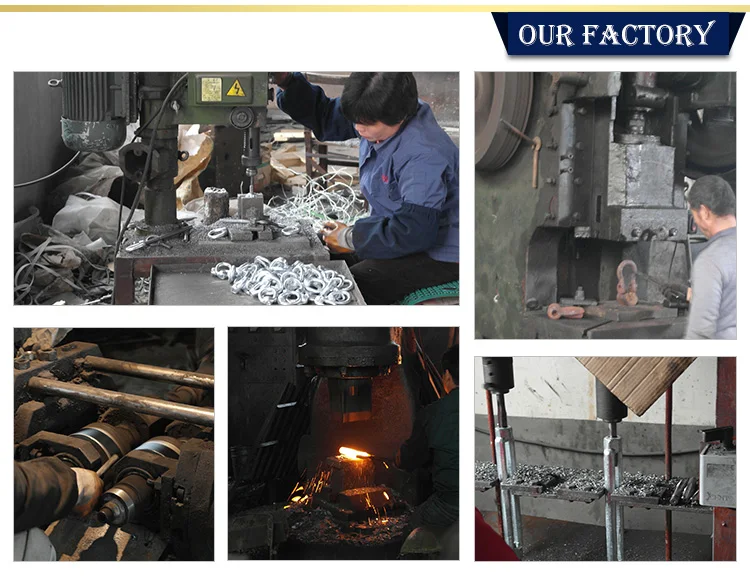

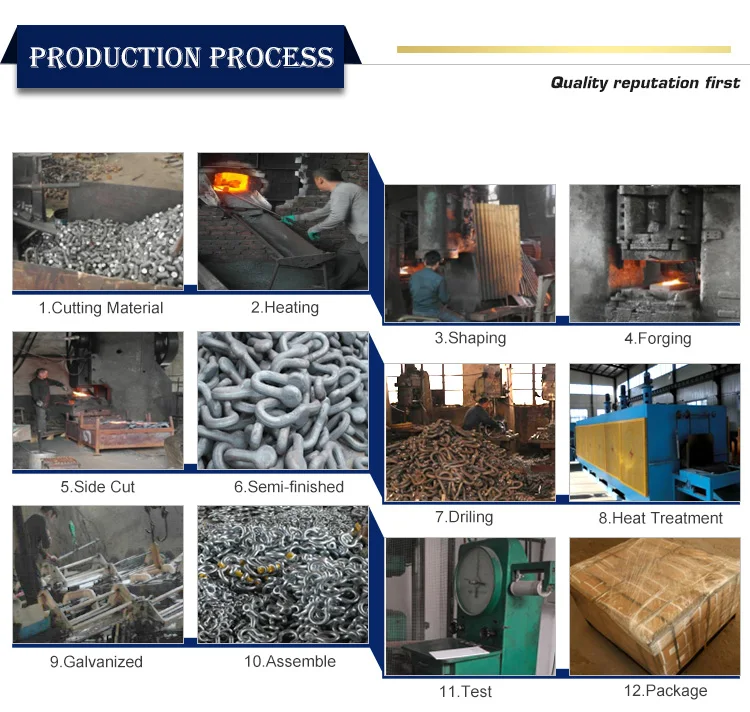

We focus on metal forging and stamping, have 4 production lines with advanced machines over 100 set. Also We have been in good partnership with casting factory, good quality malleable rigging products could be provided.
2. Can you provide the free samples?
Yes, the samples are free, but the freight is on your side.
3. What are your advantages compared with others?
With our own factory to manufacture the products, we can ensure timely products delivery, trustworthy quality and favorable price, that is our advantage.
4. How do you control quality?
With ISO 9001-2008 quality Management System, we control the quality from selecting good material, producing follow the standard, proper inspection of products.
