surgical operating room medical video camera

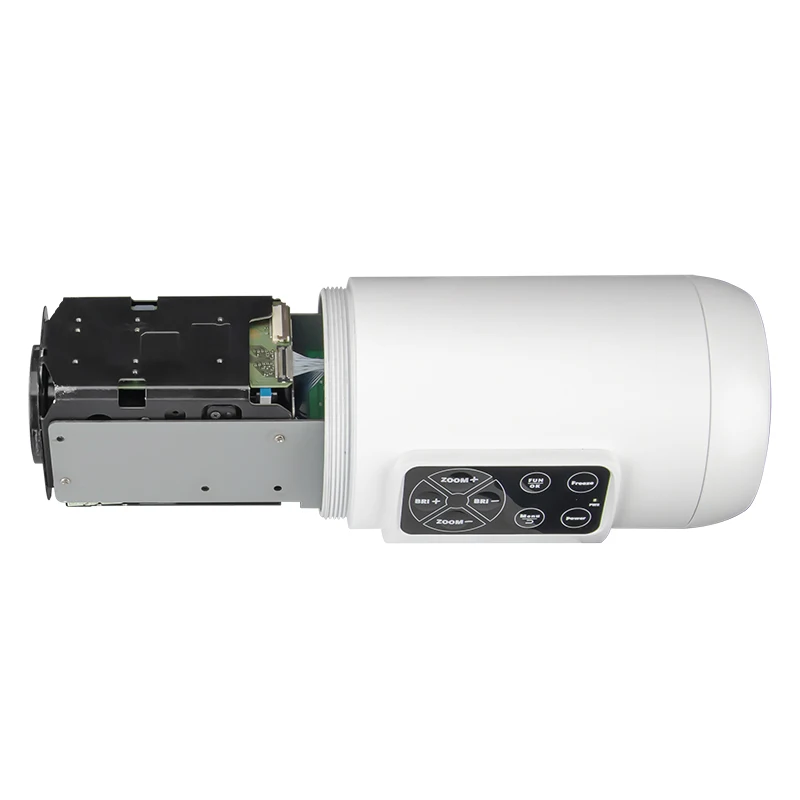

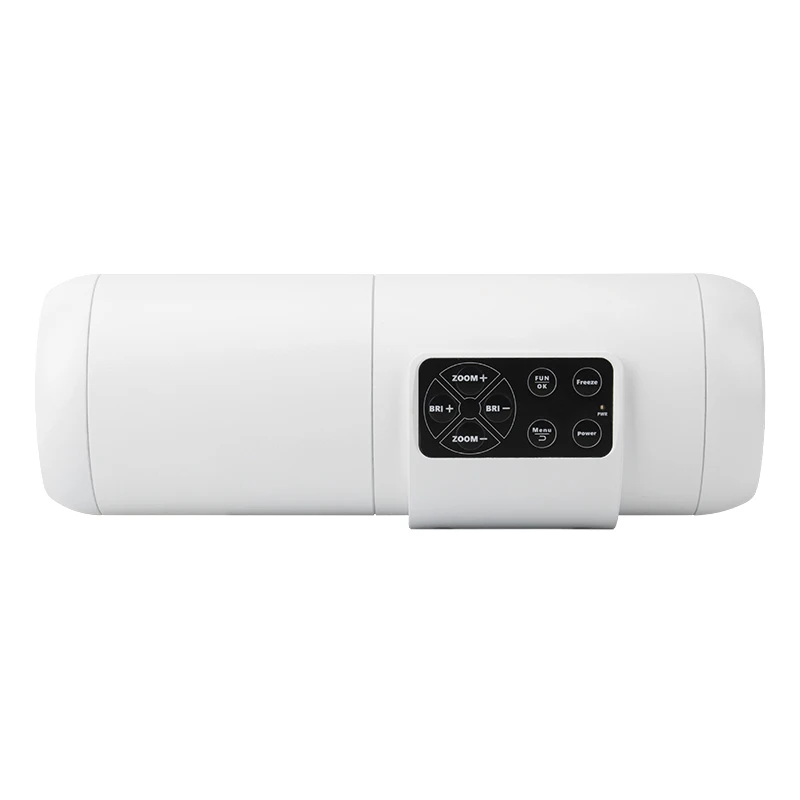

This product adopts an integrated design, conforms to ergonomics, does not accumulate dust, and is easy to clean. Built-in integrated movement with SONY 1/2.8 inch Exmor CMOS sensor, 30x optical lens, support 12x digital zoom. It can output up to 1080P60 full HD images, which can provide high-definition, high-quality and high-sensitivity video shooting functions in professional medical scenarios. In addition, it also supports automatic fast and precise focusing, and can restore true color at high color temperature, and automatic strong light suppression function. Supports  quick switching of multi-scene modes. Simple operation interface, multi-function control button panel, convenient control of common functions such as focusing, zooming, scene switching, freezing and so on. Suitable for use in various types of operating rooms, the product is light and flexible.


.jpg



Introduction


Capture 1080p60 resolution video images in the Operating Room


Capturing high-resolution video from surgical procedures is an increasing requirement in today's medical environments - from student teaching and academic research to maintaining accurate records for legal and compliance purposes.

Designed for use in Operating Rooms*, the camera is a 1080p60 video camera that's designed for mounting on a ceiling or floor-standing boom arm. The camera can also be commanded via a suitable remote controller.

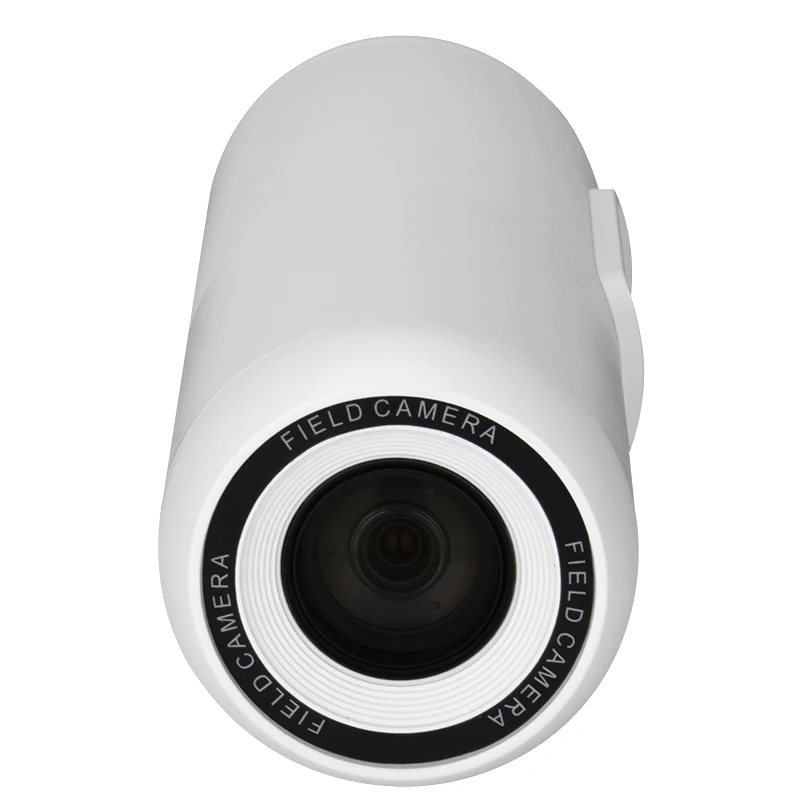

Exceptional FHD image quality is assured by the large-format Exmor R® CMOS image sensor that captures far more light than smaller sensors in conventional cameras, assuring high levels of detail and very low image noise. It's equipped with the large aperture image-stabilised lens that's capable of zooming in with high magnification for a detailed close-up view of intricate surgical procedures.

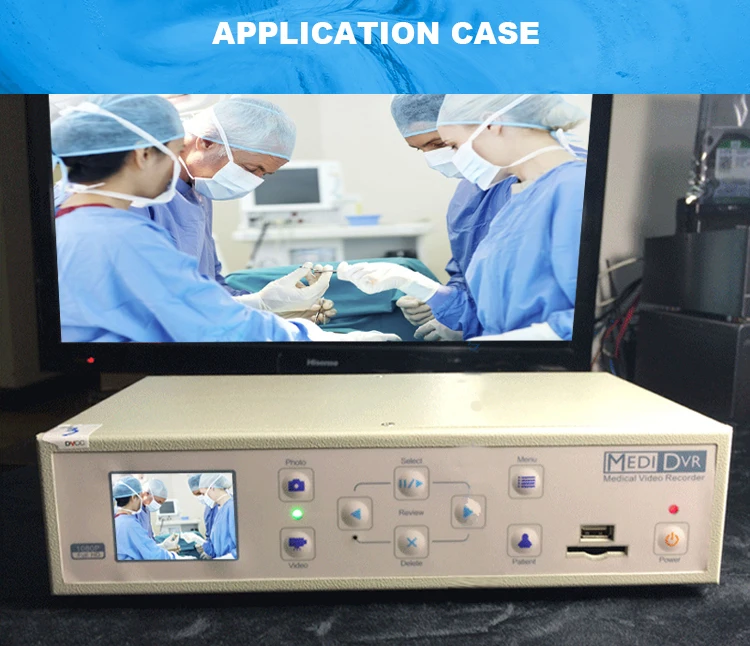

The camera can output 1080p60 video via HDMI and HD video via 3G-SDI at the same time - ideal for simultaneous connection to a FHD monitor and medical video recorder in the Operating Room.

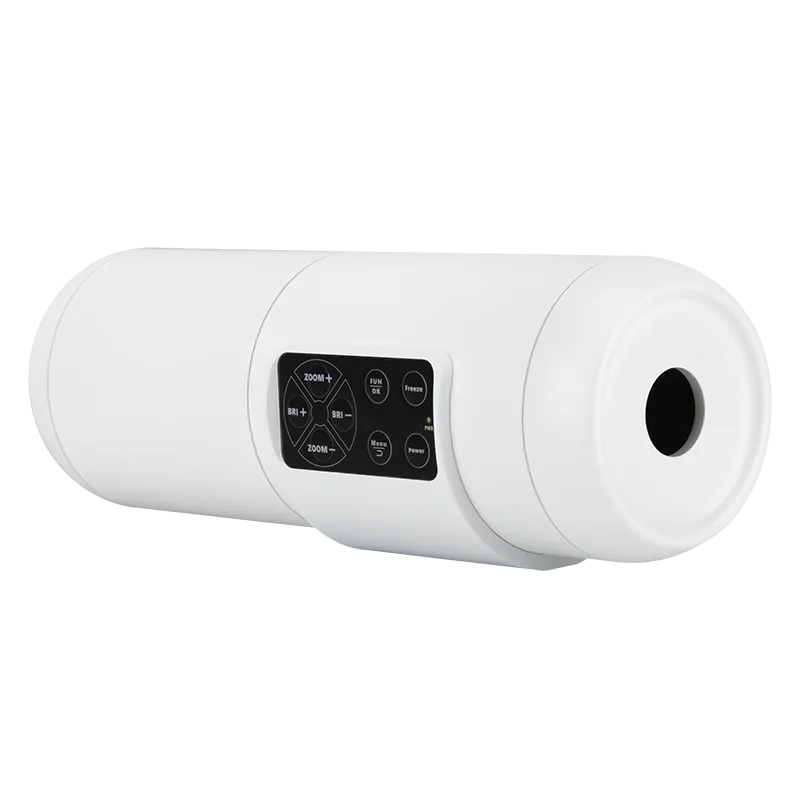

The camera's cylindrical all-in-one design is ideal for integration in the modern Operating Room, with convenient cable routing and a smooth wipe-clean housing that resists sterilisation chemicals.

* Please note that this product does not conform to the definition of a medical device.














































































Product Specifications



Sensor



1/2.8 inch Exmor CMOS



Resolution



1080p60/50/59.99,1080p30/25/29.99,1080i60/50,720p60/50/30/25



Zoom



30x optical zoom, 12x digital zoom



Focal length



f=4.3~129mm(F1.6–F4.7)



Horizontal viewing angle



(far end) 3.3°~(near end) 68°



Focusing system



Auto, manual, one-shot auto focus, interval auto focus, zoom trigger auto focus, focus compensation when ICR mode is on



Min illumination



≤0.35Lx;



Shutter



1/1~1/10000s



Gain Adj



Automatic, Manual (0~28dB), Maximum Gain Limit (6~28dB)



WB Adj



Auto, Manual, Indoor, Outdoor, One-touch, ATW



WDR



Support super wide dynamic



Exposure



Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority



Noise ratio



>50dB

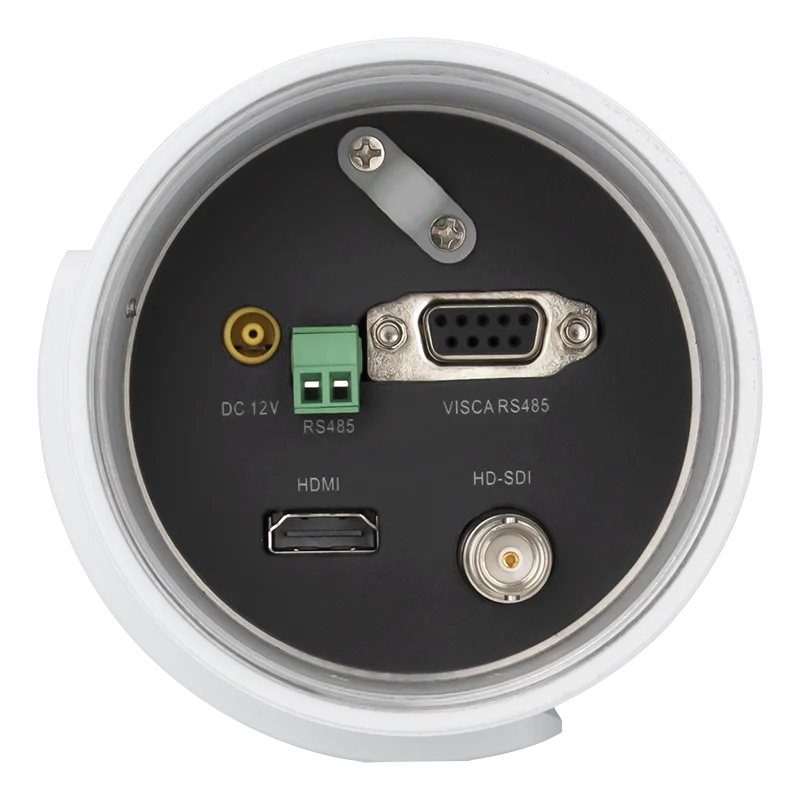

Interface



HDMI,HD-SDI,RS232,485,DC12V



Control method



RS485



Control Protocol



VISCA



Power



DC 12V 3A
