CKF A High quality non contact mechanical part one way bearing overrunning clutch

CKF A High quality non contact mechanical part one way bearing overrunning clutch

Name: CKF A High quality non contact mechanical part one way bearing overrunning clutch
SKU: 60720934552
Availability: InStock

Price:

Quantity:

Product Description

CKF-A High quality non contact mechanical part one way bearing overrunning clutch

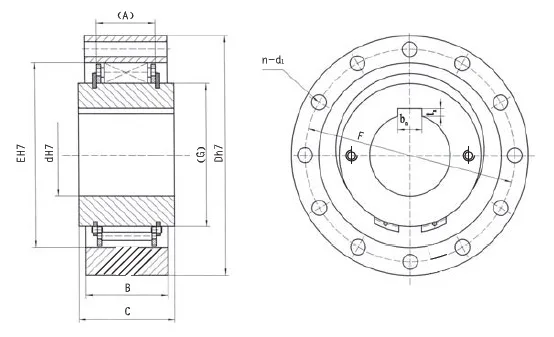

Parameter of CKF-A High quality non contact mechanical part one way bearing overrunning clutch

TYPE	NOMINAL TORQUE [N · m]	NON CONTACT LIMITING ROTATE SPEED [r / min]		DIMENSION IN CONTOUR [mm]										WEIGHT [kg]
TYPE	NOMINAL TORQUE [N · m]	MINIMUM [n_min]	MAXIMUM [n_max]	d [H7]	D [h7]	E [Js6]	F	G	C	B	A	n - d1	bn x tn	WEIGHT [kg]
CKF-A2090	192	875	6000	20	90	66	78	40	35	35	27	6 - 6.6	6 x 2.8	1.50
CKF-A2595	243	825	6000	25	95	70	82	45	35	35	27	6 - 6.6	8 x 3.3	1.60
CKF-A30102	342	780	6000	30	102	75	87	50	40	40	30	6 - 6.6	8 x 3.3	1.80
CKF-A35110	437	740	6000	35	110	82	96	57	40	40	30	6 - 6.6	10 x 3.3	2.10
CKF-A40125	574	720	5000	40	125	92	108	67	40	40	30	8 - 6.6	12 x 3.3	2.90
CKF-A45130	640	665	5000	45	130	94	112	69	40	40	29	8 - 9.0	14 x 3.8	3.10
CKF-A50150	1120	610	4000	50	150	114	132	90	40	40	29	8 - 9.0	14 x 3.8	4.70
CKF-A55160	1380	600	4000	55	160	116	138	91	45	45	30	8 - 9.0	16 x 4.3	5.40
CKF-A60175	2190	490	3200	60	175	135	155	95	70	60	48	8 - 11	18 x 4.4	8.50
CKF-A70190	2800	480	3200	70	190	140	165	100	70	60	48	12 - 11	20 x 4.9	10
CKF-A80210	3600	450	2400	80	210	160	185	120	80	70	48	12 - 11	22 x 5.4	14
CKF-A90230	7160	420	2400	90	230	180	206	140	90	80	64	12 - 13.5	25 x 5.4	19
CKF-A100280	9790	455	2000	100	280	200	240	160	105	100	64	12 - 17.5	28 x 6.4	34
CKF-A130320	14640	415	2000	130	320	235	278	195	105	100	64	12 - 17.5	32 x 7.4	44
CKF-A150400	33460	365	2000	150	400	320	360	256	105	100	84	12 - 17.5	36 x 8.4	73
