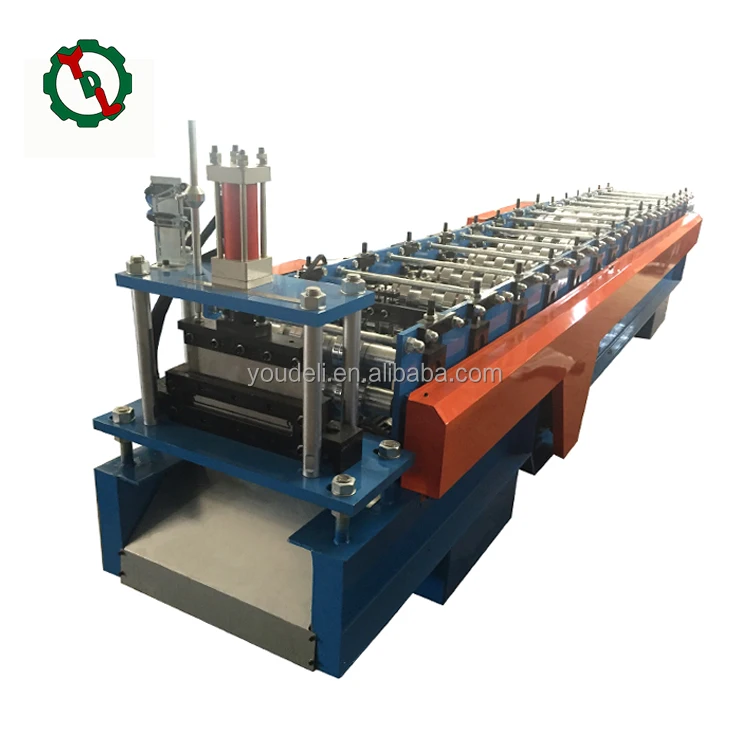

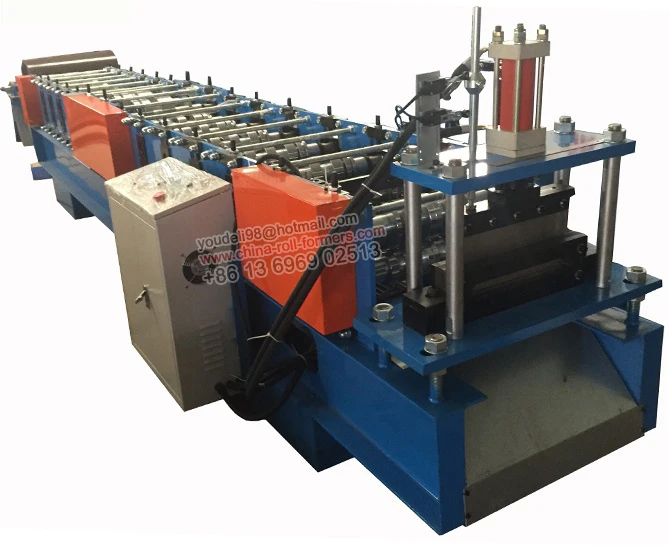

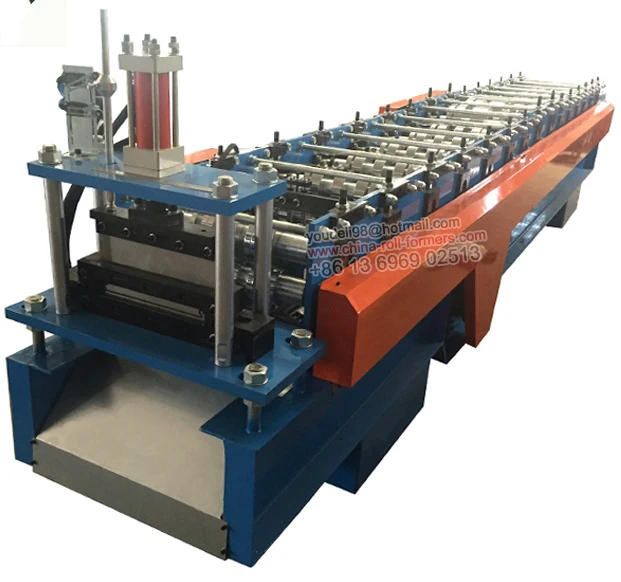

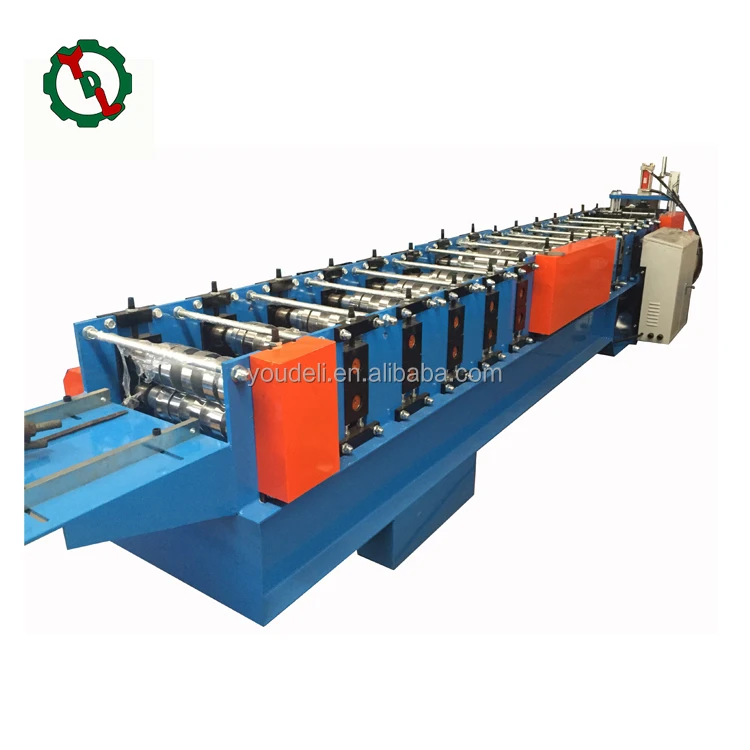

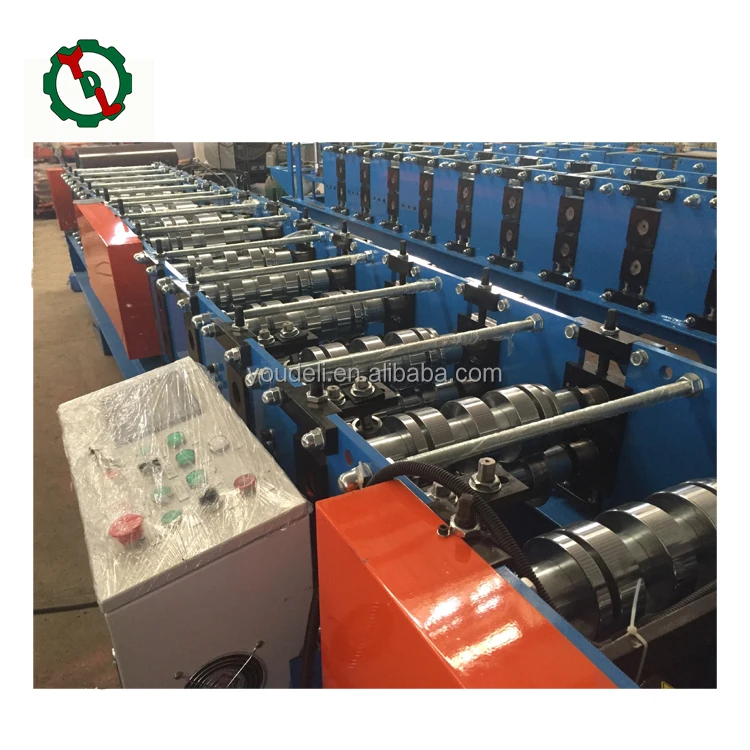

2018 New Design Popular Steel Rail Roof Roll Forming Machine

Share on (60720963726):


Price:

Quantity:


Product Overview

Description


2018 New Design Popular Steel Rail Roof Roll Forming Machine--_16.jpg


Roofing Machines



Technical Parameters







































































 Size



 8000*1500*1500mm



 Weight



 6000KGS



 Voltage



 220V/60HZ/3PH



 Motor Power



 4KW



 Hydraulic Power



 2.2KW



 Forming Steps



 15 Steps



 Working Speed



 16m/min



 Height of Corrugated Roofing



 16mm



 Effective Cover Width



 282mm



 Feeding Material Width



 300mm



 Thickness for Steel



 0.3-0.8mm



 Thickness for common use and test



 0.4mm (Material:Color Steel and Galvanized


 teel 275-550Mpa



 Tolerance for Cutting



 ±2mm

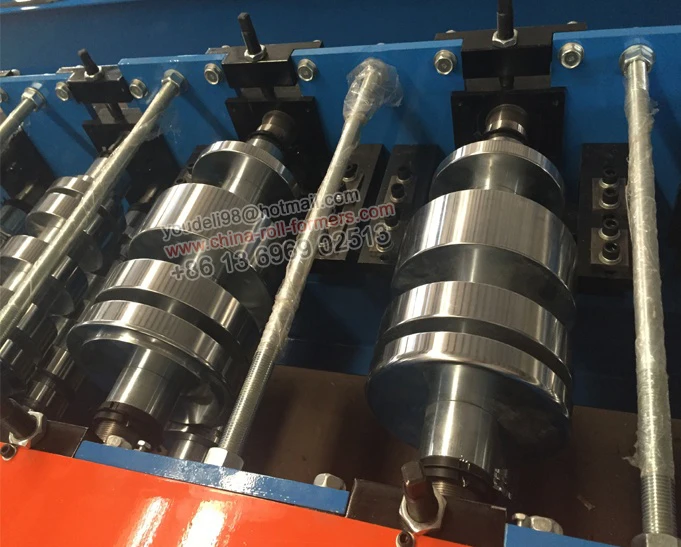

 Roller material



 High Grade 45# Forged Steel,Plated   Hard Chrome


 And polished all the rollers



 Material of shaft



 High grade 45# forged steel



After-sales Service Provided



Engineers available to service machinery overseas






Machine Components

































































No



Items



Quantity



Remarks



1



Manual/Hydraulic Uncoiler



1set



Up to customer



2



Main forming machine

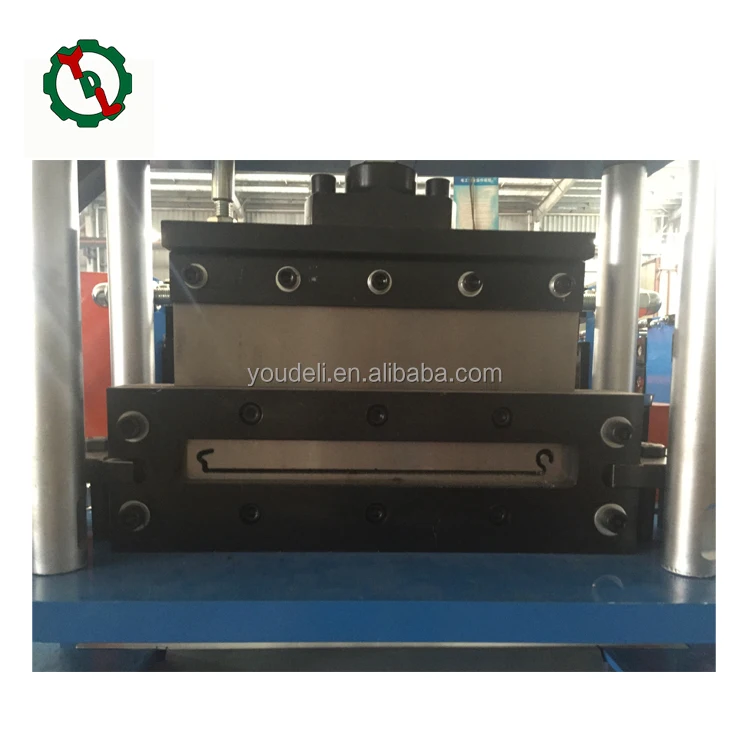

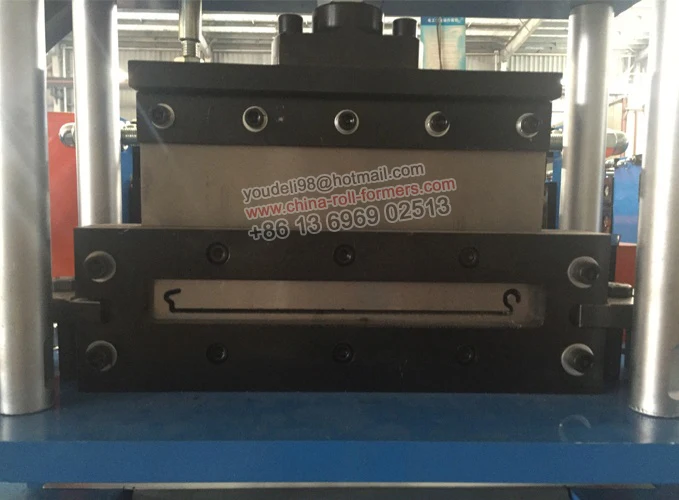

Pre-cutting device



1set



Up to customer



Feeding device



1set







Hydraulic system



1set







Roll forming system



1set







Post cutting device



1set







Protective cover



1set



Up to customer



3



PLC control system with touch screen



1set







4



Run out table



4pcs



Up to customer






Product Show























FAQ





1. Are you the trade company or factory?


We are professional manufacturer for making cold metal roll forming machines.





2. How to visit your factory?


We can pick up you at the Xiamen International Airport or Xiamen North Railway Station


to our factory.





3. Do you provide customized machines?


Sure, we can design and make the machines as per your requests. We are the professional


designer and manufacturer for cold metal roll forming machines.





4. Does one machine can only produce one size?


Not exactly, it depends on the machine.





5. Is there quality control when manufacturing the machines?


Yes, we have responsible teams who will be in charge of the quality control from laying off the raw material, processing the machine frame, rollers, shafts and the other parts, making heat treatment the rollers and shafts, installing, adjusting, testing and packaging, etc.





6. Why your price is higher than others?


Because we insist on that every company must attach importance to the quality at first


place, we must confirm to do well every step of processing the machines, to get better quality for the machines, and supply good services for our customers.





7. What can you do if the machine broken?


The warranty period of our machines is one year.


If there are any problem with any parts within guarantee time, we will courier the new ones for replacing within one week. If after the warranty period, we can solve the problems by negotiation each other as per the actual situation of machines.  Anyway we can promise to provide our technology supports for the whole life of our machines.





8. Do you have after technology support?


Yes, we are glad to give suggestions and also have skilled technicians available to service


machinery oversea if you needed.





9. Do you have oversea engineers?


Yes, we can supply not only good skilled technicians to oversea, and also provide


technology training.





10. Can you response for the transport of machines?


Yes, please check us your destination port or address, we have good services of


cooperated shipping line with us.
