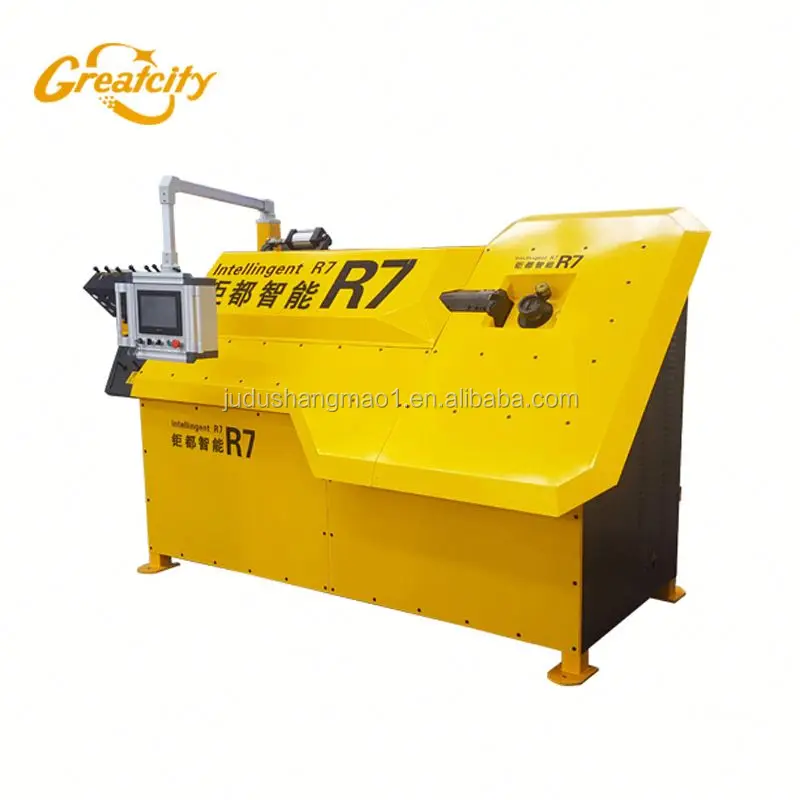

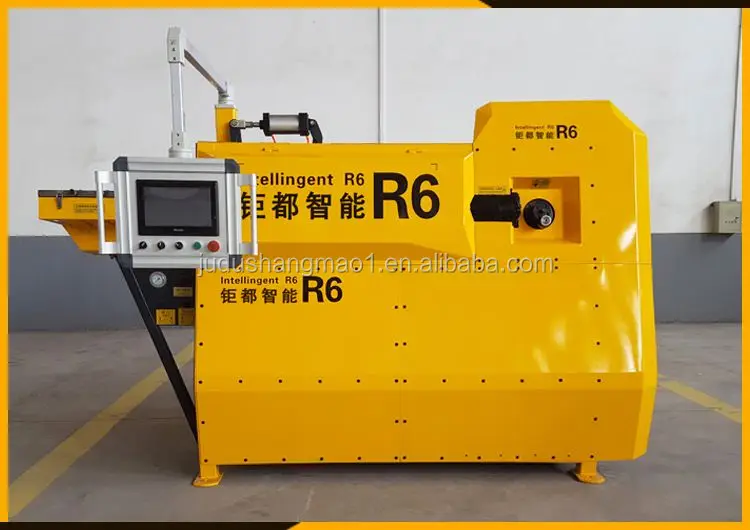

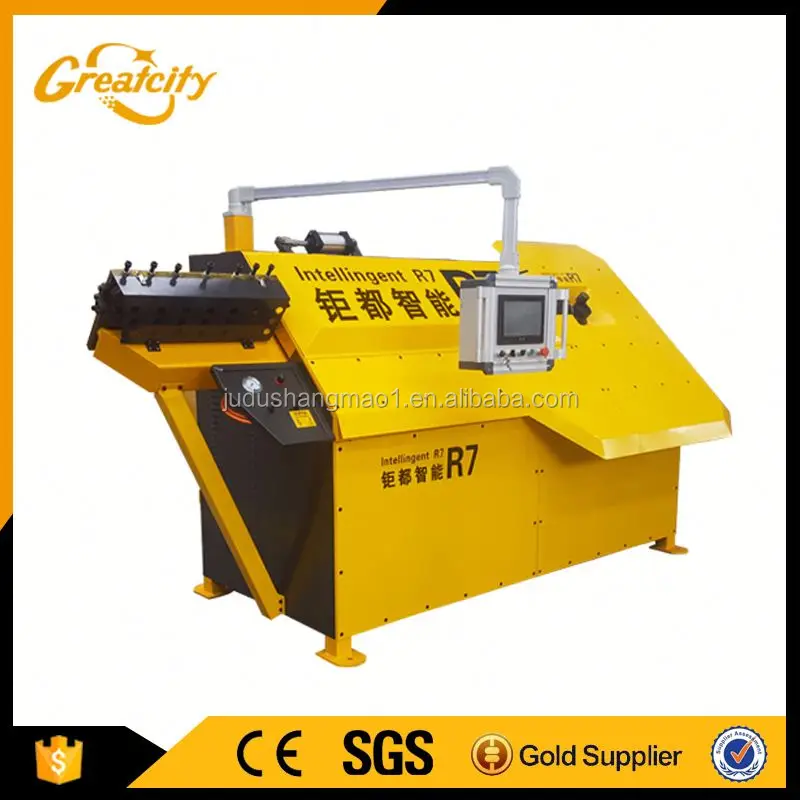

rebar bending machine cadreuse automatique

The steel bending hoop machine belongs to an improvement of the structure of the rebar bending machine. rebar bending machine hoop, CNC bending bending hoop machine, steel bending hoop machine,

Straightening system features:rebar bending machine from the horizontal and vertical can be automatically adjusted two sets of straightening wheel,combined with four traction wheel,driven by the import of servo motor to ensure that the steel straightening to achieve the best accuracy.One of the steel processing machinery.

The utility model comprises a reducer,a large gear,a pinion and a curved disk.The invention is characterized in that the two-stage brake motor is decelerated directly with the reducer,

Pinion and large gear meshing for two deceleration;

Large gears always drive curved disk rotation;

The curved disk surface is provided with a central shaft hole and a plurality of bending shaft holes;

There are a number of positioning shaft holes on the positioning bar of the work table.

As the two-stage brake motor and reducer directly for a first deceleration, input and output speed ratio is accurate, bending speed is stable and accurate, and can use the automatic control of electric conversion speed, the brake can guarantee the bending angle. The use of positive and negative motor, the two-way bending of the steel. The central shaft can be replaced for easy maintenance. Can be used intelligent control.

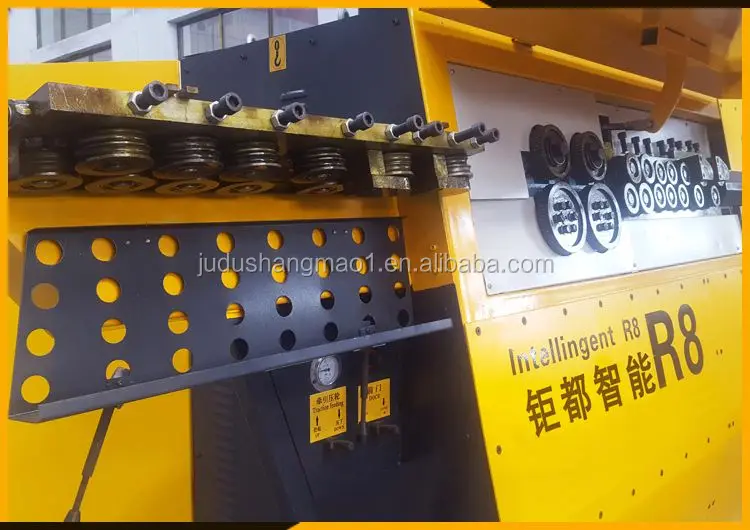

Consists of two sets of straightening wheel, combined with four traction wheel, driven by the import servo motor to ensure that the straightening of steel to achieve the best accuracy.

1. Bend and shear mechanism: driven by the import of servo motor, bending arm can be high-speed rotation and expansion and contraction, shear mechanism to complete the shear action at high speed to ensure that the bending accuracy of steel.

2. Control system: The rebar bending machine uses foreign mature control system, high reliability. The control system has fault identification and alarm function.

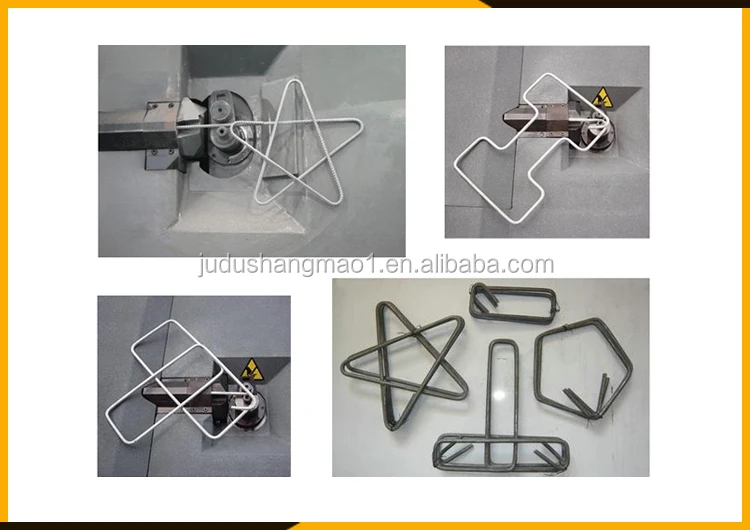

3. Can design up to 60 corners within any shape of ancient and modern and contour graphics, can be stored on thousands of different product shapes, and a storage graphics library, in order to multi-species mass production.

4. Can continuously produce any shape of the product, without the need for mechanical adjustment; in the correction of bending angle does not need to interrupt processing.

Comparison of traditional crafts:

5. Stirring of the traditional processing technology is generally a single machine will be round steel bar through the modulation, cutting, bending hoops and other processes and distribution to achieve. The process is more backward, can not meet the needs of modern construction progress, and a lot of waste just now, take up a larger space, more labor, low productivity, stirrup size accuracy and shape accuracy.

6. rebar bending machine using advanced computer numerical control, automatic and fast completion of steel straightening, length, bending hoop, cut off. The machine is extremely efficient, can replace 20-30 reinforced workers, in the field of steel processing is unique.

Features: The rebar bending machine set straightening, measuring length, bending, cutting, counting in one, the whole structure is compact and compact, simple operation, high production efficiency, saving labor, the machine uses automatic microcomputer control servo drive motor, with speed Fast, powerful, technical standards, low failure advantages.

  The rebar bending machine from the reinforcement feeding, descaling, straightening extension, bending forming, counting, cutting off a variety of process integration, can directly produce a variety of sizes and sizes of stirrups, fully meet the design requirements.

Specification of rebar bending machine:

Features: 1, automatic stirrups production equipment, at the same time with straightening function, a machine with two.

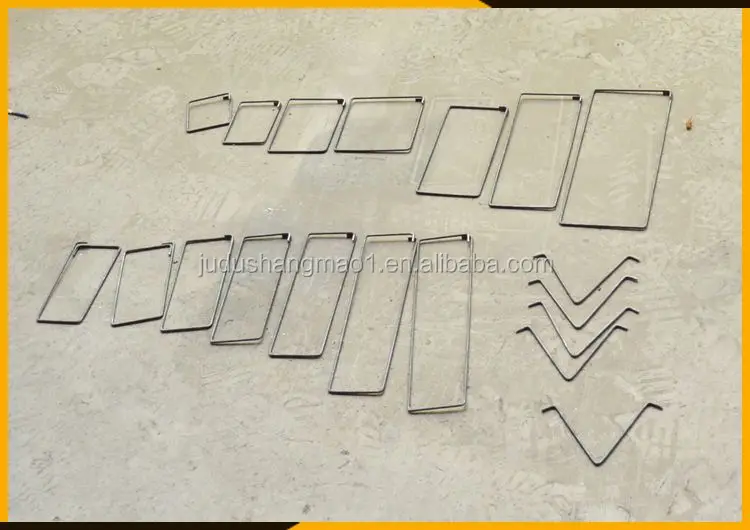

2, the use of intelligent control, processing a variety of sizes a variety of square, rectangular, diamond, polygon.

3, from the wire rod raw materials to stirrup products a molding, processing cold, hot-rolled high-strength wire rods.

4, high production efficiency, quite twenty to thirty workers.

5, equipment, strong, only one person operation, save a lot of labor.

6, save raw materials, in the work is continuous molding almost no steel material head loss.

7, covers an area of small, save the alignment work area and cutting work area, can operate in a narrow area.

8, equipment maintenance costs and energy costs are very low.

Advantage:

I digest and absorb the European advanced technology, independent research and development of the intellectual property rights of rebar bending machine, is set straightening, bending and cutting three functions and one, the use of digital program control, bending various shapes of steel processing Special equipment, the machine can bend double bars at the same time, high production efficiency, easy adjustment, favored by the users.

1. Special design structure, easy to deal with ribbed steel straightening, straightening ribbed steel bar does not hurt.

2. Curved steel bar straightening mechanism to improve the straightening effect of steel bars to prevent the axial torsion of steel;

3. Vertical straightening mechanism, respectively, for each steel bar straightening, to ensure the quality of steel straightening;

4. All the rollers are made of high quality alloy steel, high hardness, good wear resistance and improve the service life;

5. near the corner there are reinforced forming a steel bar, to ensure the quality of bending.

packaging information: standard export  wooden packing. We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him ASAP.

delievery time: 7-10 days after receiving the deposit
