1018 offset printer type and multicolor color&page newspaper printing machine
- Category: Offset Printers >>>
- Supplier: Shanghai,Xsheen,Machine,Electron,Technology,Co.,Ltd.
Share on:
Product Overview
Description
offset printer type and multicolor color&page newspaper printing machine
Product Description

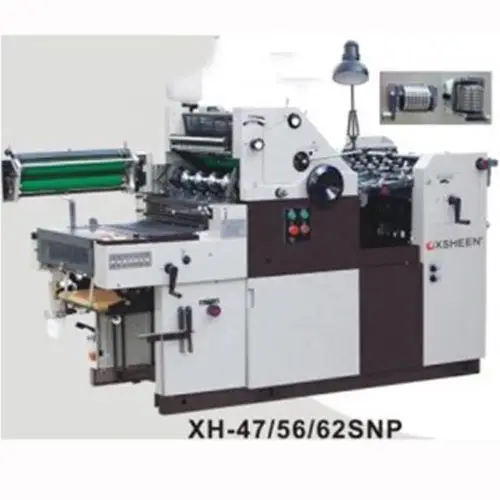

XH-47S/56S/62S single color offset press machine
XH-47SNP/56SNP/62SNP single color offset press machine with numbering & perforating
Features
1. Easy operation by one hand lever to control dampening, inking and pressing.
2. Accurate Location by front stop and both side-pulled stop ensures perfect printing.
3. Dampening and inking system is separate to adjust water and ink supplying easily.
4. PLC system is adopted to control the circuit.
5. Presetting Counter can make the machine stop automatically when finish preset quantity.
6. Doulbe sheets detection can eliminate the troubles of multiple sheets automatically
7. Powdering Function can avoid paper dirty.
8. Centralized lubricating system is more convenient for maintenance.
9. Numbering and perforating unit is optional.
Technical data
Model | XH47S/XH47SNP | XH56S/XH56SNP | XH62S/XH62SNP |
Max. Paper width | 470x365mm | 560x400mm | 620x440mm |
Max. Printing area | 454x345mm | 550x370mm | 605x440mm |
Min. Paper size | 210x297mm | ||
PS Plate size | 470x395x0.15mm | 560x420x0.15mm | 620x485x0.15mm |
Rubber blanket size | 466x415x1.95mm | 560x454x1.95mm | 620x510x1.95mm |
Paper weight | 28-250gsm | 28-250gsm | 28-250gsm |
Register Device | Wheel-type Side pull guide | ||
Feeding mode | Suction Cross feed | ||
Dampening mode | Molten mode | ||
Ink roller | 10pcs(2 former roller) 14pcs (3 former roller) | 16pcs(3 former roller) | |
Dampening roller | 4pcs(1 former roller) 5pcs (2 former roller) | 5pcs(2 former roller) | |
Power | 220V/50HZ (Single Phase) | ||
Power of main motor | 1.1KW | 1.1KW | 1.65KW |
Power of air pump motor | 0.55KW | 0.55KW | 0.55KW |
Printing Speed | 2000-8000pcs/h | 2000-8000pcs/h | 2000-8000pcs/h |
Weight | 600kg/800kg | 800kg/1000kg | 1000kg/1200kg |
Over dimension | 1.8x1.0x1.55m 2.1*1.0*1.45(NP) | 1.8x1.1x1.45m 2.1*1.1*1.45(NP) | 2.0x1.2x1.5m 2.3*1.2*1.5(NP) |
| OPTIONAL | |||
| Number capacity | Lateral:7 row*7 column=49/7 row*8 column=56/7 row*9 column=63 Vertical: 5 row*8 column=40/5 row*10 column=50/5 row*11 column=55 | ||
