Product Overview
Description

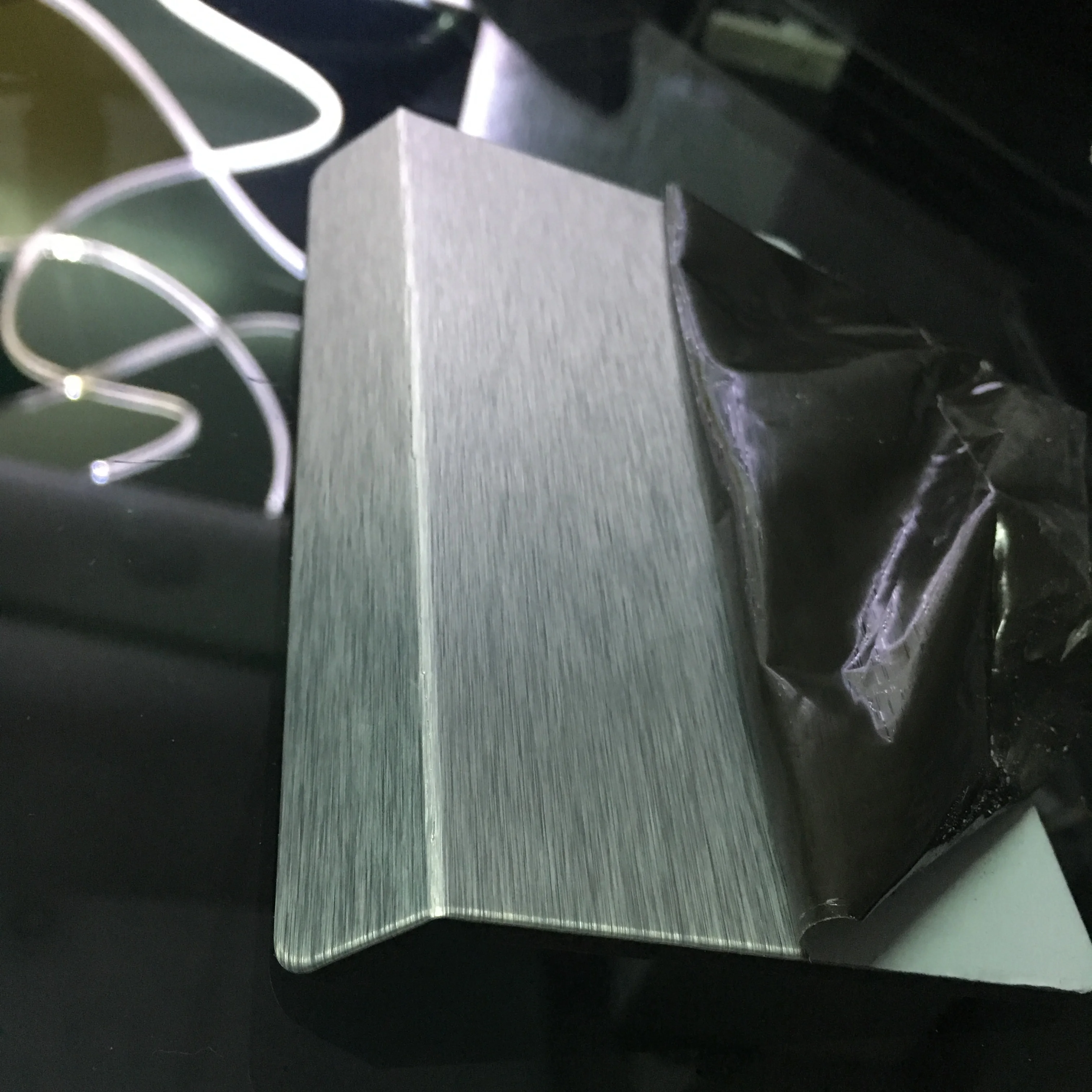

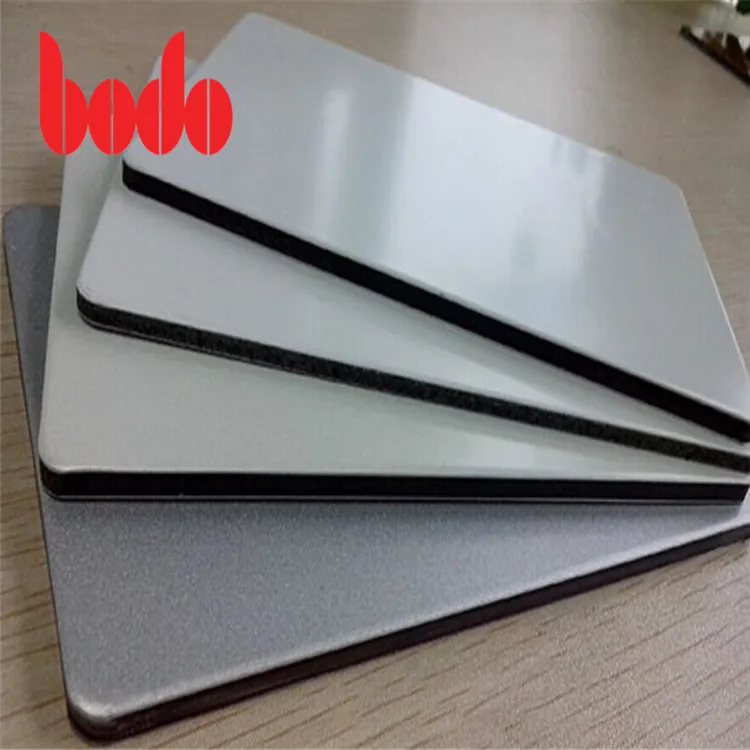

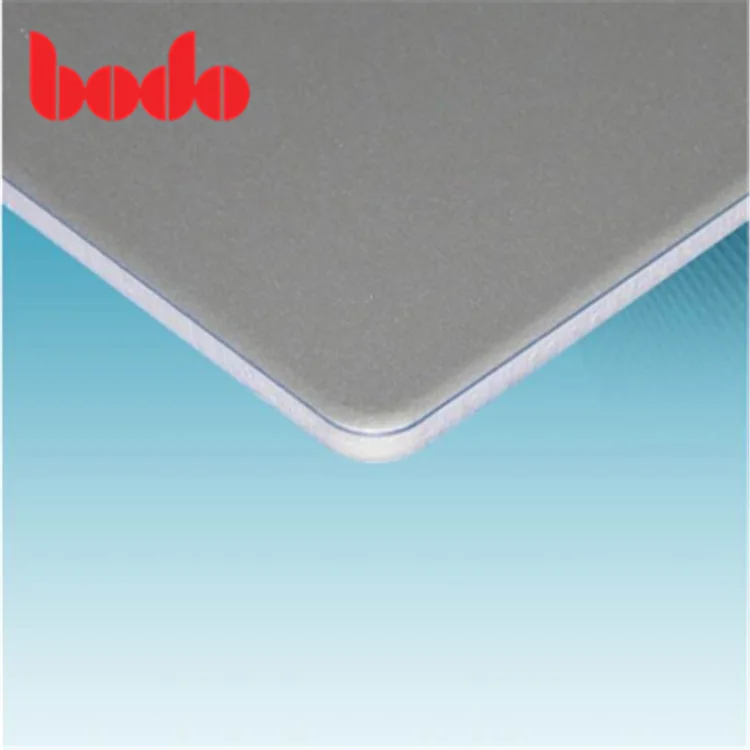

Brushed aluminum composite panel panels/sheet materials for printing Building ACP Sheet pure white alucobond
Product Description
Width | 1000mm/ 1220mm/ 1250mm/ 1500mm/1575mm etc. |
Length | 2440mm/4000mm or customized |
Thickness of Panel | 2-8mm |
Thickness of Aluminum | 0.05-0.5mm |

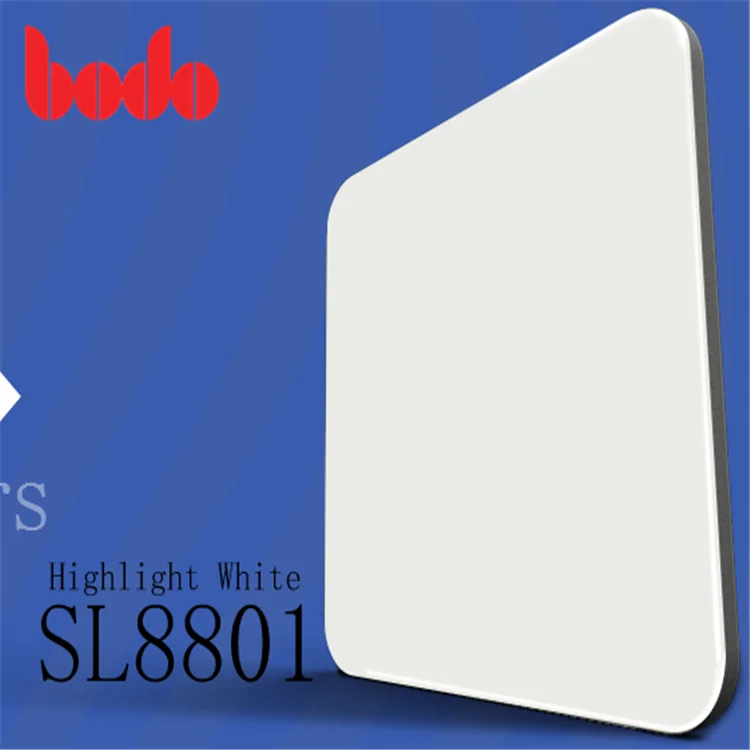

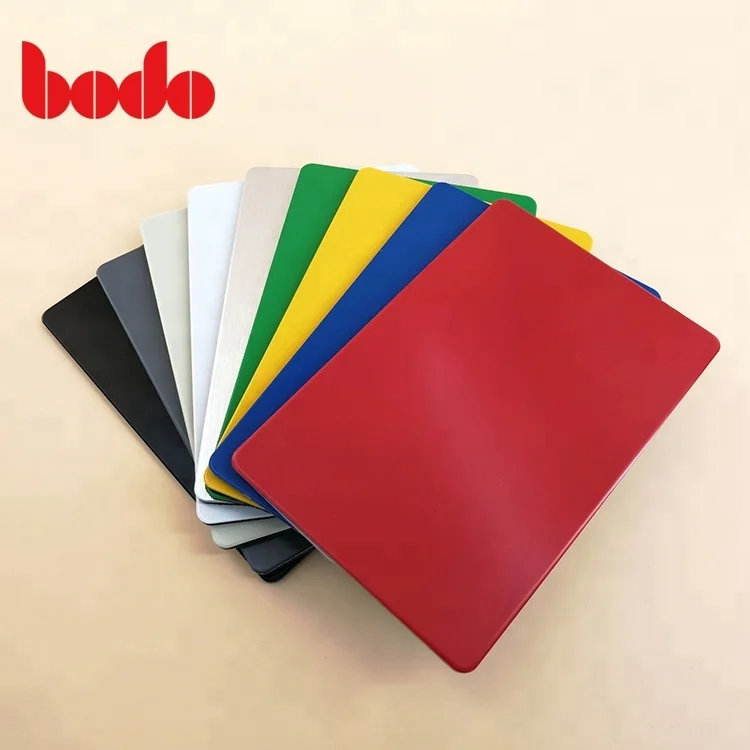

Color | BoDo Standard colors or Customized |
Top coating | PE coating for indoor (5-8 years guarantee) / PVDF coating for outdoor (20 years gurantee) |
Top Skin | Aluminum alloy coated with PVDF / PE resin |
Back Skin | Aluminum alloy sheet coated with primer / mill finish |
Core | Non-toxic & low-density polyethylene (LDPE) plastic |
Density | 0.5-0.55g/cm3 |
Flame Expansion | BS476-7 S1 |
FR rated | GB8254-1997 A Class |

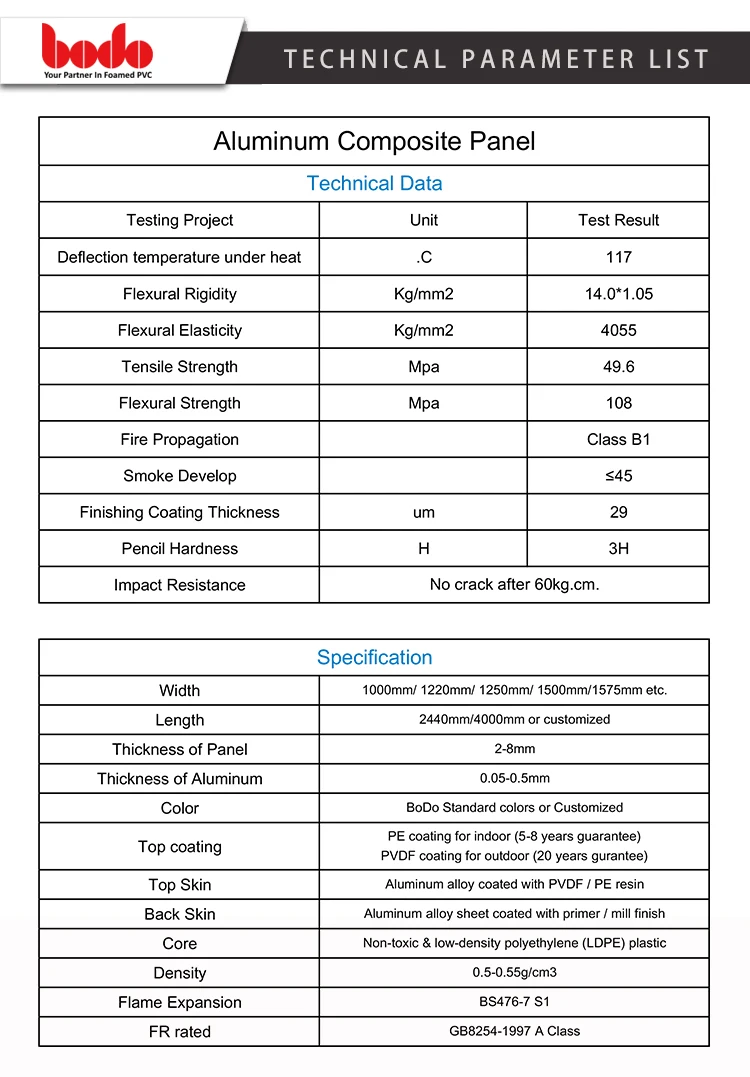

Performance
Testing Project | Unit | Test Result |
Deflection temperature under heat | .C | 117 |
Flexural Rigidity | Kg/mm2 | 14.0*1.05 |
Flexural Elasticity | Kg/mm2 | 4055 |
Tensile Strength | Mpa | 49.6 |
Flexural Strength | Mpa | 108 |
Fire propagation |
| Class B 1 |
Smoke develop |
| ≤45 |
Finishing coating thickness | um | 29 |
Pencil hardness | H | 3H |
Impact resistance | No crack after 60kg.cm. | |
Features
1. Excellent rigidity and impact resistance
2. Acid-resistant and alkali-resistant
3. Easy to clean and maintenance

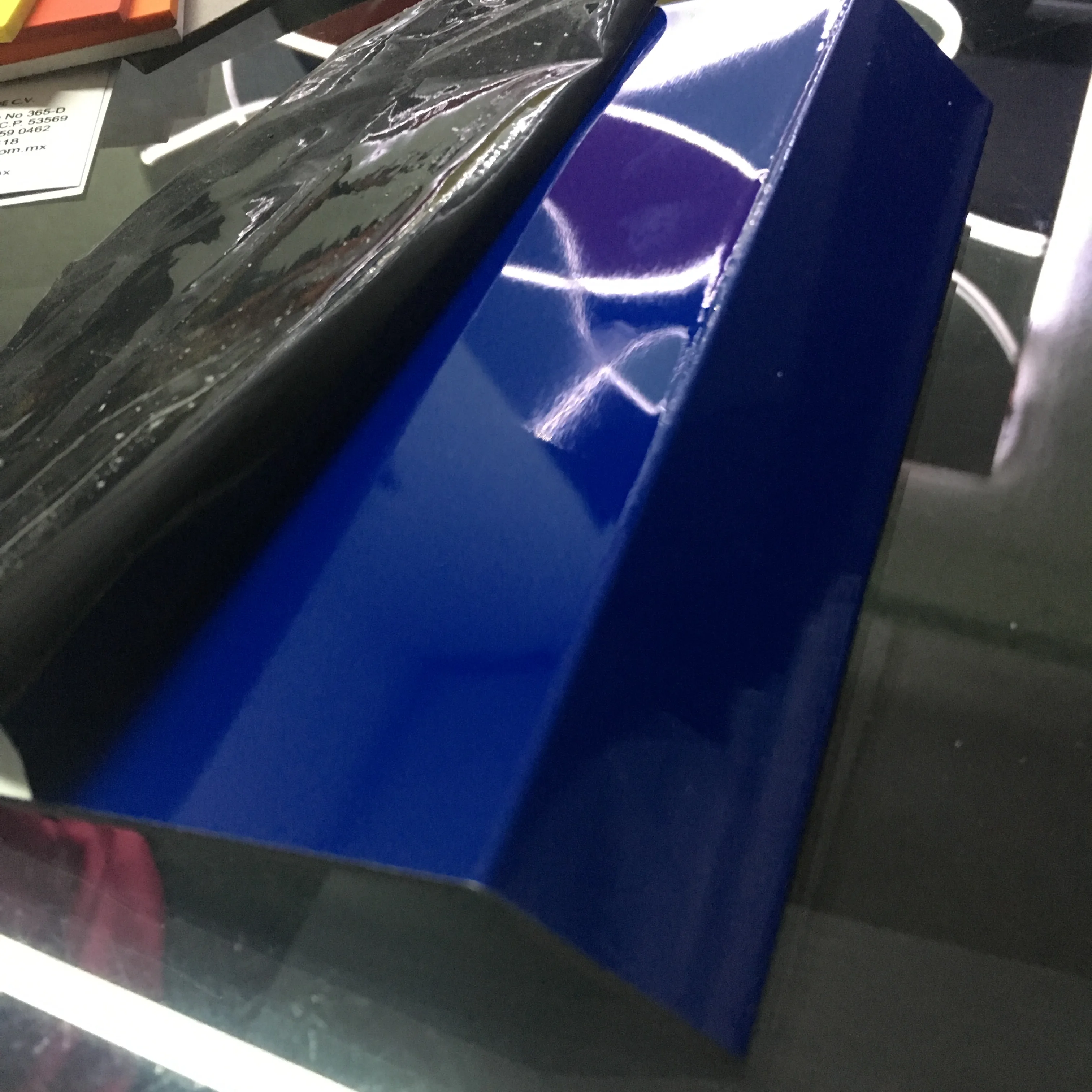

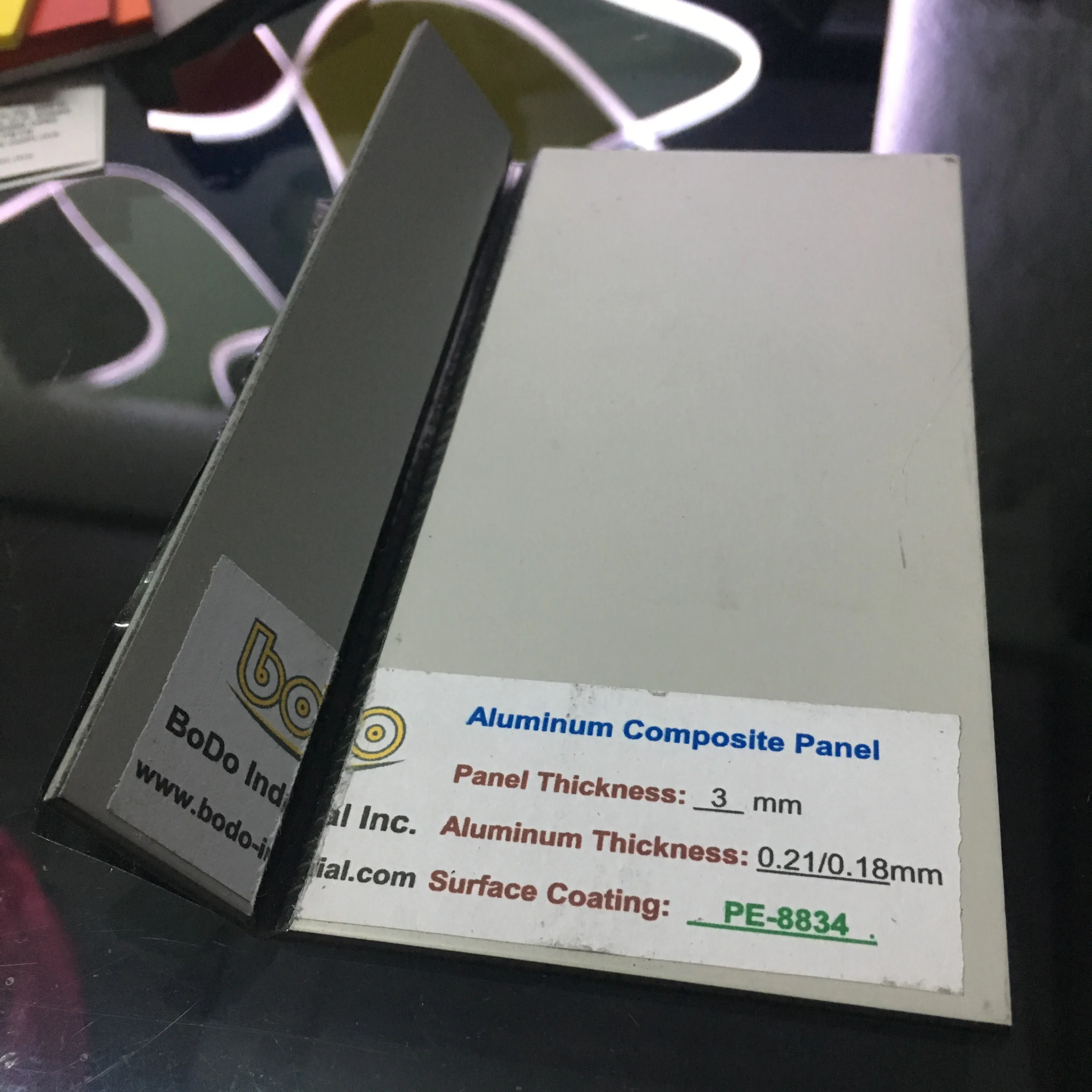

Photos 2
