SEB C3 wrought iron tube pipe bending machine for iron gate arc bending

      SEB-C3 enhanced pipe bending machine, which is the third generation. It can bend all size round pipe, square pipe and flat steel, rectangular pipe. Because we use the super-thick iron plate for the back and front, the back and front iron plate are milled together. So it can be sure the three shaft are concentric and coplanar. Then we can let the pipes in same plane after bend. Other machines can not finish it. You can got different size arc or circle through press down the middle shaft.

Main Features

There are 8 kinds square pipe mold with the machine.
15x15mm, 20x20mm, 25x25mm, 30x30mm, 40x40mm, 50x50mm, 60x60mm, 70x70mm.
The above molds are also can be used for bending rectangular pipe. You can buy other size of square pipe mold and round pipe mold from us. The common size of round pipe contain 16mm,19mm,22mm,24mm,30mm,36mm,50mm,63 and 76mm.



Detailed Images

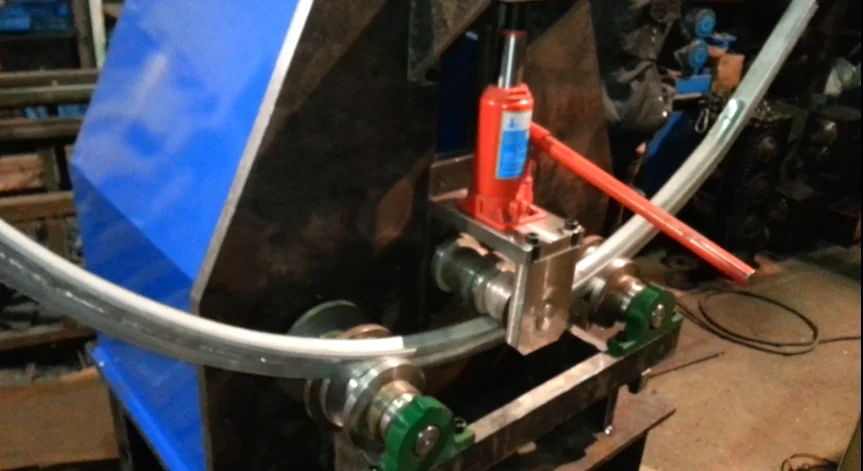

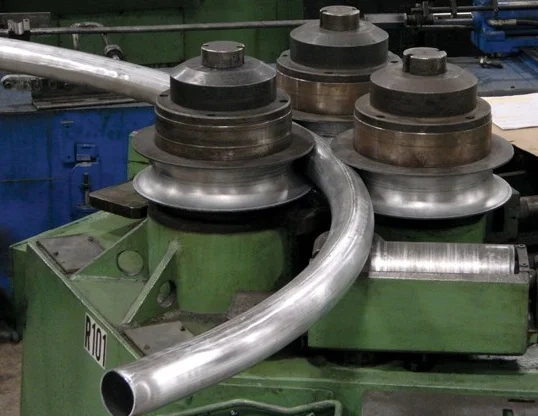

Round tube bending

 Round tube: ≤80mm

 Square tube≤80mm*80mm

 Flat Iron bar:≤80mm×80mm
         Wide processing range,bend square pipe, round pipe, rectangular pipe and flat steel.    Big size pipe, small size pipe, big arc, small arc, big circle, small circle, all these it can finish.

Main Features

There are 8 kinds square pipe mold with the machine. 15x15mm, 20x20mm, 25x25mm, 30x30mm, 40x40mm, 50x50mm, 60x60mm, 70x70mm.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	720mm (L) * 620mm (W) * 1100mm (H)
Weight	350KG
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
