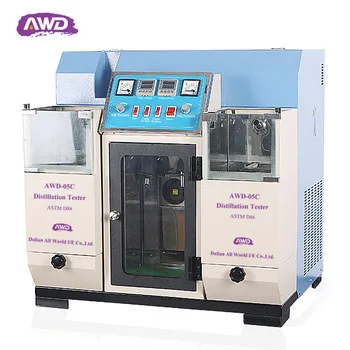

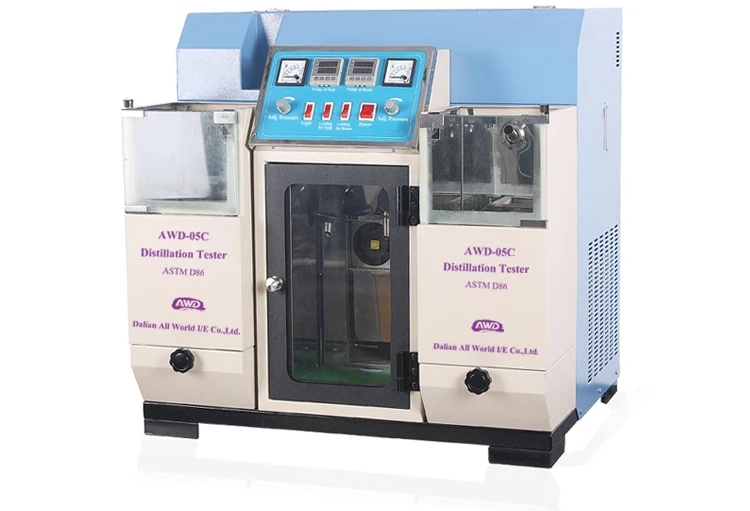

AWD 05C Automatic Test Equipment Petroleum Products Vacuum Distillation Testing Instrument ASTM D86 Distillation Tester

No.

Tech Indicator

Description

1

Power

AC220V±10%  50Hz

(Can be changed to your country request)

2

Distillate Heating Power

0 ~ 1200W Continuously Adjustable

3

Furnace Volume Movements Adjustable

50mm

4

Flask Branch Aperture Plate

φ50mm and Twoφ37.5mm

5

Bath Condensation Temperature Range

 Room Temperature ~ 80 ℃

6

Standard

ASTM D86

7

Characteristics

♦Double Tue Room

♦Can be Added Cooling System

♦Digital Temp. Control

♦Cooling Fast

♦Easy to Operation

♦Testing Exactly

♦Result Reliable

No.

Description

Note

Unit

Qty

1

Certification & Operation Video

Copy

1 Each

2

Main Part

Set

1

3

Rubber Plug

Piece

6

4

Graduated Cylinder

Piece

2

5

Fuse

25A

Piece

2

6

Thermometer

0~100℃

Piece

1

7

Thermometer

-2~300℃

Piece

2

8

Thermometer

-2~400℃

Piece

2

9

Flask

Piece

2

10

Furnace Mat

φ37.5, φ50

Piece

Each 2

Catalog Number

Dimension     (L×W×H) (mm)

Net Weight (Kg)

Gross Weight (Kg)

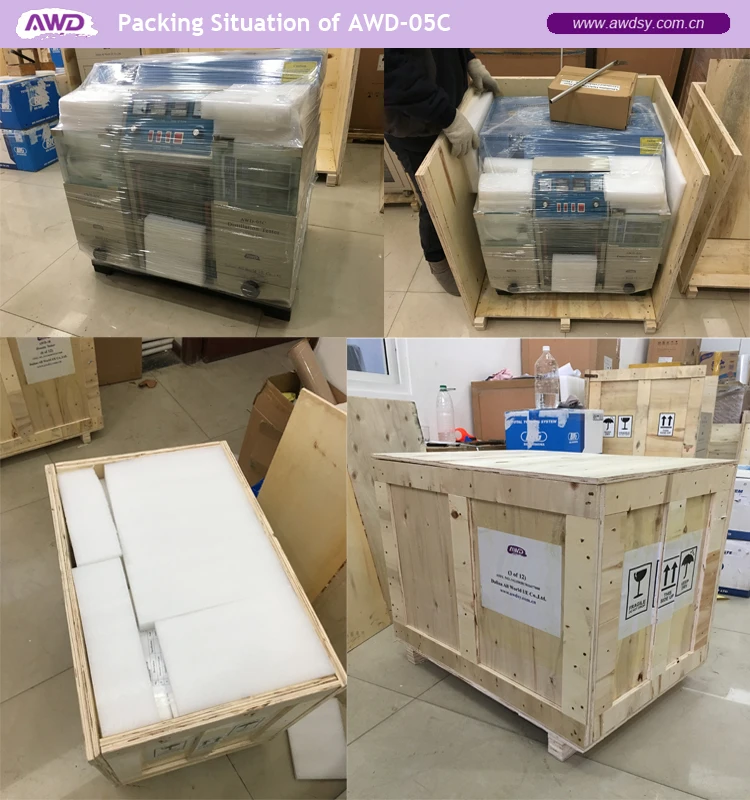

Materials of Package

AWD-05C

850×600×720

86

92

Treated Wooden Package

Catalog Number

Product Description

Electrical Requirements

AWD-05C

Distillation Tester

AC220V±10%  50HZ

(Can be changed to your country requirement)
