Product Overview
Description
Piezo multi-axis motorized moving stage linear micrometer positioner xy slide table linear stages xy precision motorized stage
Company Information
Specification
we can customize any models products according to your sizes or quality requirements
•ETSS series electric displacement transmission adopts the ball screw, guide rail uses the linear guide rail, key parts with bearing motor, provide the quality guarantee.
•Limit switch box around zero photoelectric switch Settings, protect products, easy to use, with standard interface, convenient for signal transmission.
•Driver is equipped with a hand wheel, can be manually adjusted. Standard mounting holes for multi-dimensional of electric displacement stage, easy to connect with series of products of company.
•Suitable for light load, high accuracy applications.
•Features: small volume, big heavy load, high rigidity, simple structure.
•Application places: dust industrial transmission, ordinary laboratory, laboratory precision displacement, etc

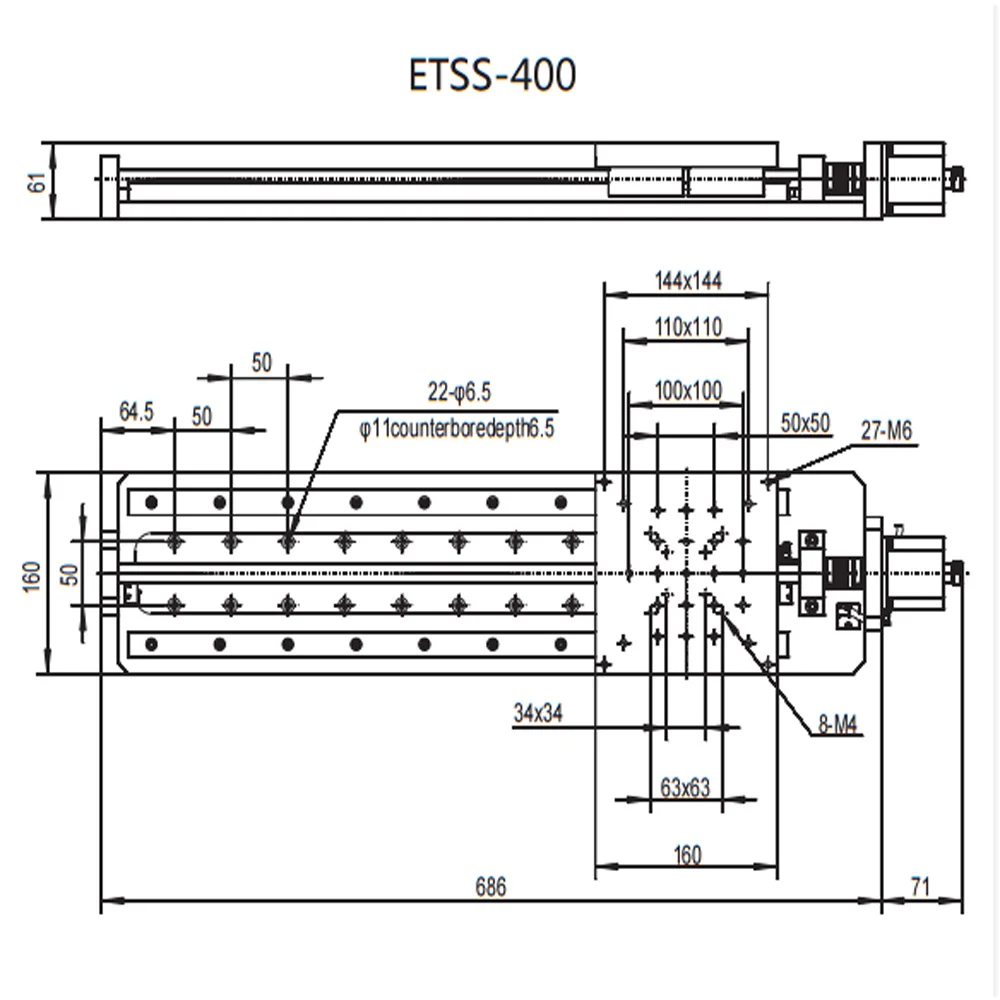

Model | ETSS-50 | ETSS-100 | ETSS-150 | ETSS-200 | ETSS-300 | ETSS-400 | ETSS-500 |
Travel(mm) | 50 | 100 | 150 | 200 | 300 | 400 | 500 |
Screw Leading (mm) | 4 | 4 | 4 | 4 | 4 | 5 | 5 |
Main Material | Aluminum | ||||||
Surface Treatment | Black Anodized | ||||||
Lead Rail | Linear Square Guide | ||||||
Maximum Speed (mm/s) | 30 | 30 | 30 | 30 | 30 | 35 | 35 |
Resolution (8 subdivide)(μm) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3.125 | 3.125 |
Repeated Positioning Accuracy (μm) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Drive Motor | 42 Stepper Motor | 57 Stepper Motor | |||||
Step Angle | 1.8° | ||||||
Central Loading (kg) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
