XB 5055R Wireless Barcode Scanner lecteur code barre For Android Pos Terminal

Share on:

Price:$17.00 - $18.00
Price in USD:Details


Product Overview

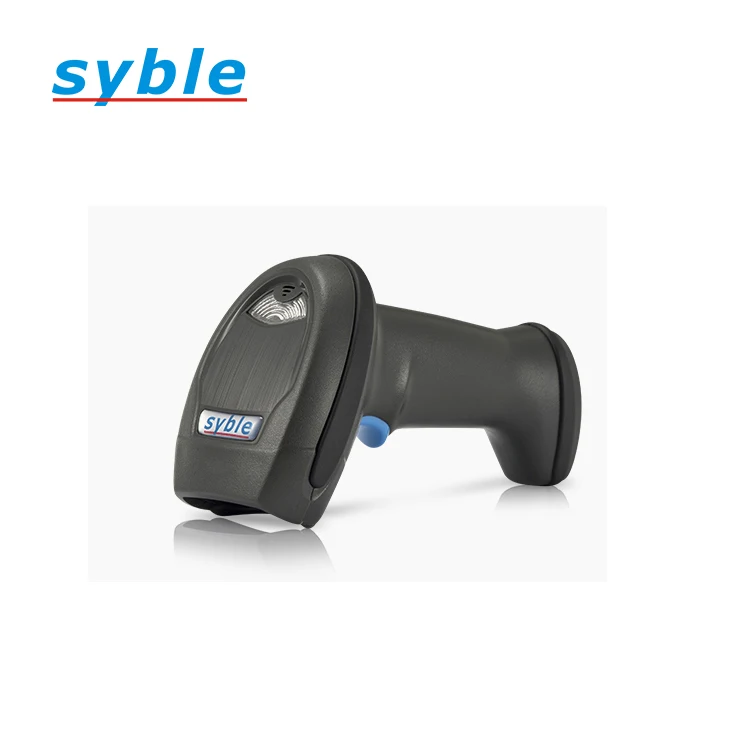

Portable Syble laser Barcode Reader Handheld 1D wireless barcode scanner for android pos terminal





Product Description

Competitive Advantages:

1. Self-induction charging & RF receiver in one

2. Max. storage reaches 35000 codes

3. Easy & simple settings & quick paired installation device.

4. Long communication distance; 50m indoor and 300m outdoor.

5. 2.4G wireless wifi receiver, high anti-interference.

6. Supporting network construction

7. Free of charging trouble; battery charging time 3-5 hours & working time more than 20hours.

8. Long lifespan & rechargeble 550mAH lithium battery, standby more than 650hours in non-working.

9. Turn on and off automatically, improve working efficiency.

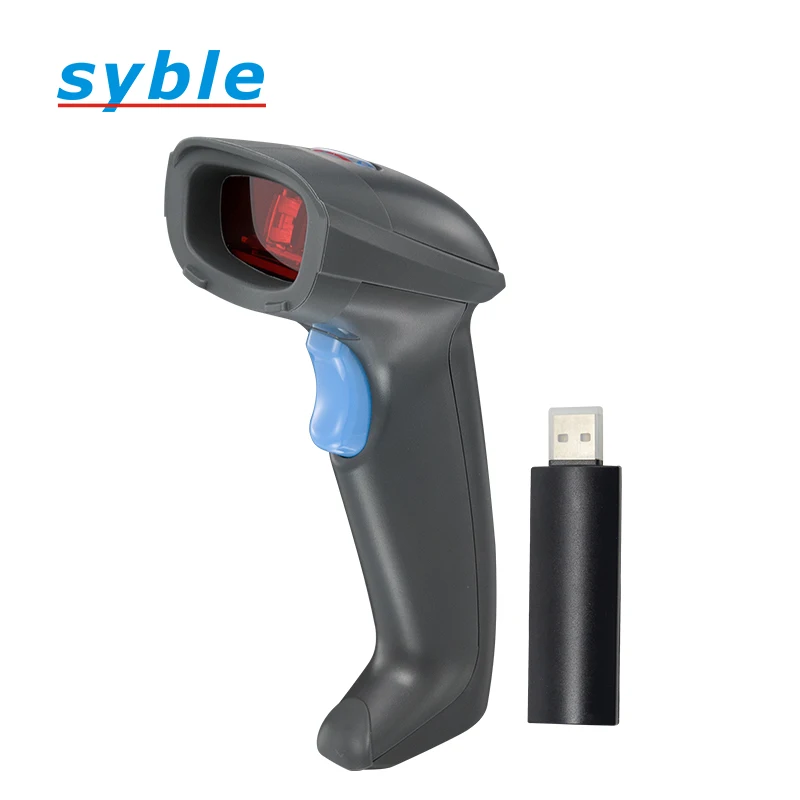

Wireless Barcode Reader XB-5055R.jpgWIFI Barcode Scanner XB-5055RXB-5055R




For the occasions of large-quantity scannings and small barcodes scannings.

1. Commercial POS system (shopping malls, stores, supermarkets)

2. Logistics and warehousing

3. Industrial and manufacturing management

4. Public services: goverments, taxation, libraries, banks, telecom, postal service, insurance, medical, etc



Buyer Feedback



Related Products

 mk7120 orbit.jpg   laser barcode scanner.jpg   bt barcode scanner.jpg


Laser Omnidirectional scanner     Wired Barcode Reader                Wireless Barcode Scanner


Bluetooth Bracode Scanner.jpg    2d barcode scanner.png  Bluetooth barcode scanner.jpg

 2d Cordless Barcode Reader    wireless Barcode scanner with base     Mini portable scanner




Performance Parameters
Light Sources: 650nm safe visible laser diode
Decoded Capability: EAN-8, EAN-13, UPC-A, UPC-E, CODE39, CODE93, CODE128, Codebar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China Post Code and all 1D barcodes
Scan Type: single laser
Scan Speed:≥300 times / s
Scan Method: manually / successively scanning
Scan Angel: yaw 65°,  rotation 30°,  pitch 55°
Precision: 4 mil (0.1mm)
Depth of Scan Field: 0-250mm (0.33mm, PCS90%)
Error Rate: <1/5million
Interface: USB-HID, USB-COM, RS232
Operating frequency: 433MHz
Transmission Distance: 500m for open yard usage, 100m for indoor usage
Storage Ablity:≤35000 codes
Pairing Mode: 1 to 1
Physical Parameters
Dimention: 176mm(L)*100mm(W)*72mm(H)
Material: ABS+PC
Cable Length: 2m
Environmental Parameters
Operating Temperature:  -20°C~50°C
Storage Temperature:  -40°C~70°C
Relative Humidity:5~85% relative humidity,non-condensing
Drop Resistance: withstand multiple 3m drops onto concrete
Electronical Parameters
Voltage: DC 5V±1%
Current:  83mA(operating); 150uA(quiescent)
Lithium Battery: 550mA long lifespan lithium battery
Battery Working Time:6 hours
Battery Charging Mode:Micro USB cable
Battery Charging Time:2-3 hours





Packaging of XB-5055R 1D Handheld Laser USB Barcode Scanner Wireless


Packaging & Shipping

Delivery Details (XB-5055R)
Export Port:Guangzhou Port, China
Lead Time: 2 - 7 Working Days
Warranty:2 Years
List per Unit:1*1D Wireless Laser Barcode Scanner
1*Charger (for battery charging)
1*2.4G Wireless Receiver
1*User Manual(English Version)
Dimensions per Unit:10*8*24 CM
Weight per Unit:0.5KG
Units per Export Carton:50 Units
Export Carton Dimensions: 52*45*53 CM
Export Carton Weight:25KG

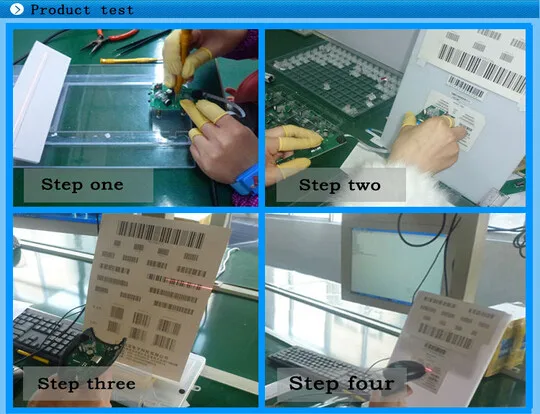

Production work place:

wireless barcode scanner of production  linetesting barcode scanners


Trade shows:

exhibition of barcode scanner USBexhibition of laser barcode scanner


 Hot selling item:

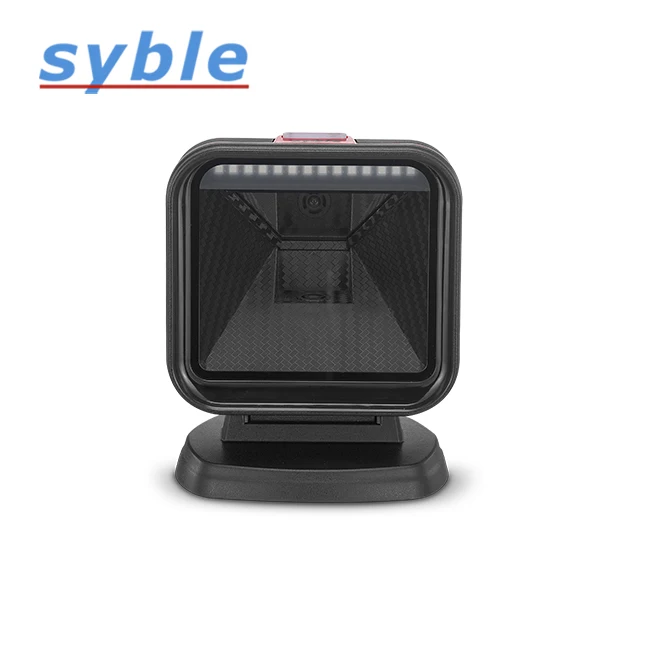

2.jpg   omnidirectional scanner.jpg  2D Barcode Scanner.jpg

Wireless Barcode scanner       Desktop Barcode Scanner          Qr Code Raeder





1: what is the working frequency of this Wireless Barcode Scanner?

 its working frequency is 2.Ghz


2: Dose this Wireless Laser  Barcode Scanner has off-line function ?

 yes , this Wireless Laser Scanner with off-line function


3:How long the battery can work ?

After full charge ,the Barcode Scanner can continuous working over 6hours


4: Do your company is a trading company ?

We are professional manufacturer  of Barcode Scanner ,have factory not a trading company


5: what is your quality policy after sale ?

 the warranty on Wireless Barcode Scanner is 2years ,and cable is 6months
