Product Description

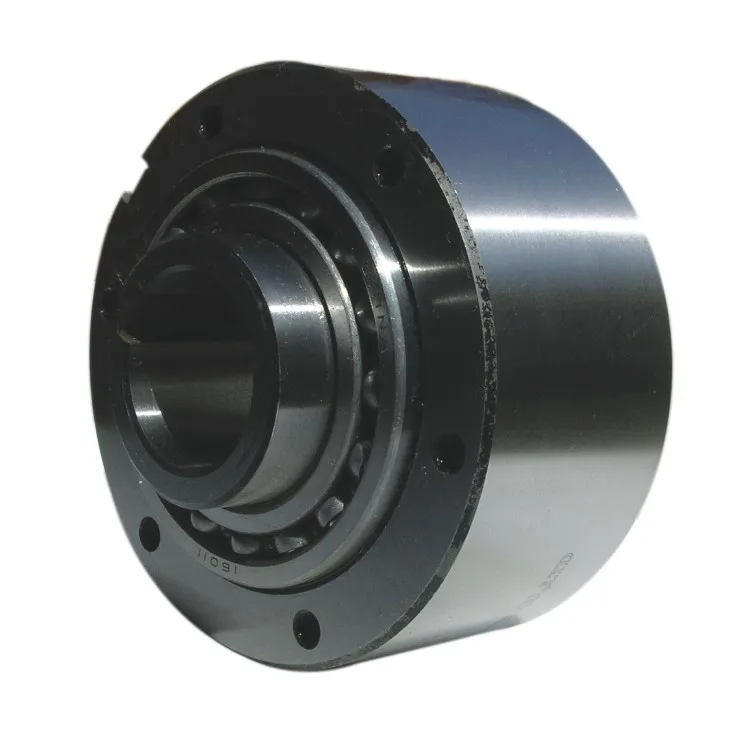

CKZF-B Chinese manufacture bearing supported non contact sprag overrunning clutch

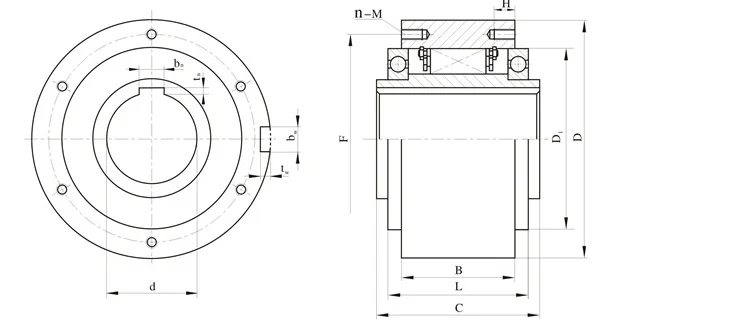

Parameter of CKZF-B bearing supported non contact sprag overrunning clutch

TYPE	NOMINAL TORQUE [N · m]	NON CONTACT ROTATE SPEED [r / min]		DIMENSION IN COUTOUR [mm]											WEIGHT [kg]
TYPE	NOMINAL TORQUE [N · m]	MINIMUM [n_min]	MAXIMUM [n_max]	d [H7]	D [h7]	F	D₁	B	C	L	n-M	H	bw x t_w	bn x tn	WEIGHT [kg]
CKZF-B30100	250	780	1500	30	100	87	75	51	68	60.5	6 - M6	10	8 x 4.0	8 x 3.3	2.3
CKZF-B35110	416	740	1500	35	110	96	80	55	74	63	6 - M6	12	10 x 5.0	10 x 3.3	3.2
CKZF-B40125	590	720	1500	40	125	108	90	63	86	73	6 - M8	14	12 x 5.0	12 x 3.3	4.3
CKZF-B45130	650	665	1500	45	130	112	95	63	86	73	8 - M8	14	14 x 5.5	14 x 3.8	5.0
CKZF-B50150	1310	610	1500	50	150	132	110	73	94	86	8 - M8	14	14 x 5.5	14 x 3.8	7.5
CKZF-B55160	1480	600	1500	55	160	138	115	73	104	86	8 - M10	16	16 x 6.0	16 x 4.3	9.0
CKZF-B60170	1900	490	1500	60	170	150	125	91	114	105	10 - M10	16	18 x 7.0	18 x 4.4	12.7
CKZF-B70190	2700	480	1500	70	190	165	140	108	134	124	10 - M10	16	20 x 7.5	20 x 4.9	14.5
CKZF-B80210	4502	450	1500	80	210	185	160	106	144	124	10 - M10	16	22 x 9.0	22 x 5.4	19.0
CKZF-B90230	7000	420	1500	90	230	206	180	114	158	143	10 - M12	20	22 x 9.0	25 x 5.4	29.5
CKZF-B100270	11400	420	1500	100	270	240	200	121	182	153	10 - M16	24	28 x 10	28 x 6.4	42.5
CKZF-B130310	15100	415	1500	130	310	278	240	169	212	194	12 - M16	24	32 x 11	32 x 7.4	70.0
