Kamoer X5S WiFi App Controlled 5 Way Dosing Pump
- Category: >>>
- Supplier: Kamoer Fluid Tech (shanghai) Co. Ltd.
Share on (60721293072):
Product Overview
Description

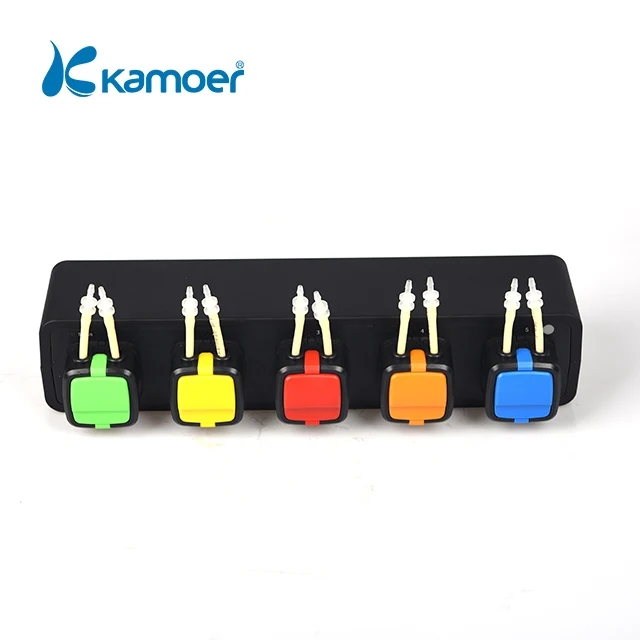

Kamoer X5S 5 Way Dosing Pump WiFi App-Controlled
Kamoer remote new App controlled Wi-Fi dosing pump the X5S the most compact 5 channel dosing pumps available in the marketplace.
The pump will provide simple, flexible and precise control of supplement additions to your aquarium through the easy to use Kamoer
remote mobile App (Android and IOS).
The X5S with conventional dosing motors/heads
These pumps are incredibly small, under 250mm wide and only 50mm deep.
Specifications:
5 x dosing heads
Fluid Volume: 0.1ml - 9,999ml
Accuracy: X5S <+/-2%
Features:
WIFI REMOTE Control of dosing pump via iPhone/Android device
Smallest form factor
Software updatable via WIFI
Battery Back-up – settings saved if power lost
High quality PharMed® tubing used in pump heads
Flow Rate Calibration for each pump
Dosing Functions:
1 - 24 dosing times per day
User defined start/stop Dosing Period per day (does not have to be 24 hours, for example, user can set to auto dose from midnight
to 6am only)
Daily/every “x” days specified days of week Dosing Frequency
Auto/Custom/Manual dosing options
Anti - Interference Delay between pump dosing
Monitors the amount of liquid remaining in each dosing container
WIFI connection
Small size

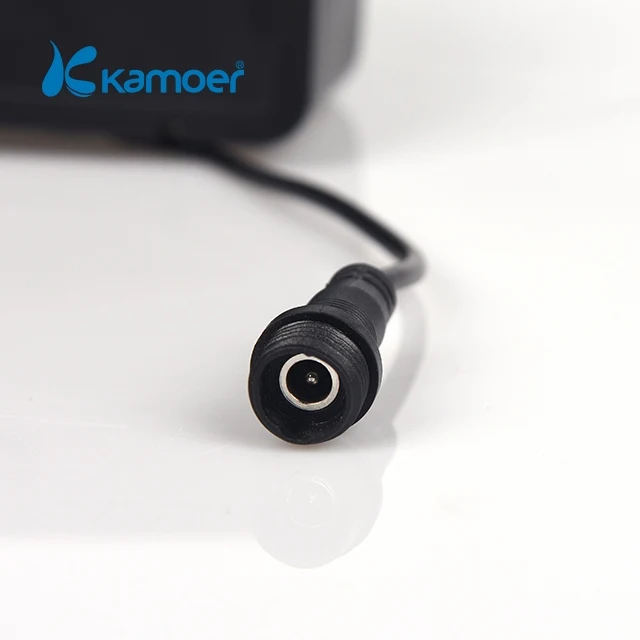

Waterproof connector
Real-time temperature measurement
Power-off memory

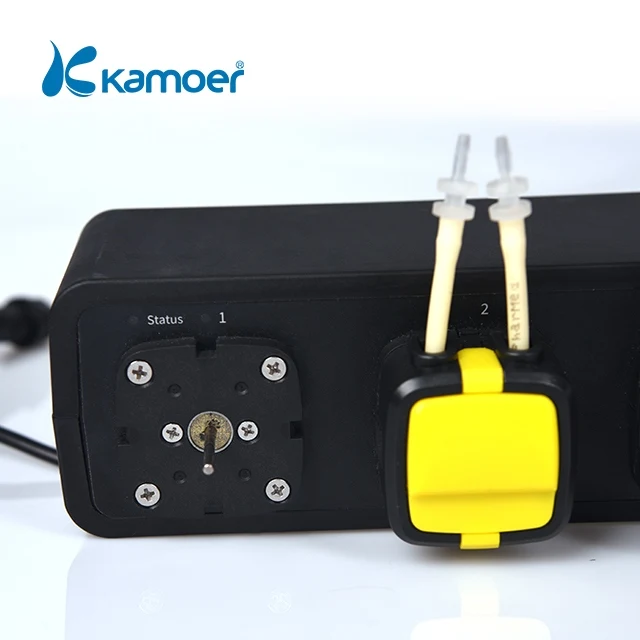

5 Pump head
What to do if the sea tank at home is left unattended?
Waterproof connector

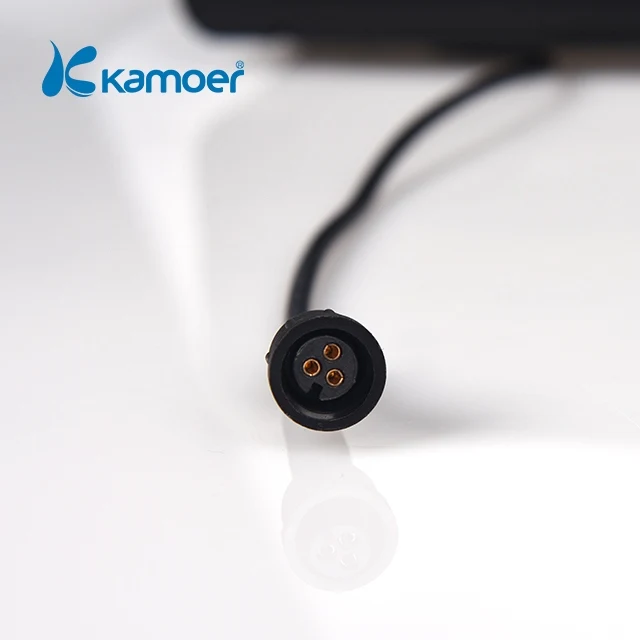

Temperature Sensor

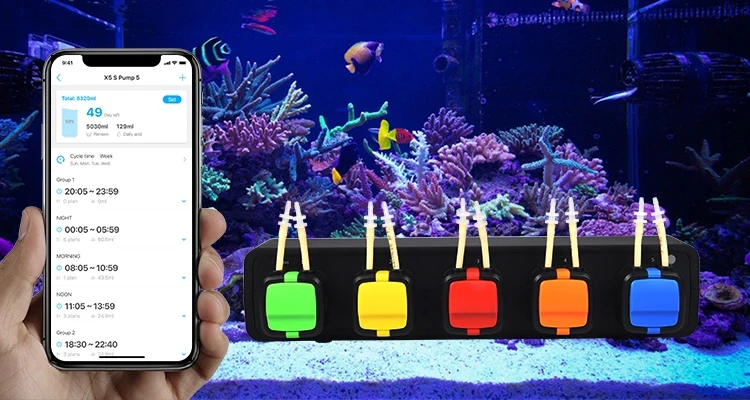

X5 S supports iOS & Android system operation interface
· 1 to 24 titrations per day
· Custom titration time period, not necessarily 24 hours
(For example, the user can set the titration from midnight to 6 am)
· Titration every day / every day / specified days of the week
· Two modes of planned titration / manual titration
· Custom delay time to prevent chemical interference caused by multiple pumps added at the same time
· Titrant residual monitoring
· Custom titration time period, not necessarily 24 hours
(For example, the user can set the titration from midnight to 6 am)
· Titration every day / every day / specified days of the week
· Two modes of planned titration / manual titration
· Custom delay time to prevent chemical interference caused by multiple pumps added at the same time
· Titrant residual monitoring
X5S Titration pump | 270x87x49mm | 878g | ＞37ml/min | 5 Pump Heads |
Accuracy＜±0.5％ | Input: 100V-240V | AC Output: DC12V 2A | WIFI communication interface | 24 Times / Day 1 Time / 99 Days |
Working environment Temperature 0-70 ℃ Humidity: 10% -90% | Storage environment: temperature -20 ℃ -85 ℃ Humidity: 10% -90% | |||
1.Pump head | 2.WIFI status indicator | 3.Water inlet | 4.Water outlet | 5: Pump running status indicator |
6: Reset button | 7: Waterproof connector for power supply (DC12V 2A) | 8: Temperature sensor connection line | ||
Indicator description
Note: The X5 S uses red and blue indicator lights. When the blue status light is on or blinking, the red light does not need to be on.
Status Indicator（Blue） | Has been lit | Connected to the cloud via a router | ||||
Darken | Disconnected from the router | |||||
Flashes quickly | Network configuration mode. At this time, the app can configure the titration pump to access the router. | |||||
Slow flashing | Disconnected from the cloud | |||||
Please use the power adapter that comes with the product and work under the specified working environment.
This product only supports 2.4G WIFI, not 5G WIFI.
The titration pump should be placed in a reasonable position to ensure that the height difference between the liquid inlet and the liquid outlet is within 0.5 meters.
The inlet connection pipe should be as short as possible, and the outlet connection pipe should be suspended above the tank.
Please check the connection direction of the inlet and outlet carefully.
This product only supports 2.4G WIFI, not 5G WIFI.
The titration pump should be placed in a reasonable position to ensure that the height difference between the liquid inlet and the liquid outlet is within 0.5 meters.
The inlet connection pipe should be as short as possible, and the outlet connection pipe should be suspended above the tank.
Please check the connection direction of the inlet and outlet carefully.
1 | Host-X5S * 1 | 2 | Power-DC12V 2A; Waterproof Connector | ||
3 | American Standard Plug | 4 | Temperature sensor; 2 m; Black waterproof connector | ||
5 | Connector*1；3/32 Thru | 6 | PVC connecting pipe; 3 * 5mm; Red；2m*1 | ||
7 | PVC connecting pipe; 3 * 5mm; Yellow；2m*1 | 8 | PVC connecting pipe; 3 * 5mm;；Blue；2m*1 | ||
9 | PVC connecting pipe; 3 * 5mm;；Green；2m*1 | 10 | PVC connecting pipe; 3 * 5mm;；Orange color；2m*1 | ||
11 | Titration pump tube holder*1 | 12 | Fixing screws：ST2.9*13mm*2 | ||
13 | Plastic measuring cylinder；10ml*1 | 14 | Instructions*1 | ||
15 | Product certificate*1 | ||||
