Excellent interchangeability OA 600 Cementitious infill steel rasied flooring for audio visual room

Excellent interchangeability OA 600 Cementitious infill steel rasied flooring for audio visual room

Category: Anti-Static Flooring >>>
Supplier: Jiangsu Huilian Access Floor Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

Structure:

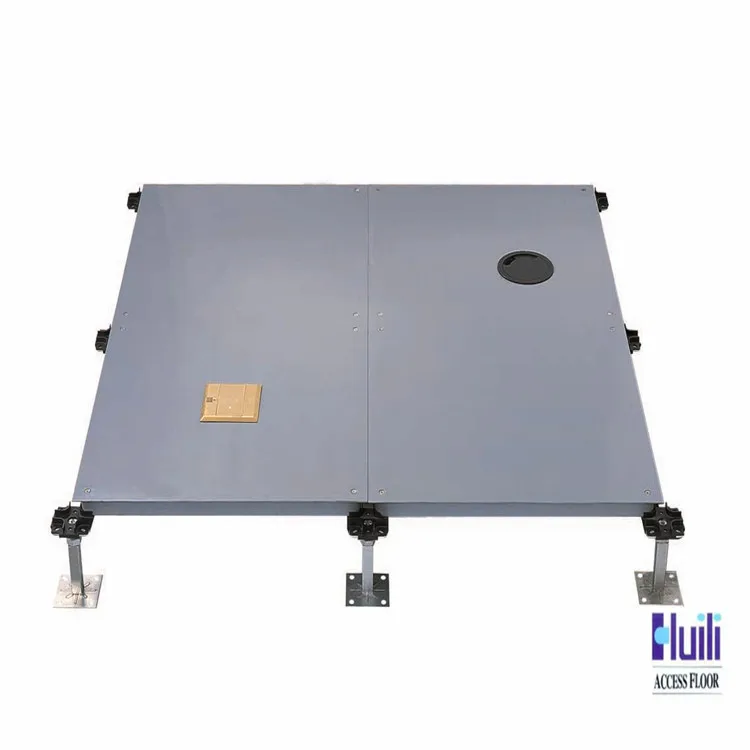

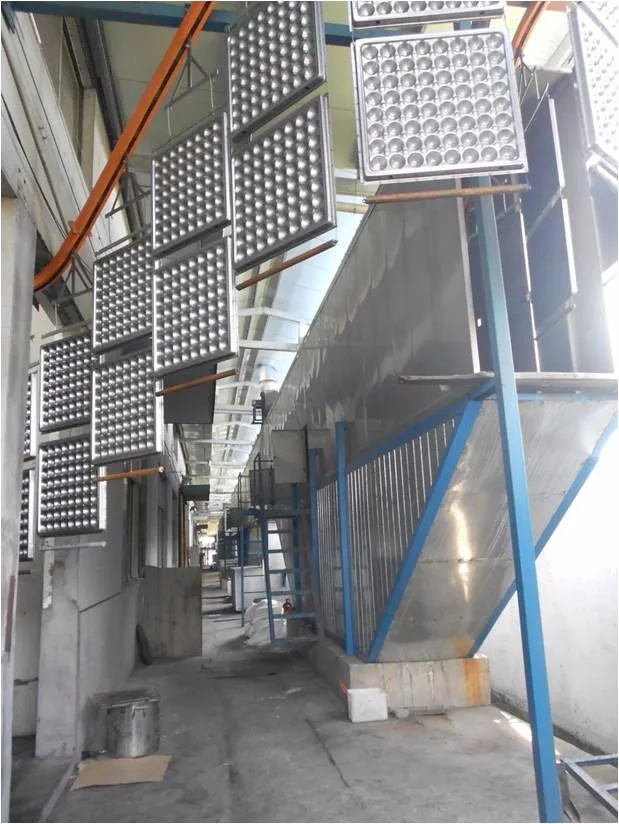

OA-600 steel panel is made of good quality deep stretch coil steel, which is punched, spot-welded and coated by epoxy powder. The panel is filled with foamed cement inside. Comparing to traditional raised floor, trunking can be added to the floor freely. More flexible wiring which can segrate the strong and weak current, simplify the equipment maintainance , save the building space and it fully reflects raised floor functionality.

Product type: 1. HL-600 steel panel 2. HL-601 steel panel with reinforced panel edge

Feature：

1. 60 perimeter welds as compared to 40 in earlier design, which greatly improves the panel edge loading capacity.
2. Every Huili panel is put into a flatting press and checked for flatness after welding. Huili is the only company to go this extra process in order to guarantee a super flat panel.

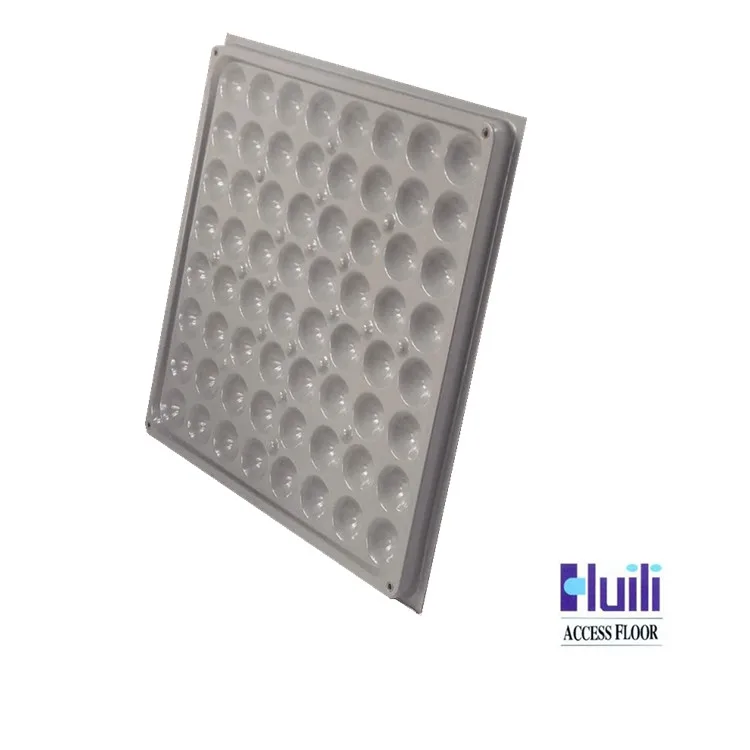

3. 32 reverse structural embossments. One at the center intersection of each structural cup. This eliminates the flat areas which are weak spots in early designs. Which helps in the panel ultimate loading capacity.
4. Huili panels come with 90 degree deep stretch steel beam corners, filled with high strength cement. And load applied on the panel will be transferred to the panel corners before travelling through the pedestals to the sub-floor.

Understructure

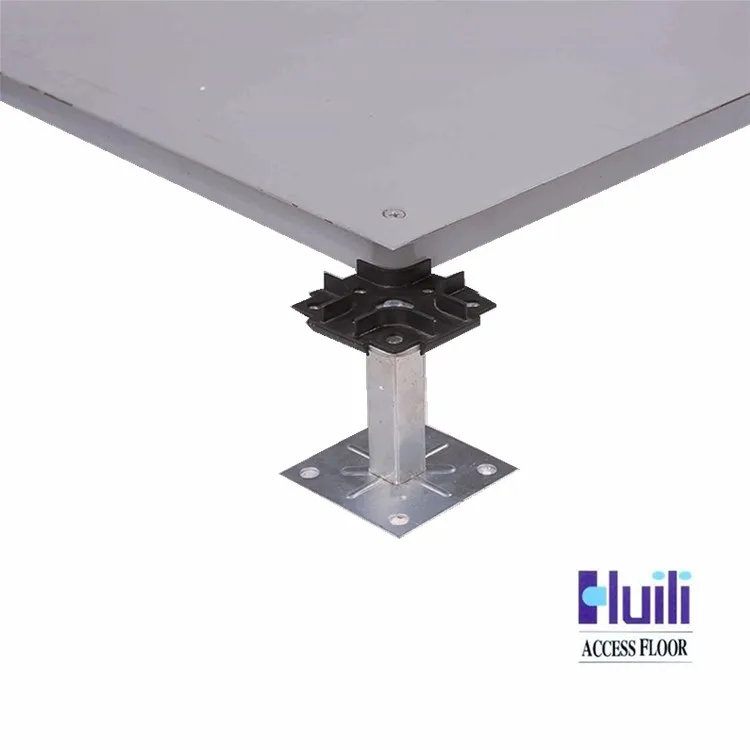

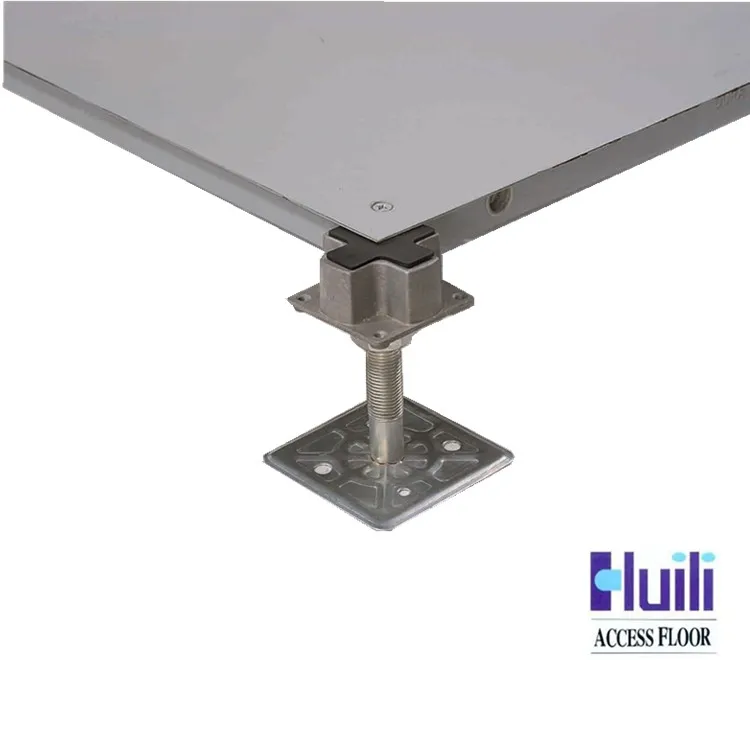

OA-600 steel raised floor is installed with aluminum cross head pedestal, steel flat head pedestal, die-formed cross head pedestal and low-profile pedestal.

Application：

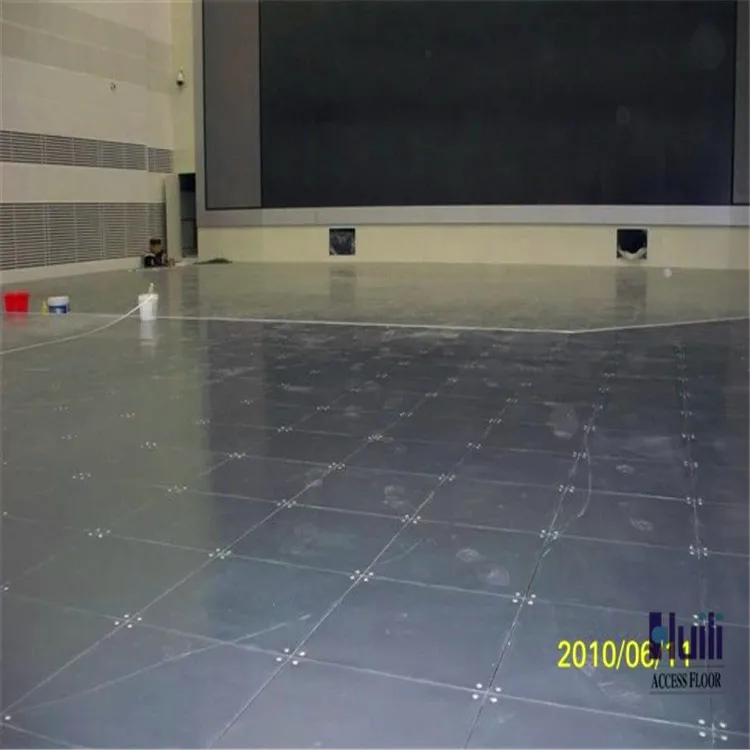

OA-600 steel raised floor mainly applies in 5A grade intelligent building, meeting room, audio-visual teaching room where requires dust-proof and water-proof.

Remarks:

OA-600 steel panel can also be installed with trunking similar to OA-500 steel raised floor. Trunking sizes are 600x100mm, 600x160mm and etc.

\t Product Name	\t OA-600 steel raised floor
\t Material	\t Steel
\t Size	\t 600*600
\t Certificate	\t CISCA MOB ISO9001 ISO4001 KS
\t Features	\t Constitued by all steel sheet, good loading capacity, excellent fire-proof.
\t Used	\t 5A grade intelligent building, meeting room, etc.

Products Show

Our Company

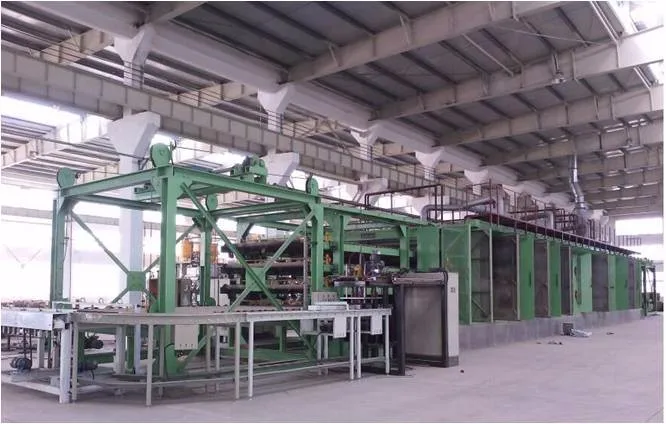

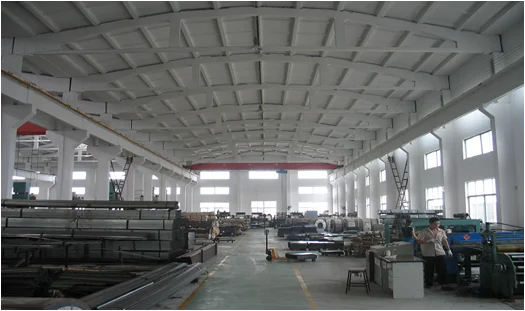

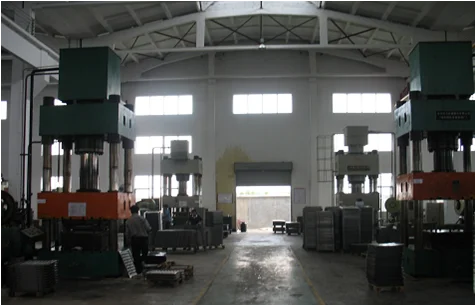

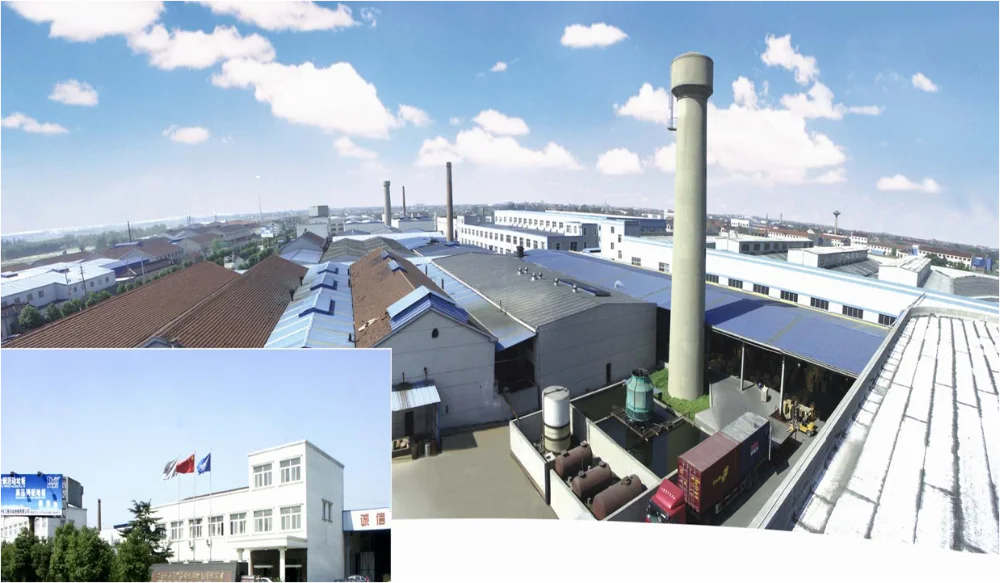

Changzhou Huili Accesss Floor CO.,Ltd is an export oriented access floor manufacturer with design, distribution and installation. Huili has been certificated ISO9001, ISO4001 System, as well as KS. Huili factory covers an area of 400acres, which the workshop area is around 500,000 squaremetres and more than 500workers. Huili's major products include OA Intelligent Building Access Floor Series, Anti-static Access Floor, Calcuim Sulphate Access Floor and so on. Our annual production acpacity is more than 3million square-metres.
