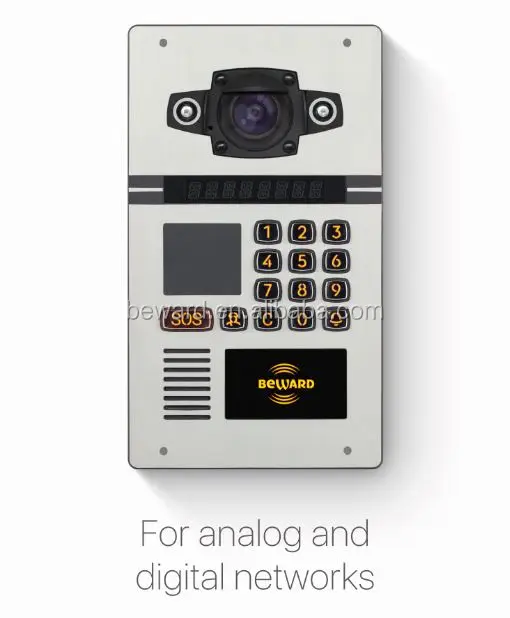

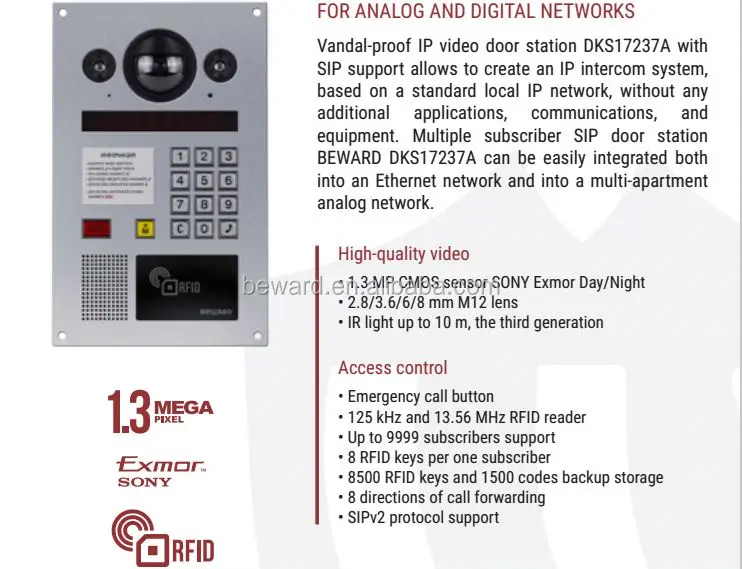

Ring doorbell IP Multi Analog to SIP Door Phone System Hybrid SIP intercom system

General characteristics

Sensor

1.3 megapixel, color, 1/3 "SONY Exmor, Day / Night

Sensitivity

0.01 lux (Day) / 0.003 lux (Night) / 0.1 lux (with IR illumination on)

Lens

2 mm, F2.0

Viewing Angle

137 ° (horizontal), 103 ° (vertical)

Increase

Digital, through the web interface

WDR

Digital, 3 presets

Noise suppression

2D / 3DNR (level adjustment), Smart NR

Shutter Speed

From 1/25 to 1/8000 sec. (automatically, setting the maximum value)

Signal / Noise

≤ 50 dB

Synchronization

Synchronization with light source 50, 60 Hz

Additionally

Electromechanical IR-filter, progressive scanning

Video

Compression format

H.264 BP / MP, Motion JPEG

Video Stream

Double coding: H.264 / MJPEG, H.264 / H.264, MJPEG / MJPEG

Resolution

Main stream: 1280x960 (SXGA), 1280x720 (HD)

Alternate stream: 720x576, 640x480, 320x240

Frame Rate

Up to 25 fps for all resolutions

Transmission speed

From 32 kbps to 16 Mbps, CBR, VBR

Image Options

Brightness, contrast, sharpness, saturation, exposure,

color correction, hue, quality, rotation,

flip, reflection, AGC, white balance,

shutter speed (with gain and minimum adjustment)

Captions

Name, date / time, day of the week, flow rate,

frame rate, number of connections

Audio

Audio output

Built-in speaker

Audio Input

Built-in microphone

Compression

G.711 (a-law, u-law), G.726

Additionally

Duplex

Backlight

LEDs

IR LED of the 3rd generation (2 pcs.)

Control

Automatically on / off

Operating mode

On the sensor, on the video signal, constantly

Wavelength

850 nm

Range

Up to 10 m

Network and Interfaces

Network Interface

10BASE-T / 100BASE-TX

Network Protocols

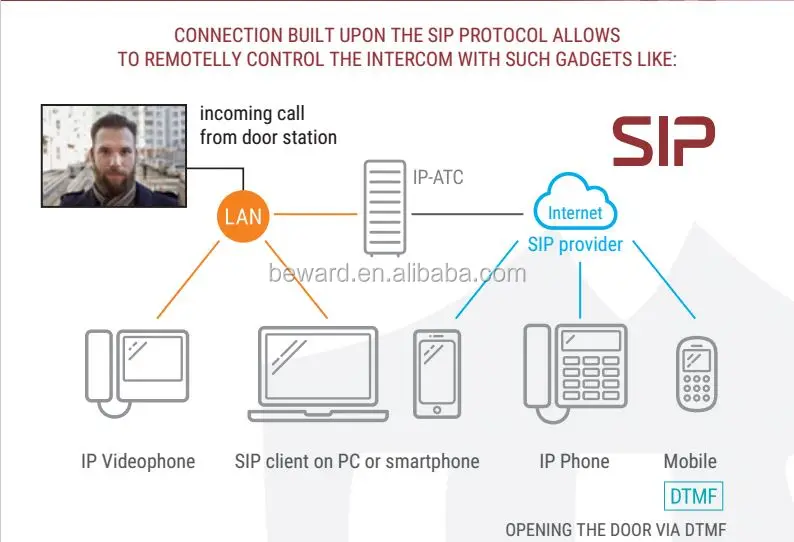

TCP / IP, SIP v.2.0, VPN, HTTP, HTTPS, FTP, SMTP, DDNS, DHCP, PPPoE,

RTP, RTSP, UPnP, UDP, NTP, ONVIF v.2.41, Modbus TCP

Compound

DHCP, static address

Members List

Up to 3 accounts

Number of doors

2 pcs.

Number of door open sensors

2 pcs.

The sensor of hacking the IP door phone

Yes

Relay add. lighting

1 PC.

Analog video output

PAL / NTSC 720H

Additionally

Support for micro SDHC cards up to 32GB, USB2.0, RS-232TTL or 1-wire

Recording and Events

Developments

Motion detection, network error, pressing the call button

Motion Detection

Built-in detector, up to 4 detection zones (sensitivity adjustment)

Sending by mail

By event: frames

Write to FTP, a memory card

By event: frames, video

Exploitation

Power supplier

DC12V 1A

Power Consumption

12W

Switching current

Up to 1A

Operating temperature range

-50 to +60 ° C

Protection class

IP66

Execution

Vandal proof enclosure

Housing material

Metal

Net weight)

1100 gr

Dimensions (WxHxD)

External panel 262x150 mm

the inner part of the body - the dimension in the plane of the door opening: 224*129 mm

depth of housing (recess in the door) 32 mm

System requirements

Microsoft Internet Explorer 9.0 in Windows 8/7 / Vista

Equipment

Contents of delivery

IP intercom

Terminals for switching

Packaging containers
