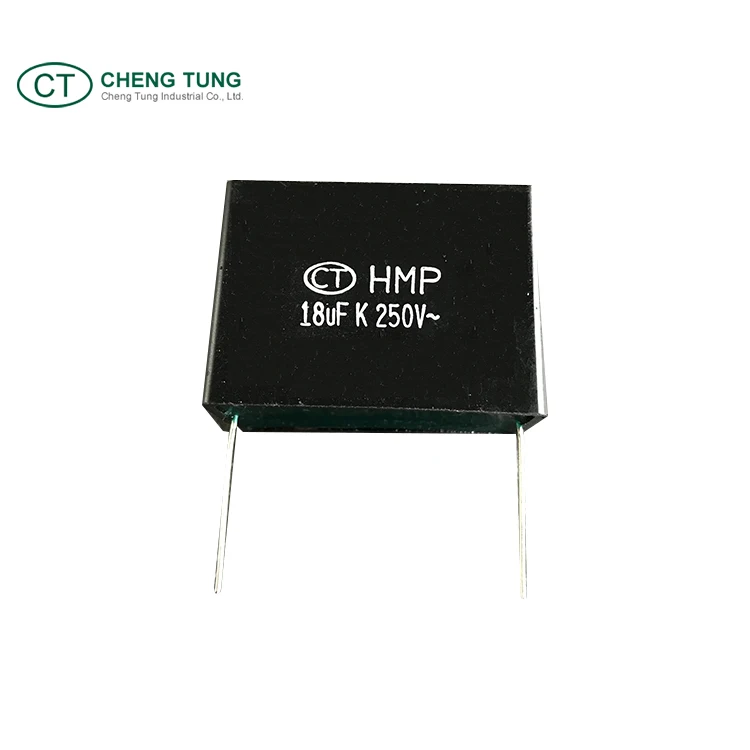

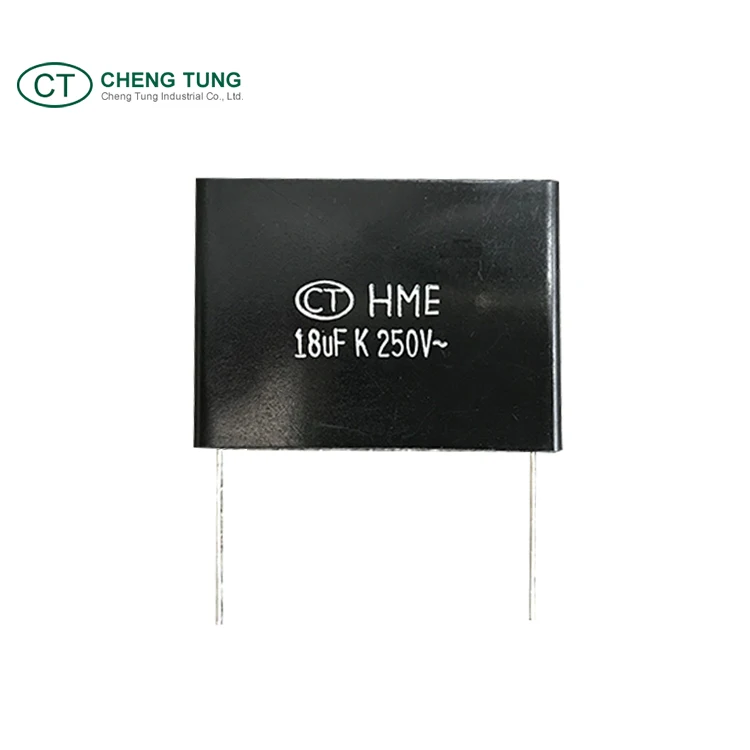

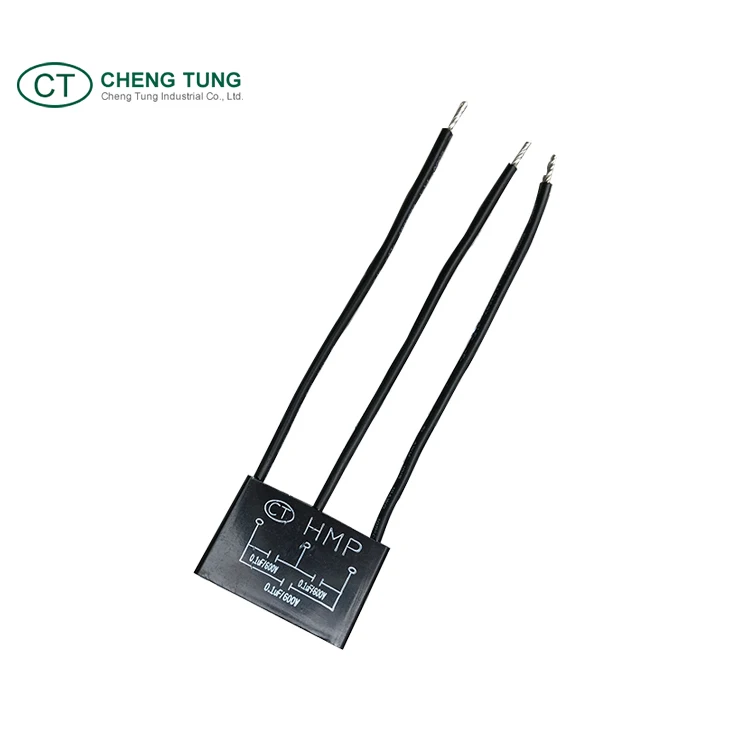

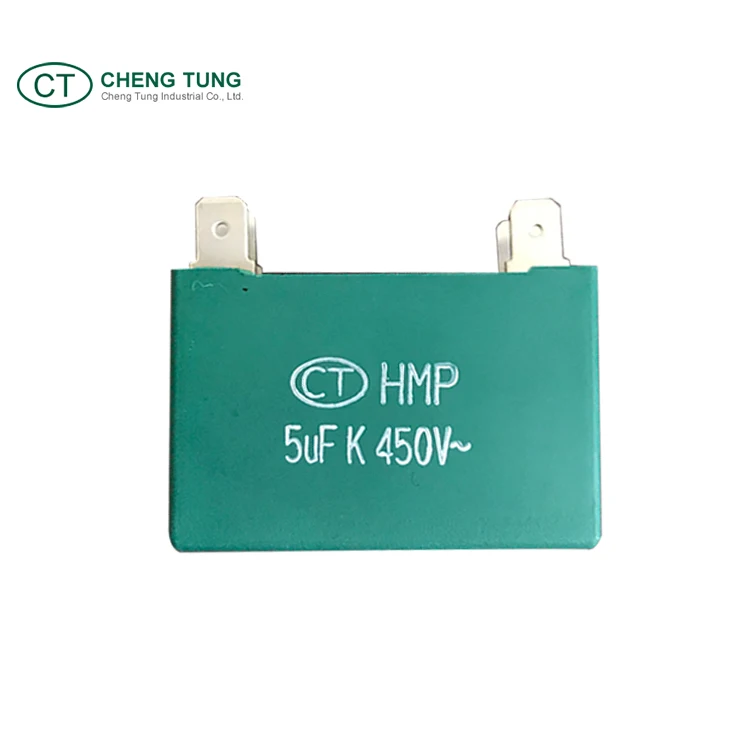

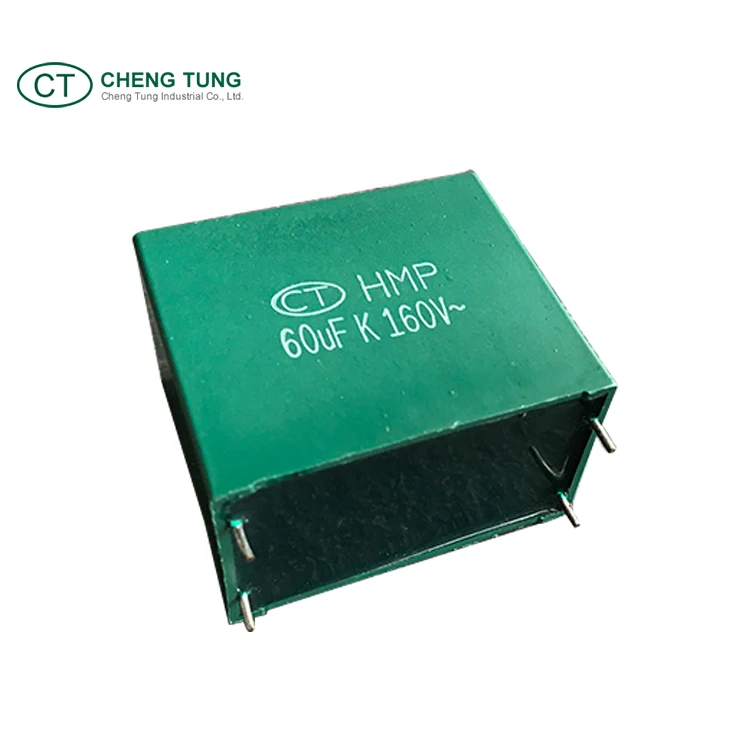

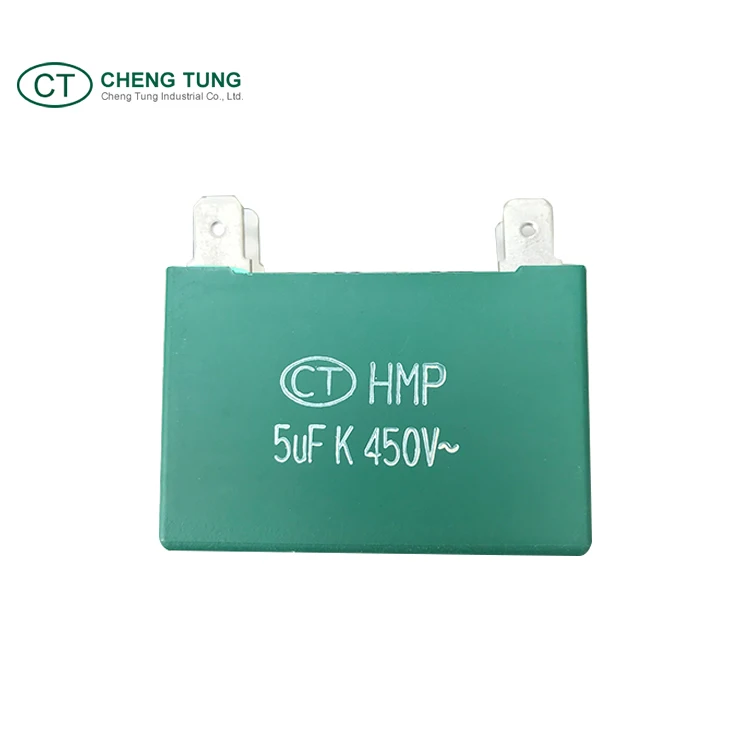

High Voltage High Frequency Film Capacitor

TYPE: HME,HMP

FEATURES

 APPLICATIONS

• For power factor correction and running motors

•


  Use on motors,electric fans,ventilator fans,fluorescent lamps,mercury ,lamps,pump,air conditioners,washing machines and so on.




SPECIFICATIONS

  Dielectric

   Polyester film(HME)

Polypropylene film(HMP)

  Electrodes

   Vacuum evaporated metal

  Coating

   Encapsulated in flame retardant

  (UL94V-0) plastic case and epoxy resin end seal.

  Leads

Radial leads of tinned wire

Terminals

  Climatic Catalogue

   HME type:25 / 70 / 21

   HMP type:25 / 85 / 21

  Capacitance versus Rated Voltage  (U_R)

250VAC  1uF ~ 16uF;  350VAC  1uF ~ 14uF

400VAC  1uF ~ 10uF;  450VAC  1uF ~ 8 uF

  Capacitance Tolerance

   J = ± 5%  K = ±10%  U = +10 / -5 %

 Dissipation Factor (Tangent of Loss)

HME below 0.3%

HMP below 0.1%   (at20℃, 1KHZ)

  Voltage Proof

Between terminals:1.5U_R 1min.

Between terminals and case:2000V.AC

  Insulation Resistance

C<=0.33uF  IR>=15,000MΩ

C>0.33uF  IR>=5,000MΩ / uF

(1minute at 20℃and RH<=65%)
