16 Port Passive POE Injector 100Mbps Power Over Ethernet PoE Patch Panel for CCTV Security IP Camera, IP Phone
- Category: >>>
- Supplier: Shenzhen Zhangqing Electronic Ltd.
Share on (60721408021):
Product Overview
Description

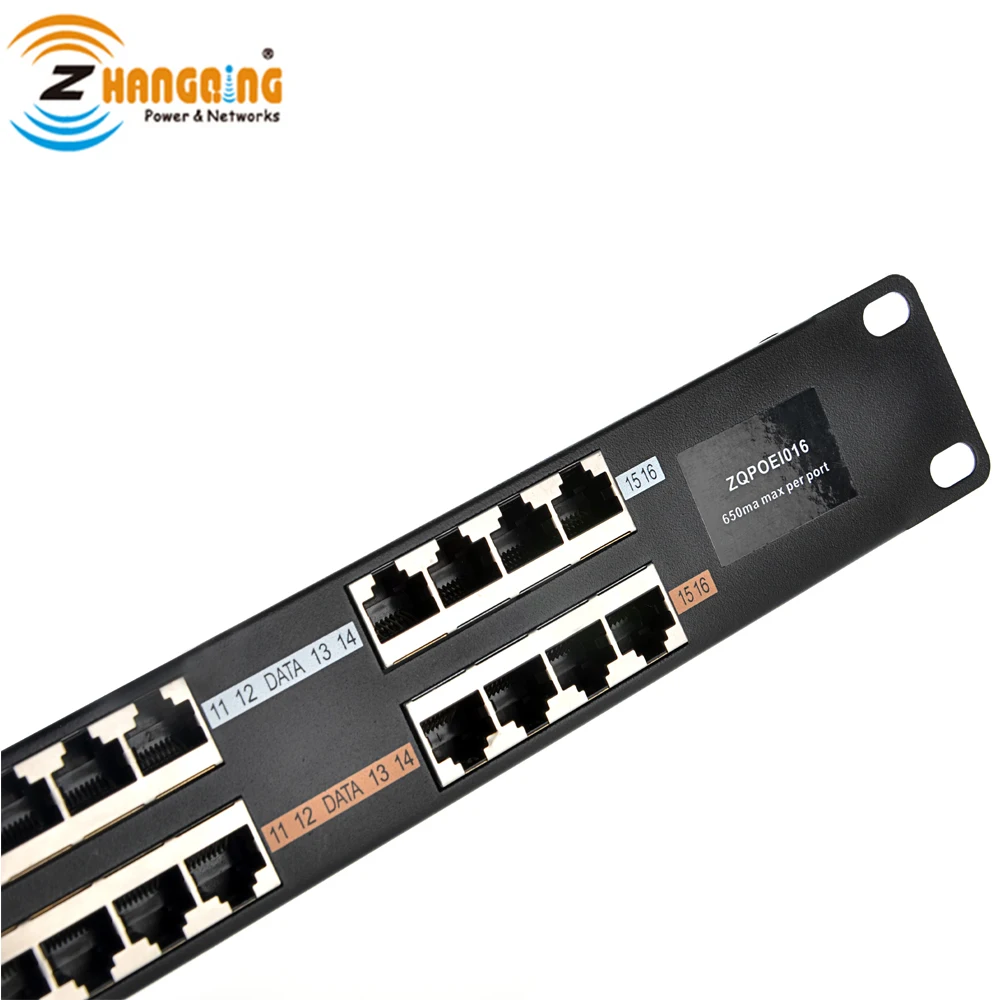

16 Port Passive POE Injector Power Over Ethernet
For CCTV Security IP Camera
Product Description
FEATURES
USE 10/100M Ethernet
Flexible power(DC 24V TO 57V)
Each Port Current Protection (650mA+/-15%)
For 19’’ Rack
OVERVIEW

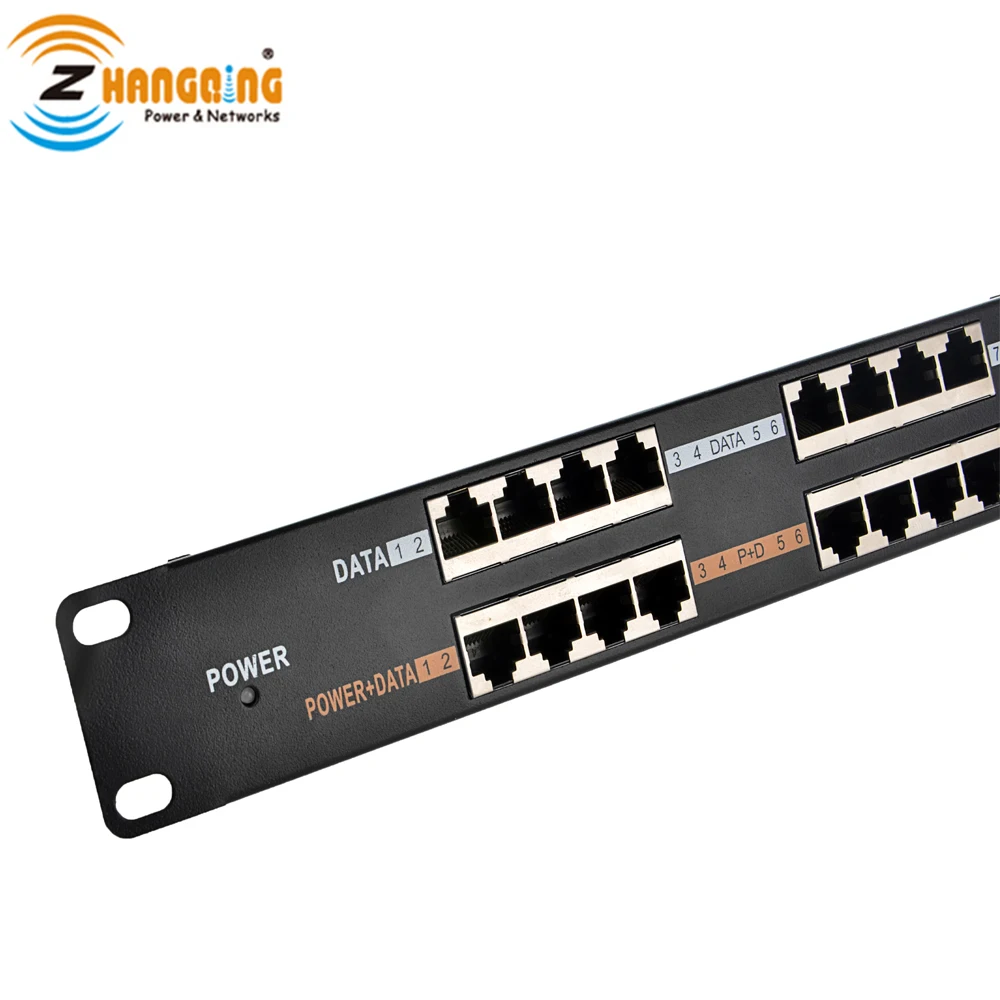

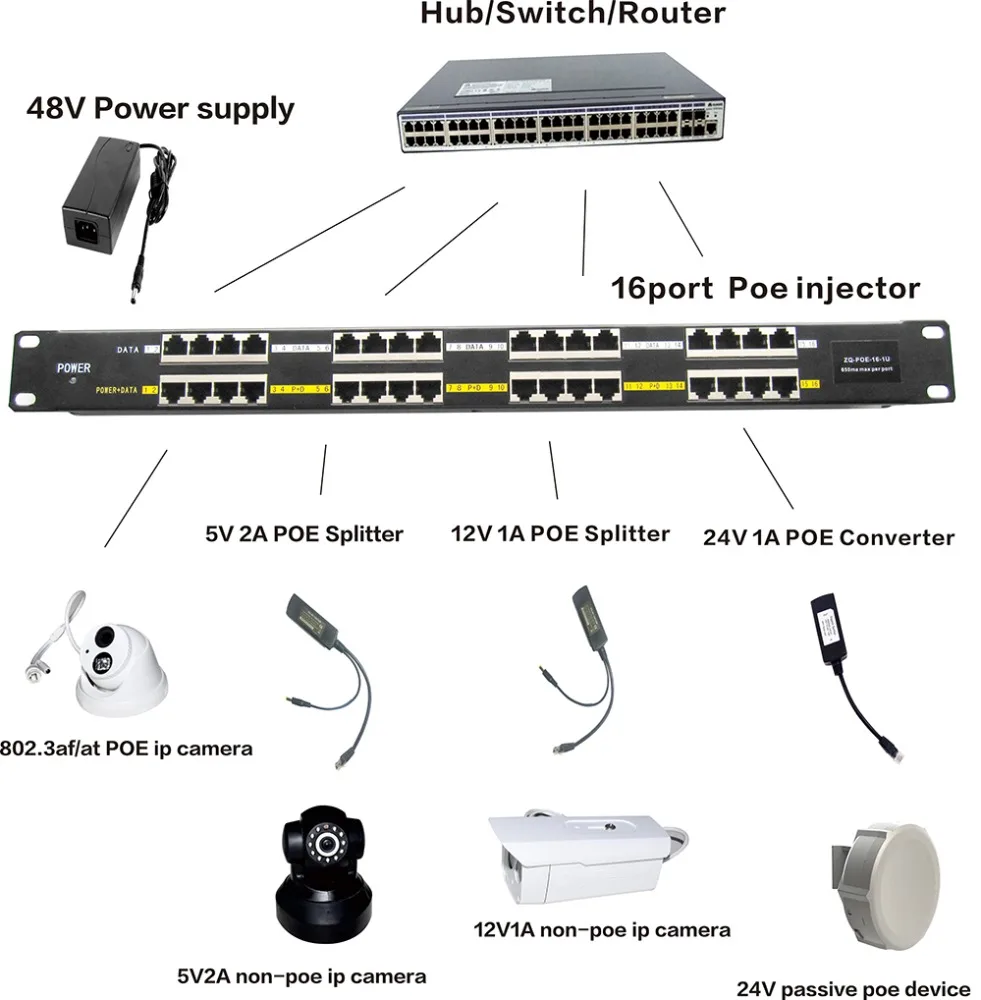

The 16 port PoE panel is used 10/100M Ethernet, The upper Rj45 sockets is form “LAN/Switch/PC ” 1/2&3/6 are transmitting data . The under RJ45(power+data) socket is to deliver data and power:
1/2&3/6 transmitting data, 4/5(+)&7/8(-)forpower.Passive POE iscomposed of 12 set of Rj45sockets ,one 60V DC power jack and . Input power requests160W or more AC TO DC power converter.
The input dc hole diameter is 2.1mm and the other end OD id 5.5mm. And the other Each socket
provides protection against short overflow (current protection 650mA+15%-15%). The sum total output power must be lower than the MAX input power of AC-DCpower converter. If not, it is necessary to consider taking higher AC-DC power converter.There commended formula for AC-DC power converter is 10W per RJ45 set (1 set = 2 x RJ45sockets).
For example, 16 x10W = 160W for 16 port Passive PoE panel .The configuration size of panel is 1U (height), 19” (width) and 25mm(thickness), as is available to answer market demand and convenient to beinstalled directly.
SPECIFICATIONS :
| Input | 100-240V AC 50/60Hz |
| Output | 12 TO 48 V 160W (Min) |
| Data | 1/2&3/6 |
| Power | 4/5 V+ & 7/8 VData |
| In Connects | PC/HUB/Switch |
| Weight | 16 Port 1.0Kg |
| Dimensions | 482.6mm×44.3mm×25mm |
| Case of material | metal work material |
| Ethernet Cable | TIA/EIA 568 Cat. 5 |
| Data rate | 10/100Mbps |
| Connector | RJ-45 |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C~+70°C |
| Operating Humidity | 10%~80%RH |
| Storage Humidity | 5%~90%RH |
| Certification | CE |
Product Description
WHY CHOOSE POE:
As Ethernet becomes more commom in serve rooms and network backbones of most organization, POE becomes a much more attractive solution to deploy network device without changing your existing infrastructure.
Cost Effective:
Using one cable for both data and power to devices significantly reduce the power line installation cost for electronical wiring, conduits and outlets throughout the buildings.it also reduces future maintenance costs, bringing cost elimination when using POE technology for large installations.
Flexibility :
POE is standards based, so interoperability across vendors is guaranteed. This means that POE can be used to provide maximum flexibility for device installation when it is difficult to provide a power source at hard to reach locations. Also, even greater flexibility can be provide with the use of POE splitters, POE technology can also be applied to devices weren't designed for POE.
Reliability:
Using just one cable instead of separate cables for data and power improves overall network reliability and deployment flexibility safety. POE is a safe power solution. To avoid damaging devices or accidental contact, there are numerous safety procedures in the POE specification which includes Over-Current, Under- Current and fault protection.
Company Information
Shenzhen ZhangQing Electronic LTD was founded in 2010. After these years developing, now weand have 5 salesman, 8 R & D engineers and 120 manufacture colleague, finished many unique and completed PoE midspan product line, 200w full range of power supplies,rich special features of PoE switch etc products.For the moment we have our sales office in Shenzhen and manufacturing factory in ZhongShan. Since the company set up, we focus on power supply and Power Over Ethernet(PoE) all the time. so "focus, professional, honest, innovation,wise " are our company faith. Devoting ourself provide PoE and power solution on WiFi Access Point, IP camera, IP phone etc for our customers is our target.Creating value for customers by our products and services is our pursue.
Choose us, you will get value , professional, comfortable product and service. Let's work together to gain a bright future for all of us.
