light oil burner for boiler or stove
- Category: >>>
- Supplier: Henan Swet Boiler Co. Ltd.
Share on (60721445442):
Product Overview
Description

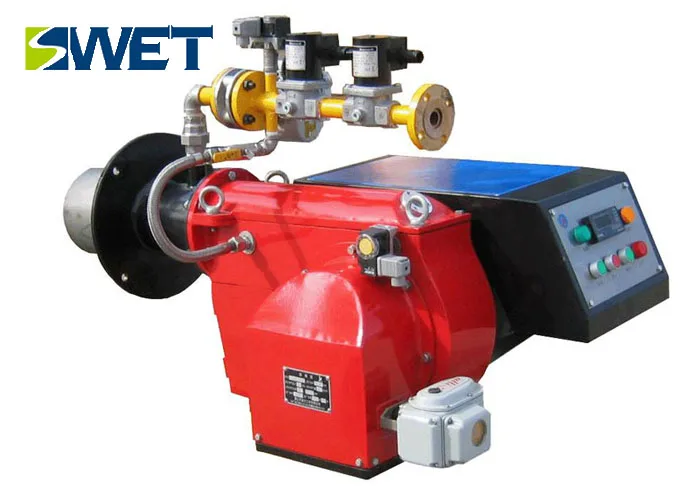

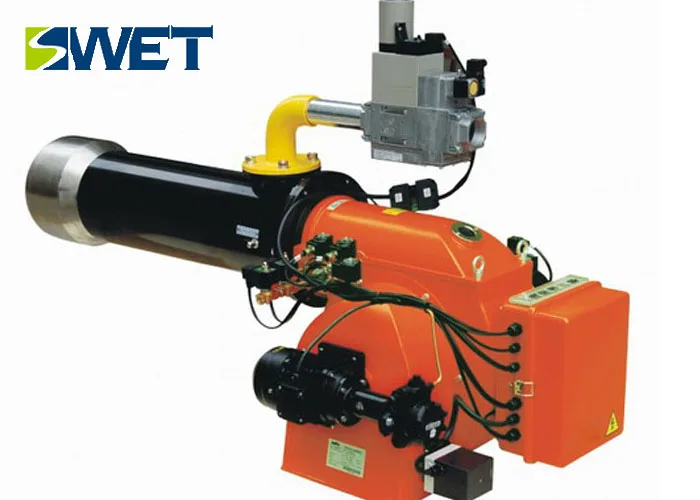

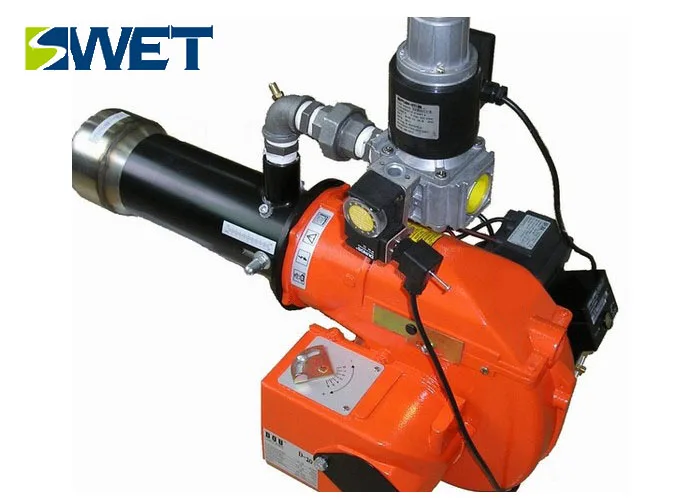

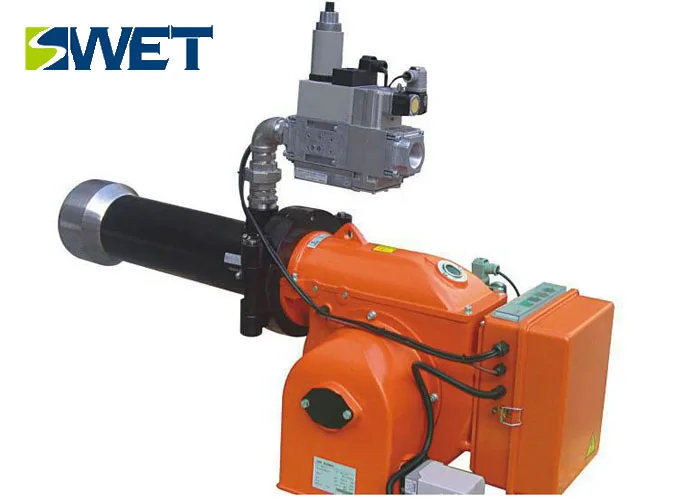

light oil burner for boiler or stove
Light oil /diesel burners.
1.Single stage operation (on/off).
2.Compatible with any type of combustion chamber.
3.High pressure mechanical atomisation of fuel using nozzle.
4.Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
5.Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.
6.ow consumption.
7.high efficiency.
8.cheap and durable.
7.high efficiency.
8.cheap and durable.
Manual air flow adjustment.
Comes with a 7-poles connector, 2 flexible oil pipes, 1 nozzle, 1 oil filter, 1 flange and 1 insulating sealto connect the burner to the application.
| technical parameter | |||||
| Model | Oil Consumption /kg/h | Output Power/kw | voltage(V) | Bore(mm) | Source |
| 30WKcal | 12-30 | 132-345 | 220/380V | 130 | Two stage of fire |
| 40WKcal | 20-40 | 237-474 | 380V | 160 | Two stage of fire |
| 60WKcal | 28-60 | 335-655 | 380V | 170 | Two stage of fire |
| 120WKcal | 60-120 | 712-1425 | 380V | 240 | Two stage of fire |
| 180WKcal | 80-180 | 880-1980 | 380V | 240 | Two stage of fire |
| 240WKcal | 110-250 | 1210-2750 | 380V | 260 | Two pieces of fire |
FAQ1 : How can you get the best price quickly?
Answer:
As soon as the steam capacity and pressure are told, we will make the detail price list at once.
Boiler pressure corresponds to steam temperature table
Pressure(Mpa) (Bar) |
0.4/4
|
0.7/7
|
1.0/10
|
1.25/13
|
1.6/16
|
2.5/25
|
Steam Temperature (℃) |
151 |
170 |
184 |
194 |
204 |
226 |
FAQ2 : What about the installation?
Answer:
When you receive the boiler, we will guide you to make some preparation for installation; after that, our expert will fly to your local place in 72 hours. The experts will responsible for guiding installation,training, trial operation.
FAQ3: Why should you believe our quality?
Answer:
1. With 65 years rich experience in China burner market, having ability to provide best solution with you.
2. Ensuring boilers quality compared with the small boiler factory, having professional >500 peoples in products, technology development, market, QC etc .
3. With good before-sales, in-sales, after-sales service comparing with foreign trade company, never let you worry about boiler quality problem in running.
4. Win-win principle is our mission statement, good quality with lower price is our rule .
