BLX 8 Plus Tianjie New Cheap Wireless Portable for Dental X Ray Unit

Product Overview

Description

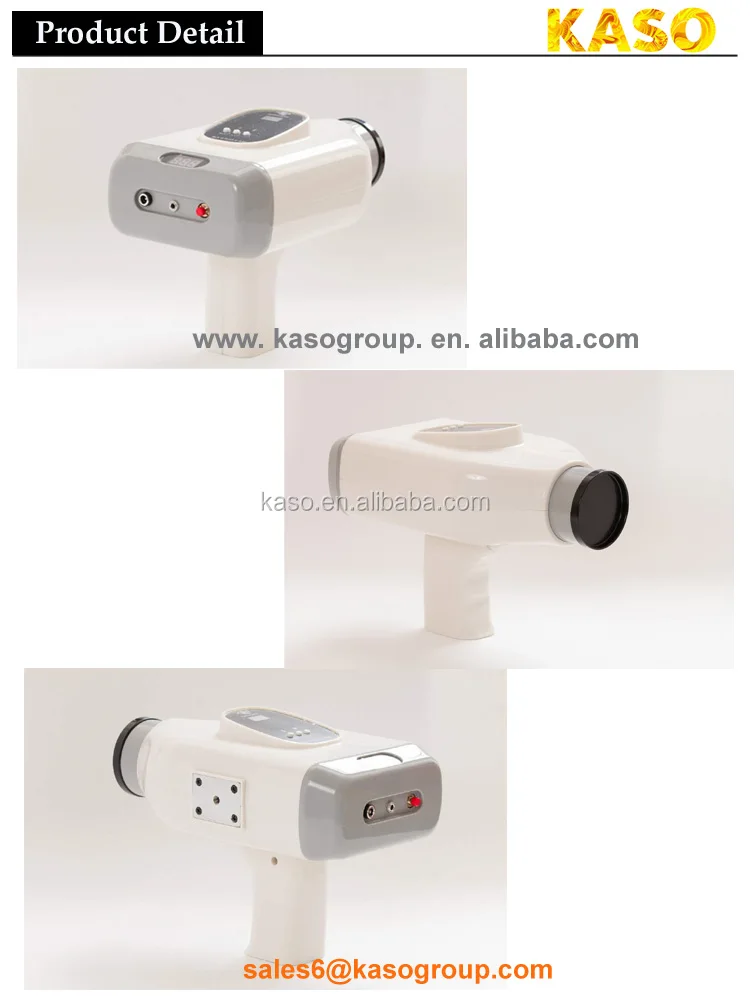

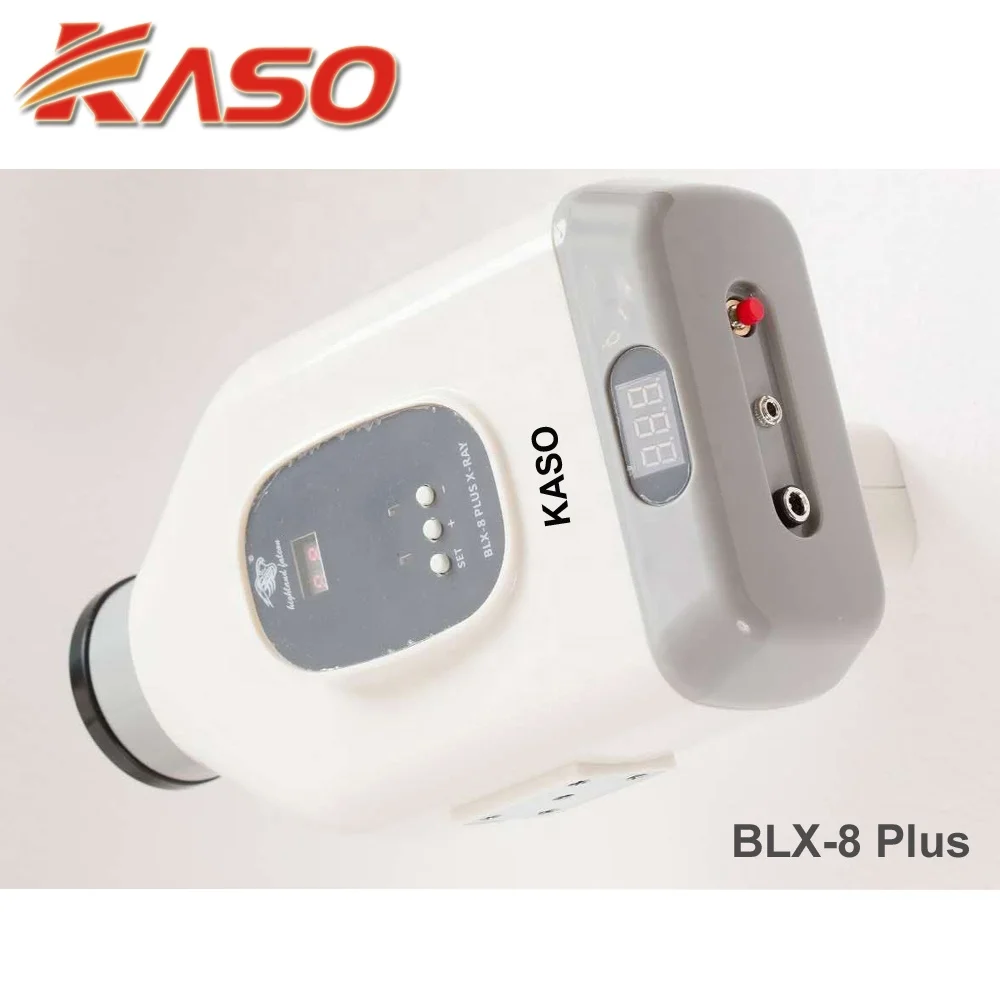

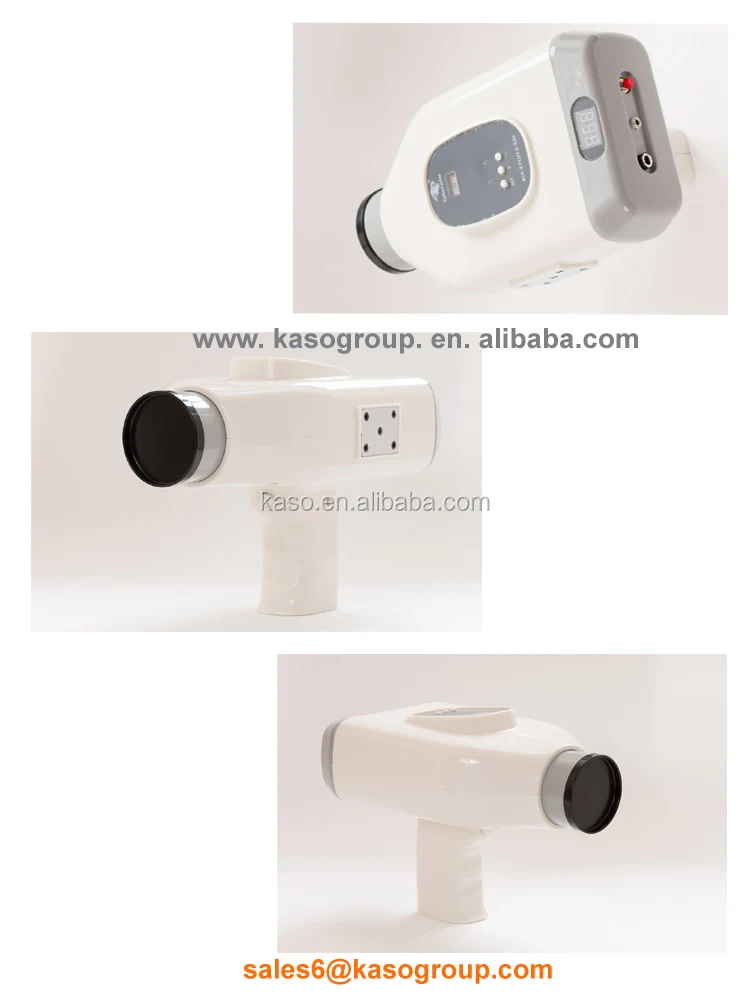

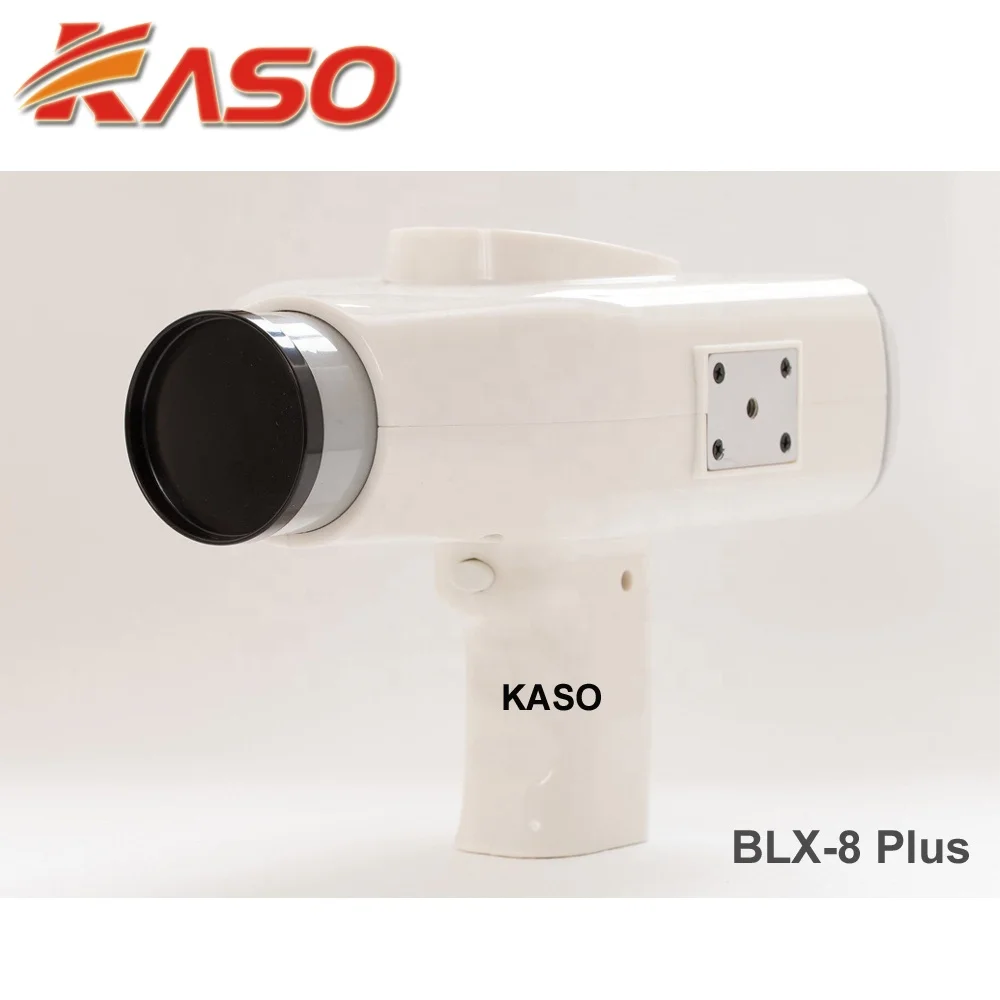

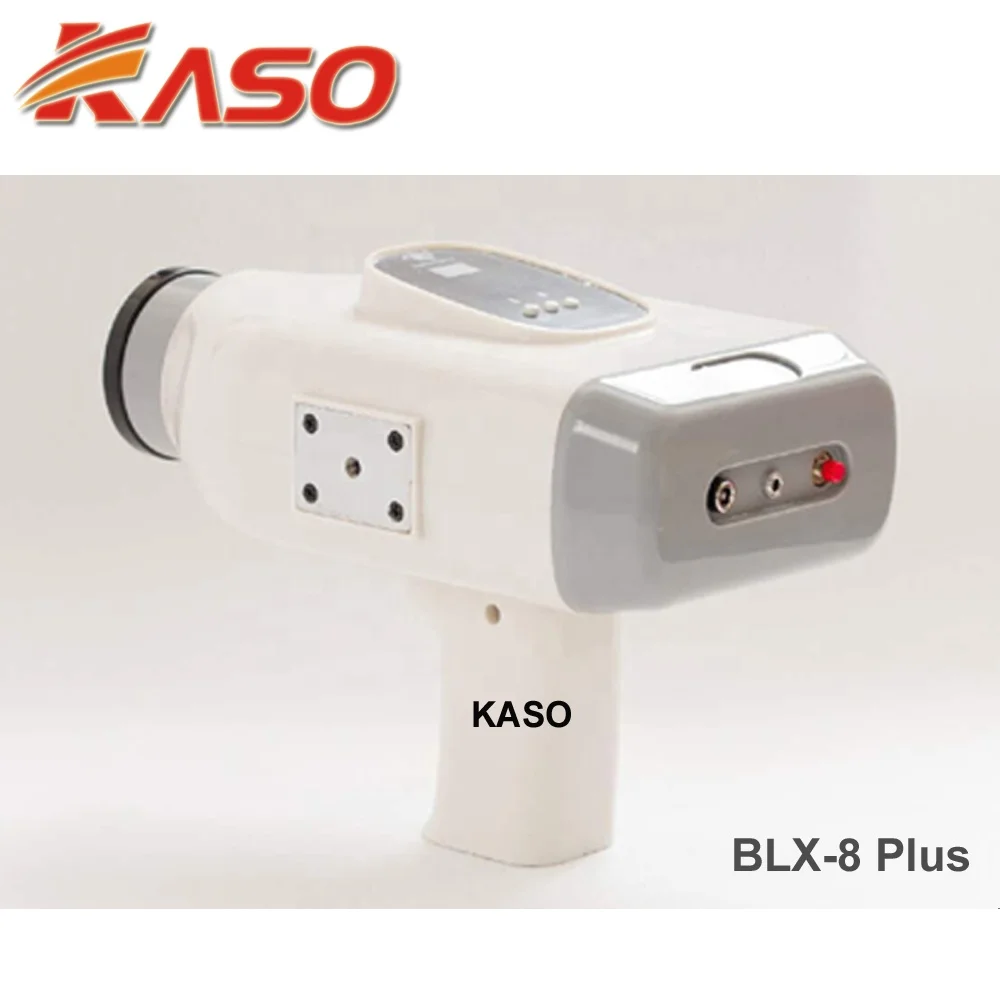

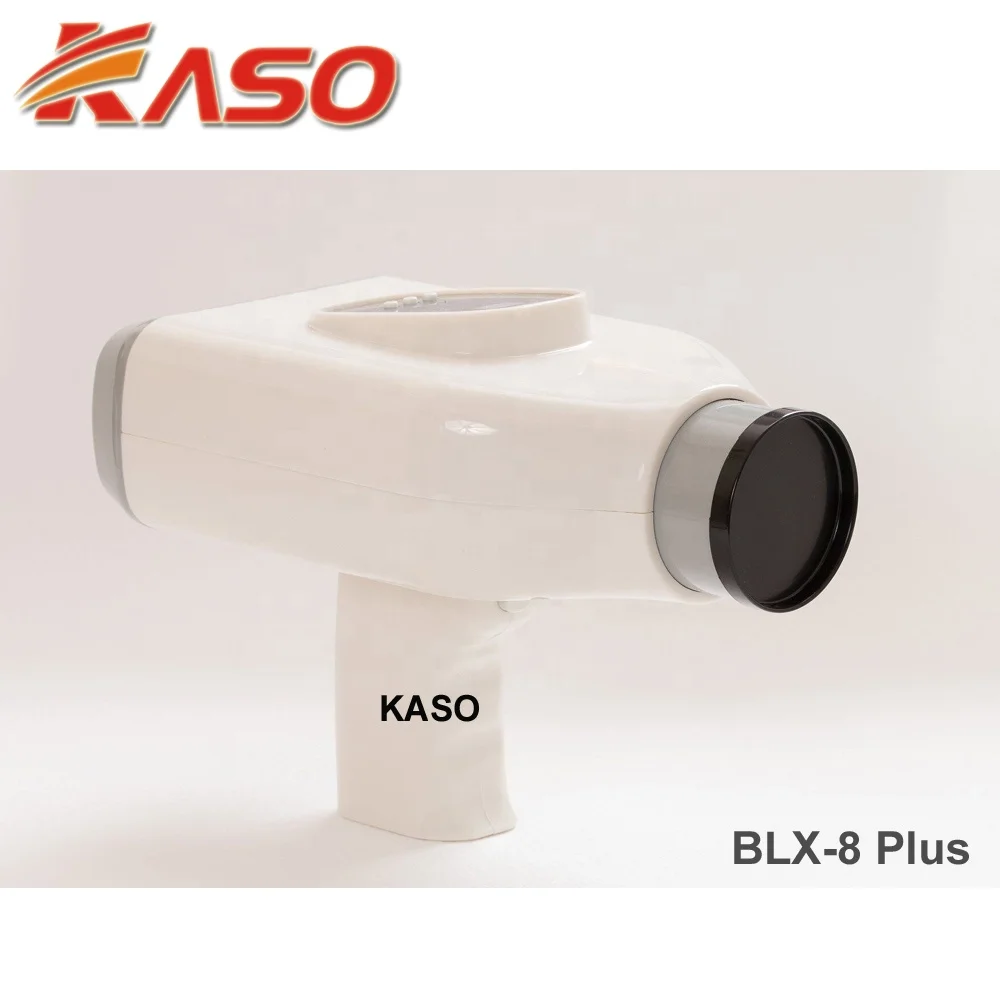

Tianjie New Cheap Wireless Portable Dental X-Ray Unit BLX-8 Plus



Specification:

1. 5 years warranty for Toshiba ball head

2. Special material--Lead

3. Low radiation

4. Much smaller and lighter

5. Lithium battery

6. Can be used with sensor



Characteristic:

1.No protective operation room is needed when installing the complete machine;

2.Flexible adjustment the position and angle of hand piece,simple and easy to handle;

3.Develop dental film in daylight, no darkroom need;

4.Compace in volume, light in weight, convenient for carrying;

5.Time is adjustable, high contrast of picture, imaging in focus;

6.Can be used with sensor;

7.Radiation leakage is in accordance with international standard(ICE601-1-3.1993)

8.More intelligent, easy to cooperate with three model

9. In small volume, big screen

10. Shot time in taking photos



Technical specification:

Product Parameters

a) The rated parameters of x-ray production device

1. Tube voltage: 60kv (fixed)

2.Tube current: 1MA (fixed)

3. High voltage generating circuit: High frequency switch

4. X-ray control method: Microprocessor control

5. Time setting range: 0.2-9.9 seconds



b)    Weight: 2.5kg

c)    Size: 215*140*160 mm

d)    X-ray tubing

1. Type: bipolar fixed x-ray tube

2. X-ray tube Model: DG-073B-DC

3. The size of x-ray tube focal spot: 0.3*0.3mm

4. ANODE heating unit: 8.5Khu

5. Maximum tube voltage: 75Kv

6. Target angle: 21°

7. Total filtration: 1.6mmAL (Origin filtration: 0.8mmAL, Additional filtration: 1mmAL)

X-ray irradiation range: 73mm (roundness)

e) Useage voltage: battery DC16.8V

f) Charger: Input AC100-240V, Output: DC16.8V
