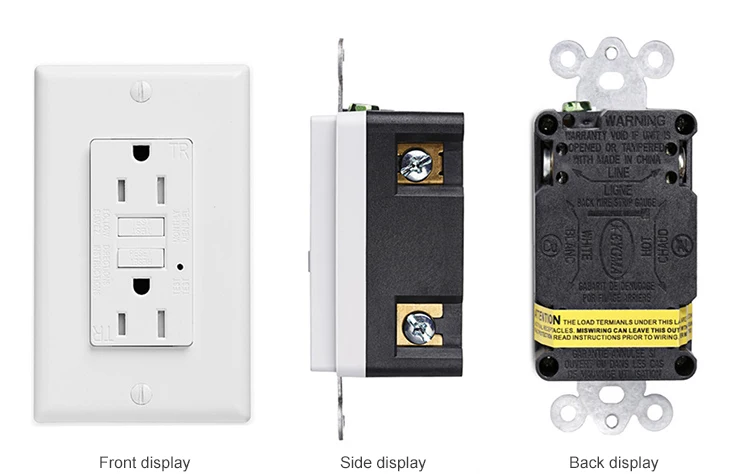

ETL/cETL 110V 15A 60Hz Black GFCI Universal Socket Outlet for US market
GFCI stands for Ground Fault Circuit Interrupter. A GFCI receptacle is different from conventional receptacles. In the event of a ground fault or an unintended electrical path to ground , such as a shot circuit or through a person, a GFCI will trip within 0.25s stop the flow of electricity to prevent serious injury.

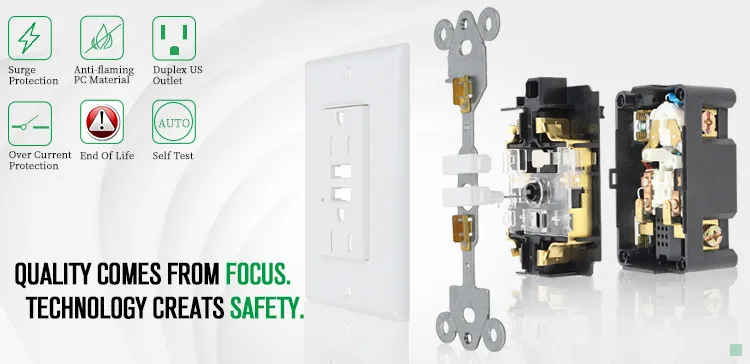

Product Advantage: --15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, --Meet UL/CUL943,UL498 (cETLus approved) --Prevents line-load reversal miswire --Automatic end of life detection --Auto-monitoring (self-testing) --Reset Lockout mechanism --Surge Protection (Required by UL943 and CSA) --Takes up to 20% less space vs. other GFCIs --Operating Temperature from -35℃ to 66℃ | ||
Trip Level | 4-6mA | Current Interrupting | 2kA |
Trip time | 0.025s | Operating Temperature | -35°C to +66°C |
Flammability | Rated V-2 per UL943 | Terminal Screws | Plated steel |
Face Material | 100% pure PC | Line Contacts | Brass |
Terminal Clamp | Brass | Galvanized Steel | Grounding Screws |
Grounding Screws | Plated steel | Applicable Standards | UL943 & UL498 |
Detailed Description
Safety.

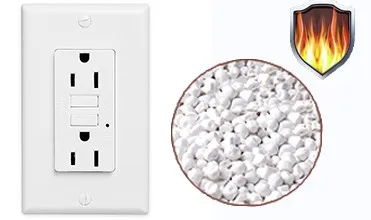

A new certified GFCI receptacle offers electrical shock through advanced GFCI design as well as the fireproof poly-carbonate housing helps reduce fire risk.
Inner copper Sheet.
0.8mm phosphor copper to keep the terminal low temperature and good conductivity.
Real materials ensure your safety.

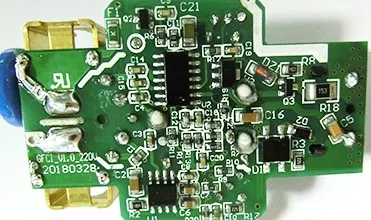

PCB board
Exquisite workmanship make the GFCI work well,reduced circuit failure, thus the quality is under guanrateed.

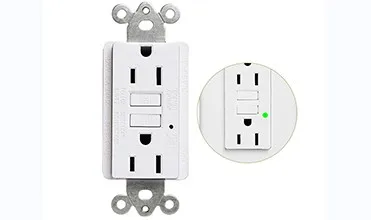

Indicator Light
The green light should always be on if the plug is working properly.
If the green light turns off, this means GFCI has stopped functioning and must be replaced.
We can offer a wide variety of Spec Grade GFCIs to help protect people from electrical shock in homes, offices, hospitals, schools, Hotels, factories and outdoors.
Residential – Kitchens, bathrooms, garages, basements, laundry rooms, wet sink and other wet locations around the home
Educational Facilities – Classrooms, restrooms, laboratories, dormitories and kitchens
Airports – Public bathrooms, general use and maintenance areas
Restaurants, Lodging and Retail Malls – Public bathrooms, general use and maintenance areas
Commercial Offices – Bathrooms, basement areas, hallways and kitchen facilities
Public Areas – Wherever receptacles are located near wet or damp locations
Residential – Kitchens, bathrooms, garages, basements, laundry rooms, wet sink and other wet locations around the home
Educational Facilities – Classrooms, restrooms, laboratories, dormitories and kitchens
Airports – Public bathrooms, general use and maintenance areas
Restaurants, Lodging and Retail Malls – Public bathrooms, general use and maintenance areas
Commercial Offices – Bathrooms, basement areas, hallways and kitchen facilities
Public Areas – Wherever receptacles are located near wet or damp locations
\t\t\t\t\t\t\t\t\tMore Details \t\t\t\t\t\t\t
Our GFCI outlets meet the 2016 newest UL standard, it's updated version.

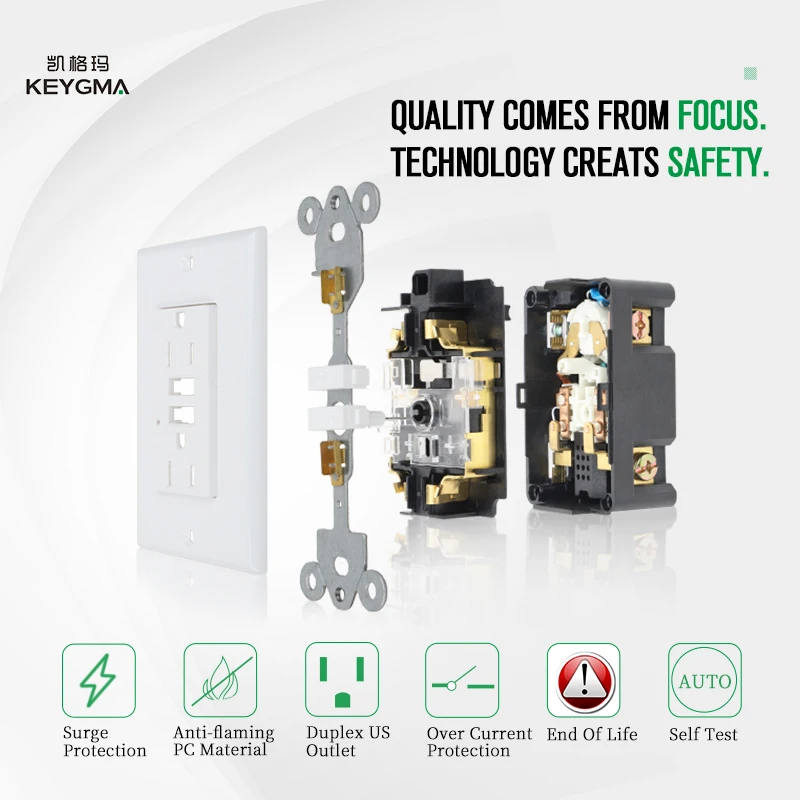

Compared with the other suppliers,except the leakage protecion, our products are with 5 more extra functions:
1.Neutral grounded(Double safe protection)
2.Overvoltage protection:The conventional GFCI is with 125V, if the voltage was changed into 160V or more, the LED will indicate it's overvoltage, and it will trip about 1 min. It's well avoid fire accident.
3.Self test(Auto Monitor):Allows for periodic automatic testing of the GFCI device and its ability to respond to a ground fault. If a problem is detected, the GFCI will disconnect power to anything connected to it or indicate that there is a problem using visual or audible means.
4.lind-load reversal protecion:If the GFCI is miswired with the line and load terminals reversed, it will not reset and supply power until it is properly wired. This applies both during initial installation and if the device is removed and re-installed.
5.End of life:It required by newest safety certificates. GFCI should be replaced every 3 years.
Comparison between Keygma and others
1.From the PCB Board, our GFCI built in PLC for more precise leakage controlling and make it safer.So most
cheaper GFCI cannot be with self test function.
2.Our board was printed by both side for well insulation.
Comparison between Keygma and others
3.Keygma take bigger Varistor so the surge protection can be 10KV 20KA, and other suppliers normally do it as 6KV 3KA.
4.One extra cover for protecting the wire.
The 4 differences make the costs are with 0.5USD difference.
Why Choose Us
KEYGMA is the leading manufacturer of residential and commercial ground fault circuit interrupters (GFCIs) in the electrical industry. It offers a wide variety GFCIs to help protect people from electrical shock in homes, offices, hospitals, schools, and the outdoors. Built with a patented reset lockout feature that blocks the reset button if GFCI protection has been compromised
KEYGMA GFCIs meet the latest NEC and UL requirements. You'll find smart choices for every need, including tamper-resistant, weather-resistant. USB outlets,smart socket and LED dimmer are in great demonds.

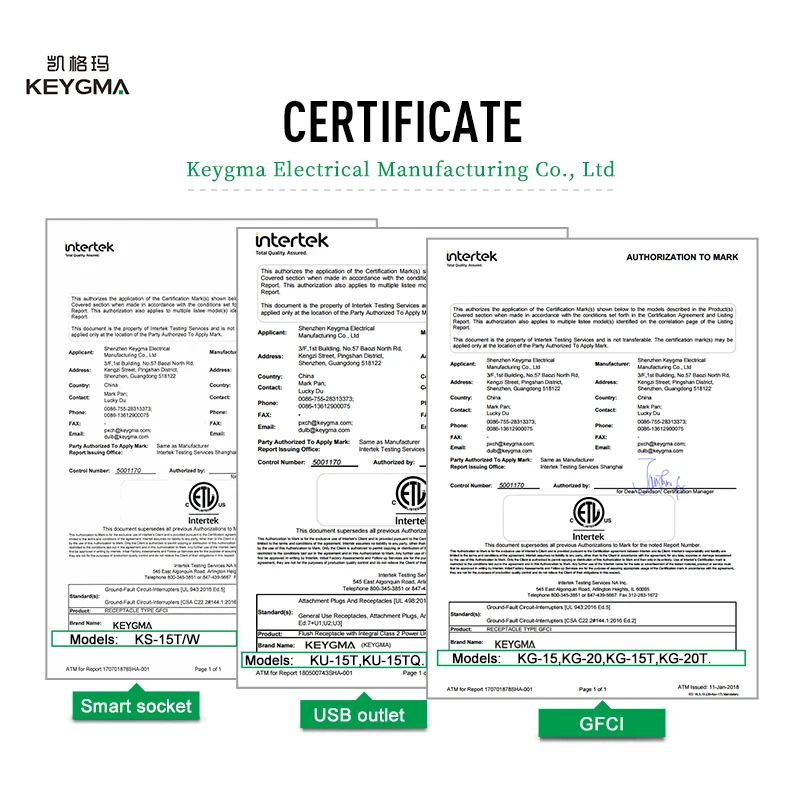

Certificate
All the products are with ETL certificate. ETL No.5001170.
10+ patents are applied.
10+ patents are applied.
The main markets are the ones who use US standard outlets.
Customers visit us for projects, reselling, wholesale etc. You are warmly welcomed to visit us any time.
