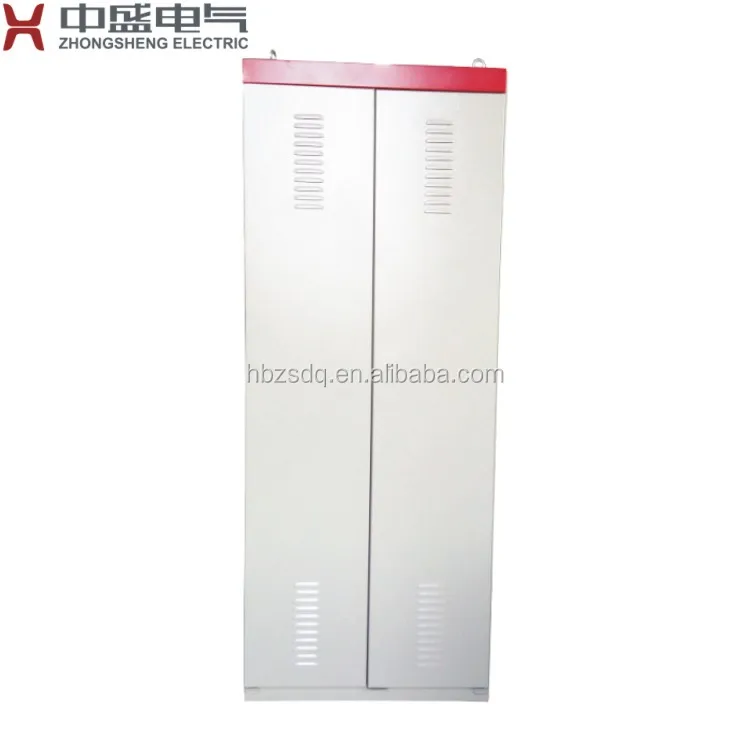

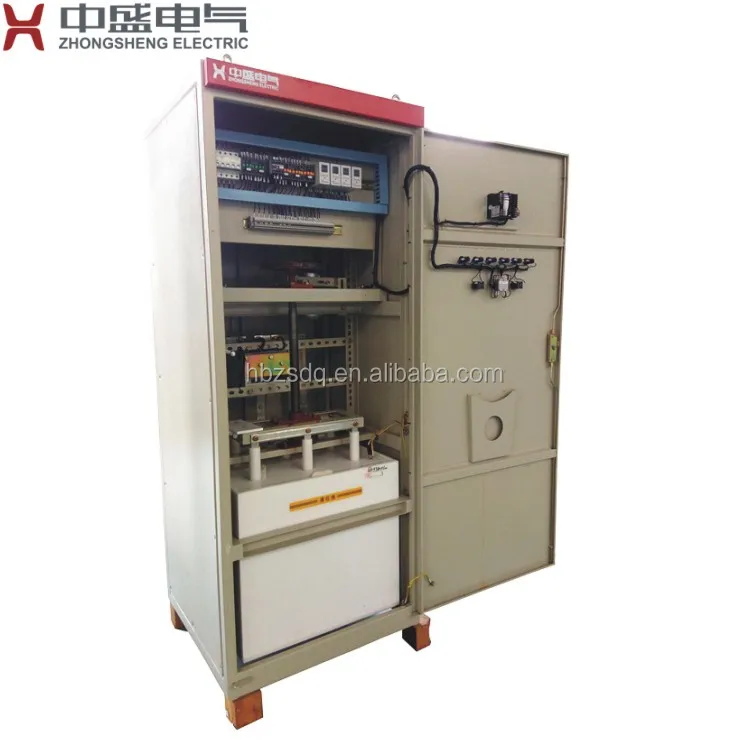

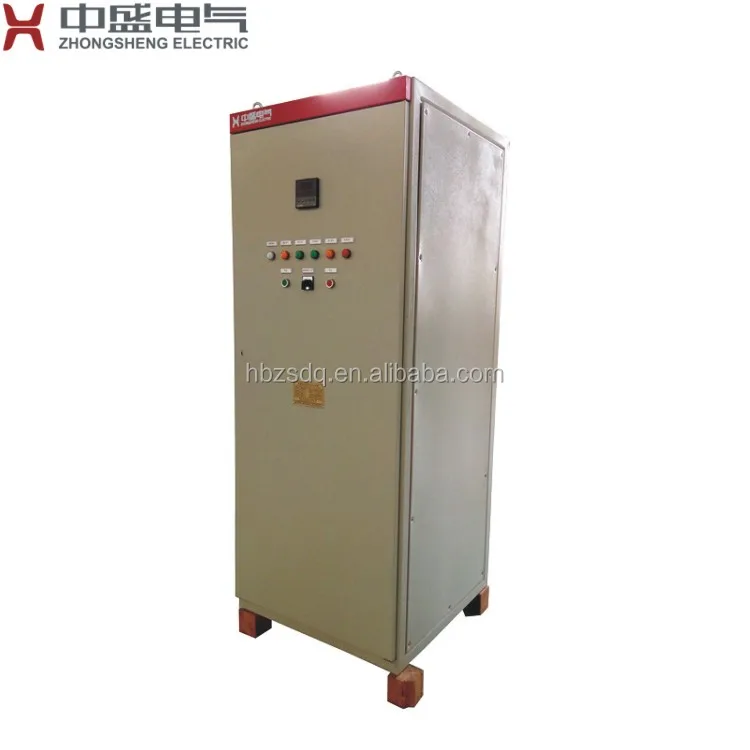

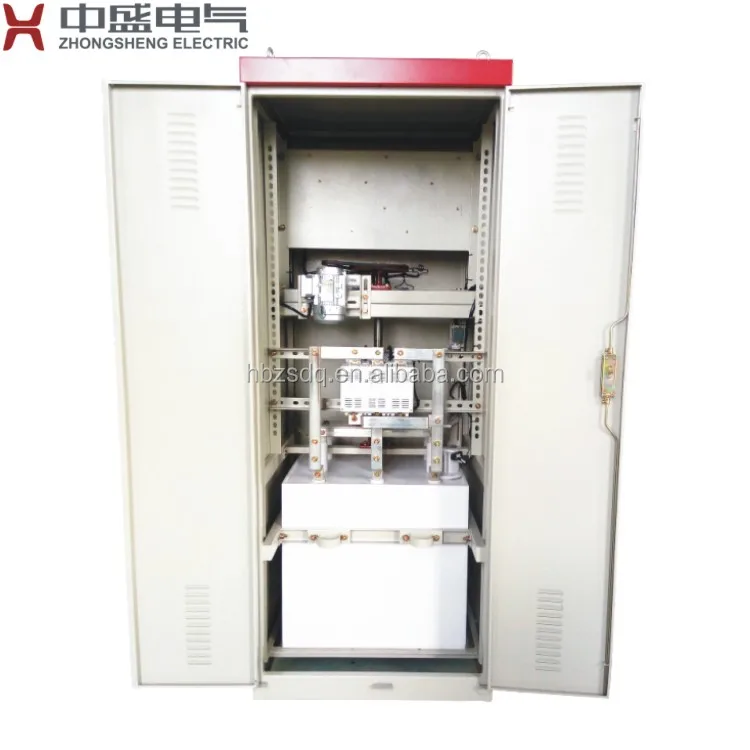

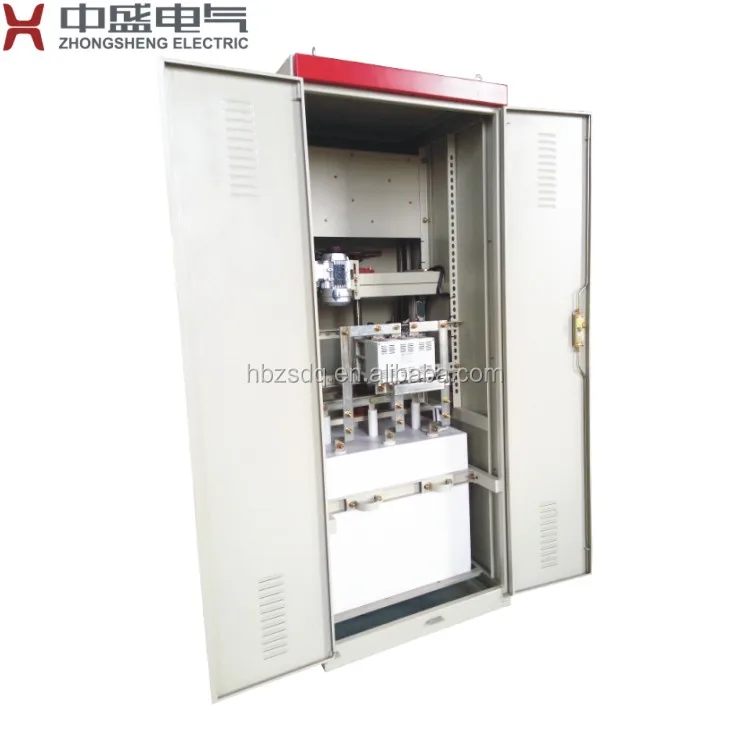

SYQ series slip ring motor liquid resistance starter electrode

 Liquid resistance starter for slip ring motor (also called wound rotor motor) is used for inserting external resistance in the rotor circuit of slip ring motor at the starting to reduce starting current and increase starting torque. It's used in various industries and installations like: cement plants, rolling mills, pumping plants, sugar mills, paper plants.

Applied motor:

• Three phase AC slip ring motor


• Rated voltage: up to 11KV


• Rated power: 45KW ~ 10000KW


• Rotor voltage: 200 ~ 3000V


• Rotor current: 200 ~ 2000A

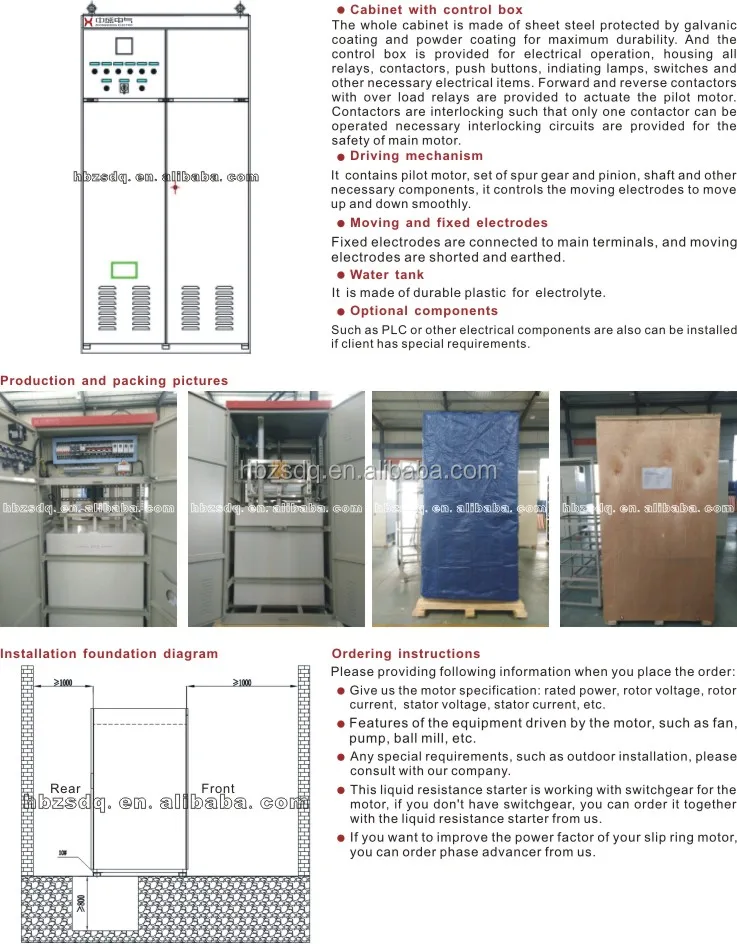

Please see followed detailed catalog:
