Main Application: Suitable for crushing and recycling in medicine, food, chemical pigments, fertilizer ,etc. In operation, a high speed rotating knife cut the particles with different shapes and specificstions. Material particle size smaller than the screen passes to the discharge while the larger particles are reduced. This equipment can replace YK swaying granulator in some cases.
Model Features: 1.Table type: Widely used in crushing and pelletizing of non uniform materials. 2.Inclined type: Normal type,suitable for lighter proportion materials granulation. Popular used in small batch production. 3.Pipeline type: Pipeline connection, either single or joint use is abailable. No dust when used in combination.
Company Profile
Since 2008
JUNZHUO MACHINERY was set up to 2008 with the objective to develop & provide process technology offering of international standards. We keep the mission of staying committed to innovation and by consistently exceeding customer expectations, helping companies do business more efficiently and profitably. Our customers range from small family run operations to famous companies. Regardless of customer size, our philosophy for each is the same, to achieve a creative process solution that efficiently and economically meets the requirements of the application with a smiling service.
Our dry granulation system comprising of roll compactor and cone mill, wet granulation system including of oscillating granulator,basket extruder and screw granulator. All of the products have scale up capability from lab to production equipment, we make over 90% of our machine parts in-house, ensuring stringent quality control. JUNZHUO MACHINERY also provide mixing machine, crushing machine, grinding machine, sifting machine and other machines. The main motto of the company is to deliver best quality products at most economic price & excellent customer service after delivery.
Technical Parameter

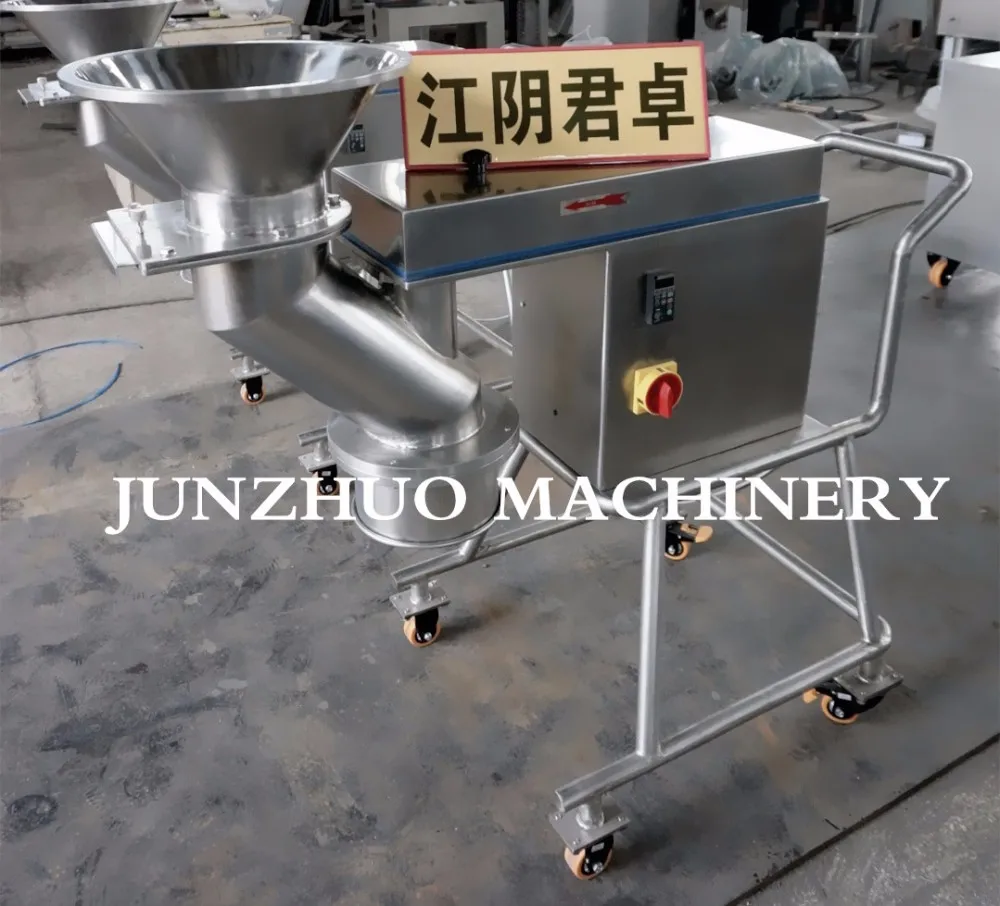

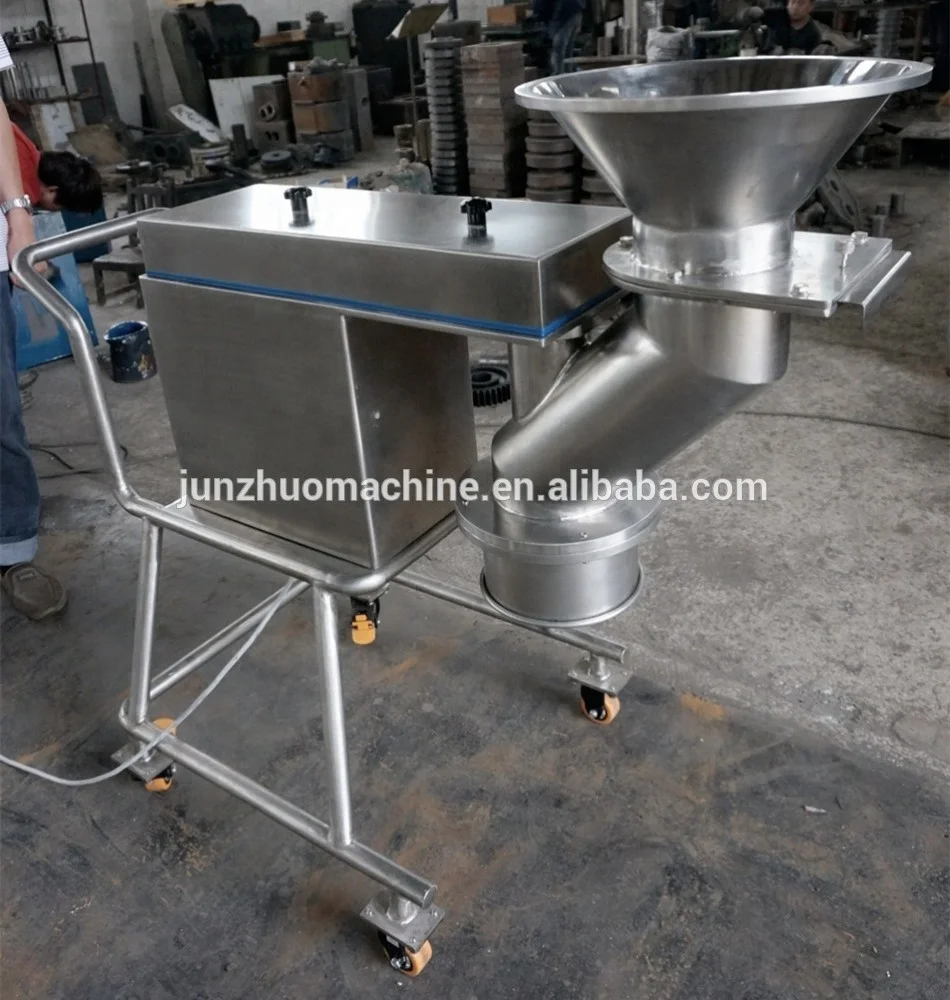

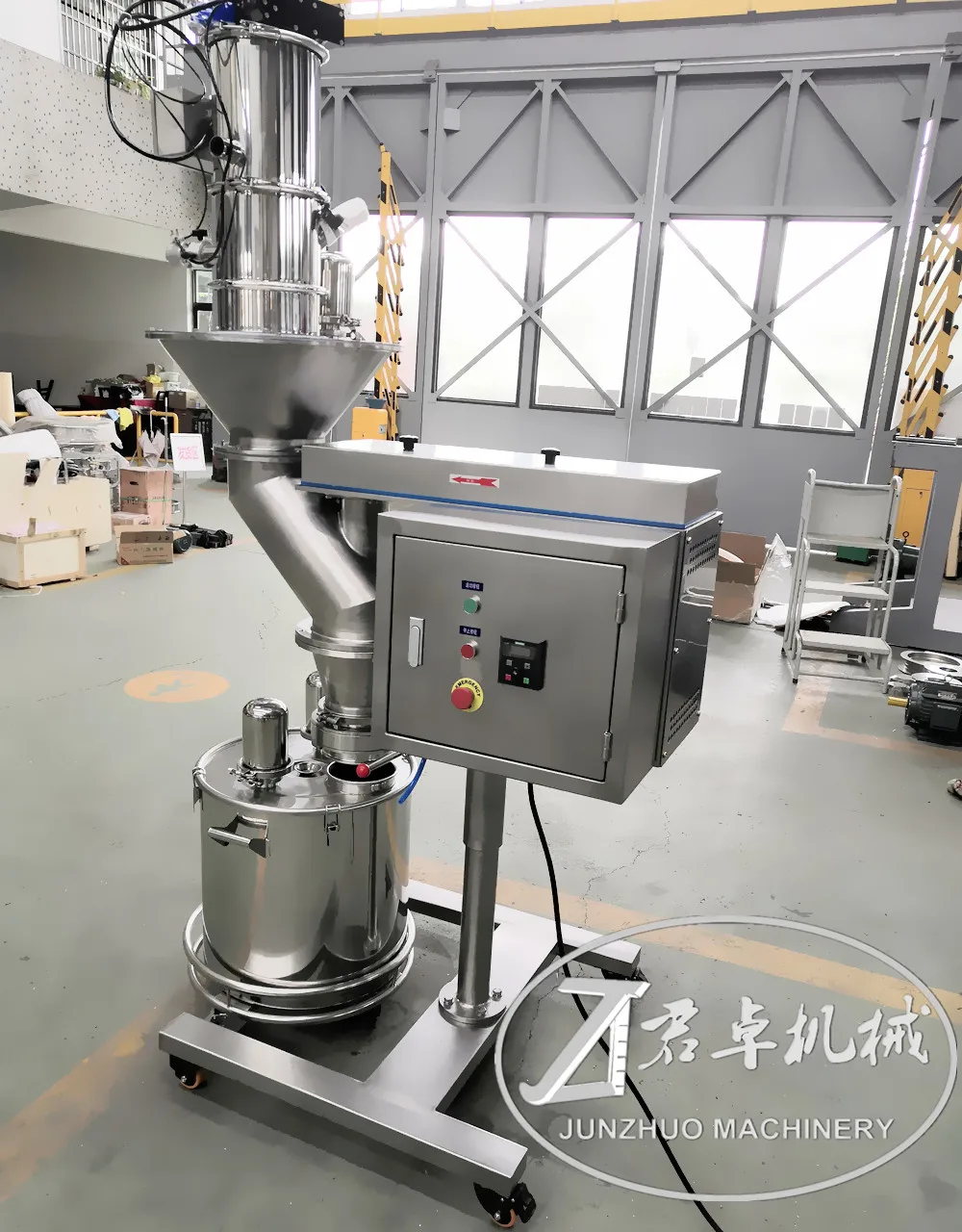

KZL PIPELINE TYPE HIGH SPEED GRANULATOR
Model
160
180
200
250
Spring Length(mm)
120
135
140
180
Screen Diameter(mm)
1-8
1-8
1-8
1-8
Capacity(kg/h)
150-300
150-400
200-500
300-1000
Motor Power(kw)
1.5
1.5
1.5-2.2
2.2-3
Rotation Speed
Frequency 200-1500r/min or 400-300r/min
Overall Dimension(mm)
1000*720*1170
1050*720*1200
1100*750*1300
1350*800*1550
Approx. Weight(kg)
140
160
190
260
Product packaging
Spare Parts
It will be packed into a wodden case, such as motor, screen sieves, O-ring and so on.
Trade Show
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity.
Q: Do you provide material test ? is it free or extra ?
A: Yes, we could offer the testing for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 50% T/T in advance ,balance before shippment.
