3.5 Inch X86 Fanless Mini Industrial Motherboard with Soldered CPU N2800 6 USB 2.0 Gbe LAN
- Category: >>>
- Supplier: Shenzhen Lingjiang Computer Technology Co. Ltd.
Share on (60721655828):
Product Overview
Description
Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store
Bulk Order !!!!!!!
More choose for you here!!!We are factory store.We also support wholesale price for large order.If you need.just contact with us.We can do for you.
Industrial Dual Core Mini ITX Motherboard For Digital Signage Living Room PC Based On Intel Atom N2800 With Multiple USB
ordersssssssssss!!!
Product Description
1.Onboard 2G RAM, Windows7 Os with dual display;
2.Ultra fanless design and no cable design, good at shockproof;
3.Support RS-485 & WIFI & 3G, it's a multi-function industrial motherboard;
4. With Intel Atom N2800CPU , and Intel SATA SSD Compatible.
| Features | |
| Model Name | PCM3-N2800 |
| Mechanical | |

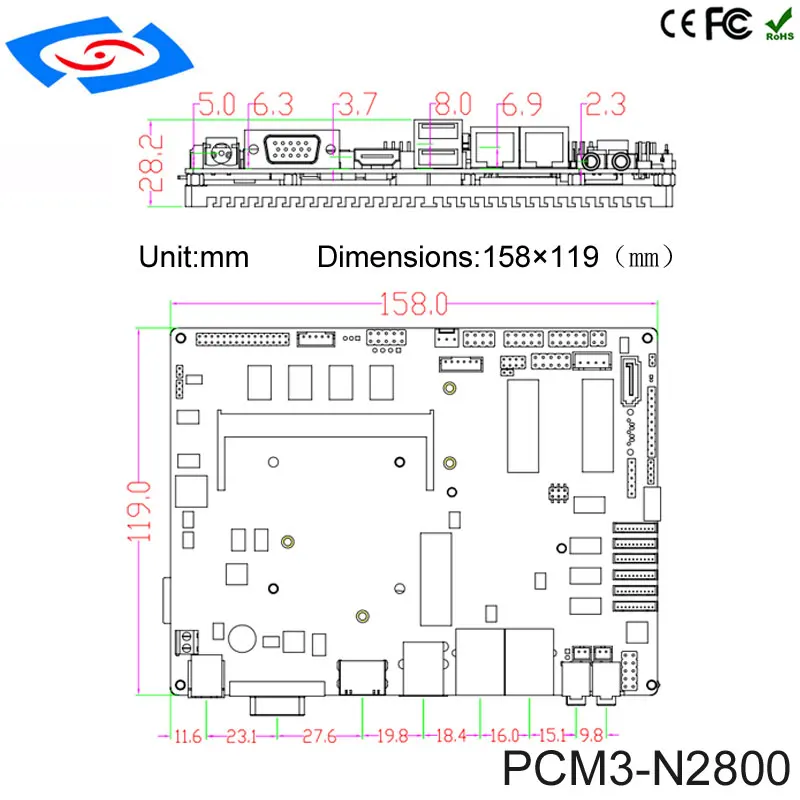

| Dimensions | 158 ×119(mm) |
| Power supply | 9V-25V |
| Watchdog timber | 0-255s |
| Net weight | 0.45kg(Including heatsink) |
| Thermal methods | Fanless |
| Working Temp | Working Temperature:-40℃-80℃,Working Humidity:5% - 95% |
| Storage Temp | Storage Temperature:-40℃-80℃,Storage Humidity:5% - 95% |
| System | |
| CPU | Intel Atom N2800 1.86GHZ,Dual core four threads,6.5W(consumption) |
| Chipset | Intel N2800+NM10 |
| Memory | SO-DIMM:Onboard 2G,1×DDR3,2G/4G |
| SATA | 1×SATA 1×M-SATA/SATA |
| System | XP/Win7/Linux/Win8/10 |
| I/O | |
| Lan | 2×10/100/1000Mbps RJ45, Integrate RTL8111E chip |
| Serial ports | 6 X COM(all supports RS232),COM1:RS485/RS422/RS232 |
| USB | Onboard 2×USB 2.0,4×USB 2.0(Pin) |
| GPIO | 1×GPIO 8Bits(4in/4out) |
| P/S 2 | 1×KB/MS2 inner slot |
| Display | Onboard 1×VGA,LVDS(18/24 bits),Integrate Intel GMA3650 |
| Audio | Integrated sound card ALC662,Onboard 1×MIC-in,1×Line-out, Inner 2×2W Power amplifier connector |
| Touch function | 1(4/5/8 wire) |
| Others | Thin film switch connector Fan connector, 2×min-PCIE/Wifi/3G/4G,1×SIM slot |
| Warranty | |
| Warranty | 12 months |
| Order information | |
| Model Name | PCM3-N2800 |
| Standard Configuration | N2800 CPU/SO-DIMM:Onboard 2G /Onboard 1×VGA/1×LVDS 18 Bits / 2×USB 2.0/ 2 ×LAN/4×USB(inner)/1×GPIO 8 Bits(4In/4out)/ 1×SATA / 1×MSATA/2×MPCIE/6×RS232/ 1× PS2/SIM slot /AUD power pin / Audio input and output port/Power hole(9V-25V) |
| Standard Accessories | aluminium alloy heatsink/COM Cable /Sata Cable/SATA-POWER Cable |
| Optional | LVDS(24 bits)/Remote control switch and receiver/Thin film switch/Wifi/3G/4G/ SO-DIMM 2G/ SSD64G/128g/256G |
