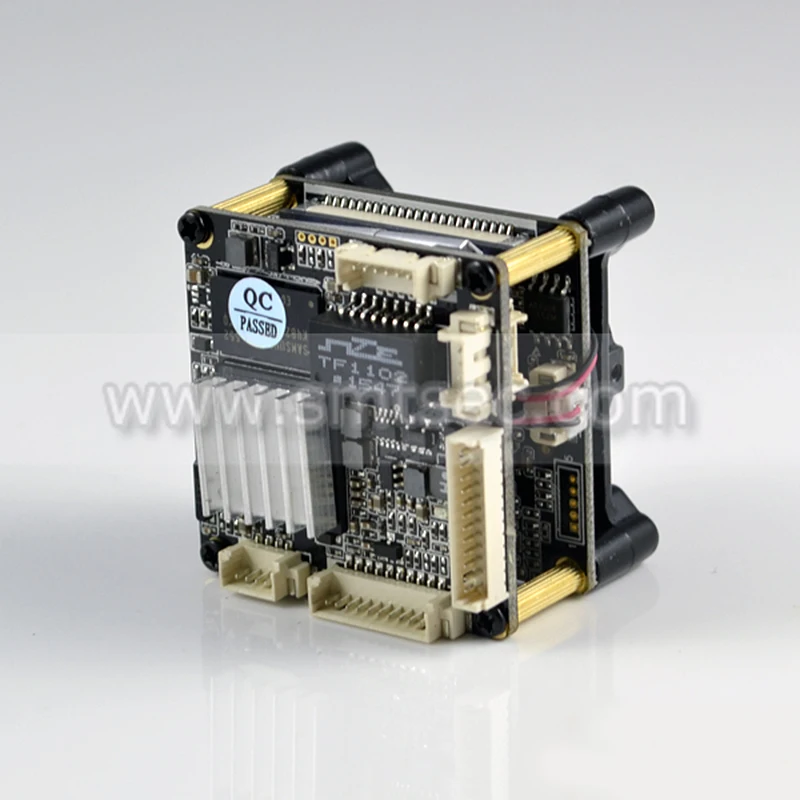

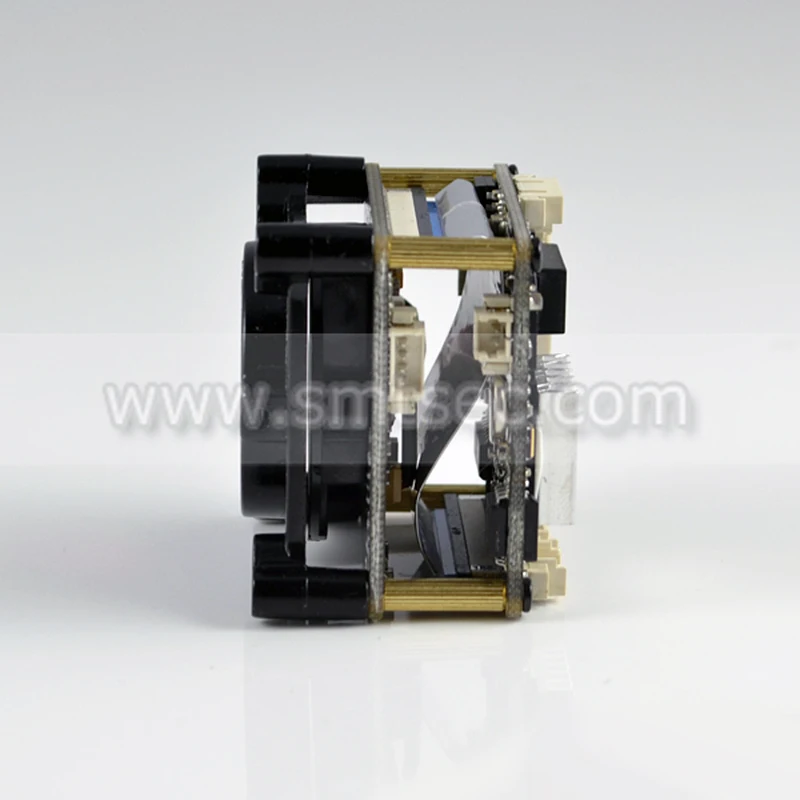

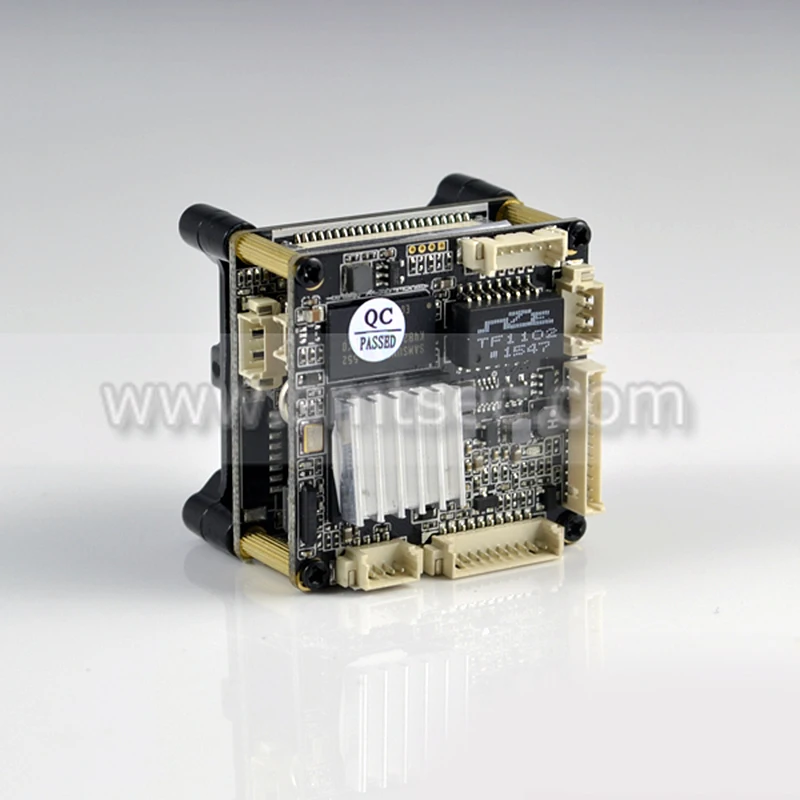

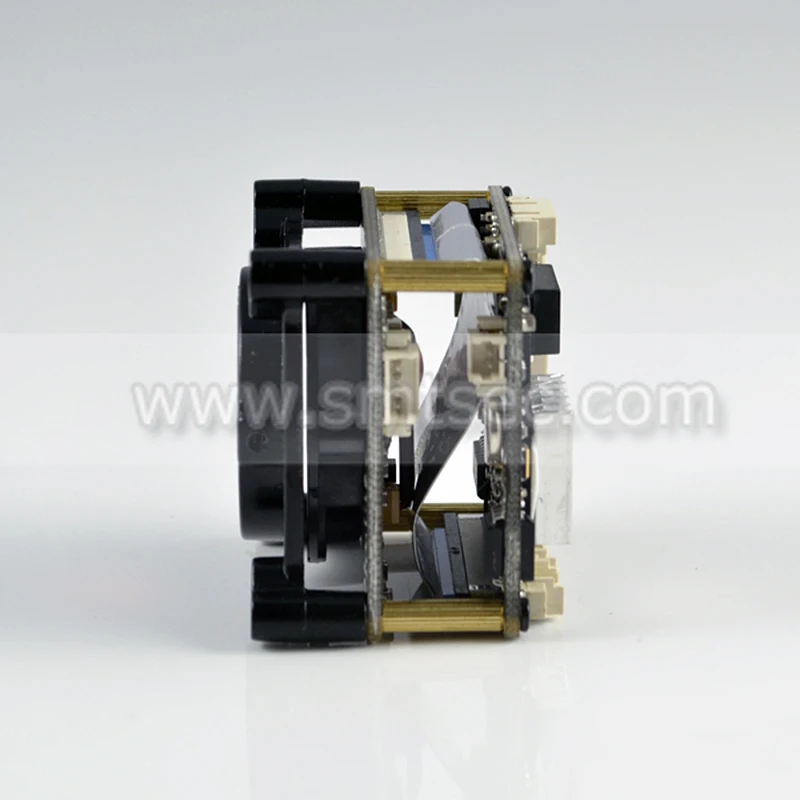

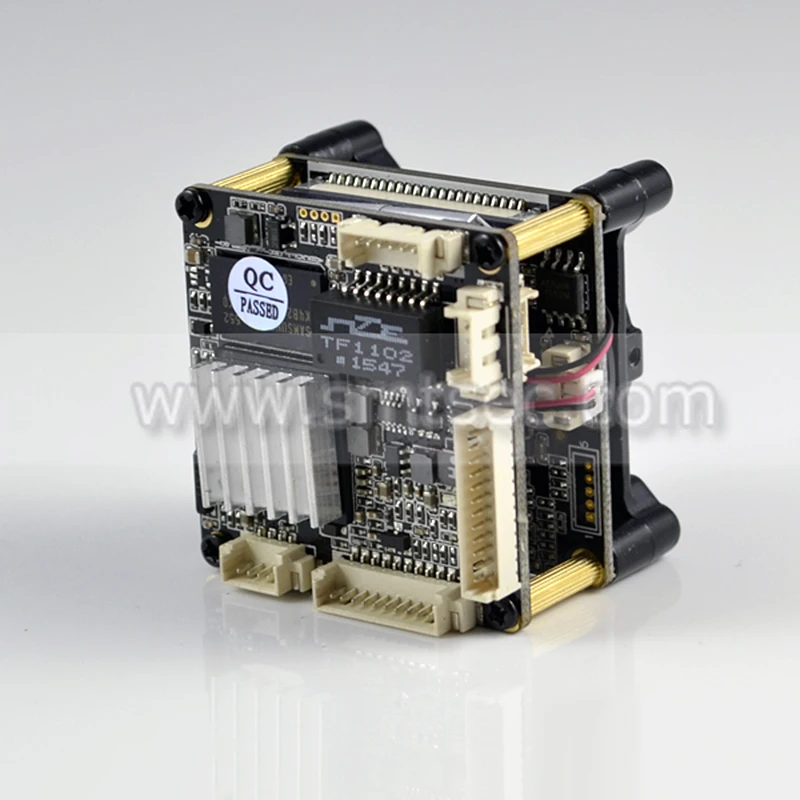

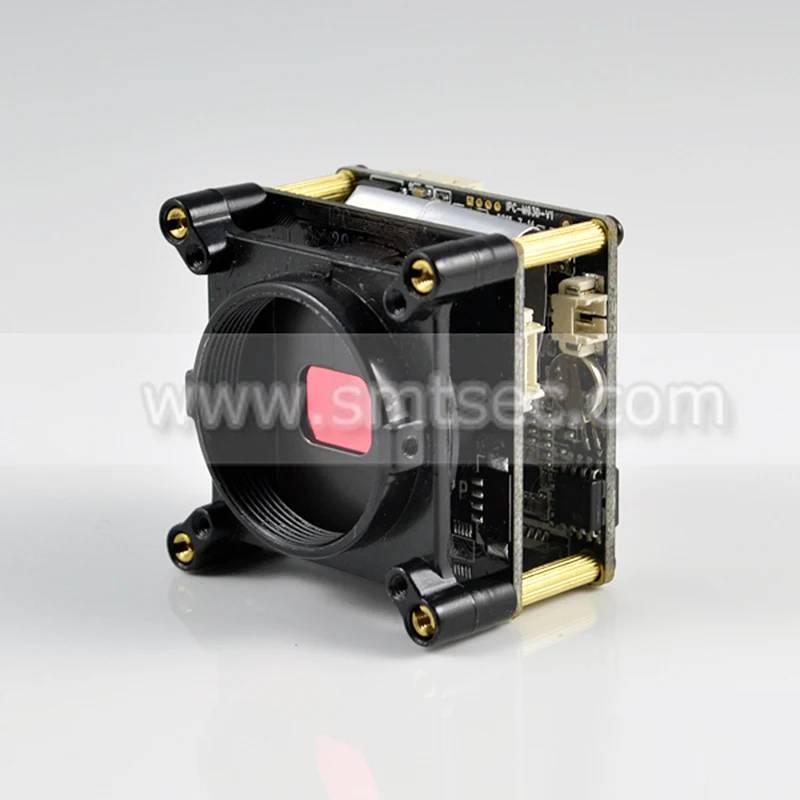

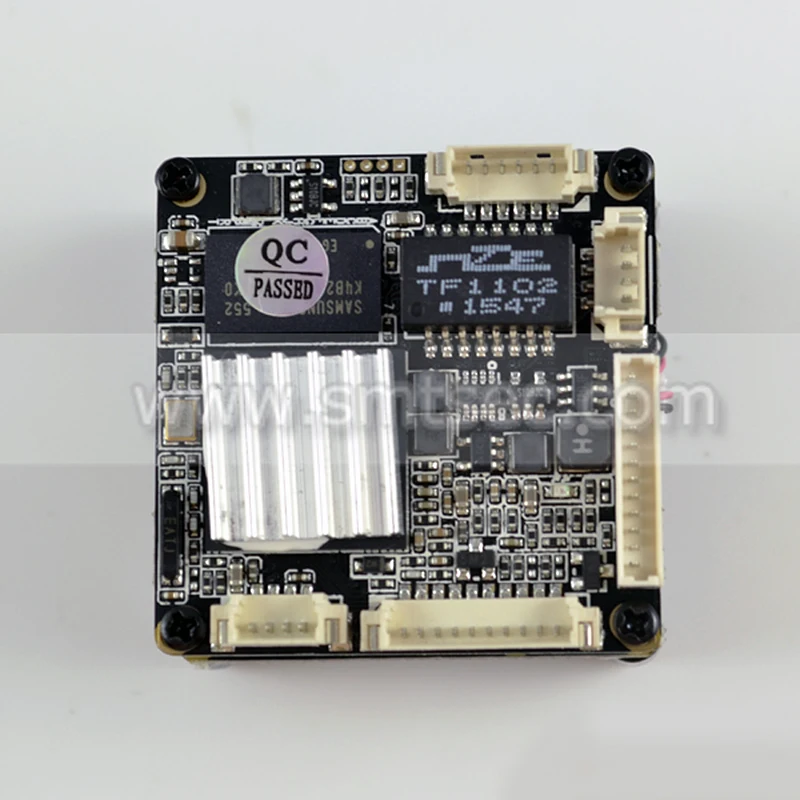

Starlight wifi IMX124 Hi3516D Board Camera Smart Security H.265 /H.265/H.264/Mjpeg Dual stream 3MP IP Camera Module SIP E124D
- Category: >>>
- Supplier: Shenzhen Smart Technology Co. Ltd.
Share on (60721659313):
Product Overview
Description
Product Description
Starlight IMX124+Hi3516D Board Camera Smart Security H.265+/H.265/H.264/Mjpeg Dual-stream 3MP IP Camera Module
SIP-E124D
Highlights
Smart Stream,Smart Detect,Smart Control,Color Abnormal,Sound Abnormal,Brightness Abnormal,Video Abnormal,Cross-corder Detection,Regional Invasion,Left-behind Items
| Model | SIP-E124D |
| Camera Type | H.265+/H.265/H.264/Mjpeg 3MP Starlight IP Camera Module |
| Camera | |
| Image Sensor | 1/2.8" 3.21M-Effective Pixel Color CMOS Image Sensor IMX124 |
| DSP | Hisilicon 3516D |
| Effective Pixels | 2065 (H) X 1553 (V) approx. 3.21M pixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) |
| Min. Illumination | 0.001Lux/F1.2 |
| S/N Ratio | ≥50dB(AGC OFF) |
| Lens Mount | Default CS Mount (Optional M12 Mount) |
| IR-Cut | Support |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | Digital WDR >80db |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D-DNR |
| Privacy Masking | Up to 4 areas |
| Image parameter | Bir/Con/Hue/Sat/Acu/Gamma |
| Image basic | Mirror/Flip/LSC/CTB/AntiFogging |
| Video/Audio | |
| Video Compression | H.265+/H.265/H.264/Mjpeg Dual-stream encoding |
| Resolution | Main Stream:2048X1536, 1920X1080, 1280X720 (1~25/30fps) |
| Sub Stream:D1,VGA,CIF, (1~25/30fps) | |
| Frame Rate | 1~25/30fps |
| Bit Rate | 30Kbps~16Mbps, support VBR, CBR |
| Text Overlay | Channel, Date & Time, Bit Rate |
| Audio Compression | G.726/G.711A/G.711U |
| Audio bit rate | 16000 |
| Sampling rate | 8K |
| Network | |
| Data Storage | Video record, Picture format |
| Trigger | Manual, Automatic(motion detection, alarm, schedule, cycle ) |
| Alarm data transmission | FTP, E-mail, Browser, CMS |
| Protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
| V2.4 | |
| Max. User Access | 8 users, IE, Google, Firefox |
| Smart Phone | Support iPhone, iPad, Android View |
| Interface | |
| Audio | 1ch input, 1ch output |
| BNC Video out | 1CH Analog Video output, Support CVBS standard, PAL/NTSC Optional |
| RS485 | 1ch |
| USB | 1ch (Support 128G USB flash/WIFI/3G Extended) |
| Alarm | 1ch input |
| Reset | Support |
| Optional function# | |
| Memory Card# | Support Max 128G TF/MicroSD Card,1ch alarm output |
| Motorized Zoom# | Support Auto Zoom, Auto Focus, Auto IRIS |
| WIFI # | 802.11b/g/n |
| Auto IRIS# | Support DC drive auto iris lens |
| POE # | IEEE802.3af |
| General | |
| Power Supply | DC12V |
| Power Consumption | <3W |
| Working Environment | -20°C~+55°C , Less than 90% RH |
| Product Size | 38 x 38 x 25mm |
| Net Weight | 0.2kg |
| #Remark: Auto iris,Electric zoom,WIFI,POE,TF Card functions are optional . If you need Auto iris,Electric zoom,WIFI,POE,TF Card functions, please consult with us. | |
