Product Overview
Description

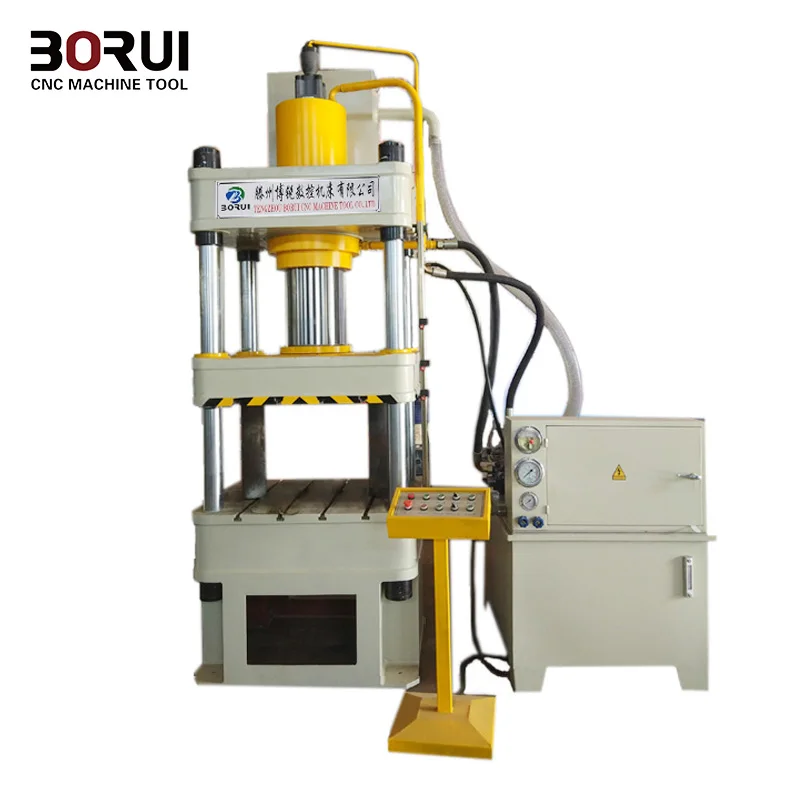

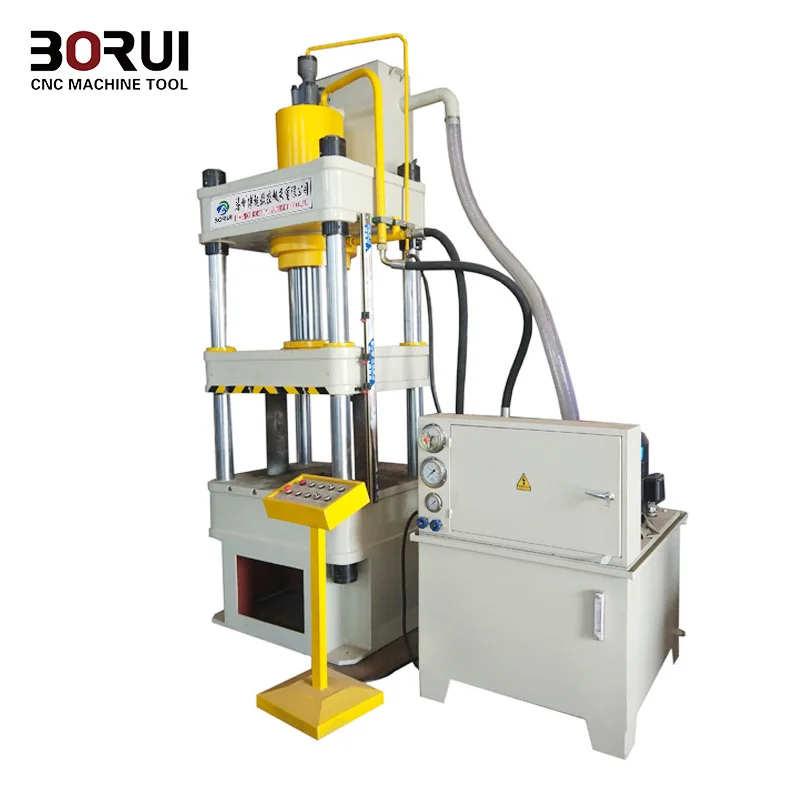

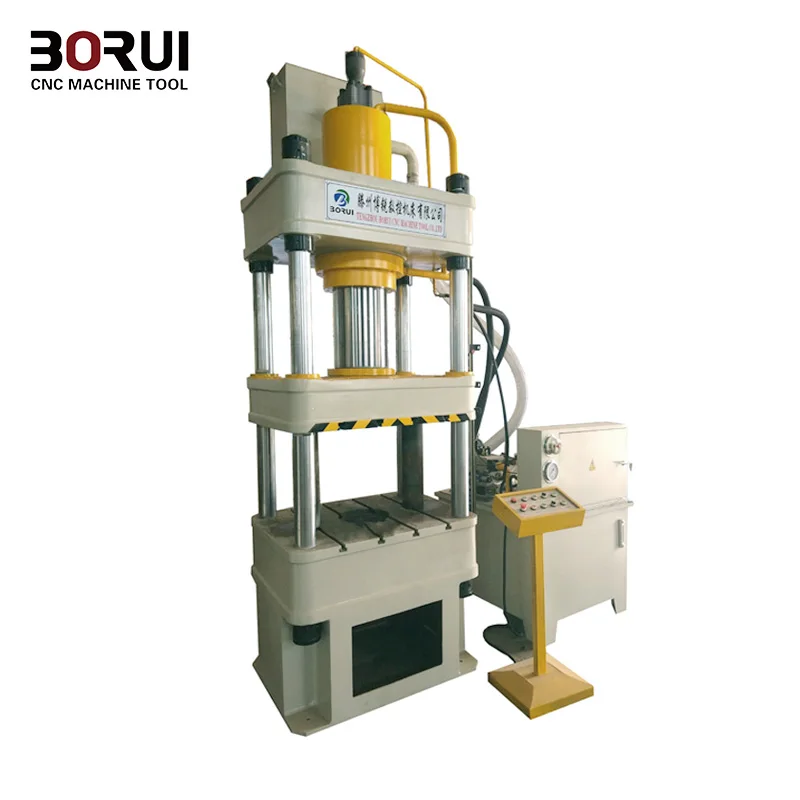

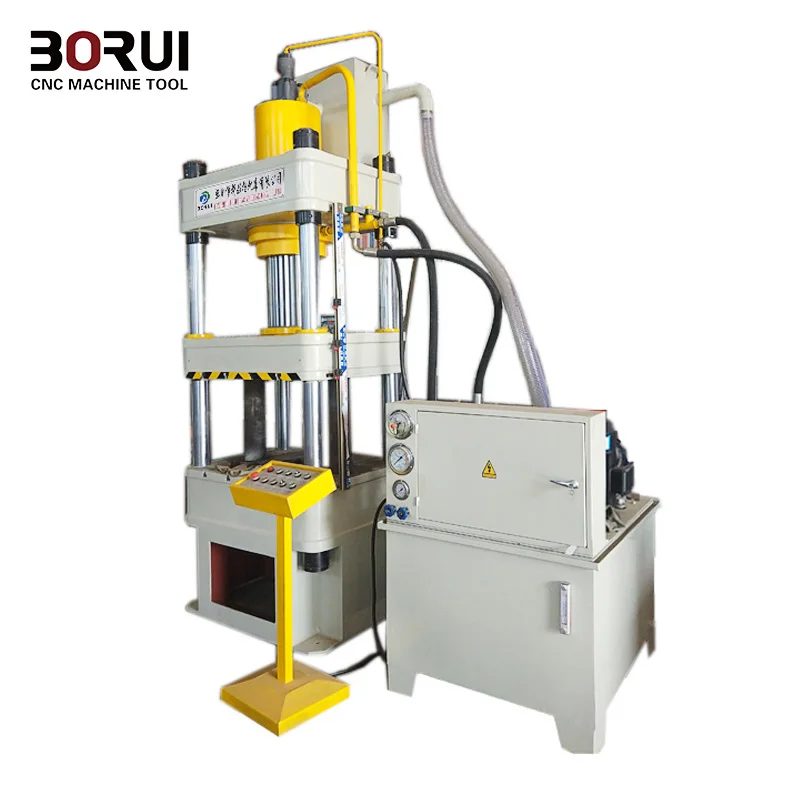

Single action and Double Action Metal Sheet Forming Machine Hydraulic Press
Products Description
hydraulic press pot making machine field of use:
use metal tensile,deep drawing ,punching,rummaged,cold extrusion and other stamping process,can also be used for correction,press-fit.pressed powder products and plastic molding products and insulation materials molding.100Ton Hydraulic metal stamping press machine for stainless steel bowl pot making adopts advanced design technology of
three-dimensional computer controlled (Finite Element Analysis & Prestressed Modal Analysis) and three beams-four columns bodystructure which makes it classic, contracted and utility.
use metal tensile,deep drawing ,punching,rummaged,cold extrusion and other stamping process,can also be used for correction,press-fit.pressed powder products and plastic molding products and insulation materials molding.100Ton Hydraulic metal stamping press machine for stainless steel bowl pot making adopts advanced design technology of
three-dimensional computer controlled (Finite Element Analysis & Prestressed Modal Analysis) and three beams-four columns bodystructure which makes it classic, contracted and utility.
hydraulic press deep drawing deep drawing press machine design as you need:
Production and use of each other, taking full account of the actual needs of customers,
To ensure that customers use our hydraulic press deep drawing pot making machine machine can perfectly create their own pursuit of the product effect,At the same time in line with the principle of the sake of customers, try to simplify the design, to ensure both economic anddurable, easy to use.
Production and use of each other, taking full account of the actual needs of customers,
To ensure that customers use our hydraulic press deep drawing pot making machine machine can perfectly create their own pursuit of the product effect,At the same time in line with the principle of the sake of customers, try to simplify the design, to ensure both economic anddurable, easy to use.
arameters | Unit | YQ32-100 | YQ32-200 | YQ32-315 | YQ32-400 | YQ32-630 |
Nominal force | KN | 1000 | 2000 | 3150 | 4000 | 6300 |
Max.pressure of hydraulic system | Mpa | 25 | 25 | 25 | 25 | 25 |
Slider Max.Opening height | mm | 900 | 900 | 1250 | 1250 | 1500 |
Slider Effective Stroke | mm | 600 | 600 | 800 | 800 | 900 |
Effective worktable size | mm | 800*800 | 800*800 | 1260*1160 | 1260*1160 | 1600*1600 |
Nominal force of upper ejection cylinder | KN | 400 | 400 | 630 | 630 | 1000 |
Stroke of upper ejection cylinder | mm | 220 | 220 | 300 | 300 | 300 |
Slider descending speed | mm/s | 100 | 100 | 120 | 120 | 150 |
Slider pressing speed | mm/s | 5-10 | 5-10 | 8-15 | 8-15 | 10-22 |
Slider return speed | mm/s | 90 | 90 | 90 | 90 | 120 |

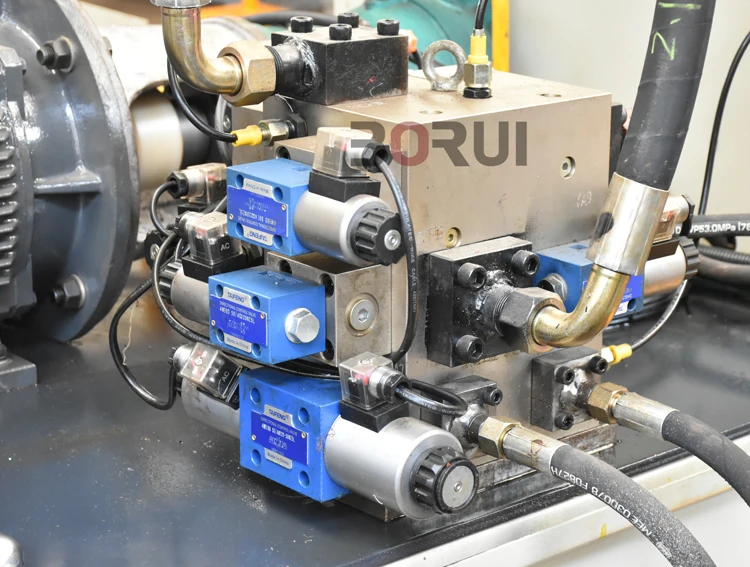

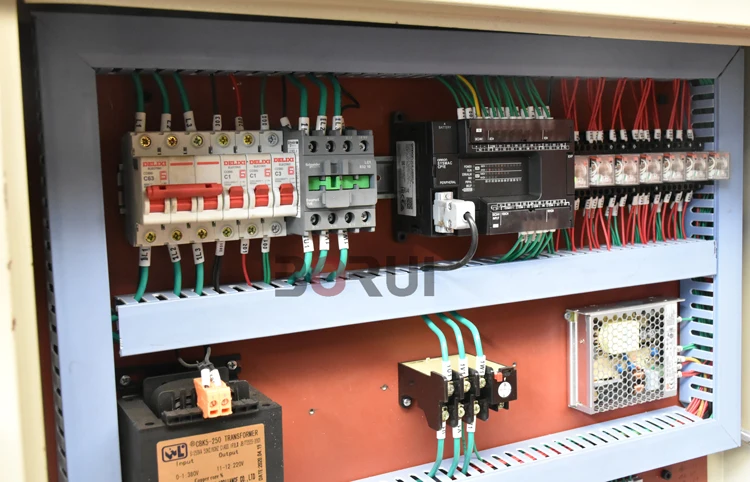

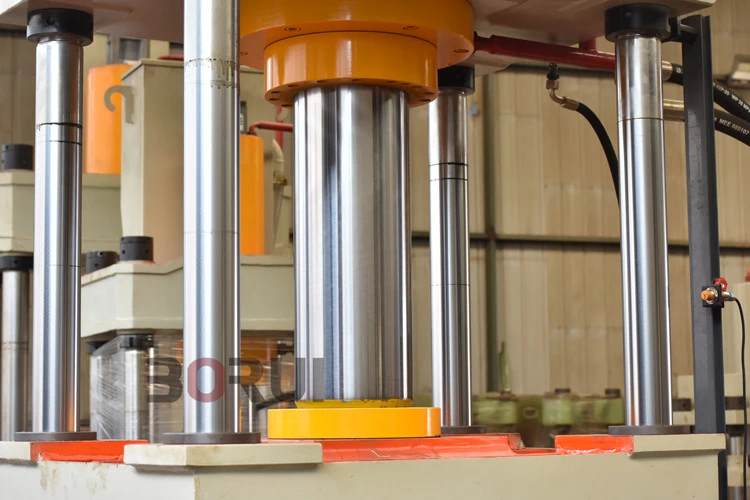

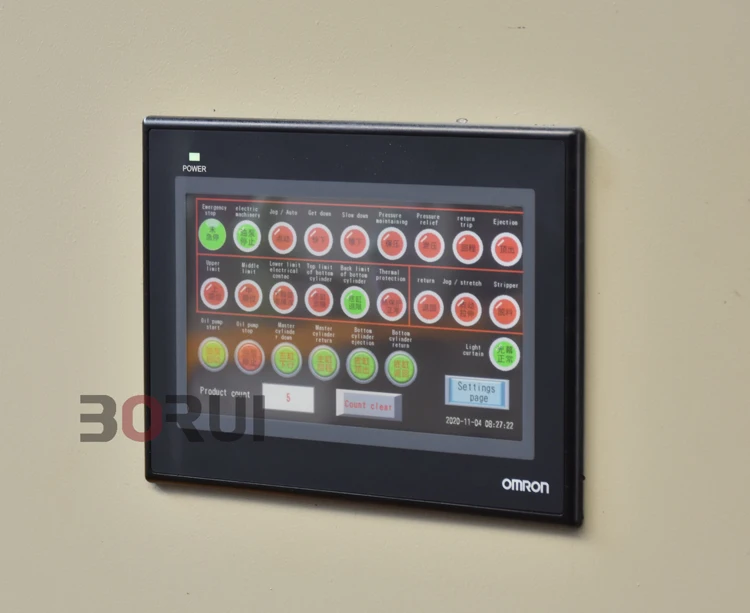

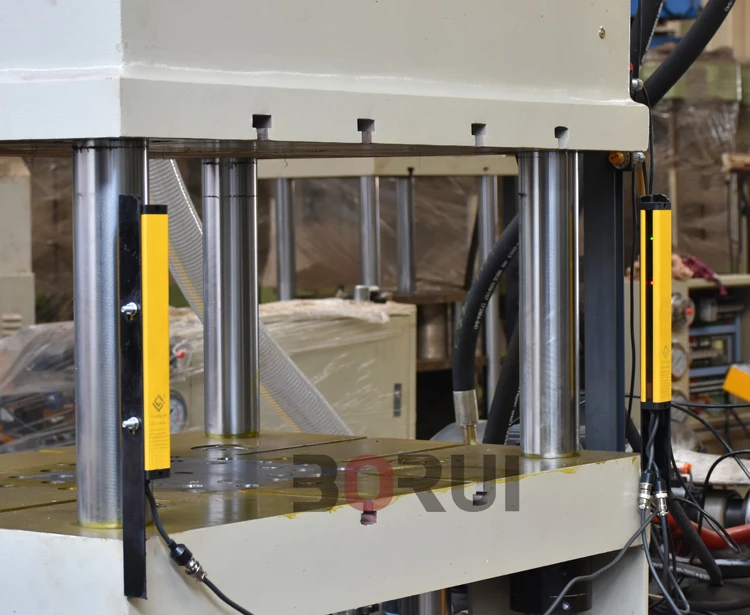

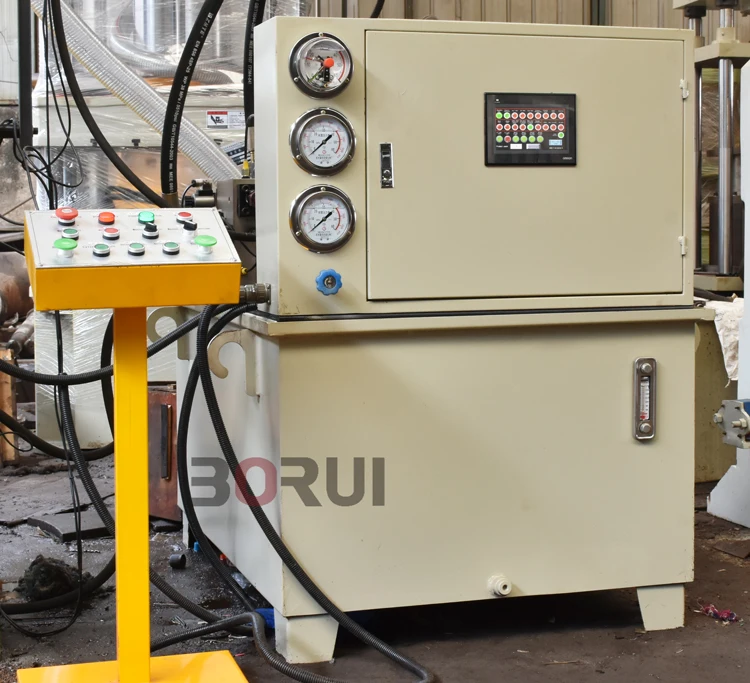

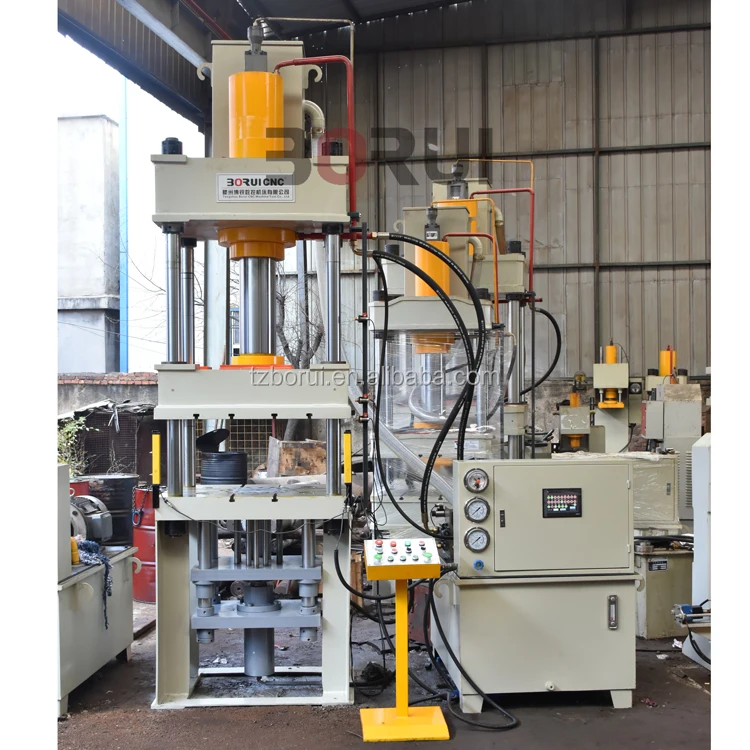

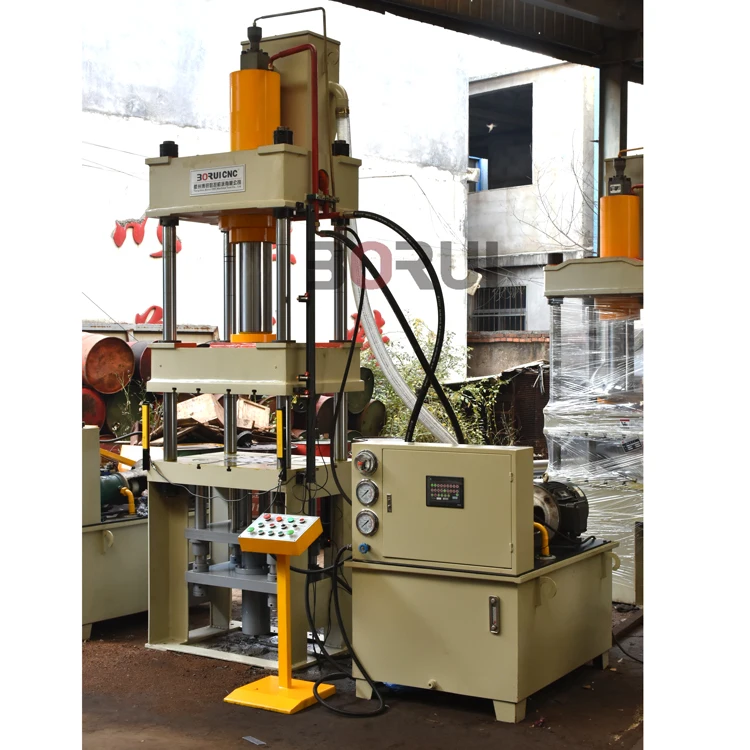

Details Display
