Self Drilling Screw Making Machine for Self drilling Screw Production, Tainwanese type

Product Overview

Description

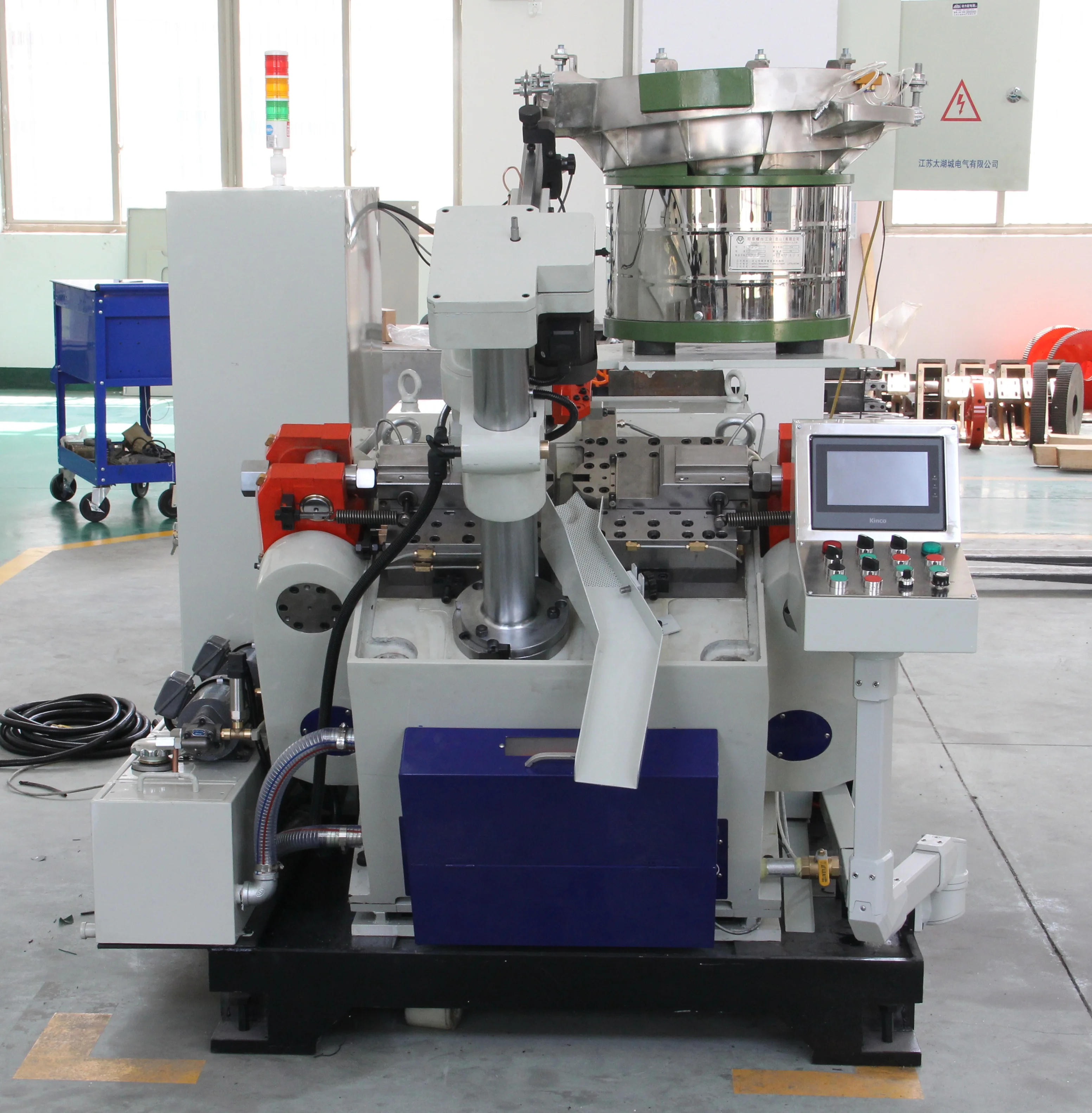

Self-Drilling Screw Forming Machine( SDS series )



Features

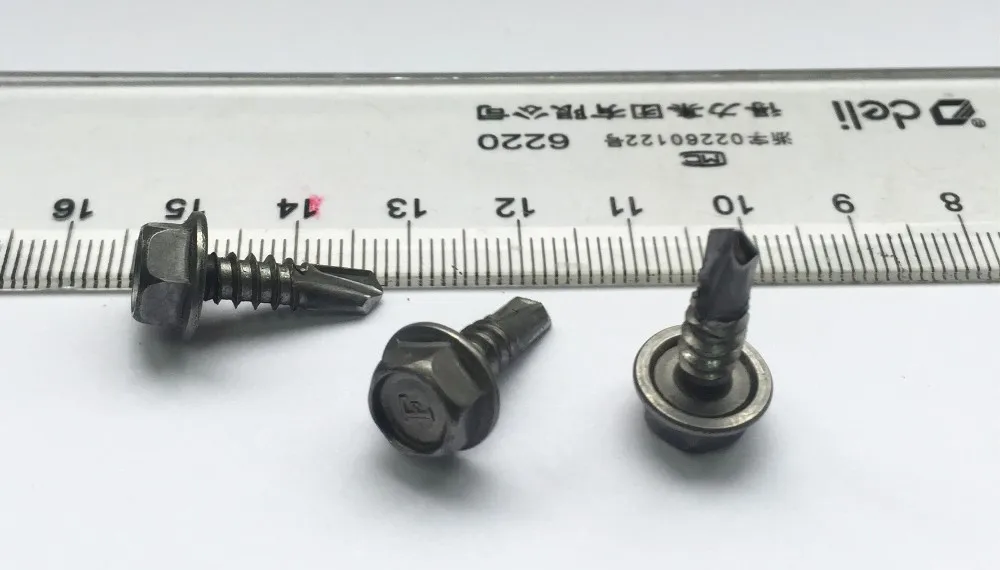

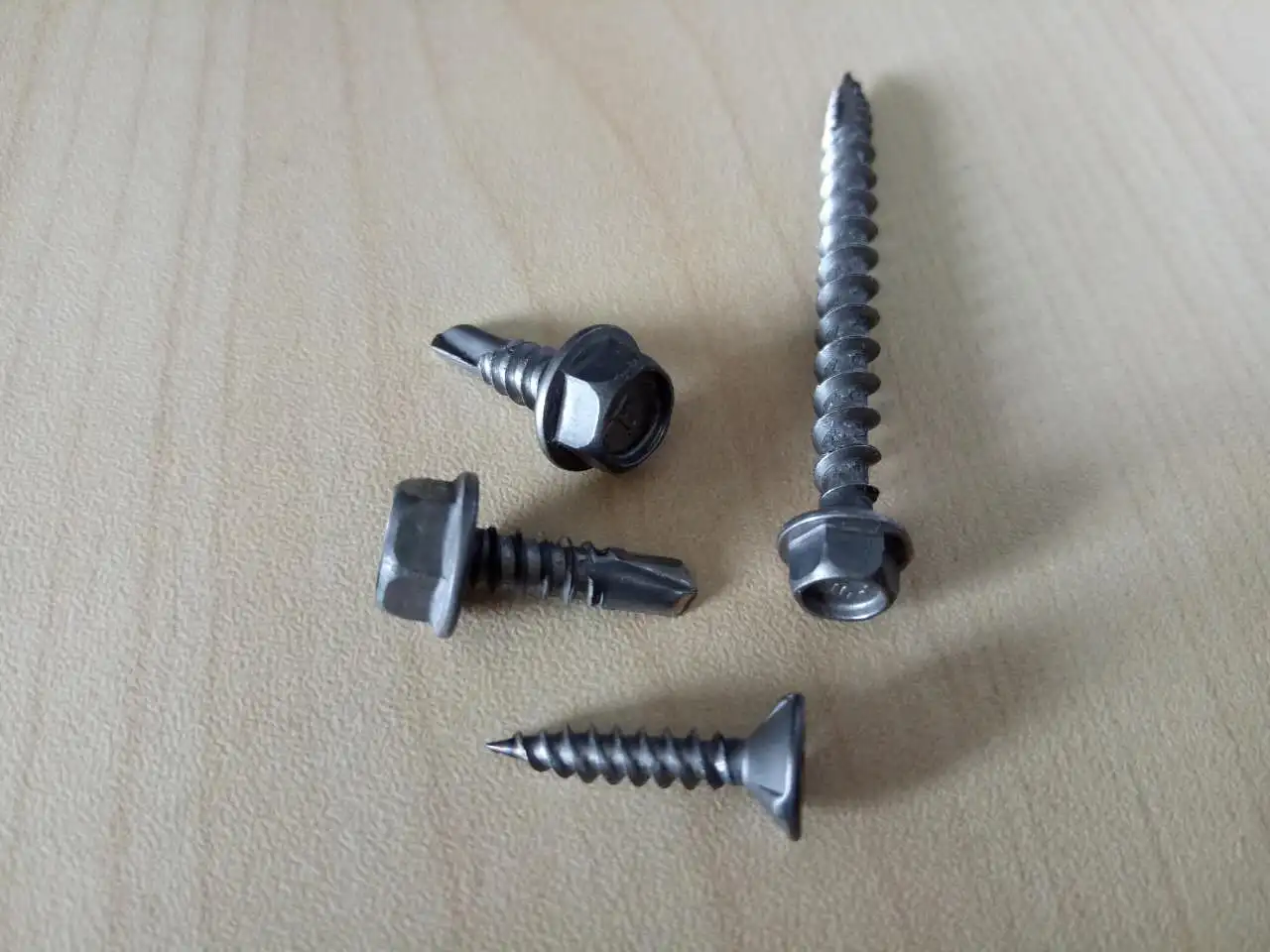

1. Designed for producing stainless steel self-driling screws and lengthened self-drilling screws.

2. Curved surface design of the transmission cam prolongs screw pressing time and shortens idle-stroke time, not affecting normal operational cycle during processing, thus achieving excellent motion effects and extending the operating life of the screw die/mold.

3. Tainwanese type.



See popular Japanese-tech-adopted type:

https://www.alibaba.com/product-detail/self-drilling-screw-making-machine-for_60708899517.html?spm=a2747.manage.list.94.12b67f8ftxv14i



Technical Specifications



Technical data	SDS-5	SDS-6	SDS-8
Max. blank dia./length (mm)	Φ2.8-5.2 / 9.5-125	Φ2.8-6.0 / 9.5-150	Φ2.8-7.0 / 10-200
Capacity range (pcs/min)	120-450	120-520	45-250

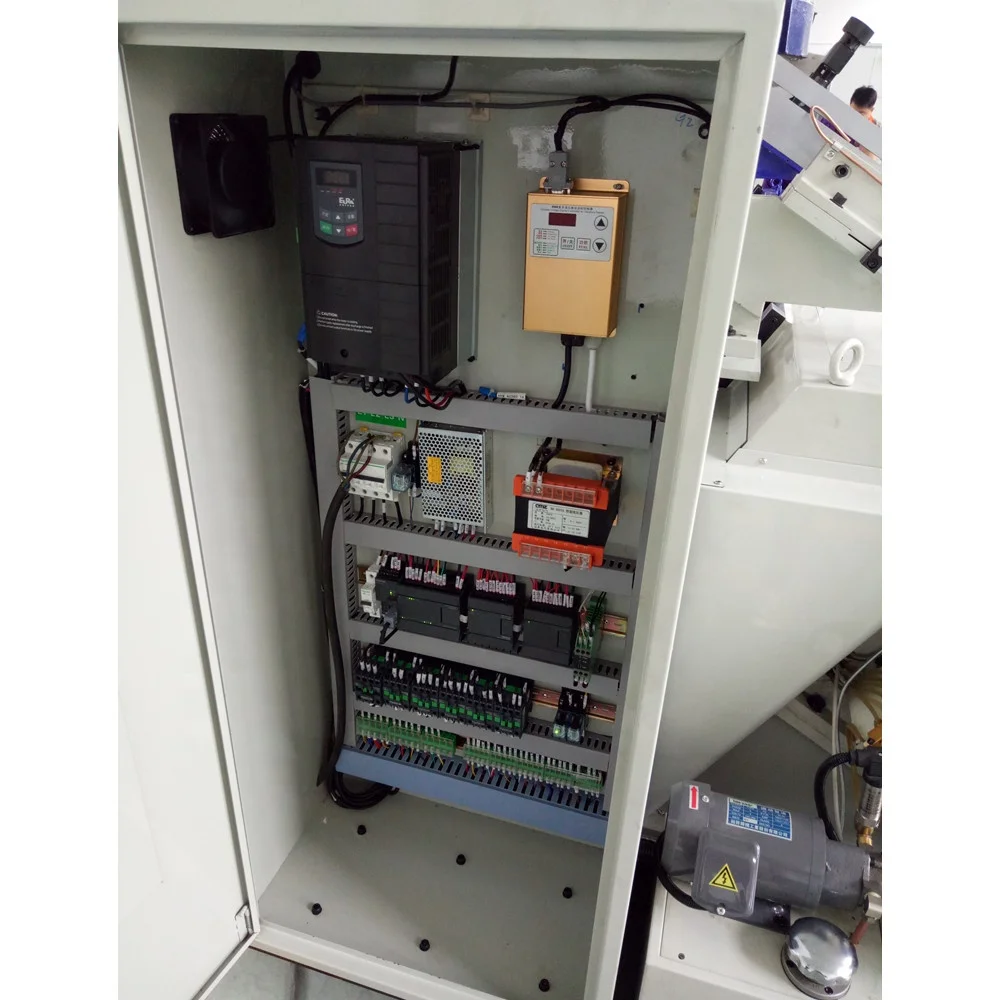

Control	PLC/LED	PLC/LED	PLC/LED
Dimensions (L*W*H)(mm)	1900x1400x1600	1900x1500x1800	1850x1950x1850
Weight(kg)	2200	2500	3500
