China Top Chemical Equipment Vacuum Discharging Extruder For Silicone Sealant PU glue
- Category: >>>
- Supplier: Foshan Golden Milky Way Intelligent Equipment Co. ltd.
Share on (60721710190):
Product Overview
Description

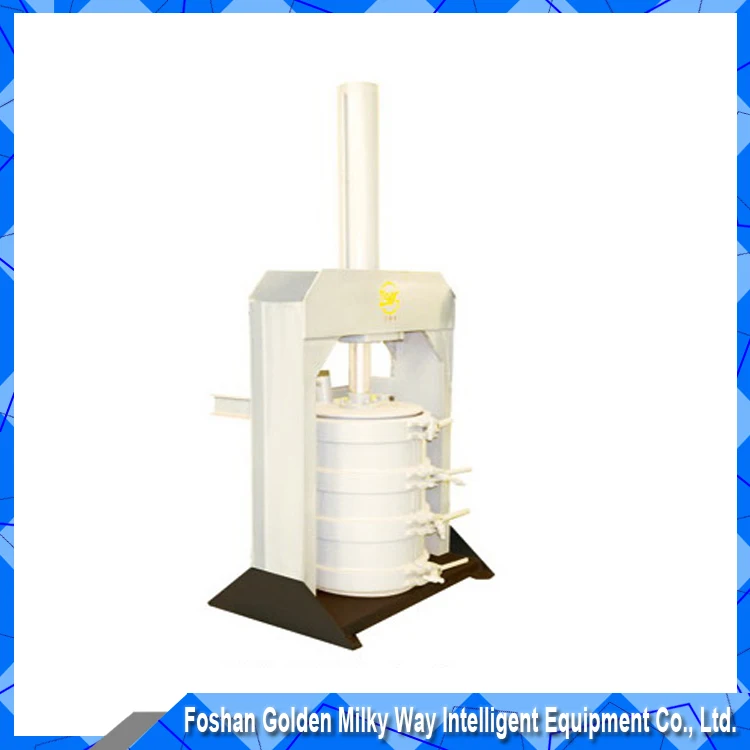

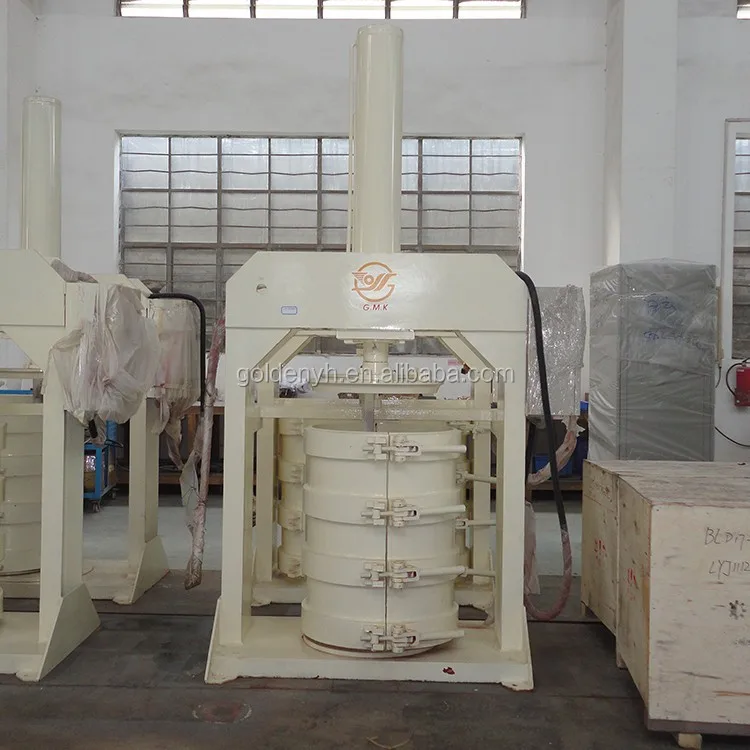

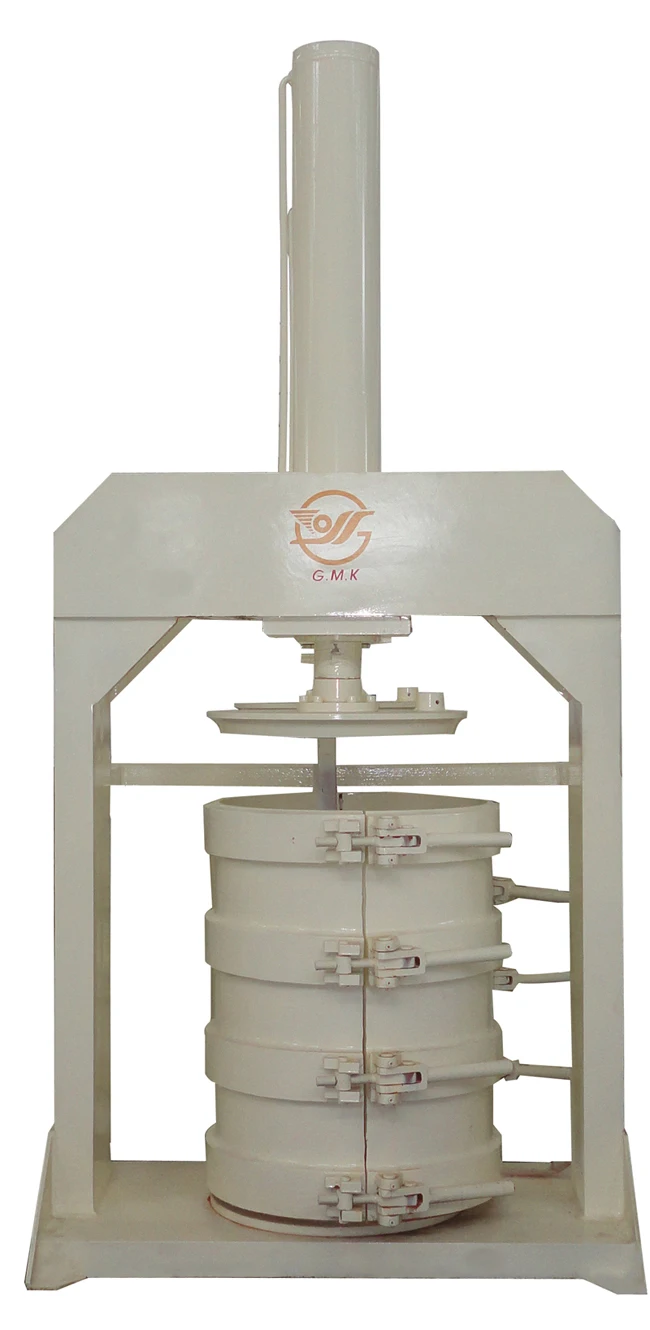

TYL-200 HYDRAULIC DISCHARGE EXTRUDER
SUMMARY
This machine is comprised of chassis, lifting rack, cylinder, press plate, sealing cover, hydraulic system, voltage stabilizing system, discharge flow control system, electric control cabinet. Chassis and lifting rack are section steel closed welded structure, with proper size and scale, balanced and stable. Different type of extruder is equipped with corresponding cylinder, with reliable working and rational structure.
Details
SPECIFICATION
S/N | ITEM NAME | MODEL SPECIFICATION | ORIGIN |
1 | Structure | Simple single oil cylinder type |
|
2 | Design pressure(MPa) | 25MPa |
|
3 | Hydraulic pressure | 60t |
|
4 | Pressure plate material | Q235-A |
|
5 | Pressure plate diameter(mm) | 562mm |
|
6 | Sealing ring structure | Single seal separate |
|
7 | Up and down method | Hydraulic |
|
8 | Oil cylinder stroke | 1050mm |
|
9 | Master oil cylinder | D160d100H1050*1 | RUNYITAI |
10 | Hydraulic pressure station | Oil tank: 100L,Motor power: 5.5kw-4P,ordinary type, accumulator: 6.3L | ZONGLI |
11 | Vessel specification | φ570×H900(mm);inner diameterφ570mm,external diameterφ572mm. |
|
12 | Discharge method: | Top outlet 2.Outlet aperture 3.” Tooth tip” |
|
13 | Dimension | 1204(L)*790(W)*2524(H)(mm) |
|
14 | Motor power (KW) | 5.5kw |
|
Electric control cabinet
S/N | SPECIFICATION |
1 | Control method:logical circuit,DC24V |
2 | Power:AC 3×380V 50Hz |
3 | Installation in the Electric control cabinet |
4 | Contactor, air switch, breaker etc. are Siemens |
5 | Intermediate relay: Japan IDEC brand |
Packaging & Shipping
packing:wood cartons or nude
delivery:2months after receive payment
