3/8 24 UNF Generator MPU Speed Sensor MSP6730

Product Overview

Description

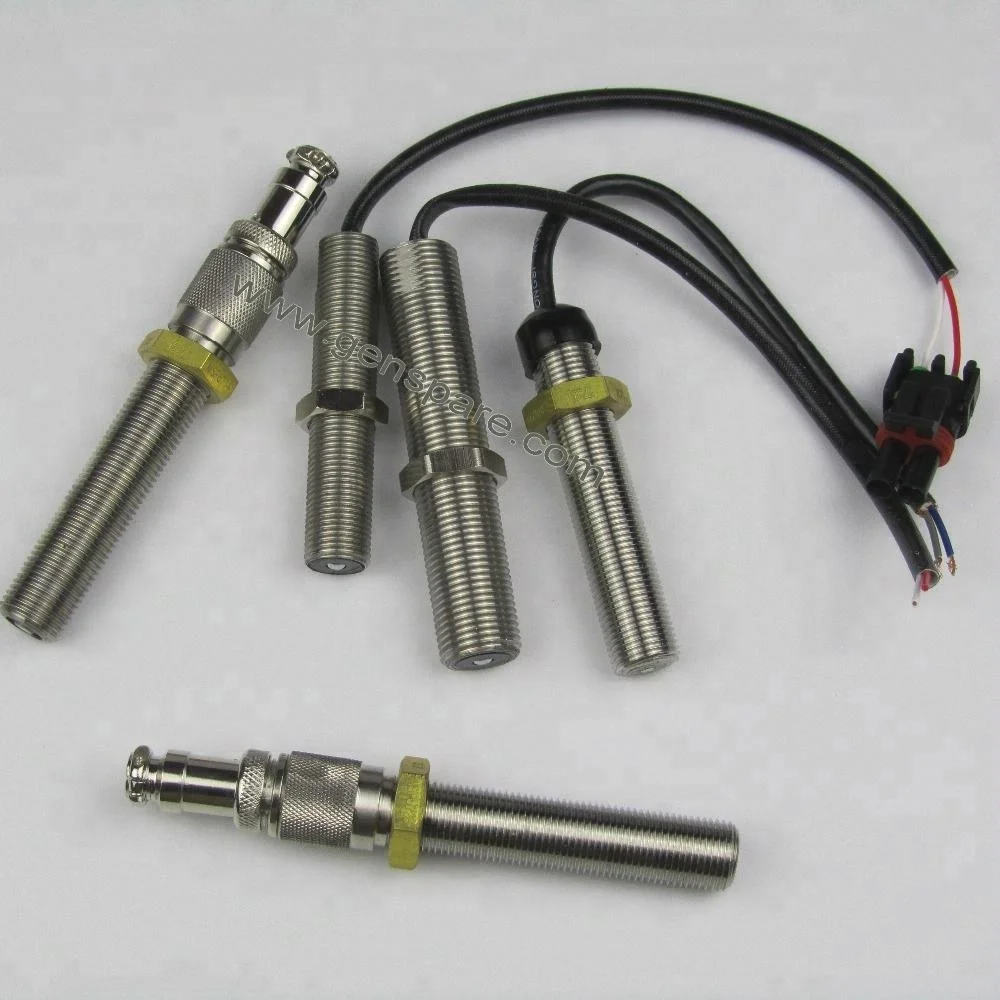

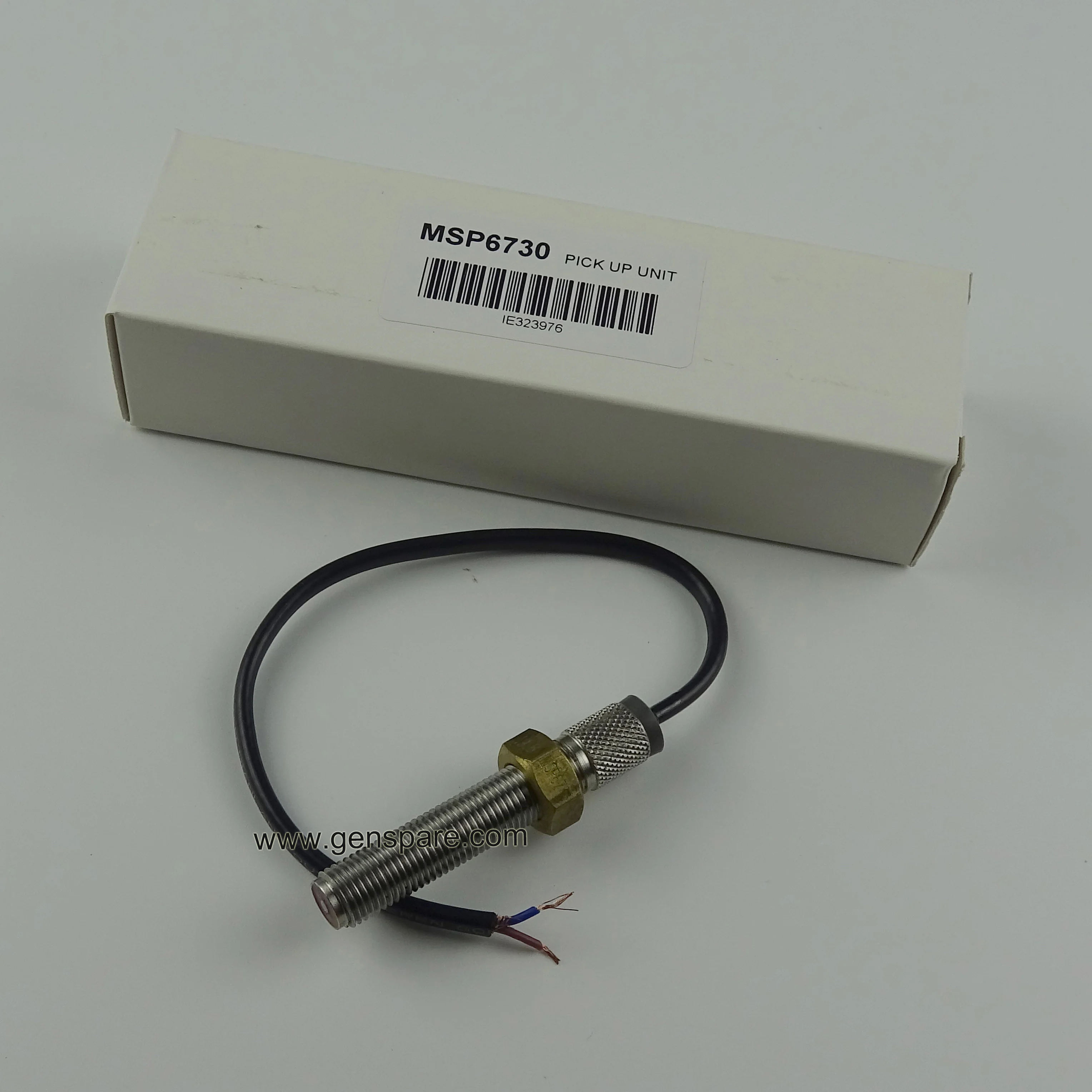

3/8-24 UNF Generator Speed Sensor MSP6730



We have Generator Speed Sensor MSP6730 in our regular stock!

The Brands here are for reference purpose only, our parts can exactly replace the original ones.



The Generator Speed Sensor MSP6730 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor.  Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit.  The signal from the Generator Speed Sensor MSP6731, teeth per second (Hz.), is directly proportional to engine speed.  Speed sensors are available in various lengths in both U.S. and metric threads.  Wire leads, military connectors, automotive connectors or stud terminals are also available.  Over 30 styles currently available.

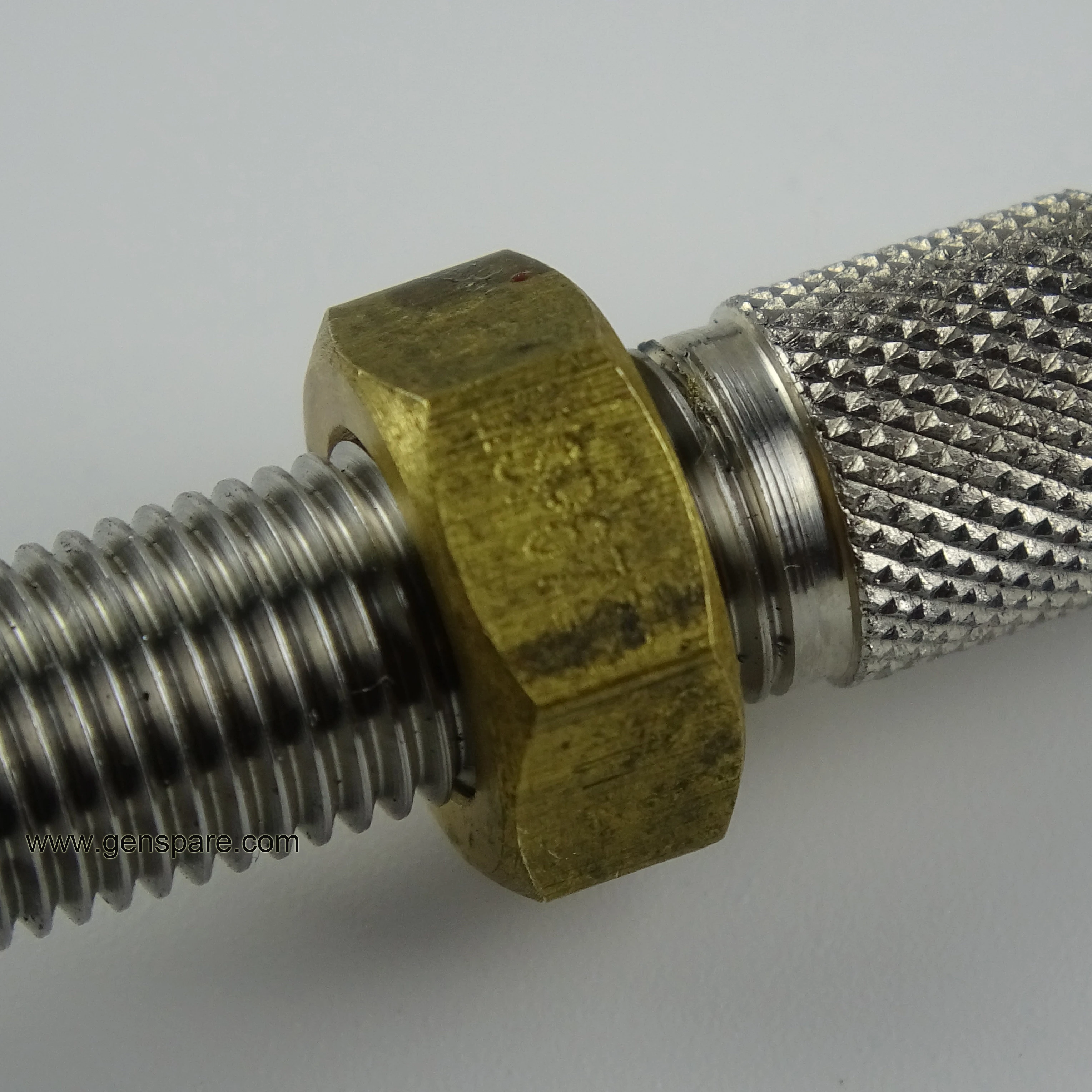

3/8-24 UNF Thread Generator Speed Sensor
Product #	Thread Length	Harness Length	Connector	With Mating Connector
MSP6729	2.7in [69mm]	6ft [1.8m]	Flying Leads	No
MSP6730 Speed Sensor	1.7 in. [43mm]	6ft [1.8m]	Flying Leads	No
MSP6731 Speed Sensor	4.0in [102mm]	6ft [1.8m]	Flying Leads	No
MSP6737	2.7in [69mm]	6in [1.8m]	Push-On Terminals	No
MSP6740	1.7in [43mm]	6ft [1.8m]	Packard	No
MSP6742	2.7in [69mm]	1ft [0.3m]	Flying Leads	No
