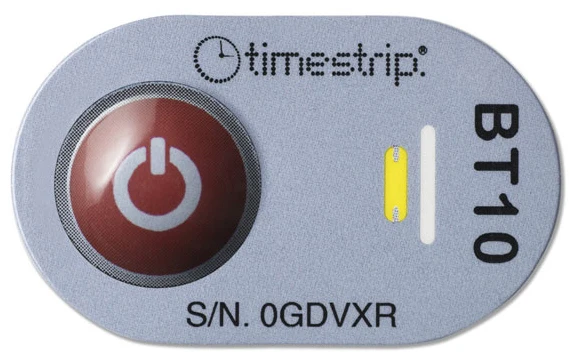

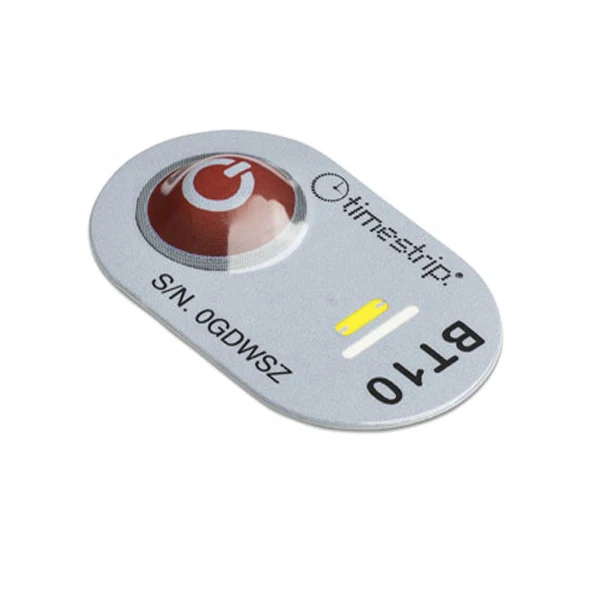

Timestrip Blood Temp 10C Blood Label

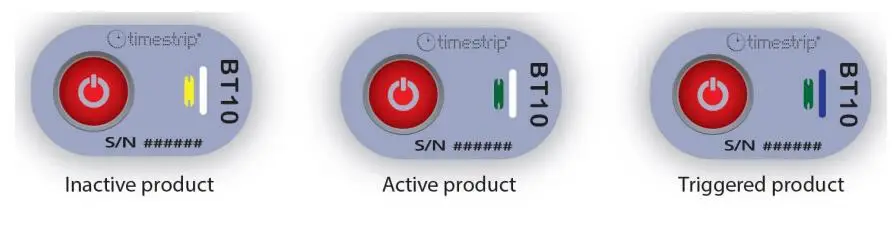

The Blood Temp 10 blood bag indicator (BT10) is a temperature–sensitive indicator that can be used by blood banks and transfusion services to maintain quality control in blood storage and transportation.When applied to a blood bag, BT10 will begin to sense the blood temperature. Any breach of the blood temperature above 10°C will be indicated on the breach window by the appearance of blue colour in the window.Any blue colouration in the “breach-window” (from partial to full colour change) is defined as a breach event.

I) Performance Specifications:
Threshold temperature :10°C/50°F
Temperature Accuracy:9° - 10°C /48°F - 50°F
Display:Irreversible
II) Product Specification:
Blister Position:Button on Top (BOT)
Colour of breach window during a breach event:Blue

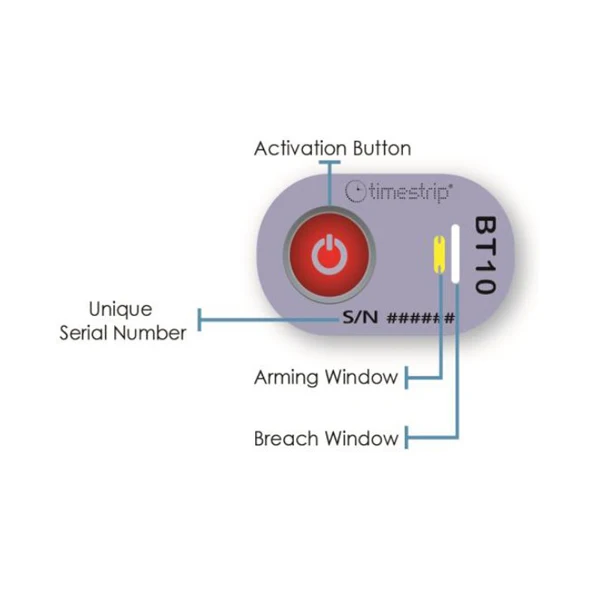

 1. Select a BT10 indicator and ensure it is not yet activated: the arming window should be yellow
and the breach window should be white.
BT10 does not require pre-conditioning.
2. Note: the activation button can only be squeezed when the BT10 is at or above 10°C.
3. Remove the pre-chilled blood bag from the controlled refrigerator (2°C/36°F – 6°C/43°F).
Select a suitable location on the blood bag for the BT10 (for example, the lower 1/3rd of the
blood bag, if stored upright). Ensure this area is oil & moisture free.
4. Firmly squeeze the button located on top of the indicator, between thumb and forefinger.
Verify that the arming window changes colour immediately from yellow to dark green.
5. Immediately after activation, peel off the liner and firmly adhere the BT10 to the prepared
location. Verify full adhesion to the blood bag.

Packaging: Singles in a box of 100 products

Delivery: Within 10 days after order
