Product Description

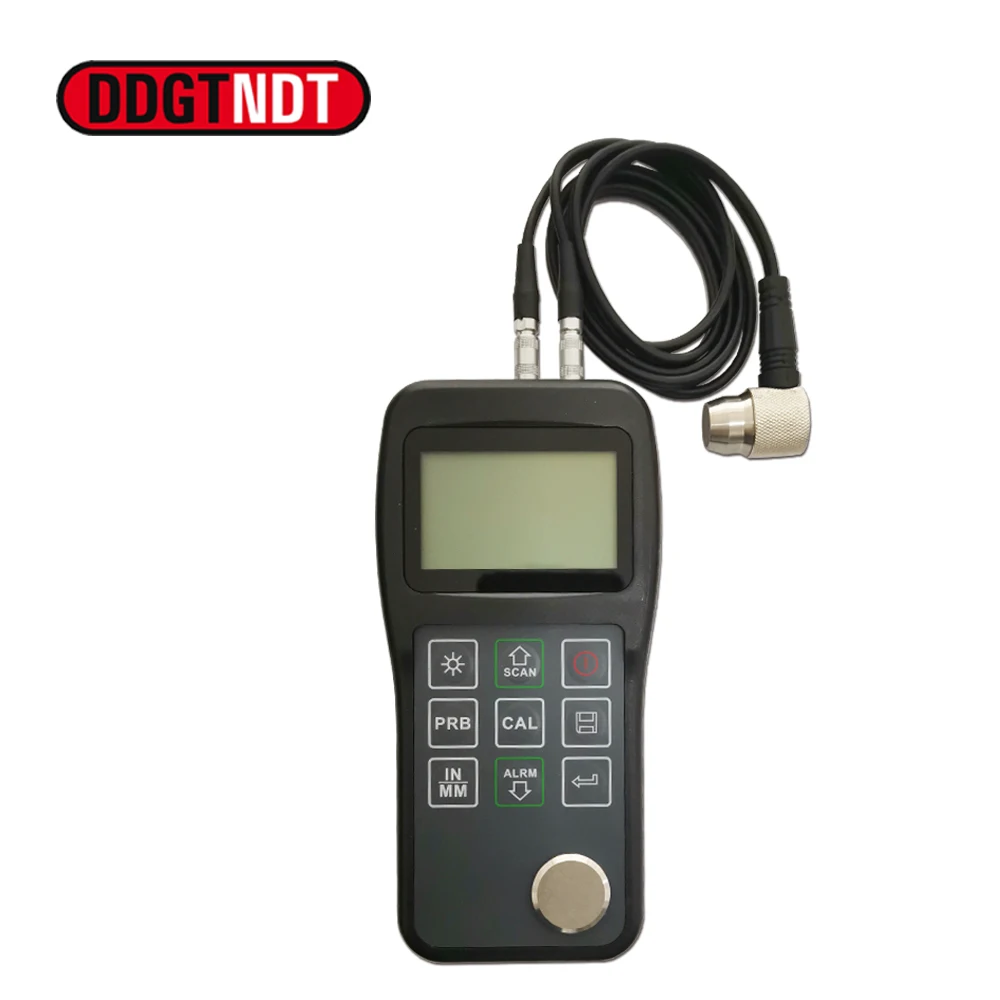

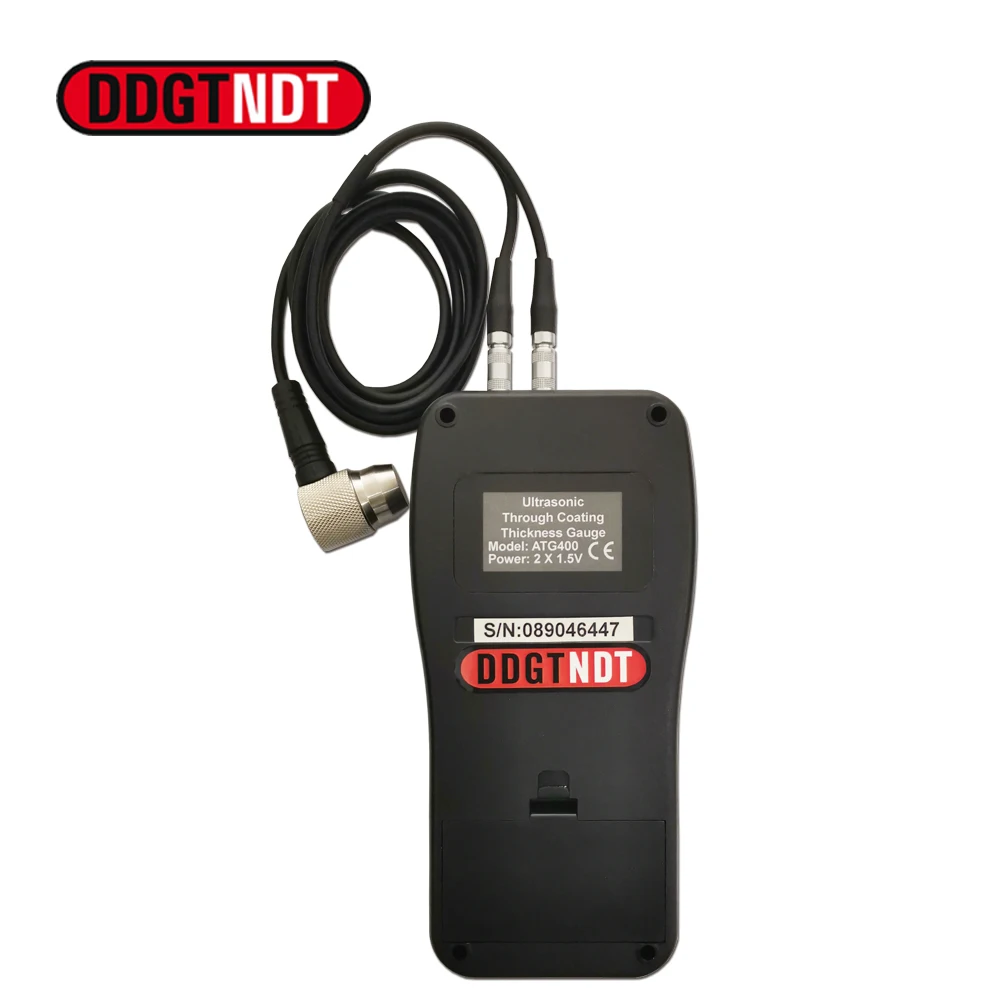

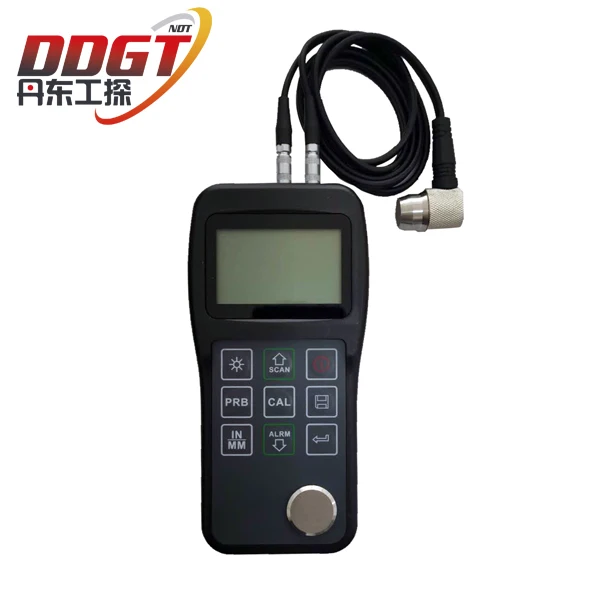

DDGTNDT DGT-TG400 UT Testing Detector Ultrasonic Through Coating Thickness Gauge
DGT-TG400 UT Testing Detector Ultrasonic Through Coating Thickness Gauge | ||||||
Display | 4.5 digits LCD with EL backlight | |||||
Range | Pulse-Echo mode: (0.65-600)mm (in Steel). Echo-Echo mode: (3-30)mm. | |||||
Sound Velocity Range | (1000-9999) m/s | |||||
Resolution | 0.1mm/0.01mm | |||||
Accuracy | ±（0.5%Thickness+0.01）mm, depends on materials and conditions | |||||
Power Source | Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off) | |||||
Communication | USB1.1 | |||||
Outline dimensions | 150mm×74mm×32 mm | |||||
Weight | 245g | |||||
Operating Temperature | －20℃-＋60℃ | |||||
Storage Temperature | -30℃-＋70℃ | |||||
Relative Humidity | ≤90％ | |||||
Dandong Flaw Detector Equipment Co., Ltd. | ||||||
Certifications
Our Service
DDGT NDT DGT-TG400 UT Testing Detector Ultrasonic Through Coating Thickness Gauge
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Freely provide project designing, process designing, choosing suitable equipment for you.
After-Sales Service
* The quality guarantee period of our machine is 12 months.
* Within the quality guarantee period, free parts replacement and corresponding service are available.
Packing & Delivery

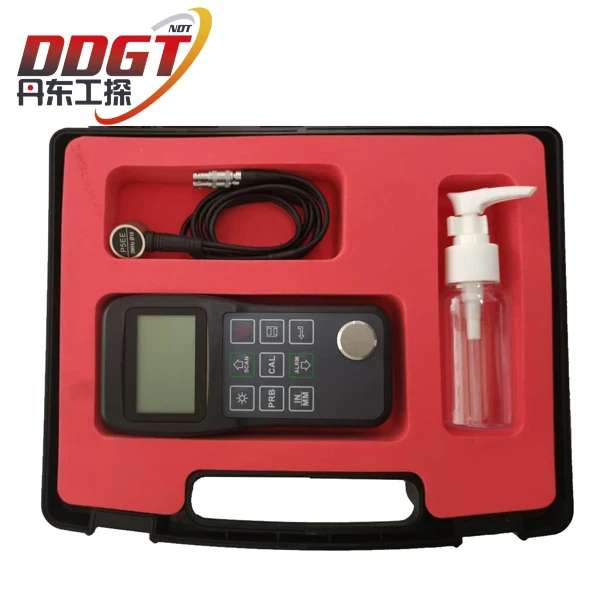

Standard Delivery of DGT-TG400 UT Testing Detector Ultrasonic Through Coating Thickness Gauge
No. | Item | Qty. | Note | |
Standard Configuration | 1 | TG400 Main body | 1 | |

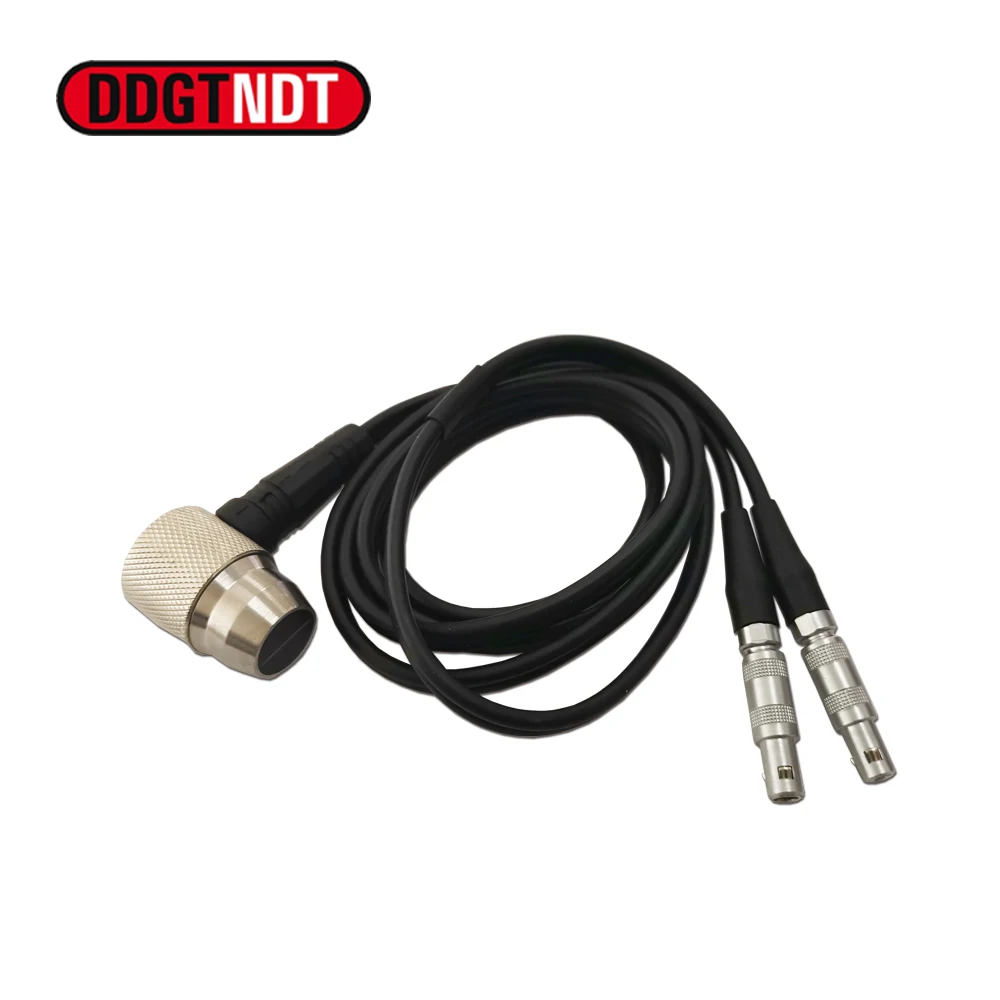

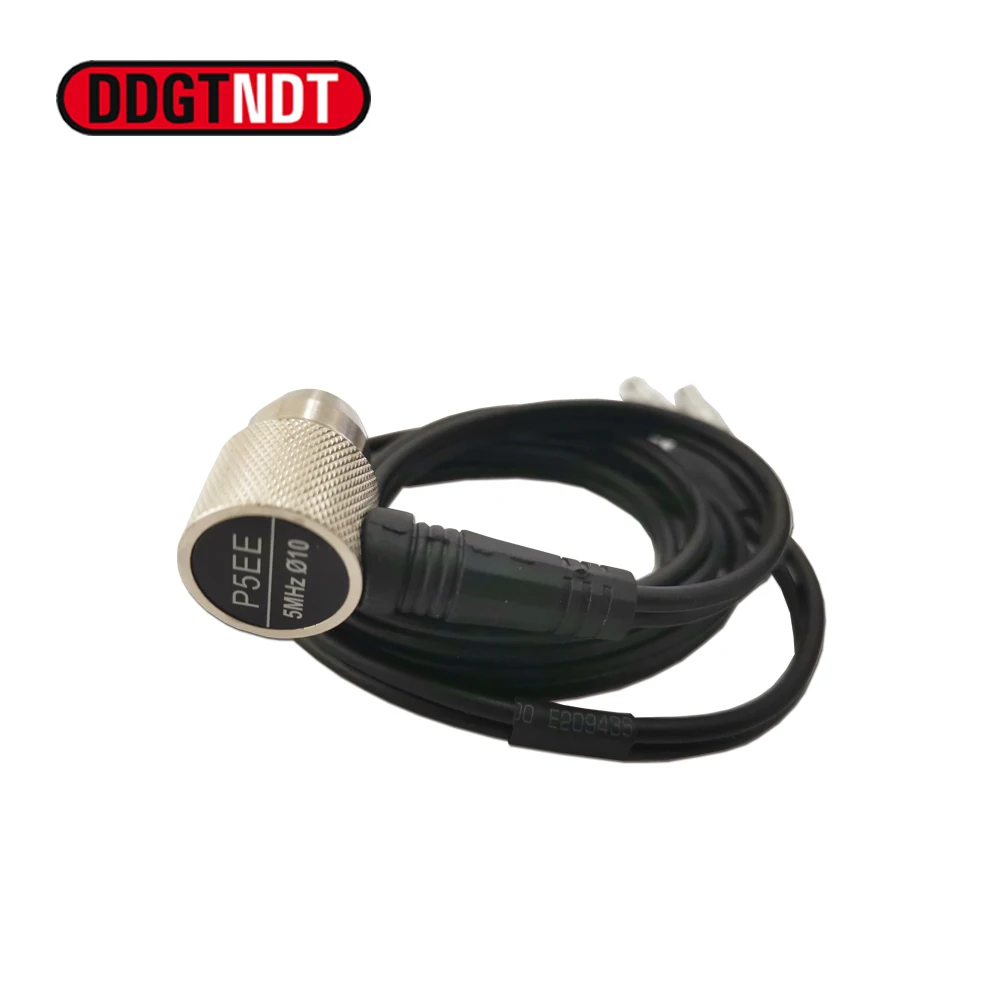

2 | Probe P5EE(5MHz) | 1 | ||
3 | Couplant | 1 | ||
4 | Instrument Case | 1 | ||
5 | Operating Manual | 1 | ||
6 | Packing List | 1 | ||
7 | Guarantee Card | 1 | ||
8 | Calibration Certificate | 1 | ||
Optional Configuration | 9 | Probe P05/90°(5MHz) | See Probe Selection Table | |
10 | Probe P07(7MHz) | |||
11 | Probe PHT5(5MHz) | |||
12 | DataPro Software | 1 | ||
13 | Communication Cable | 1 |
