High peak conversion efficiency PWM wind and solar hybrid charge controller 48V made in China mainland
- Category: >>>
- Supplier: Hefei Top Grand Energy Technology Co. Ltd.
Share on (60721806406):
Product Overview
Description
Product Description

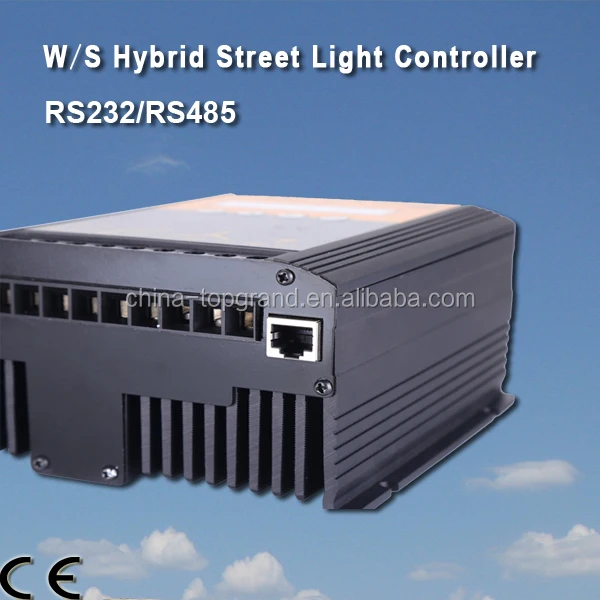

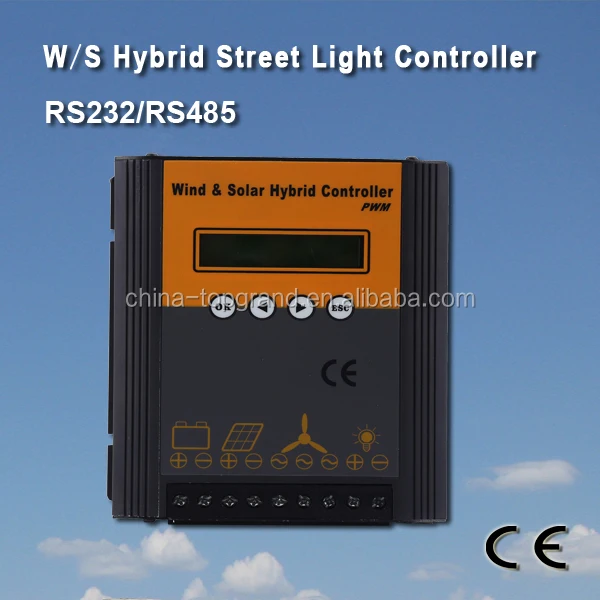

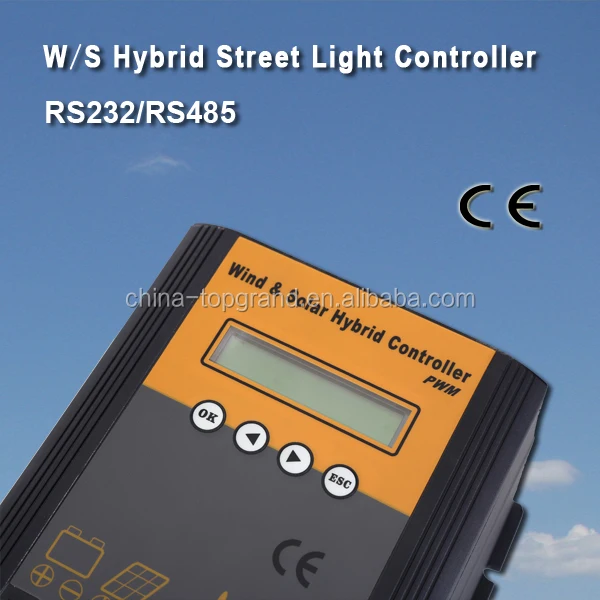

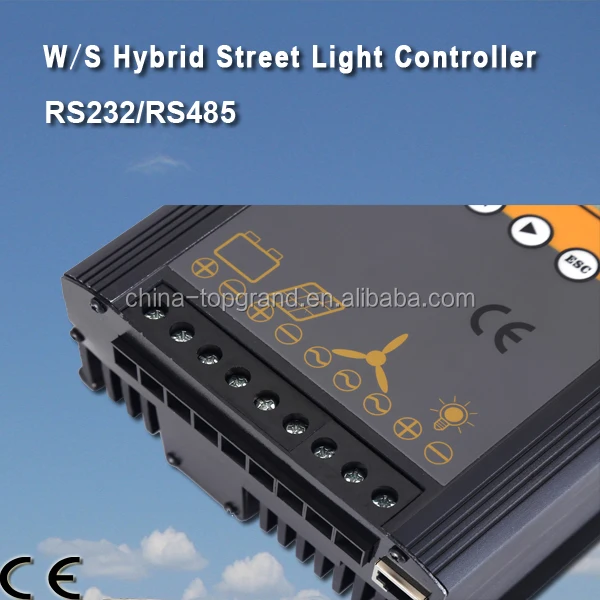

This kind of wind and solar hybrid streetlight controller is special design for small off-grid wind solar hybrid generation system. Appearance is elegant, operations are easy. It also makes the course of which wind generator and solar panels charge to batteries safely and efficiently.
Function and Features
> Protect wind generator from over-current
Once the wind current is over the setting max current, PWM intelligent dumping will start automatically. That protect wind generator.
> Intelligent limiting of batteries max current
According to the actual of the system, you could set batteries capacity on controller. The controller will calculate the maximum charging current (It’s 0.3 times of the battery’s capacity) . Then batteries will be protected.
> Function of manual brake
> Wind charging manual switch
On the controller you can manually set whether using wind charge to battery.
> Solar charging manual switch
On the controller you can manually set whether using solar charge to battery.
> DC output manual switch
Users could manually set whether use DC output.
> DC output has 4 working modes
> Boost function or buck function for constant current load is optional

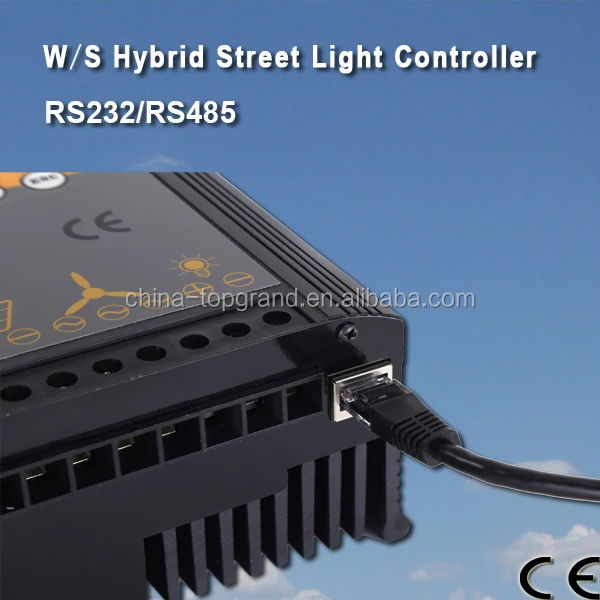

> RS232 or RS485 interface
By RS232 or RS485 serial interface communication, you could monitor the whole system, storage and analyze data.
Program could be upgraded by serial interface.
Connect PC and controller by serial interface. You could set the parameters on PC and controller simultaneously.
Software is free, easy to operate and no need to be installed.
Warranty
> The product is warranted for two years from the date of shipment to the original end user.
> During warranty period, if failure occurs when the product normal using, our company will repair or replace the failure product.
> Out of warranty period, we supply repair service, but for charges.
> This warranty is only provided to buyers who have bought the product and signed the CI with us, and the warranty is nontransferable.
> Our company reserves the right to change products and without notice when products update.
Optional Functions
> Optional RS232/RS485 to communicate with computer logging automatically.
> Load booster constant-current sourceoutput
> Load step-down constant-current sourceoutput
System connection
> Choose mounting location.(Please refer to installation notes)
> Check for clearance around the location; make sure there is enough space for connecting cables.
> Prepare tools for installation.
> Place the controller to the mounting location.
> Check that the controller is securely mount
Technical Parameters
> Electrical Parameter
Rated wind power | 100W~800W |
Rated solar power | 100W~500W |
Rated system voltage | 12V, 24V,48V 12V-24Vauto, 24V-48Vauto (choose one out of these five.) |
Note: the above three parameters must meet the requirements | (rated wind power + rated solar power)/rated system voltage ≤ 35A |
Max. wind input voltage | 80V |
Max. solar input voltage | 80V |
Dump load | Built in electronic dump load |
Wind protection | Over Current protection dump load, manual brake dump load |
Load protection | Over-discharge protection; over-charge protection, over current protection |
Wind charging mode | PWM |
Solar charging mode | PWM |
Display mode | LCD |
Operating temperature & Relative humidity | -20~+55℃/35~85%RH(Non-condensing) |
Quiescent power drain | ≤1.2W |
Communication function | RS232, RS485 (alternative) |
> Voltage Parameter
Battery voltage | 12V | 24V | 48V |
|
Battery under voltage (Low) | 10.2V | 20.4V | 40.8V | adjustable |
Battery under voltage recovery voltage(Rlow) | 11.5V | 23.0V | 46.5V | |
Battery over voltage(Full) | 14.7V | 29.4V | 58.8V | |
Battery over voltage recovery voltage(RFull) | 13.2V | 26.4V | 52.8V | |
Battery float voltage(Flot) | 13.5V | 27.0V | 54.0V | |
Over-load voltage(Out) | 17.5V | 35.5V | 65.0V | |
Over-load recovery voltage(ROut) | 15.0V | 30.0V | 60.0V |
> Load Parameter
Solar voltage of light-control on (Lon) | 6V(adjustable) |
Solar voltage of light-control off (Loff) | 6V(adjustable) |
Max PWM output current | 10A |
Max output power of constant current load | 12V 50W 24V 100W |
Output working mode (Mode) | Mode 1 Light-control on. Light-control off (adjustable) |
Packaging & Shipping
1PC Packed in one carton
Weight: 3KGS
Packing size: 230*186*140MM
Shipping by courier, by air, by sea, it depends on clients request.
Our Services
2 year warranty; We provide free maintenance during warranty if our products have problem; Will always give good warm after sales service to clients in time;

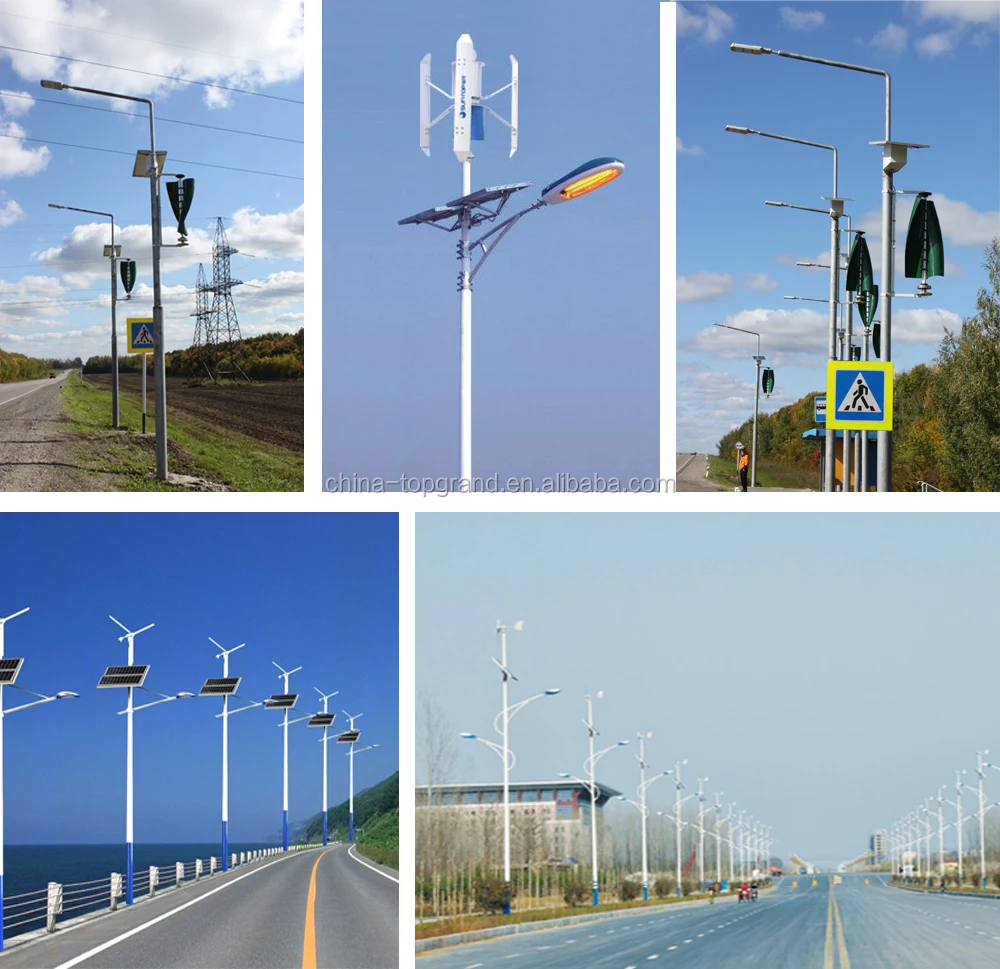

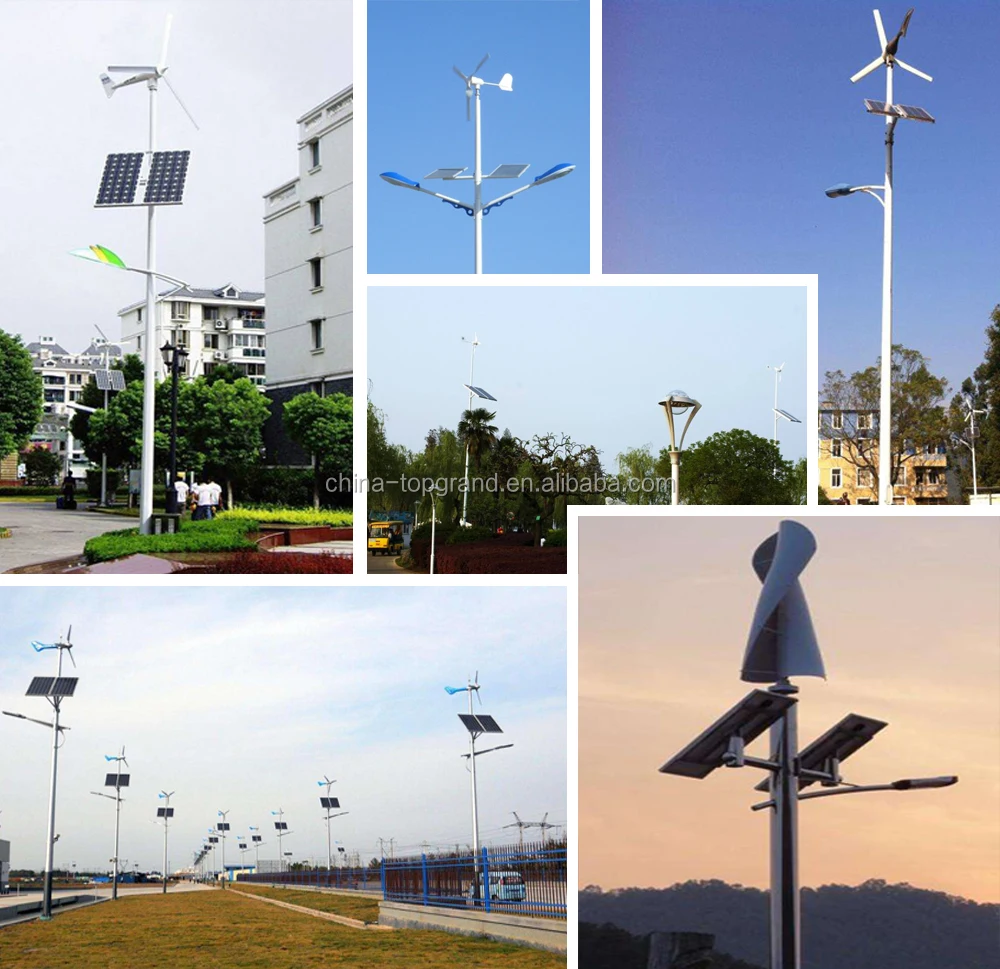

Application
FAQ
Q: what is the boost function?
A: it is desinged for low voltage output wind generator, which can automatically work after setting the boost starting voltage, such as if your wind turbine rated voltage is 24V, while boost start voltage setted 20V, the controller will start to charge the battery while it detected the wind output voltage meets 20V. It will take full use of the wind power.
Q: what is the buck function?
A: it is desinged for high output voltage eind generator.
The controller will start buck function automatically once the real -time rectified DC Current is higher than rectified DC Current at Rated Power (.Cause the wind turbine will be burnt once the real-time rectified DC Current is too high, )
The buck function will convert the high voltage (U1) and low current (I1) from generator (DC, after rectifying) in the low voltage (U2) and high current (I2) to battery .
Q: how do I know which function is necessary for my system?
A: normally we need know the basic information of the wind turbine, rated output voltage and maximum output voltage. If you don't know exactly, just ask your turbine supplier; or kinldy provide us the power curve and voltage curve of wind turbine for checking by ourselves.
Q: What is the RS232 communication function?
A: it is for setting and checking the parameters of wind turbine, battery, controller from computer. Software free.
Q: What is the USB data logging function?
A: It is designed for collecting parameters of wind turbine, battery, charge controller from controller into USB flash disk. You can check it on any others computer.
Q: can I by 1 pc sample? what is the price?
A: of course, you can buy 1 pc, we always welcome clients to buy 1 pc as sample to make the test firstly. Then they will make sure this is good choice or not for their system.
