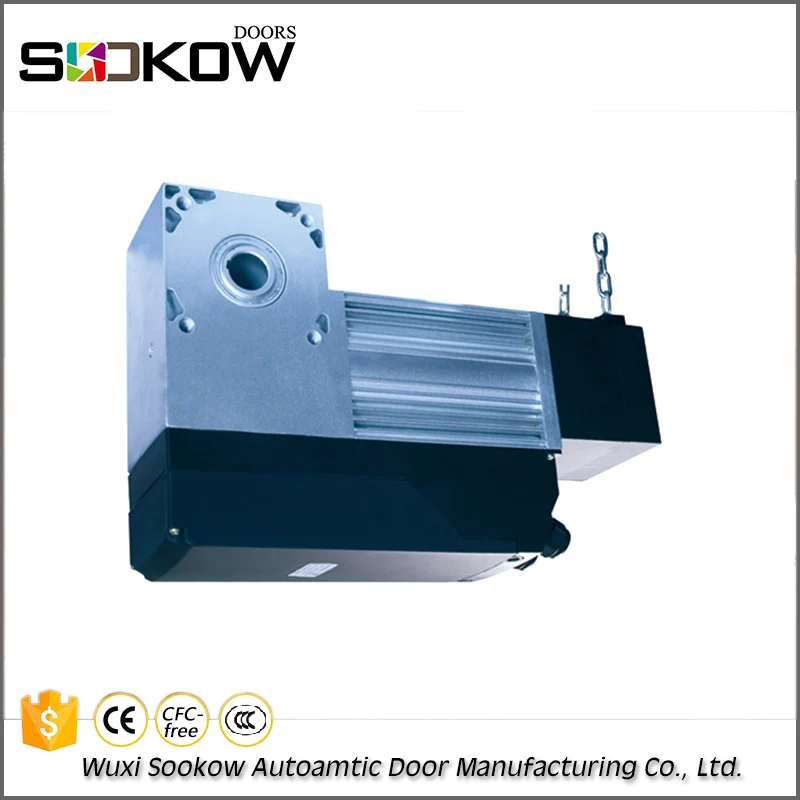

Simple automatic industrial garage door motor operator opener

Product Overview

Description

Simple automatic industrial garage door motor operator opener



 Main features

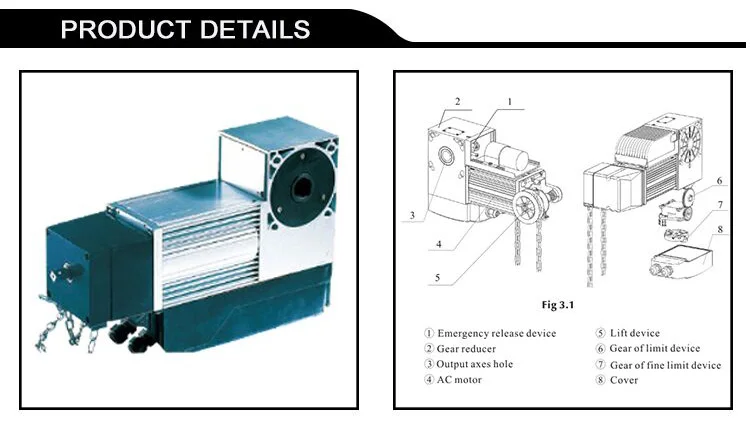

• A unique brake is provided for accurately stop the door.
• In the event of power failure, the release device makes it possible to open and close the door manually.
• Thermal protection.
• Protection class: IP54
• Excellent sub-zero grease ensures quiet and stable operation, suitable for cold area.
• Mechanical & electrical integration.

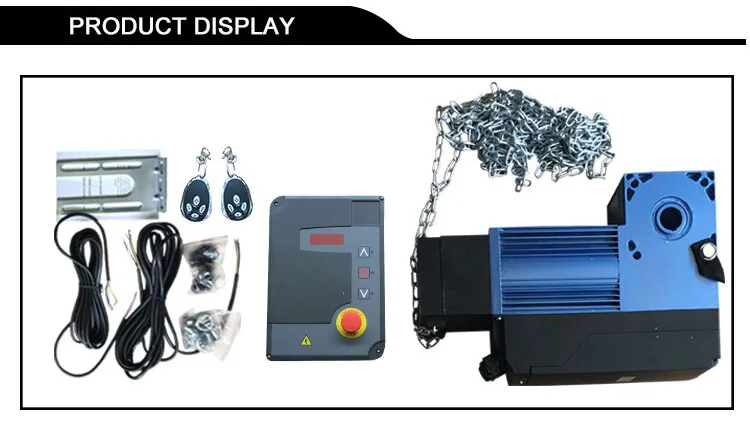

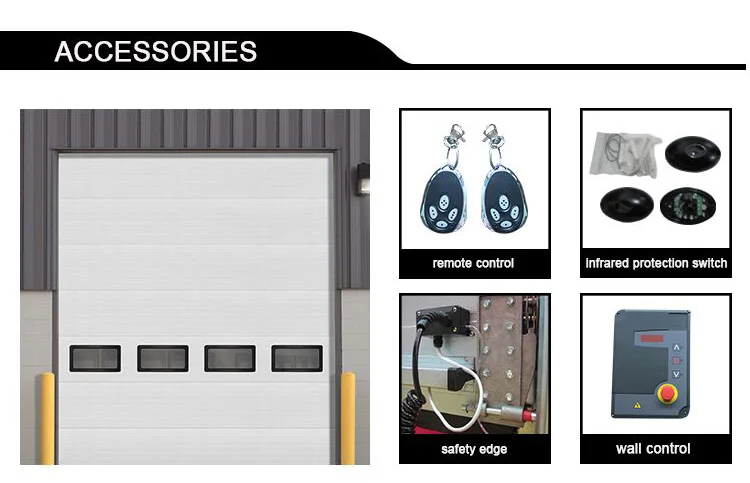

• Wiring terminals for remote control, push button, pressure sensor and infrared photocell.
• Comply with the industry standard of China 'Commercial Sectional Door Operator '



Technical specification:
Model	KG50	KG50S-1	KG75S-1
Power supply	220×(1±10%)V 50Hz	380×(1±10%)V 50Hz	380×(1±10%)V 50Hz
Motor rotate speed	1400 rpm	1400 rpm	1400 rpm
Output rotate speed	32 rpm	32 rpm	24 rpm
Output torque	30 N.m	50 N.m	75 N.m
Motor power	300 W	400 W	400 W
Max. rotation	28 cycles	28 cycles	28 cycles
Barrel diameter	Ø25.4 mm	Ø25.4 mm	Ø25.4 mm
Flat key	6 mm	6 mm	6 mm
Thermal protection	120ºC	120ºC	120ºC
Duty cycle	S2:20% S3:10min	S2:25% S3:15min	S2:25% S3:15min
Ambient temperature	-20ºC ~+45ºC	-20ºC ~+45ºC	-20ºC ~+45ºC
Dimensions	100*233*360	100*233*360	100*233*360
Net weight	12 kg	12 kg	12 kg
Door	16 m²	25 m²	32 m²





FAQ:

A, Are you manufacturer?

Yes,We are one of the professional manufacturer of sectional door,we have           professional team of workers ,service and inspection system.

B, How to order a sample?

we have small sample in stock, it is free of charge,you just need to handle with     the freight.

C, What are your main products?

The main products are sectional door,we can offer different material panel with     sectional,such as garage door,industrial door,solid wood door,aluminum               door,glass door.

D, What is MOQ?

one set for trial order also Can be accepted.

E. Where is your factory?

We are located in Wuxi,it is very close to Shanghai,only takes 40minutes by high   speed train.The address is No.79-15 Chunyang industrial zone,new                         district,Wuxi,China
