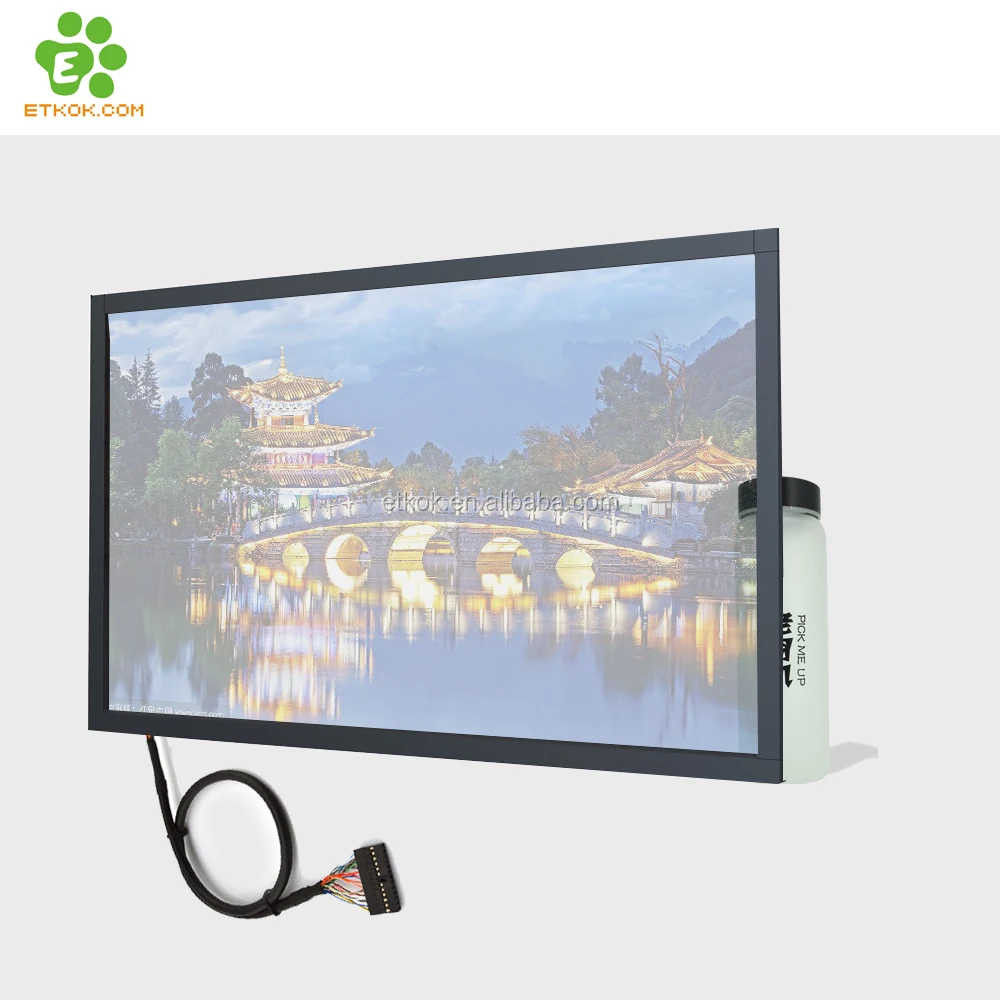

Hot selling 19 inch see through transparent lcd touch screen display with 1440*900 resolution
Product Description
Transparent LCD Displays are the latest innovation in LCD technology, opening up a wide range of new opportunities in retail and marketing.
The technology allows you to display information / promotions on the digital display, whilst allowing you to see through it.
Shenzhen ETK have our own range of transparent displays manufactured for us, and as we control the manufacturing, we can not only offer more sizes than anyone else in the world, but also guarantee stable supply and long term availability. We can even add touch interaction with multitouch sensors available for all our transparent displays.
Main Feature
1. Transparent lcd display size for optional:10.4"12.1"15"17"19"21.5"23.6"27"32"43"55"65"
2. More function for Transparent lcd display:IR/Capacitive touch screen with USB interface
3. 10.4 inch transparent LCD screen, Support 800*600 resolution
4. Support the Windows7/8, Android,Linux system, with Wifi/3G or USB/SD card
5. Support Video play/ Audio/ Pictures/ TXT
6. Built in Wifi Speaker, Wifi, HDMI, VGA, LAN, USB input
7. Equipped with transparent lcd showcase/bookcase/ refrigerator/ or Only Screen
8. For New products presentation, Commercial Advertisement, high technology
Specification
| Specification | |||||||||
| Model No. | ETK-TLCD236 | ||||||||
| Panel size | 23.6(10.4" to 82" are available) | ||||||||
| Display Panel Brand | Samsung | ||||||||
| Display area(mm)/mode | 524*295mm(16:9) | ||||||||
| Maximum resolution | 1920*1080 | ||||||||
| Ratio | 1500:1 | ||||||||
| Display color | 16.7M | ||||||||
| Visual angle | 89/89/89/89(L/R/U/D) | ||||||||
| Response time | 8ms | ||||||||
| Life(hrs) | >60,000(hrs) | ||||||||
| Input and output | |||||||||
| USB | 1 ( USB2.0 interface) | ||||||||
| SD | 1 (Compatible MMC/MS) for Android main board | ||||||||
| CF | 1(optional) for Android main board | ||||||||
| Speaker | 2*2Ω2W | ||||||||
| OSD display( screen menu display) | |||||||||
| Menu language | Chinese/English( Multiple Language Supported) | ||||||||
| Power supply | 100~240V | ||||||||
| Input Voltage | DC 12V-2A | ||||||||
| Temperature | |||||||||
| Working temperature | 0℃~50℃ | ||||||||
| Storage temperature | -20℃~60℃ | ||||||||
| Working humidity | 20%~85% | ||||||||
| Storage humidity | 10%~90% | ||||||||
| Appearance | |||||||||
| Color/appearance | black | ||||||||
| Quality Standard | CE,FCC,ROHS | ||||||||
| Detailed functions | |||||||||
| Video format | AVI/DIVX, XVID/DVD, VOB, mpeg/VCD, DAT, MPG | ||||||||
| Audio format | MP3 | ||||||||
| Image format | JPG | ||||||||
| Image resolution | 480P/720P/1080P | ||||||||
| Payment terms & Delivery | |||||||||
| Sample Leading time | 5 ~ 7 working days | ||||||||
| Bulk Order Leading time | 15 ~ 20 working days(Black) | ||||||||
| Payment term | T/T remittance;West Union,Trade Assurance | ||||||||
| Warranty | 1 year | ||||||||
Size Optional
| LCD Size(Diagonal ) | Part number | Resolution | Aspect ratio | Contrast | Optional touchscren? |
| 10.4" | ETK-TLCD104 | 800*600 | 4:3 | 700:1 | Yes |
| 12.1" | ETK-TLCD121 | 800*600 | 4:3 | 800:1 | Yes |
| 15" | ETK-TLCD150 | 1024*768 | 4:3 | 1000:1 | Yes |
| 17" | ETK-TLCD170 | 1280*1024 | 4:3 | 1000:1 | Yes |
| 19" | ETK-TLCD190 | 1280*1024 | 16:10 | 1000:1 | Yes |
| 21.5" | ETK-TLCD215 | 1920*1080 | 16:9 | 1000:1 | Yes |
| 22" | ETK-TLCD220 | 1680*1050 | 16:10 | 1000:1 | Yes |
| 23.6" | ETK-TLCD236 | 1366*768 | 16:9 | 1000:1 | Yes |
| 27" | ETK-TLCD270 | 1920*1080 | 16:9 | 1400:1 | Yes |
| 32" | ETK-TLCD320 | 1920*1080 | 16:9 | 3000:1 | Yes |
| 43" | ETK-TLCD430 | 1920*1080 | 16:9 | 3000:1 | Yes |
| 46" | ETK-TLCD460 | 1920*1080 | 16:9 | 4000:1 | Yes |
| 50" | ETK-TLCD500 | 1920*1080 | 16:9 | 4000:1 | Yes |
| 55" | ETK-TLCD550 | 1920*1080 | 16:9 | 4000:1 | Yes |
| 65" | ETK-TLCD650 | 1920*1080 | 16:9 | 4000:1 | Yes |
Buying Guides

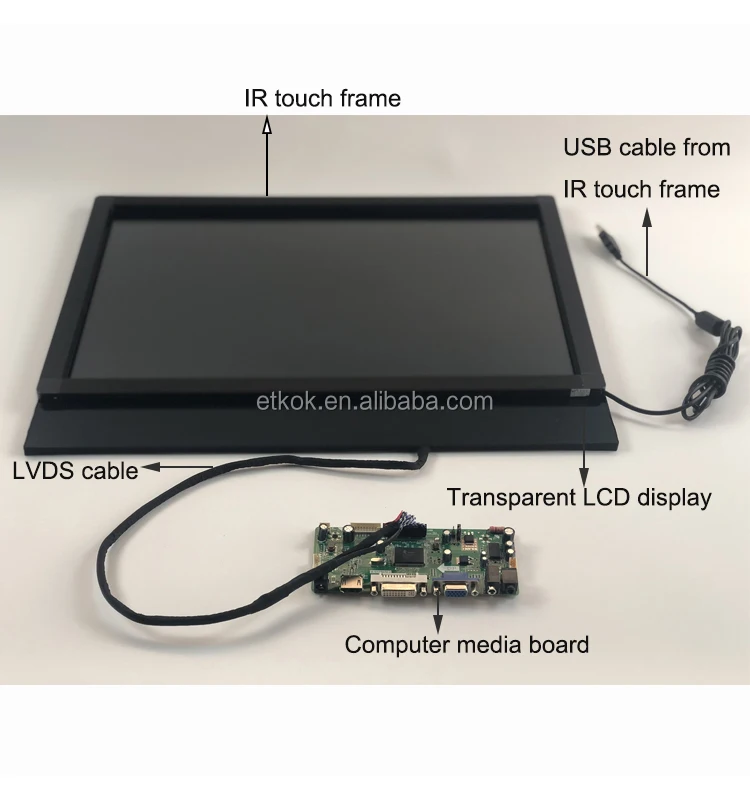

Each transparent LCD is sold as a kit, and includes the transparent lcd display, media board, USB,HDMI or VGA cables for optional and power supply.
We have three kinds of media board for you,Difference media board with difference function,Please choose one media board according to your request and application.

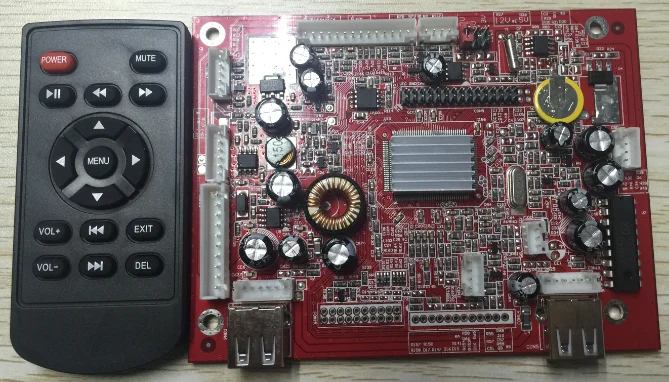

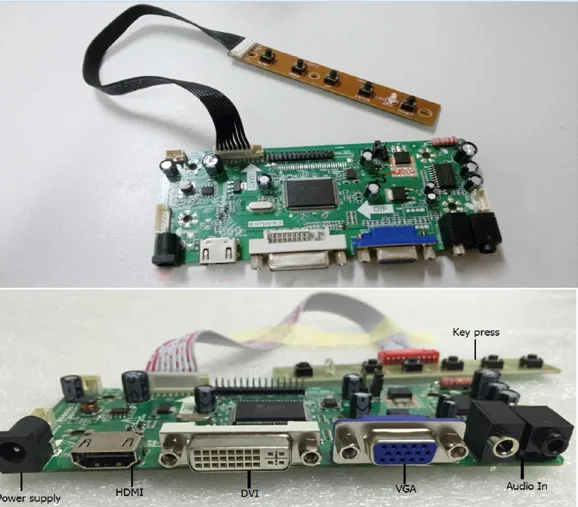

Picture for Android media board:

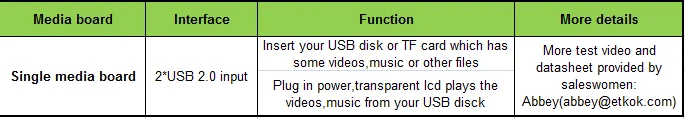

Picture for Single media board:

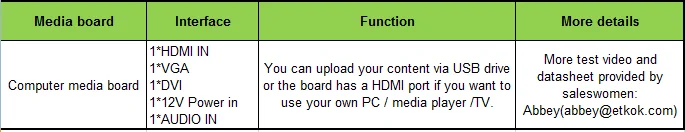

Picture for Computer media board:
Working Condition
These transparent displays are designed for integration within your own housing / chassis.

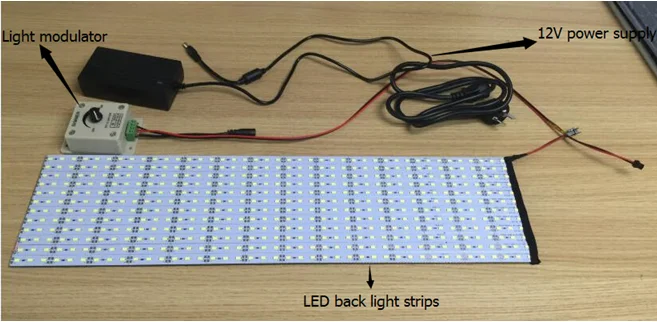

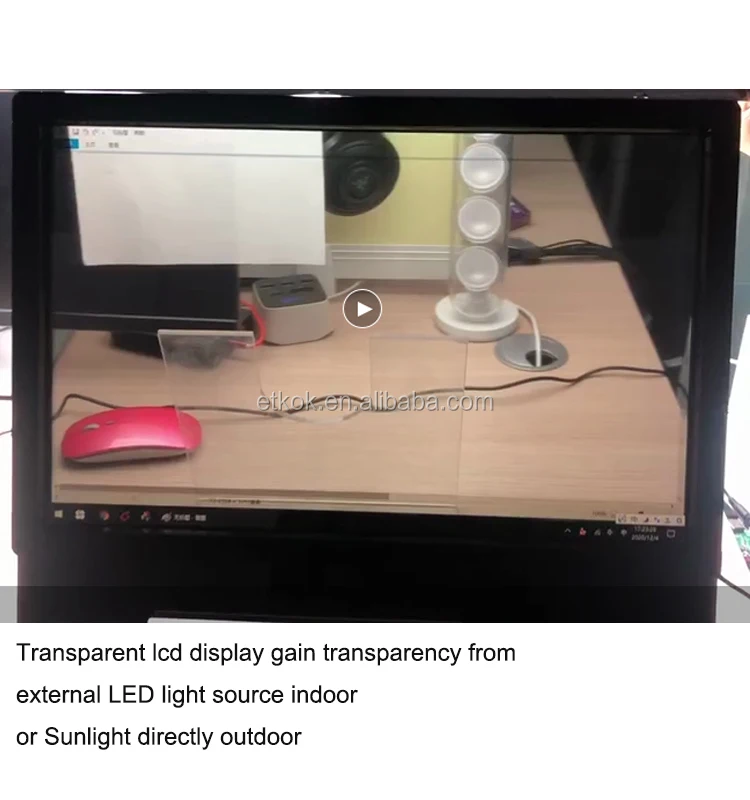

Please note as the displays do not have a backlight you will need to integrate a light source behind the display to gain the transparency.
Application

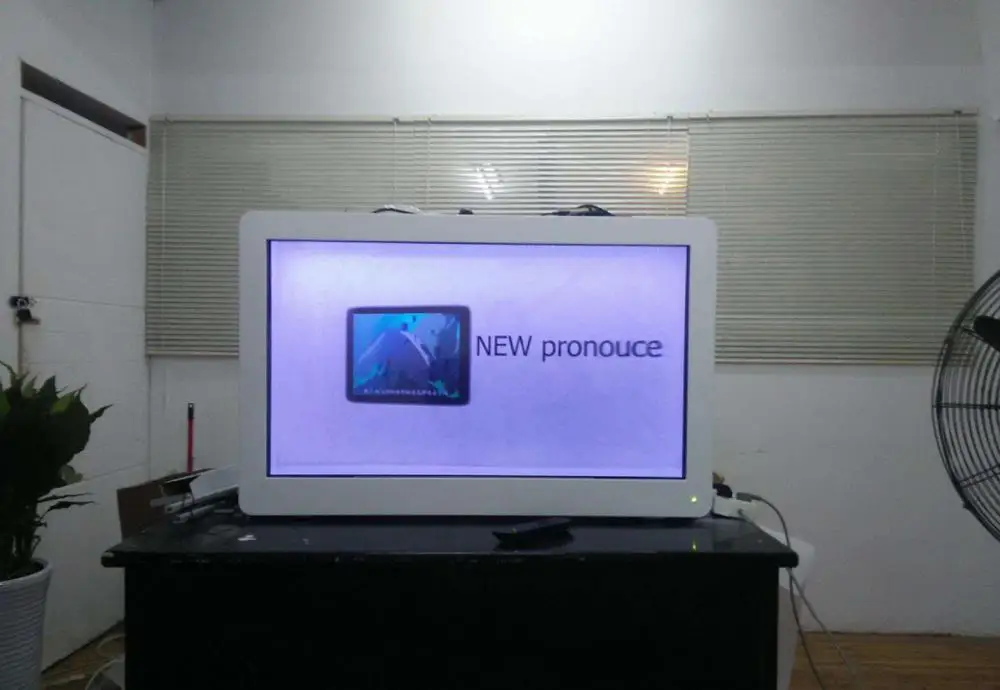

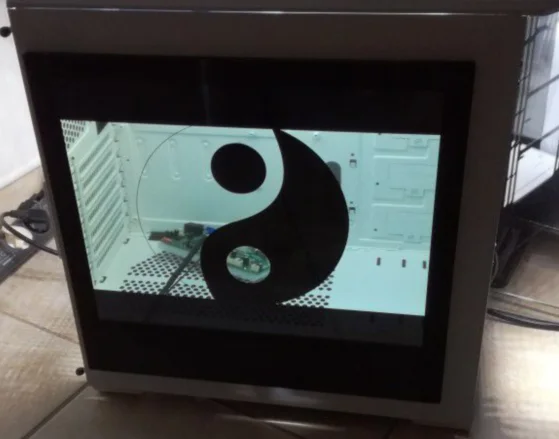

Have you seen transparent cFrance Client buy transparent lcd display to modification host computer chassis,You can make magic host computer by our transparent lcd display.Order now and send us your inquiry.

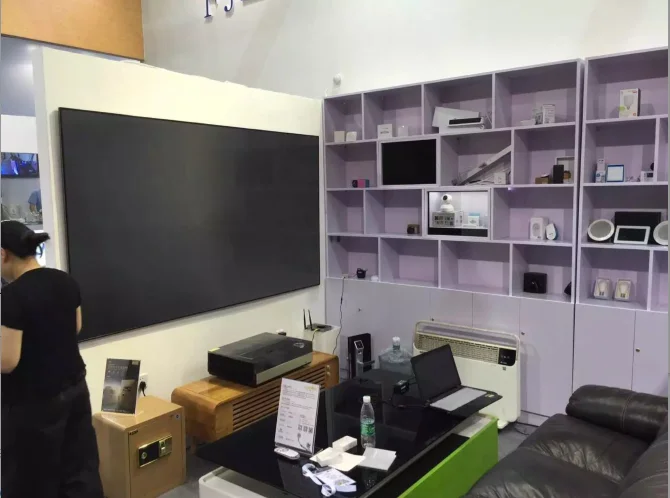

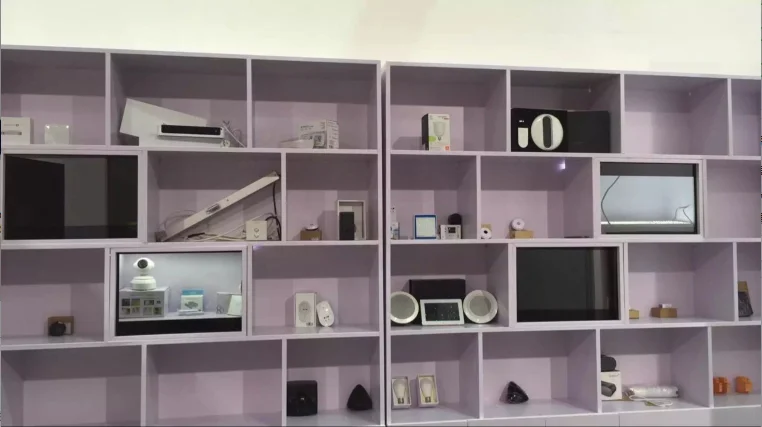

Do you know that transparent lcd display can used for Smart Home,Please see the application from China manufacturer who are focus on Smart Home,Transparent lcd display in Bookcase:
Transparent lcd box is popular advertiment product in the market now,most of client buy our transparent lcd display and assemble lcd box in their country,here are some model of our transparent lcd box,If you want to make it,we can help you.
Packaging & Shipping

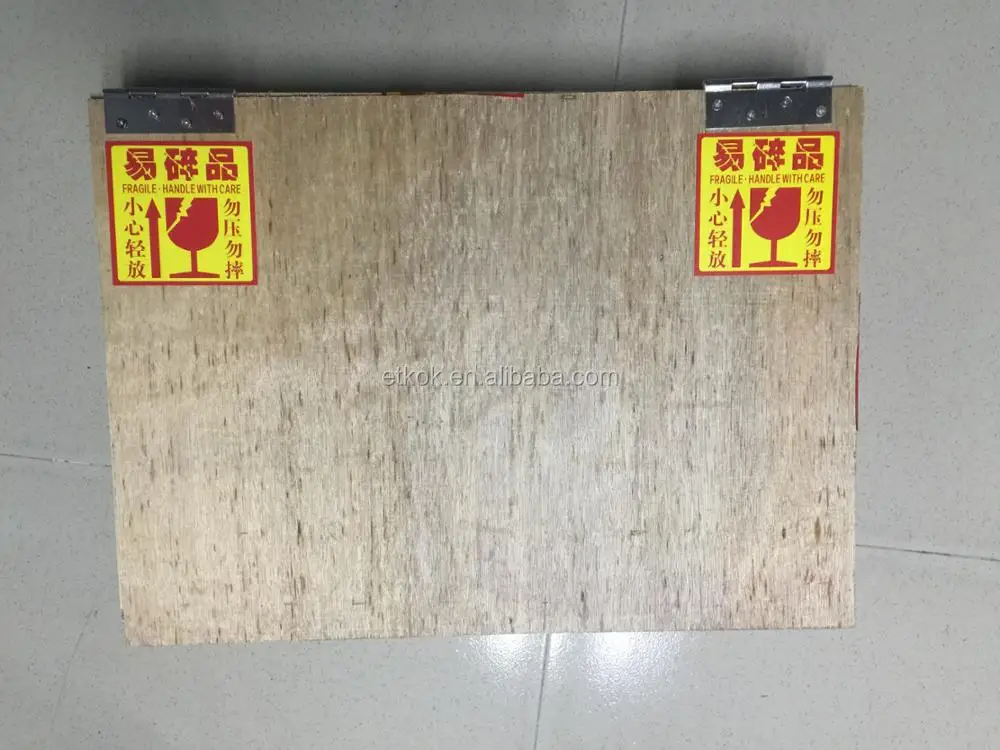

For sample order,we package transparent lcd display in wooden case:
If you are interested in this magic and attractive transparent lcd display,please contact me and send inquiry,Your inquiry will be answered in 30 minutes:
