This machine is to mix and plasticize the plastics ( such as TPR, EVA, color master batch, rubber etc..) in the airtight, pressure, heating conditions (temperature and pressure are all controllable).It is a small machine with the virtues of small volume, low consumption, high precision controlling of temperature, pressure controllable and easy handling of loading and discharging materials, etc., which is suitable for sampling and improving formulas in plastics. It is also feasible for small production, which can avoid wasting resources by using big power machineries for sampling or for small production. The machine is suitable for testing and production in all professional granule factories.
Technical Parameter
Production Speed: (7-10L)/7-15 min every time
Rotating angle
0-140º
Compressed Air Pressure
0.5-0.8Mpa
Total Volume of Mixing Chamber
20L
Front Rotator Speed
40r/min
Useful Volume
7.5L
Back Rotator Speed
33.3r/min
Main Motor Power
11KW
Speed Ratio of the Rotators
01:01.
Rotating Motor Power
0.75KW
Weight
1.5T-2T
Heating Power
4.5KW
Dimension(L*W*H)
2000*1000*2250mm
Note: The parameters above are just for reference. Specifications are subject to change without notice for improvement.

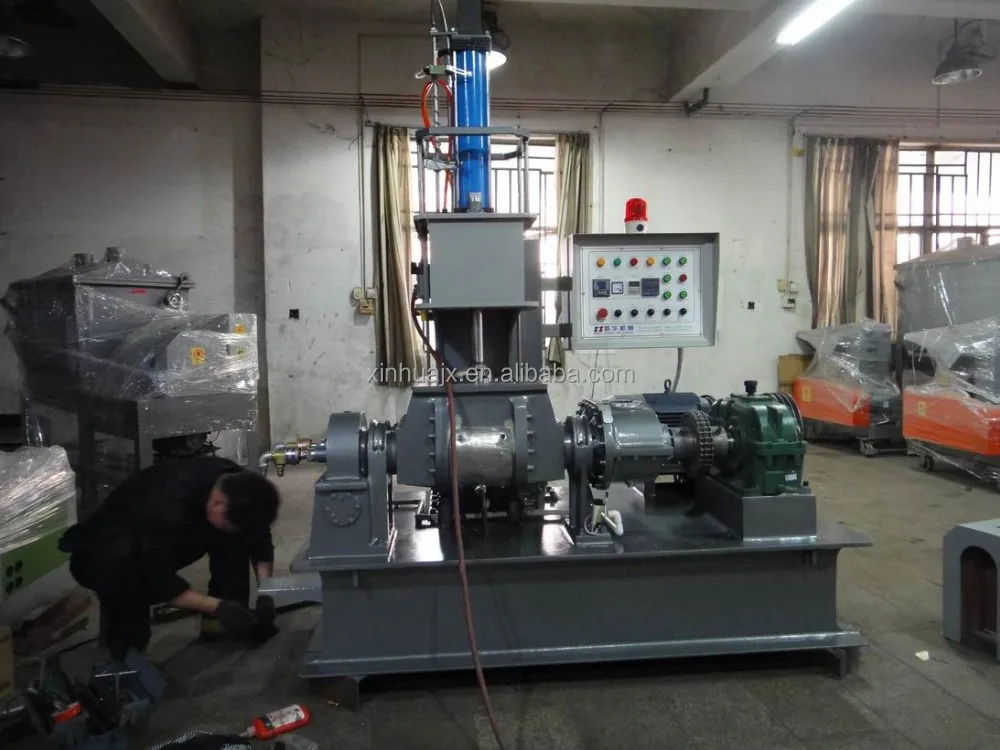

Product Show
Packing & Delivery
Packaging
Size
2*1*2.25
Weight
1.5T
Packaging Details
For the full container, it's usually nude packing. (with pe film)
Wooden packing is also acceptable if request.
Company Show
Certifications
Exhibition
Why Choose Us
1, XINHUA MACHINERY are a customer-oriented enterprise. 2, Professional techinicians can help abroad installation and training. 3, Multiple patents have been obtained. 4, Solutions offered to meet your requirements. 5, 12 months guarantee of the machine can be offered. 6, Soon reply after getting your inquiry.
