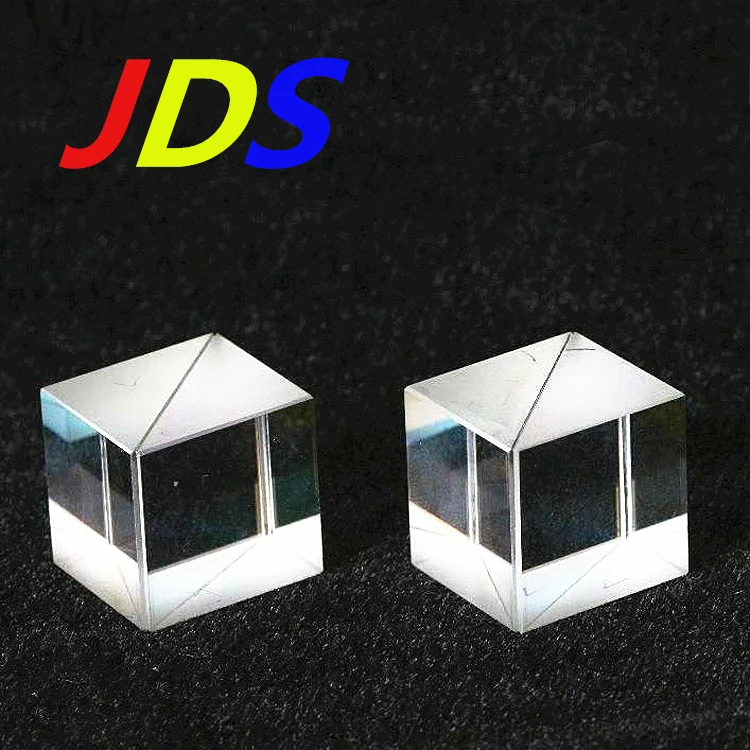

JDS polarization beam splitter cube optic glasses prism, quartz prism
- Category: >>>
- Supplier: Changchun Jds Optics And Laser Co. Ltd.
Share on (60721959485):
Product Overview
Description
Specification
| Prism | Standard or Custom options |
|---|---|
Materials
| MgF2, CaF2, optical crown glass, Infrasil 301, N-BAK1, N-LaK21, N-SF2, N-SF11N-BK7, UV-grade fused silica, Suprasil 1, crystal quartz, N-F2, N-SF10 |
| Dimensions | 1.0mm to 300 mm |
| Coatings |
|
| Typs | Right Angle, Amici, Penta, Schmidt, Wedge, Anamorphic, Equilateral, Dove, or Rhomboid prisms, in addition to Corner Cube Retroreflectors or Light Pipe Homogenizing Rods |
| MOQ | For inventory : 1pcs For customized : 5-10pcs |
| Surface Tolerance | Precision | Laser Quality | High Precision |
|---|---|---|---|
| Surface quality (scratch - dig) | 60-40 , 40-20 | 20-10 | 10-5 |
| Surface roughness (Å, RMS) | 20 | 5 | 2.5 |
| Flat Irregularity, (P-V @ 633 nm before coating) | λ/4 | λ/10 | λ/20 |
| Dimensiona Tolerance | Standard | Precision | High Precision |
| Length & Width (mm) | ± 0.1 | +0.000 / -0.250 | +0.000 / -0.010 |
| Thickness (mm) | ± 0.1 | +0.000 / -0.250 | ± 0.005 |
| Angular deviation | < 3 arc min | ≤ 10 arc sec | ≤ 0.5 arc sec |
| Clear aperture (%) | ≥ 90% | ≥ 95% | ≥ 90% |
Product Application
Optical Prisms ⇒ are used to steer light: routing it to a new location, dispersing its wavelengths, or altering its image. At JDS Optics & Lasers , we have a wide variety of prisms that have been carefully designed and manufactured for use in the most demanding laser applications. Our catalog includes right angle and Porro prisms for retroreflection, and wedge prisms for beam deviation. We also have Pellin Broca, equilateral, and isosceles Brewster prisms for dispersing light, and mounted anamorphic prisms for beam shaping. These prisms are available in a variety of materials to facilitate use at wavelengths from the UV to NIR, even at high power. Optional AR coatings on the entrance and exit faces of many prisms increase overall transmission, while high surface quality reduces scatter.

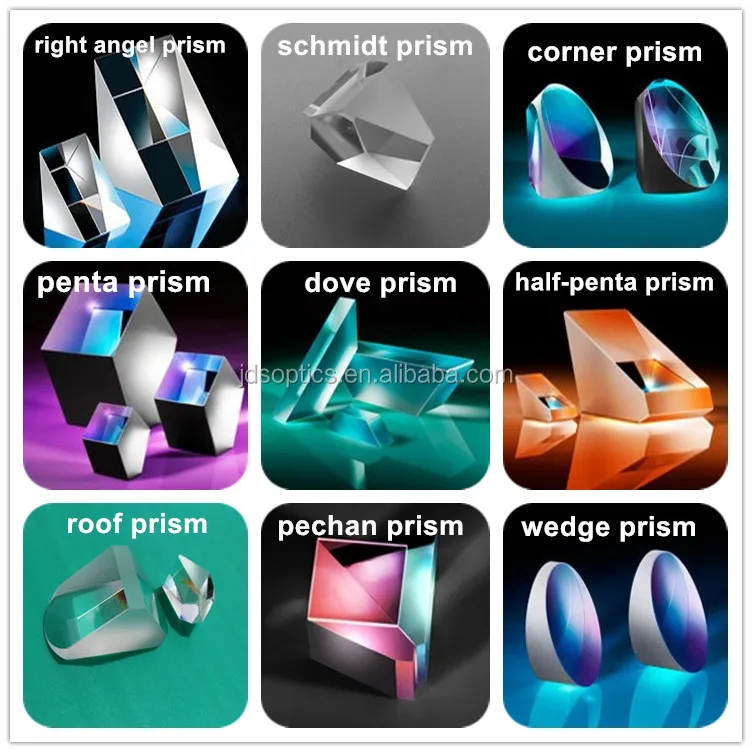

Product type
OEM service
♥ If you need a custom optics developed we can help! ♥
- Our team can evaluate your designs tolerance & performance
- We make your design more feasible & affordable
- 3D models & drawings are created
- All drawings are to ISO standards
- Assistants with sourcing and procurement of optical elements
- We CAN design your optics today!

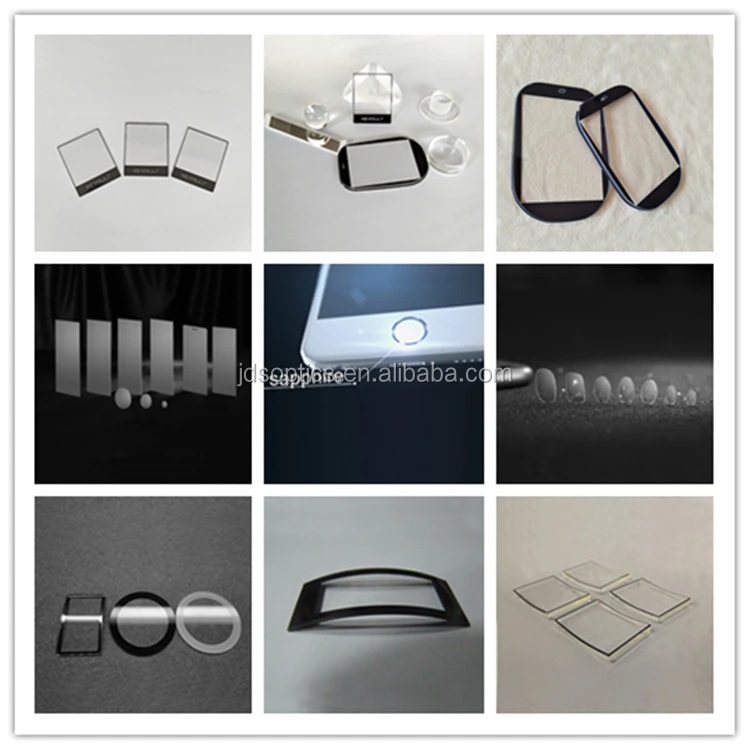

Other products
Quality control
Packaging & Shipping
♥ Why choose us ? ♥
1. Technical and degisn help ⇒
2.Quality ⇒ at JDS Optical and Laser does not stop once an order has been completed. Our technical sales staff are always on hand to offer aftercare for your products and are happy to answer any technical queries you may have. Whatever your requirement, however unusual, we are here to fulfil your needs.
3 .MOQ and Price⇒ usually , for inventory products, the moq is 1pcs, for customzied products , the moq is 5-10pcs, all in a reasonable price .
4.Fast delivery⇒ for inventory products ---1-3days , for customized products --- 7-25days .
5.Convenient express⇒ we will send products by UPS, Fedex, DHL ,TNT,EMS ,SF and so on .
6.Flexible payment method⇒ T/T , Money gram , Western Union , Paypal ,Credit card
