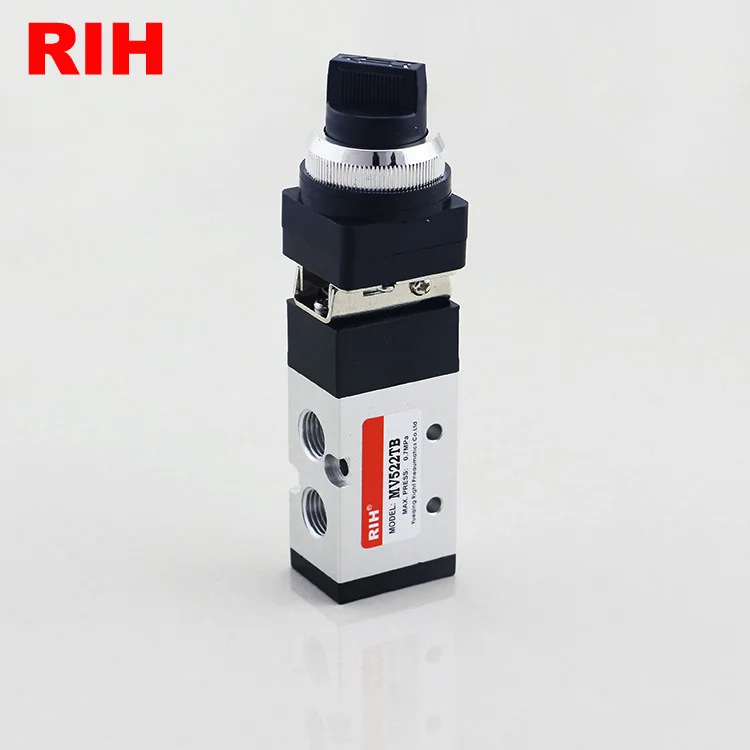

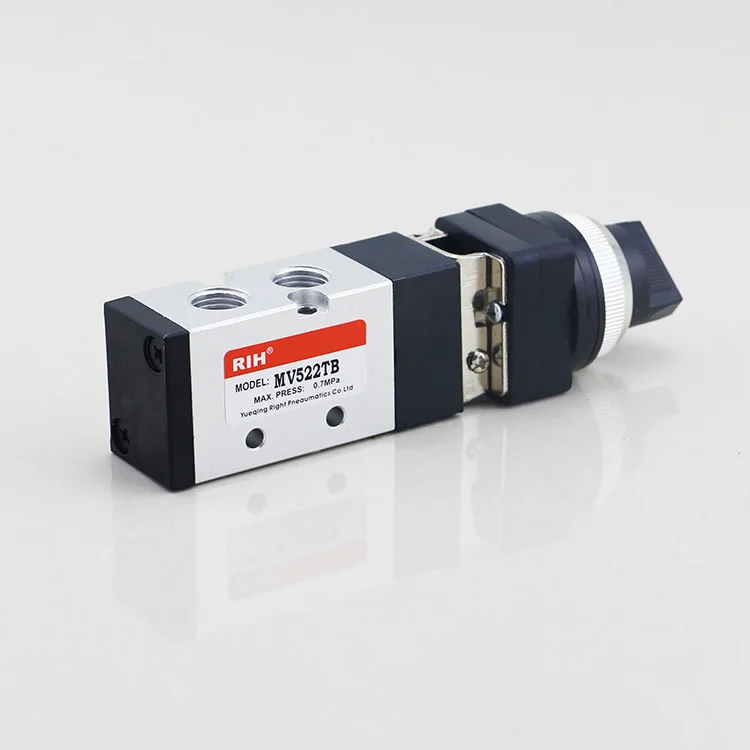

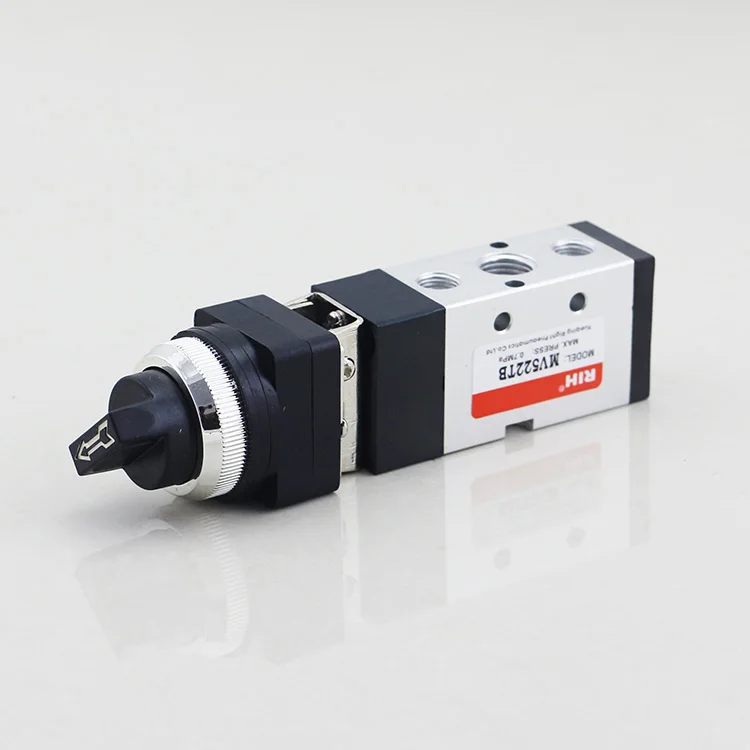

MV322 Series 3/2 Way MV322TB Pneumatic Selector Switch Air Valve Push Button Mechanical Valve
- Category: >>>
- Supplier: Yueqing Rightheight Technology Co. Ltd.
Share on (60722011946):
Product Overview
Description
Banner
Features
Model No. | MV322/R/PP/PPL/PB/EB/TB | ||||||
Working Medium | Clean air(After 40um filteration) | ||||||
Motion Type | Direct acting | ||||||
Port Size | G1/4'' | ||||||
Position No. | 2 Position 3 Port | ||||||
Working Pressure | 0~0.8Mpa(0~114Psi) | ||||||
Working Temperature | -5~60℃(28~114°F) | ||||||
Lubrication | Not required | ||||||
Specification
Model | Thread Size | Working Pressure | Working Temperature | Type |
MV322 | G1/4'' | 0-0.8Mpa | -5~60℃ | Basic |
MV322R | G1/4'' | 0-0.8Mpa | -5~60℃ | Roller |
MV322PP | G1/4'' | 0-0.8Mpa | -5~60℃ | Flat-head push button |
MV322PPL | G1/4'' | 0-0.8Mpa | -5~60℃ | Raised-head push button |
MV322PB | G1/4'' | 0-0.8Mpa | -5~60℃ | Big round push button |
MV322EB | G1/4'' | 0-0.8Mpa | -5~60℃ | With lock push button |
MV322TB | G1/4'' | 0-0.8Mpa | -5~60℃ | Selector push button |
