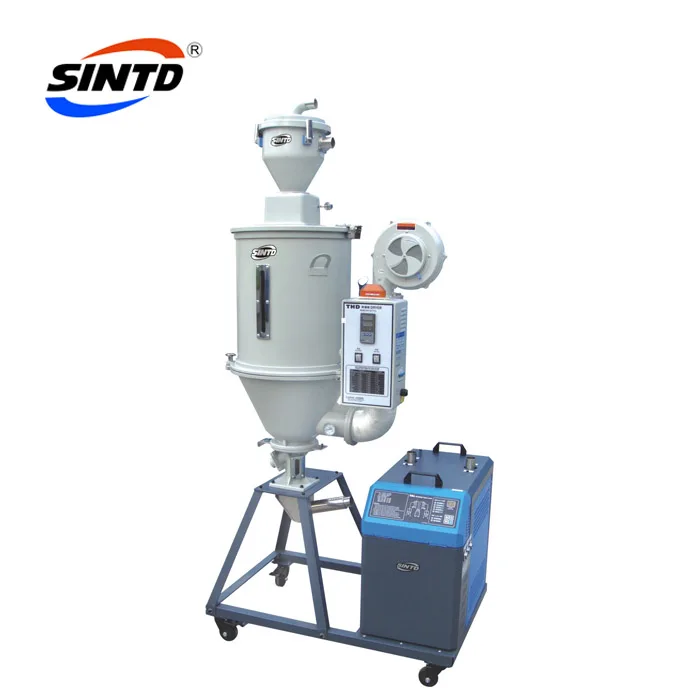

Drying& conveying automatic dryer and loader

Product Overview

Description

New Model Cheap Accurately Drying&Conveying



Introduction:

The TDL series of drying loaders integrate plastic drying and loading injection moulding machine which are placed in height limited workshop.This combination offers a group of standard micro-switch hoppers which can be used to load dryed materials.Besides, TAL-900G is available for choose to realize the two-stage loading function.



Features:

1:Various model for suctomer to choose freely.

2:Takes little space and easy for transportation and replacement.

3:Adopts proportional deviation temp,indicating controller which controls temp,accurataly.

4:Stainless steel hopper ensures no material pollutions.

5:Equips with alarming light to show faults at once.

6:Hopper separated from its base,ensures cleaning conveniently.

7:Evironment protective hot air recycling device can save energy up to 40%,without hot air or dust discharging.

8:A closed loop material loading system to prevent the dryed material from contacting with outside air so to avoid  damping.

9:TDL integrate drying and single loading into one unit, adopts temp. controller to accurately control temp.24-hour timer is available for choose.

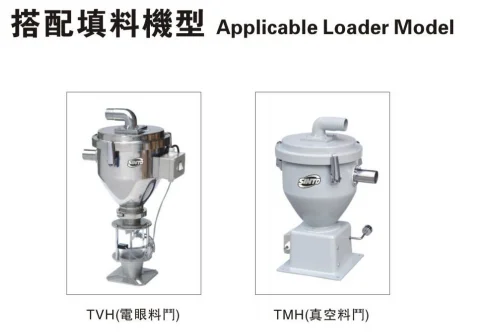

10:Usual base and single tube suction box are standard accessories.

11:Hopper is ready for polishing so to ensure no material pollutions.

12:Hot air recycler,blower inlet filter,air filter,cyclone dust collector,magnetic base hopper magnet.

13:Euro suction box as your options.

14:Can match with TAL-900G to realize the two-stage loading function.





 Specification:

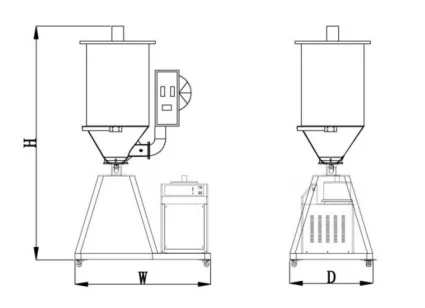

Model	Applicable dryer model	Applicable loader model	Applicable hopper model	Coveying capacity	Hopper volume	Dimesion(mm) H*W*D)	Weight(kg)
TDL-25	THD-25	TAL-700G/800G	1*TVH-6L	300	6	1620*1000*640	95
		TAL-900G	1*TVH-6L 1*TMH-6L	450	2-6
TDL-50	THD-50	TAL-700G/800G	1*TVH-6L	300	6	1750*1000*640	110
		TAL-900G	1*TVH-6L 1*TMH-6L	450	2*6
TDL-75	THD-75	TAL-700G/800G	1*TVH-6L	300	6	1850*1000*640	115
		TAL-900G	1*TVH-6L 1*TMH-6L	450	2*6
TDL-100	THD-100	TAL-700G/800G	1*TVH-6L	300	6	1950*1080*710	155
		TAL-900G	1*TVH-6L 1*TMH-6L	450	2*6
TDL-150	THD-150	TAL-700G/800G	1*TVH-6L	300	6	2200*1080*710	160
		TAL-900G	1*TVH-6L 1*TMH-6L	450	2*6
TDL-200	THD-200	TAL-800G	1*TVH-6L	300	6	2385*1140*840	210
		TAL-900G	1*TVH-6L 1*TMH-6L	450	2*6
TDL-300	THD-300	TAL-800G	1*TVH-6L	300	6	2690*1140*840	285
		TAL-900G	1*TVH-6L 1*TMH-6L	450	2*6
TDL-400	THD-400	TAL-800G2	1*TVH-6L	400	6	2800*1240*1020	285
		TAL-900G2	1*TVH-6L 1*TMH-6L	700	2*6
