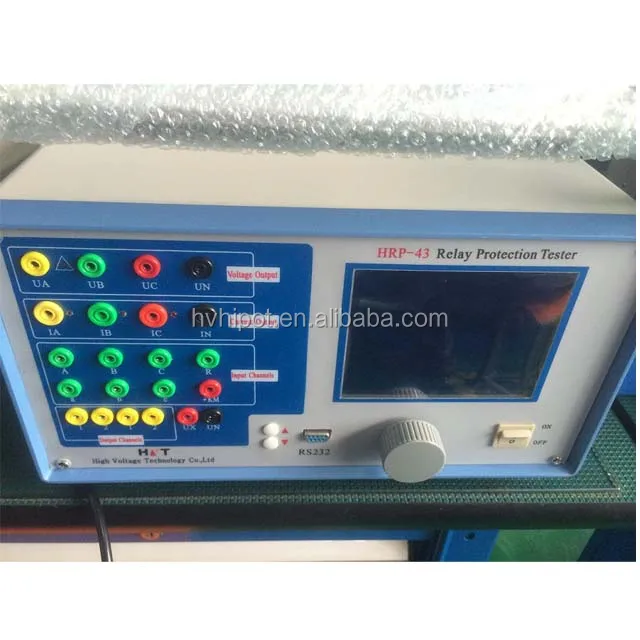

HVHIPOT Relay Protection Test Set HRP 43(Customized)

AC current output

Phase current output (effective value)            0-40A

Phase current max. Output power               420VA

Maximum parallel current output (effective value)  0~120A

Maximum parallel power output                  900VA

Long-term allowable working value of phase current (effective value)  10A

Allowable working time of maximum current           10s

Frequency range(fundamental wave)                              20-1000Hz

Harmonic wave times                                            1-20times

Accuracy                    0.5%

AC voltage output

Phase voltage output (effective value)    0~120V

Line voltage output (effective value)   0~240V

Phase voltage/Line voltage output power       80VA/100VA

Frequency range(fundamental wave)           20-1000Hz

Harmonic wave times                        1-20times

Accuracy            0.5%

DC voltage output

Phase voltage output range       0~±160V

Line voltage output range                                 0~±320V

Phase voltage/Line voltage output power                   70VA/140VA

Accuracy                              0.5%

DC current output

Output range      0- ±10A /phase, 0-±30A / parallel

Maximum output load voltage     20V

Accuracy                0.5%

Binary input (7channels)

Idle contact       1~20mA, 24V (DC)

Electric potential contact “0”:0- +6V;  “1”: +11 V- +250V

Binary output (2pairs)

DC  220V/0.2A

AC   220V/0.5A

Time measurement

Measurement range: 0.1ms-9999s    accuracy 0.1ms

GDJB-802

Appearance and size

400×300×180mm³

Weight of a single machine

22kg

Supply power

AC 220V±10%,50/60Hz

Environmental temperature

-10℃ ~ +50℃
