CNEBIKES 36v 350w electric wheelchair handcycle for disabled people
- Category: Other Electric Bicycle Parts >>>
- Supplier: CNEBIKES,CO.,LTD
Share on:
Product Overview
Description
Product Description
CNEBIKES 36v 350w electric wheelchair handcycle for disabled people
Electric Wheelchair Hnadcycle Product Features
1. Improved arm design,reduce the moving parts,brake more stable.
2. Radius disc brake,front fork is suspension fork,improved the riding comfort and safe.
3. Innova 12½*2.4 tire have a good and grip and abrasive resistance.
4. Adjustable claw, can suitable different diameter frame tube.

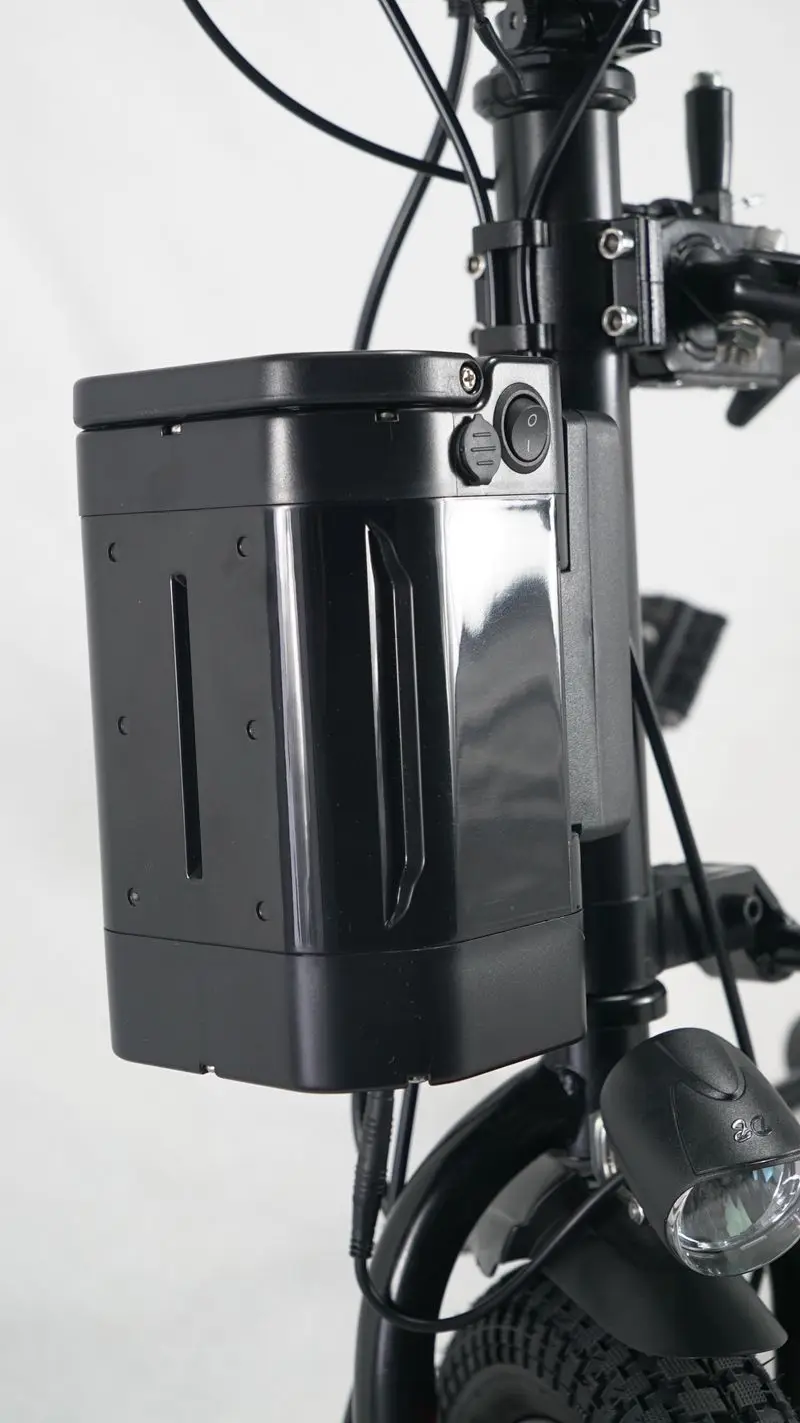

5. 36V 10.4Ah lithium battery,use Panasonic and LG 18650 battery cell,integrate controller. 36V 11.6Ah also available.
6. LCD display, 3 forward gears 1 reverse gear. Top speed is 15 mile/h (24km/h).
7. 34cm length arm, provide big foot space.Adjustable angle handle for people of different heights.
8. Adjustable angle handle for people of different heights.
Technical Parameters
| Frame Material | 6061 Aluminum alloy frame |

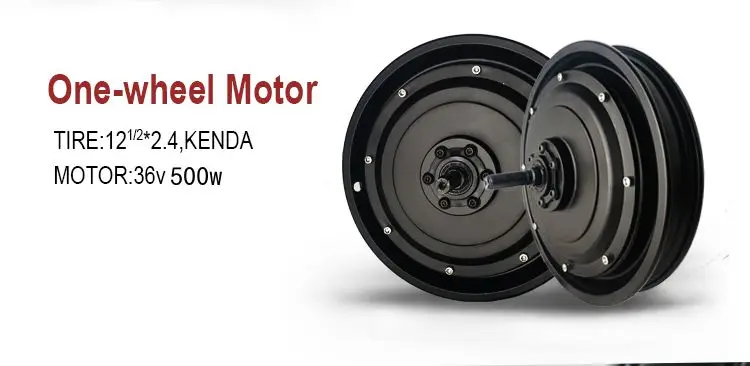

| Motor | 36V 500W in wheel motor |
| Battery | 36V 14ah thunder type (10.4Ah 8.8Ah optional) |
| Controller | Intelligent controller |
| Charger | AC 100V-240V,2amps smart charger |
| Tire | INNOVA 12½*2.4 |
| Speed | 1st-10 mile/h; 2nd-12 mile/h; 3rd-15 mile/h |
| Brake | Disc-brake;Hand brake |

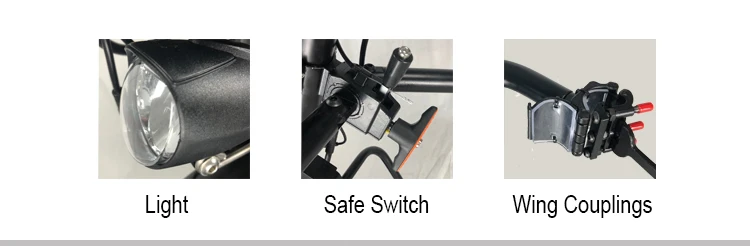

| Light | Front LED light with horn |
| Display | LCD007 display with usb |
| Throttle | Half-twist throttle |
*Before buying, please check whether your wheelchair construction is shuitable our handcycle.Your wheelchair must have frame tube to fix the tongs.
Company Information
Certifications
FAQ
Q:Does your handcycle fit all wheelchair?
A:Our handcycle fit almost all normal wheelchair,it can attach the wheelchair tube with dimension between 18mm~33mm.
Q:How many hours can go per charge?
A:If with 8.8Ah battery,it will go about 1.5 hours per charge.
Q:Can you send me manual or video?
A:Yes,we will send manual together with package,and you can find video on youtube,just write “cnebikes” to search.
Q:Can it be checked at the airline's gate with a mobility impaired customer's wheel chair?
A:Don't worry,This product is in the allowed range.
Q:Is there anyway to limit the speed less than 12km/h?
A:Yes,you can set the limited speed on LCD display.
Q:What is the warranty:
A:Item has one year warranty. Warranty is invalid for natural wearing or any damage due to wrong operation.
Q:Is the lithium battery rechargeable? If so, do I need to purchase a separate battery charger?
A:Yes,It is.You needn't purchase a separate battery charger,it will be sent to you with the battery together
Q:Is the battery type Lithium?
A:Yes,it is.
